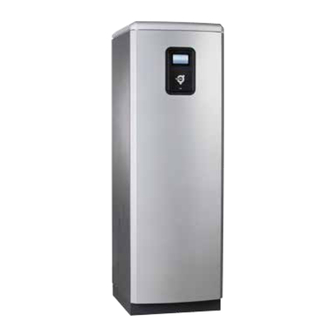

- Page 1 Commissioning Diplomat Inverter/Diplomat Duo Inverter www.thermia.com...
- Page 2 Thermia Värmepumpar is not liable or bound by warranty if these instructions are not adhered to during installation or service. The English language is used for the original instructions. Other languages are a translation of the original instructions. (Directive 2006/42/EC)
-
Page 3: Table Of Contents
Commissioning Diplomat Inverter/Diplomat Duo Inverter Table of Contents About documents and decals ............ -
Page 4: About Documents And Decals
Commissioning Diplomat Inverter/Diplomat Duo Inverter About documents and decals Introduction The following documents are available for this product: ▪ The Installation Quick Guide is an illustrated step-by-step guide on how to install the heat pump. Supplied with the heat pump on delivery. -
Page 5: Symbols On Decals
Commissioning Diplomat Inverter/Diplomat Duo Inverter Symbols on decals The following symbols can occur on decals on the different parts of the heat pump. Which symbols are used depends on the heat pump model. 1.3.1 General Warning, danger! Warning, hot surfaces! Warning, moving parts! Read the documentation provided. -
Page 6: Important Information/Safety Instructions
Commissioning Diplomat Inverter/Diplomat Duo Inverter Important information/Safety instructions General safety precautions This appliance can be used by children aged 8 years and above, and Warning by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved. -
Page 7: Refrigerant
Isolate the power supply to the heat pump while servicing the appli- Caution ance or replacing parts. Only spare parts approved by Thermia Värmepumpar may be used for Caution this appliance. In normal operation the heat pump generates noise and vibrations. -
Page 8: Electrical Connection
Commissioning Diplomat Inverter/Diplomat Duo Inverter Refrigerant vapour is heavier than air, and in enclosed spaces or in areas below the level of the door, for example, seepage can give rise to high concentrations with a resultant risk of suffocation due to lack of oxygen. -
Page 9: Water Quality
Commissioning Diplomat Inverter/Diplomat Duo Inverter The electrical installation must be carried out using permanently rout- Caution ed cables and must follow applicable local and national regulations. It must be possible to isolate the power supply using an all-pole circuit breaker with a minimum contact gap of 3 mm. -
Page 10: Checking Piping And Electrical Installation
Commissioning Diplomat Inverter/Diplomat Duo Inverter Checking piping and electrical installation Checking piping installation During transportation and installation there is a risk that the heat pump may be damaged and components may move or become bent, and this can cause abnormal noise. It is therefore important to check that the heat pump is free from defects after installation and before commissioning. - Page 11 Commissioning Diplomat Inverter/Diplomat Duo Inverter Fuse table Heat pump + Immersion heater Immersion heater only 400V Unit Heat pump 3 kW 6 kW 9 kW 3 kW 6 kW 9 kW 400V, 3N~, 5-17 kW 400V, 3N~, 3-12 kW Heat pump + Immersion heater...
-
Page 12: Filling And Bleeding
Commissioning Diplomat Inverter/Diplomat Duo Inverter Filling and bleeding Filling and bleeding the water heater and heating system The pressure in the heating system must never exceed 3 bar. Caution Bleed the system thoroughly! Leave all radiator valves fully open. 1. Turn off heating system circulation pump and external circulation pump. - Page 13 Commissioning Diplomat Inverter/Diplomat Duo Inverter 4.2.2 Filling Shut-off valve Filling device Safety valve Brine in Brine out Shut-off valve (part of 94) Shut-off valve (part of 94) Dirt strainer with shut off valve (part of 94) External container External pump 1.
-
Page 14: Configuration Of Control System
Commissioning Diplomat Inverter/Diplomat Duo Inverter Configuration of control system Display description Start screen The screen which appears when the system is up and running. Here you can also carry out comfort adjustment: 1. Drag clockwise or anticlockwise to raise or lower the offset. -
Page 15: Select Display Language
Commissioning Diplomat Inverter/Diplomat Duo Inverter Select display language 1. Press in the upper left corner of the Start screen 2. Press 3. Press on the text Language. 4. Select language. 5. Press to return to System settings. Or press in the upper left corner to return to the Menu screen. -
Page 16: Adjusting The Indoor Temperature
Commissioning Diplomat Inverter/Diplomat Duo Inverter Adjusting the indoor temperature Comfort adjustment, to change temperature On the start screen, "comfort adjustment" of the indoor temperature may be done very easily. Press , alternatively drag clockwise or anticlockwise to raise or lower the temperature. -
Page 17: Default Heating Settings
Network connection, Online Thermia Online The heat pump is factory prepared for monitoring (and as an additional service being operated) remotely via internet. (Thermia Online) In order to use the Thermia Online service: ▪ Make sure that there is an available internet connection (router or equivalent) in the building ▪... -
Page 18: How To Set Up Additional Accessories, Functions Etc
Commissioning Diplomat Inverter/Diplomat Duo Inverter Menu settings If more than one heat pump is installed, network settings must be en- tered in every one of the units. Contact your network administrator if settings in a router or other net- work equipment is required. -
Page 19: Activate / Deactivate Functions
Commissioning Diplomat Inverter/Diplomat Duo Inverter 5.11 Activate / deactivate functions Functions not activated/enabled from factory must be enabled and activated in the control system before they can be used. Below is an example where the Distribution Circuit function is deactivated. -
Page 20: Manual Test
Commissioning Diplomat Inverter/Diplomat Duo Inverter Manual test The installation may only be commissioned if the heating system and Caution water heater have been filled and bled. Otherwise the circulation pumps and auxiliary heating, if installed, may become damaged. Any alarms that may occur in connection with the commissioning Caution must be fault-traced. - Page 21 Commissioning Diplomat Inverter/Diplomat Duo Inverter The tests must first be enabled and then activated. The pump tests (brine pump and circulation pump) can be carried out in any order. The test cases in the table below are available in MANUAL TEST.
- Page 22 Commissioning Diplomat Inverter/Diplomat Duo Inverter 6.1.1 Testing the circulation pump (HP) 1. Enable the circulation pump by pressing (manual enable). 2. Start the circulation pump by pressing (on/off). 3. Check that the circulation pump is running by: ▪ listening ▪ placing a hand on the pump ▪...
- Page 23 Commissioning Diplomat Inverter/Diplomat Duo Inverter 6.1.3 Testing the compressor 1. Enable the compressor by pressing (manual enable). 2. Set compressor gear. 3. Check that there is no abnormal noise. 4. Check that the pressure pipe becomes hot. 5. Stop the compressor by pressing (manual enable).
-
Page 24: Starting And Tuning The System
Commissioning Diplomat Inverter/Diplomat Duo Inverter Starting and tuning the system Selecting operating mode The heat pump has a starting time of about 5 - 10 minutes. The delay does not apply to the auxiliary operating mode. Set the heat pump to the desired operating mode in the menu: 1. - Page 25 Commissioning Diplomat Inverter/Diplomat Duo Inverter Symbol Description Operating mode Auxiliary heater + service. External functions are on. Immersion heater enabled and activated. In this mode the heat pump (compressor) is disabled, but the unit can produce heating and hot water with the internal immersion heater (and/or external auxiliary heater if activated).
-
Page 26: System Information
Commissioning Diplomat Inverter/Diplomat Duo Inverter System information Check applicable operating data described in the tables below. The information can be found in the sub-menu System information Select System information on the Menu screen: 1. Press on the Start screen to open the Menu screen. -
Page 27: Completed Commissioning
Commissioning Diplomat Inverter/Diplomat Duo Inverter Circulation pump settings (max/min) speeds can be adjusted in the control system. Completed commissioning When the commissioning is completed, the control system must be set to end user mode: Press and then to exit the commissioning mode. -
Page 28: Installation Protocol And Customer Information
Commissioning Diplomat Inverter/Diplomat Duo Inverter Installation protocol and customer information After installation and test operation, the customer must be informed about their new heat pump installation. In the User guide there is a checklist regarding the information that the installer must give the customer. - Page 29 Commissioning Diplomat Inverter/Diplomat Duo Inverter Thermia Värmepumpar VIILM302...
- Page 30 Commissioning Diplomat Inverter/Diplomat Duo Inverter VIILM302 Thermia Värmepumpar...
- Page 31 Commissioning Diplomat Inverter/Diplomat Duo Inverter Thermia Värmepumpar VIILM302...
- Page 32 All trademarks in this material are property of the respective companies. Thermia Värmepumpar and the Thermia Värmepumpar logotype are trademarks of Danfoss A/S. All rights reserved.
