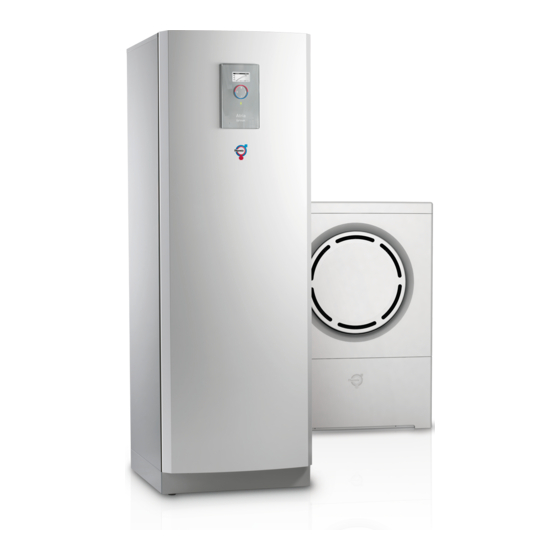

Installation Guide Domestic heat pumps Atria Optimum Atria Duo Optimum Comfort Optimum Diplomat Diplomat Duo Diplomat Duo Optimum Diplomat Duo Optimum G2/G3 Diplomat Optimum Diplomat Optimum G2/G3 www.thermia.com...
Page 2
Thermia Värmepumpar is not liable or bound by warranty if these instructions are not adhered to during installation or service. The English language is used for the original instructions. Other languages are a translation of the original instructions. (Directive 2006/42/EC)
Information regarding making the handling of the installation easier or a possible operational technical disad- vantage. Symbols on decals The following symbols can occur on decals on the different parts of the heat pump. Which symbols are used depends on the heat pump model. VMGFP202 Thermia Värmepumpar...
Page 5
Component, accessorie according to proposed system sol- Shunt valve utions Room sensor 1.3.3 Pipe connections Tap water Heating system Brine system Defrosting tank Expansion tank with safety valve, brine Air bleeding Temperature and pressure relief valve Outdoor unit Water heater Thermia Värmepumpar VMGFP202...
To prevent leaks, ensure that there are no stresses in the connecting pipes! Caution Caution It is important that the heating system is bled after installation. Bleed valves must be installed where necessary. Caution The hot water tank must be equipped with an approved safety valve. Caution VMGFP202 Thermia Värmepumpar...
Risk of personal injury! Refrigerant exposed to a naked flame creates a poisonous irritating gas. This gas can Warning be detected by its odour even at concentrations below its permitted levels. Evacuate the area until it has been sufficiently ventilated. Thermia Värmepumpar VMGFP202...
Draining and refilling must only be carried out using new refrigerant (for the amount and type of refrigerant see manufacturer’s plate) through the service valves. All warranties from Thermia are void if, when filling with refrigerant other than Thermia Värme AB specified Caution refrigerant, if there has not been written notification that the new refrigerant is an approved replacement re- frigerant together with other remedies.
If the installation is only to be driven by the immersion heater during the installation, ensure that the heating Caution system is filled and the brine pump and compressor cannot be started. This is carried out by setting the oper- ating mode to AUX. HEATER. Thermia Värmepumpar VMGFP202...
Expansion and bleed tank or Expansion vessel with manometer Rubber bellows for 22-28 mm hole Rubber hose R20 L=550 Rubber hose R25 L=550 Filling device DN25 Filling device DN32 Dirt strainer with shut off valve DN20 Dirt strainer with shut off valve DN25 Manual holder VMGFP202 Thermia Värmepumpar...
The heat pump must not be enclosed as the temperature inside the cabinet becomes extremely high. Caution To facilitate the fitting, installation and subsequent testing and maintenance there must be sufficient free space around the heat pump in accordance with the following dimensions: 300 mm 10 mm 600 mm Thermia Värmepumpar VMGFP202...
The outdoor unit must be positioned on a secure base such as wooden sleepers, paving slabs or cast footings. Caution The outdoor unit does not have to be positioned in any specific direction. Position the outdoor unit to reduce noise disturbance in your own home as well as to any neighbours. VMGFP202 Thermia Värmepumpar...
Page 13
The heat cable must be connected to the terminal provided and is necessary to prevent ice blockage. Check with a spirit level that the outdoor unit is installed horizontally. Caution Thermia Värmepumpar VMGFP202...
Page 14
▪ Pipe insulation (2 pieces) 3.4.5 Lifting instructions To lift the outdoor unit into position, unscrew the side plates by slackening off the screws (1). Then use the side members behind the side panels to lift and position the unit. VMGFP202 Thermia Värmepumpar...
Hot water line, 22 mm Cold water line, 22 mm Lead-in for supply, sensor and communication cables The brine pipes can be connected on either the left or right- hand side of the heat pump. 40 ±10 VMGFP202 Thermia Värmepumpar...
Page 17
Supply line to water heater, 22 Cu (Only applies to Dip- lomat Duo Optimum G2/G3) Return line from water heater, 22 (flexible hose) The brine lines (1), (2) and return line water heater (7) can be connected on either the left or right-hand sides. 40 ±10 Thermia Värmepumpar VMGFP202...
Page 18
Installation Guide Domestic heat pumps Atria Optimum Brine in, 28 Cu Brine out, 28 Cu Lead-in for supply, sensor and communication cables Heating system supply pipe, 22 Cu: 6-10 kW, 28 Cu: 12 Heating system return pipe, 22 Cu: 6-10 kW, 28 Cu: 12...
Page 19
Lead-in power and sensor lead Supply to water heater coil Expansion brine circuit Lead-in sensor lead The brine pipes can be connected on either the left or right-hand sides of the heat pump. Outdoor unit Atria Optimum Position Description 6-12 kW Width...
The connecting pipe between the expansion tank and the safety valve must slope continuously upwards. A Warning continuous upwards slope means that the pipe must not slope downwards from the horizontal at any point. Connection heating and hot water VMGFP202 Thermia Värmepumpar...
Page 21
For system solution 1, select the factory setting in menu SERVICE\AUX. HEATER\EXTERNAL ADDITION: ▪ EXTERNAL AUX. HEATER = 0 (Off) ▪ REV.V. HOT WATER = INT Example system solution 1 System solution for Diplomat, Diplomat Optimum, Diplomat Optimum G2/G3, Comfort Optimum, Atria Optimum. Heat pump Supply line Return line...
Page 22
Hot water Hot water tank Shut-off valve Non-return valve Safety valve expansion heating system Safety valve cold water 9 bar Vacuum valve Dirt strainer with shut off valve Flexible hose Expansion heating system Safety valve 2,5 bar VMGFP202 Thermia Värmepumpar...
Page 23
Hot water Hot water tank Shut-off valve Non-return valve Safety valve expansion heating system Safety valve cold water 9 bar Vacuum valve Dirt strainer with shut off valve Flexible hose Expansion heating system Safety valve 2,5 bar Thermia Värmepumpar VMGFP202...
Page 24
A2 and A3 are used to select if the external auxiliary heater is to step in before or after the integrated immersion heater. The heat pump control computer also controls an additional shunt located after the external addition. For system solution 2, select in menu SERVICE\AUX. HEATER\EXTERNAL ADDITION: ▪ EXT.AUX.HEATER = ON ▪ REV.V. HOT WATER = INT VMGFP202 Thermia Värmepumpar...
Page 25
Installation Guide Domestic heat pumps Example system solution 2 System solution for Diplomat, Diplomat Optimum, Diplomat Optimum G2/G3, Comfort Optimum, Atria Optimum. Heat pump Supply line Return line Cold water Hot water Circulation pump Supply line sensor, moved out from heat pump...
Page 26
Shunt valve Shut-off valve Non-return valve Safety valve expansion heating system Safety valve cold water 9 bar Vacuum valve Dirt strainer with shut off valve Flexible hose Expansion heating system External auxiliary heater Safety valve 2,5 bar VMGFP202 Thermia Värmepumpar...
Page 27
Shunt valve Shut-off valve Non-return valve Safety valve expansion heating system Safety valve cold water 9 bar Vacuum valve Dirt strainer with shut off valve Flexible hose Expansion heating system External auxiliary heater Safety valve 2,5 bar Thermia Värmepumpar VMGFP202...
Page 28
A3 are used to select if the external auxiliary heater is to step in before or after the integrated immersion heater. The heat pump control computer also controls an additional shunt located after the external addition. For system solution 3, select in menu SERVICE\AUX. HEATER\EXTERNAL ADDITION: ▪ EXT.AUX.HEATER = ON ▪ REV.V. HOT WATER = EXT VMGFP202 Thermia Värmepumpar...
Page 29
Installation Guide Domestic heat pumps Example system solution 3 System solution for Diplomat, Diplomat Optimum, Comfort Optimum, Atria Optimum. Heat pump Supply line Return line Cold water Hot water Circulation pump Supply line sensor, moved out from heat pump Shunt valve...
Page 30
Reversing valve Shut-off valve Non-return valve Safety valve expansion heating system Safety valve cold water 9 bar Vacuum valve Dirt strainer with shut off valve Flexible hose Expansion heating system External auxiliary heater Safety valve 2,5 bar VMGFP202 Thermia Värmepumpar...
2. Connect the return pipe with a flexible hose connection and with all the necessary components including a filter. 3. Insulate the supply and return lines. 4. Connect the bleed valve to the outlet (22mm Cu) on the top of the heat pump. Connection brine Thermia Värmepumpar VMGFP202...
Page 32
Dirt strainer with shut off valve (part of 94) Connection brine Comfort Shut-off valve Filling device Safety valve Bleed and expansion tank Brine in Brine out Shut-off valve (part of 94) Shut-off valve (part of 94) Dirt strainer with shut off valve (part of 94) VMGFP202 Thermia Värmepumpar...
Page 33
Installation Guide Domestic heat pumps Connection outdoor unit to Atria Optimum and Atria Duo Op- timum Outdoor unit Expansion vessel Shut-off valve Brine in Manometer Brine out Air bleeding valve Shut-off valve (part of 94) Filling device Shut-off valve (part of 94)
Page 34
5.3.3 Install brine pipes When the brine lines are connected to the right for Atria Optimum, the brine out line must be routed over the Caution brine pump, under the compressor’s vacuum pipe and under the condenser’s flexible hose, see figure below.
Page 35
The maximum lengths in the table below are based on ethylene glycol (which is mixed to anti-freeze protection down to -32 ±1°C). Atria Optimum and Atria Duo Ext. avail.
Calculated maximum length of collectors (m) Size (kW) 1 collector 2 collectors 3 collectors 4 collectors <390 <2 x 425 <300 <2 x 325 <270 <2 x 395 <190 <2 x 350 <70 <2 x 175 <3 x 183 4 x 197 VMGFP202 Thermia Värmepumpar...
Page 37
Calculated maximum length of collectors (m) mat Duo Optimum G2/G3 Size (kW) 1 collector 2 collectors 3 collectors 4 collectors >1000 <2 x 500 295** <2 x 500 <3 x 500 195** <2 x 470 <3 x 500 <4 x 475 Thermia Värmepumpar VMGFP202...
This also applies to the expansion pipe. We recommend that flexible hoses are used for all pipe connections to avoid the trans- mission of vibrations. Flexible hoses are available to purchase as accessories. The figures below show how appropriate and inappropriate installations look using this type of hose. VMGFP202 Thermia Värmepumpar...
3 mm. (The maximum load for externally connected units is 2A). Electrical components Terminal block (applies to the expansion card) Terminal block (applies to Atria Optimum and Atria Duo Optimum) Defrost card (applies to Atria Optimum and Atria Duo Optimum)
2. Connect the sensor to the heat pump’s control system. Connect outdoor unit Connect the outdoor unit for Atria Optimum and Atria Duo Optimum Caution The power cable may only be connected to the terminal block intended for this purpose. No other terminal...
2. Mount the correct component plug in position R3 in the terminal block. 0-10V Connect temperature sensor hot water Sensor for hot water and hot water peak from external water heater is connected in the following way to Diplomat Duo. Hot water sensor Hot water top sensor Thermia Värmepumpar VMGFP202...
I/O-card, output for 3 kW, connected and fused with 086U9685 Additional shunt Terminal block, 215/216 Internal exchange valve I/O-card, 214 (normal connection) For Atria Optimum Atria Duo Optimum, the electrical connection for system solution 2 must be carried out according to the following table: Component Connection Internal immersion heater...
Page 45
Additional shunt Terminal block, 215/216 External exchange valve I/O-card, 214 kW, connected and fused with 086U9685 For Atria Optimum Atria Duo Optimum, the electrical connection for system solution 3 must be carried out according to the following table: Component Connection...
The control system is operated using a keypad and information is shown in a display and by an indicator. The information in the display and menus will vary depending heat pump model and connected accessories. Keypad ROOM 20°C Indicator NO HEAT DEMAND Display OPERAT. AUTO VMGFP202 Thermia Värmepumpar...
Maximum calculated setpoint value of the supply temperature. 55°C(for under floor heating 45°C)(range: 40°C / 85°C) Local increase or reduction of CURVE at an outdoor temperature of +5°C. Shown in the 0°C(range: -5°C / CURVE +5 graph for CURVE. 5°C) Thermia Värmepumpar VMGFP202...
Shows the actual supply temperature. The calculated supply temperature to the heating SUPPLY LINE system group is within brackets. During hot water production in operating mode AUX. HEATER the value for HOT WATER STOP + 10° is shown within brackets. VMGFP202 Thermia Värmepumpar...
Used to change the angle of the defrost curve using + or– (Change the start temperature -10°C(range: DEFROST CURVE for defrost). -13°C / -7°C) Used to perform a manual defrost. Started using + or -. 0(range: 0 / 1) MANUAL DEFR Sub-menu LANGUAGE Menu selection SVENSKA ENGLISH DEUTSCH NEDERLANDS FRANÇAIS Thermia Värmepumpar VMGFP202...
Page 50
Installation Guide Domestic heat pumps Menu selection ESPAÑOL ITALIANO NORSK DANSK SUOMI EESTI POLSKI ČEŠTINA VMGFP202 Thermia Värmepumpar...
A1 (the heat pump 15°C) starts) or the value is set to 0 (stops the heat pump). Stop temperature at high return from the heating system. 55°C(range: MAX RETURN 30°C / 70°C) Thermia Värmepumpar VMGFP202...
(Determines whether the external auxiliary heater may produce hot wa- ter.) Indicates whether the external auxiliary heater can be used for anti-legionella. The ex- TOPH. AUX / ON change valve must be positioned after the external auxiliary heater. VMGFP202 Thermia Värmepumpar...
FACTORY SET RADIATOR = reset factory settings for radiator system FLOOR = reset factory settings for under floor heating 0 = no reset of operating times RESET OPER. TIME 1 = reset of operating times to zero VMGFP202 Thermia Värmepumpar...
Page 55
The brine pump starts the set number of seconds before the compressor. Applies at start of heat pump. (range: 10S / 90S) The brine pump stops the set number of seconds after the compressor. Applies at stop of BRINE TIME OFF heat pump. (range: 10S / 60S) Thermia Värmepumpar VMGFP202...
PHASE FAULT , PHASE READING) Sub-menu DEFROST The menu applies to Atria Optimum and Atria Duo Optimum with defrost card and only appears if OUTDOOR AIR in SERVICE -> INSTAL- LATION -> SYSTEM -> HEAT SOURCE menu is selected. Menu selection...
Highest supply temperature during water heating. 55°C(range: MAX H.W CHARGE HW 45°C / 65°C) Lowest desired supply temperature during water heating. 50°C(range: MIN CHARGE. HW 30°C / 65°C) Thermia Värmepumpar VMGFP202...
How long the plus or minus signal to the shunt is to be high when the HGW integral has 0.25S(range: PULSE WIDTH been reached. 0.20S / 1.00S) VMGFP202 Thermia Värmepumpar...
Further information about parameters in the control system are described in the Information menu and the Service menu chapters. The system solutions are described in the System solution chapter. 10.2.1 Default settings If necessary; change language. 1. In the INFORMATION ->LANGUAGE menu. Select language with + or - Thermia Värmepumpar VMGFP202...
6. Bleed all heating systems and the water heater coil. 7. Refill the heating system to a pressure of approximately 1 bar. 8. Repeat the procedure until all air has been removed. 9. Check the system for leakage. 10. Leave the radiator valves fully open. VMGFP202 Thermia Värmepumpar...
Caution the brine pump. Caution Before filling the brine system for Atria Optimum Atria Duo Optimum the water heater MUST be filled. Always check local rules and regulations before using anti-freeze. Caution Anti-freeze with corrosion protection additives must be used and mixed to achieve frost protection down to -17 ±2°C for Diplomat, Diplomat Duo and Comfort Optimum.
Page 62
10.4.3 Calculate volume for brine between the indoor and outdoor unit For Atria Optimum Atria Duo Optimum the volume of the brine system is calculated as follows: ▪ Heat pump (exchanger, pipe and outer jacket) approximately 47 litres ▪ Expansion vessel approximately 3 litres ▪...
Page 63
Filling device Safety valve Bleed and expansion tank Expansion vessel Brine in Brine out Shut-off valve (part of 94) Shut-off valve (part of 94) Dirt strainer with shut off valve (part of 94) External container External pump Thermia Värmepumpar VMGFP202...
Page 64
3. Diplomat, Diplomat Duo, Comfort Optimum, check that the freezing point of the mixture is reached using a refractometer, -17±2°C 4. Atria Optimum and Atria Duo Optimum check that the freezing point of the mixture is reached using a refractometer, -32±1°C 5.
Page 65
Domestic heat pumps 15. Atria Optimum Atria Duo Optimum bleed the expansion vessel through the bleed screw until fluid appears. Bleed also the outdoor unit using the bleed screw on the connection pipe. The side covers of the outdoor unit must be removed to access the bleed screws.
21. Stop the external pump (E) and disconnect the filling equipment. 22. For Atria Optimum and Atria Duo Optimum; Open the defroster shunt in the control computer menu SERVICE -> MANUAL TEST -> SHUNT DEFR, set the value to - (minus), wait 2 min then put back the shunt motor on the shunt valve. Close the defroster shunt in the control computer menu, set the value to 0.
Page 67
Shunt valve (HGW) 1. Activate the shunt valve by setting the parameter HGW-SHUNT to + (plus). 2. Check that the wheel on the shunt valve is turning. 3. Stop the test by setting the parameter HGW-SHUNT to 0. Thermia Värmepumpar VMGFP202...
Page 68
5. If the pipe does not get hot, or if the compressor sounds abnormal, perform fault tracing according to the service instructions. 6. Stop the compressor by setting the parameter HEAT PUMP to 0. 7. Stop the circulation pump by setting the parameter CIRC.PUMP to 0. VMGFP202 Thermia Värmepumpar...
10.5.8 Test the outdoor unit Test the Atria Optimum and Atria Duo Optimum outdoor unit The defroster shunt motor has 120 sec running time end to end. 1. Start the defroster shunt by setting the parameter SHUNT DEFR to -(minus). Check that the shunt motor is working.
While doing this, also check that there is no abnormal noise in other parts of the house. Atria Optimum and Atria Duo Optimum; noise is coming from the outdoor unit when the fan is in operation, check during manual opera- tion that there is no disturbance in your own home as well as none caused to any neighbours 10.6.4...
The serial number must always be given for warranty matters. The serial number is on the type plate, which is attached to the heat pump and control unit. Thermia Värmepumpar VMGFP202...
