GIGAIPC QBiX-Pro-APLB4200H-A1 Quick Start Manual

Industrial embedded system
Hide thumbs
Table of Contents

Advertisement

Quick Links

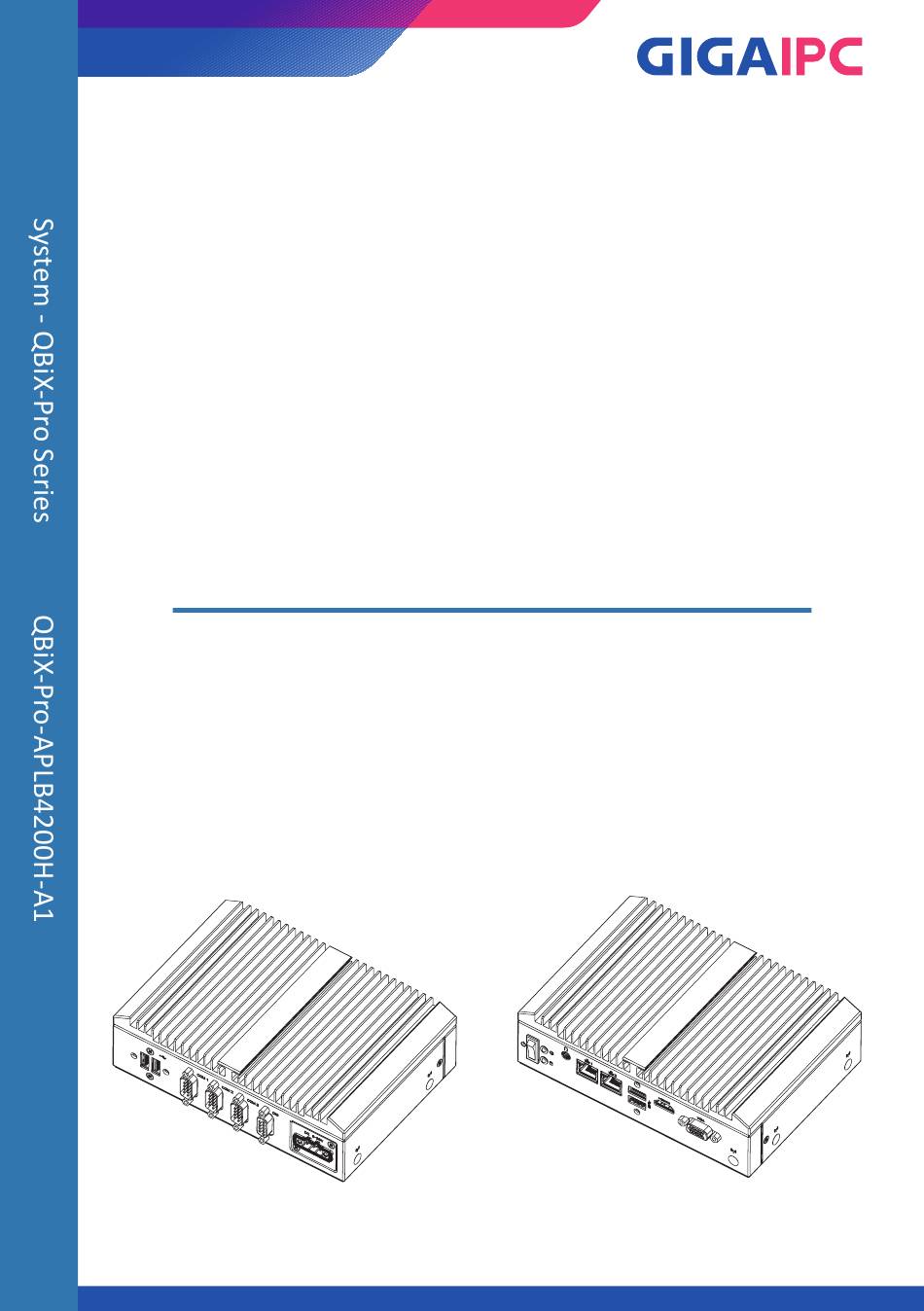

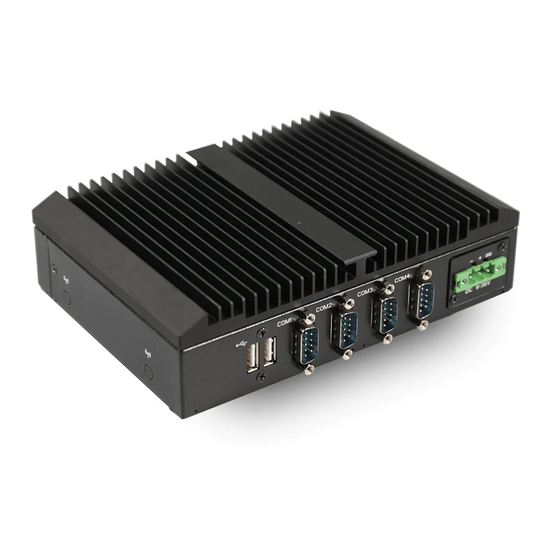

QBiX-Pro-APLB4200H-A1

QBiX-Pro Industrial Embedded System

Quick Start Guide

1
www.gigaipc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QBiX-Pro-APLB4200H-A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GIGAIPC QBiX-Pro-APLB4200H-A1

Summary of Contents for GIGAIPC QBiX-Pro-APLB4200H-A1

  • Page 1: Qbix-Pro Industrial Embedded System

    QBiX-Pro-APLB4200H-A1 QBiX-Pro Industrial Embedded System Quick Start Guide www.gigaipc.com...

  • Page 2: Copyright Notice

    While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein.

  • Page 3: Acknowledgement

    Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com...

  • Page 4: Packing List

    VESA screw, M4-10L x 4pcs, M3-3L x 2pcs HDD screw, M3 x 8L FPC SATA Cable Exsiccator (10g) Thermal pad for HDD If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com...

  • Page 5: About This Document

    (if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com...

  • Page 6: Safety Precautions

    Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com...
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...

  • Page 8: Fcc Statement

    Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com...

  • Page 9: Table Of Contents

    Safety Precautions ............... 6 FCC Statement ................8 Chapter 1 - Product Specifications Specifications ............... 15 Chapter 2 – QBiX-Pro-APLB4200H-A1 Industrial Embedded System Kit Dimension ..............18 Getting Familiar with Your Unit........19 A) Wireless Module: How to safely install the Module (Wireless Module inclusion may vary based on local distribution) ..............
  • Page 10 JRS11-JRS14 (RS11-14 select jumper for serial port) ..37 3.2.8 AT_CN (AT/ATX power mode select jumper) ....38 3.2.9 LSW (LVDS resolution jumper) ........39 3.2.10 LVDS (LVDS connector) ..........40 3.2.11 BKL_CN (Back light brightness control connector) ..41 3.2.12 BUZZER ................42 www.gigaipc.com...
  • Page 11 ................55 4.2.1.1 TPM20 Device Found ............ 56 Security Device Support ..........56 4.2.2 IT8768 Super IO Configuration ........57 4.2.2.1 Serial Port Configuration ..........58 4.2.3 Hardware Monitor Menu ..........60 4.2.4 S5 RTC Wake Settings Menu ......... 61 www.gigaipc.com...
  • Page 12 4.2.6 SATA Configuration ............63 4.2.7 OS Selection ..............64 Chipset Menu ..............65 Security Menu ............... 67 4.4.1 Secure Boot menu ............68 4.4.2 Key Management ............70 Boot Menu ..............72 Save & Exit Menu ............73 www.gigaipc.com...

  • Page 13: Chapter 1 - Product Specifications

    Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com...
  • Page 14 www.gigaipc.com...

  • Page 15: Specifications

    Specifications System QBiX-Pro-APLB4200H-A1 Dimension 178W x 125D x 52.7H (mm) Intel® Pentium® Processor N4200, 14nm, 4 cores, 4 threads, up to 2.5 GHz, TDP 6W Chipset 2 x DDR3L SO-DIMM sockets, Memory Max. Capacity 8 GB, Support Dual Channel DDR3L 1866 MHz Ethernet 2 x GbE LAN ports (Intel®...
  • Page 16 System QBiX-Pro-APLB4200H-A1 Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr Vibration During / Per Axis, With SSD/M.2 2242 Operation Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/ min, 1 hr / Per Axis...

  • Page 17: Chapter 2 - Qbix-Pro-Aplb4200H-A1 Industrial Embedded System Kit

    Chapter 2 Chapter 2 – QBiX-Pro-APLB4200H-A1 Industrial Embedded System Kit www.gigaipc.com...

  • Page 18: Dimension

    Dimension www.gigaipc.com...

  • Page 19: Getting Familiar With Your Unit

    2 x RJ45 LAN port DIN Rail Mount 1 x Headphone HDD LED [Rear Side] [Right Side] 2 x USB2.0 1 x COM header (RS422/485/232, 2 x Antenna (optional) RI/5V/12V) 3 x COM Port (RS-232) 1 x 3 pin Terninal Block connector www.gigaipc.com...
  • Page 20 [Bottom PCB Side] Information Information 2 x DDR3L SO-DIMM sockets, DDR3L 1 x M.2 slot (Supports NGFF-2280 1866 MHz, Max. Capacity 8 GB SATA) 1 x Min PCIe slot (PCIeX1 + USB2.0) 2.5’’ Hard drive/SSD with Sim Slot www.gigaipc.com...

  • Page 21: A) Wireless Module: How To Safely Install The Module (Wireless Module Inclusion May Vary Based On Local Distribution)

    Module (Wireless Module inclusion may vary based on local distribution) Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 青山依舊在，幾度夕陽紅。慣看秋月春風。一 壺濁酒喜相逢，浪花淘盡英雄。是非成敗轉頭 Install the antenna on the left side of the connection wireless module down. 向下安裝連結於無線模組左側頂端天線。 www.gigaipc.com...

  • Page 22: B) Memory Installation: Ddr3L So-Dimm

    B) Memory Installation: DDR3L SO-DIMM SO-DIMM www.gigaipc.com...

  • Page 23: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)

    Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com...
  • Page 24 www.gigaipc.com...

  • Page 25: Support

    Support ● For a list of tested memory, M.2, 2.5’’ SSD, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com...

  • Page 26: Safety And Regulatory Information

    At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com...

  • Page 27: Chapter 3 - Hardware Information

    Chapter 3 Chapter 3 – Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 28: Jumpers And Connectors

    Jumpers and Connectors Code Description FAN connector DC_IN DC IN 1x2pin ATX power connector COM1, COM2, Serial port header COM3, COM4 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 29 15 SATAIII SATA 6GB/S Connector 16 FUSB2_1 USB 2.0 header 17 GPIO_CNT General Purpose input/output header 18 SYS_PANEL Front panel header 19 eDP eDP Connector www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 30: Io Port

    Description VGA Port HDMI HDMI Port USB_30 Port 2 x USB 3.0 LAN Port 2 x RJ45 LAN ports Headphone 1 x Headphone Jack www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 31: Fan (Fan Connector)

    FAN (FAN connector) PIN 1 CPU/System FAN Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 32: Dc In (Dc In 1X2Pin Atx Power Connector)

    3.2.2 DC IN (DC IN 1x2pin ATX power connector) DC 1 x 2 pin ATX Power Connector www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 33: Com1, Com2, Com3, Com4 (Serial Port Header)

    COM1, COM2, COM3, COM4 (Serial port header) Pin1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition No Connect RI/5V/12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 34: Spk_Out (Speaker Out Connector)

    Speaker out connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 35: Jcom11 (D Ef Aul T Com1 Is Ri# Pin, C An Sele C T Ri#/5V/12V)

    Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) (Default Setting) 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 36: Jcom12 (Com1 Rs-232/Rs-422/Rs-485 Select)

    RXD232 1-2 Close: RXD1 RS-232 RXD422 RXD1 3-4 Close: RS-422 RXD485 (Default Setting) RXD1 5-6 Close: RS-485 Connector PN Vendor 220-97-03GB01 PINREX PH06N53BAZ000 HORNGTONG www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 37: Jrs11-Jrs14 (Rs11-14 Select Jumper For Serial Port)

    PIN 1 PIN 1 RS11-14 select jumper for serial port Connector PN Vendor 1-2 Close: 200-72-PBGB03 PINREX RS422/RS485 MJ20-O-102S-H3.5-BK HSD-CONN 2-3 Close: RS232 (Default Setting) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 38: At_Cn (At/Atx Power Mode Select Jumper)

    1-2 Close : AT mode. 220-96-03GB01 PINREX 2-3 Close : ATX mode. PH03N2-7BAN000 HORNGTONG (Default setting) Pin No. Definition AT MODE Detect ATX MODE www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 39: Lsw (Lvds Resolution Jumper)

    1024 x 600 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 40: Lvds (Lvds Connector)

    Pin No. Definition Pin No. Definition Pin No. Definition Connector PN Vendor 3.3V 712-76-40GWE0 PINREX A1252WV-SF-2X20PD01 JOINT-TECH 3.3V SPEC0 SPED0 CLK2+ CLK1+ CLK2- CLK1- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 41: Bkl_Cn (Back Light Brightness Control Connector)

    3.2.11 BKL_CN (Back light brightness control connector) PIN 1 Back light brightness control Connector PN Vendor connector 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 42: 3.2.12 Buzzer

    3.2.12 BUZZER PIN 1 Buzzer Connector PN Vendor 712-71-02TW01 PINREX A1250WV-02P JOINT-TECH Pin No. Definition -SPKR +VS5 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 43: 3.2.13 Battery

    3.2.13 BATTERY PIN 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.0V RTC www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 44: Satapw (Sata 6Gb/S Power Connector)

    3.2.14 SATAPW (SATA 6Gb/s power connector) PIN 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition +12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 45: Sataiii (Sata 6Gb/S Connector)

    3.2.15 SATAIII (SATA 6GB/s Connector) SATA 6GB/S Connector SATAIII Connector PN Vendor WAT3M-07A1G3BU4W WINWIN ABA-SAT-054-S15 LOTES Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 46: Fusb2_1 (Usb 2.0 Header)

    3.2.16 FUSB2_1 (USB 2.0 header) PIN 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 47: Gpio_Cnt (General Purpose Input/Output Header)

    PIN 1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 48: Sys_Panel (Front Panel Header)

    Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 49: Edp (Embedded Display Port Connector)

    Note:Please ensure pin 8 is connected to Ground. Definition Definition Connector PN Vendor eDP_1+ A1252WV-SF- JOINT-TECH eDPAUX- 2X10PN6BG1G00L eDP_0- 50286-02071-001 ACES eDP_3- eDPAUX+ eDP_0+ eDP_2- eDP_3+ eDP_2+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 50 GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 51: Chapter 4 - Bios

    Chapter 4 Chapter 4 – BIOS www.gigaipc.com...

  • Page 52: The Main Menu

    • When the system is not stable as usual, select the Restore User Defaults item to set your system to its defaults. • The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS version. www.gigaipc.com...
  • Page 53 » LAN1/2 MAC Address » Total Memory Displays the technical specifications for the installed memory. » TXE FW Version » System Date Set the date following the weekday-month-day- year format. » System Time Set the system time following the hour-minute- second format. www.gigaipc.com...

  • Page 54: Advanced Menu

    Advanced Menu The Advanced menu display submenu options for configuring the function of various hardware components. Select a submenu item, and then press Enter to access the related submenu screen. www.gigaipc.com...

  • Page 55: Tpm Configuration

    4.2.1 TPM Configuration fTPM Enable/Disable Intel Platform Trust Technology. (PTT) Options available: Enabled/Disabled. Default setting is Enable www.gigaipc.com...

  • Page 56: 4.2.1.1 Tpm20 Device Found

    4.2.1.1 TPM20 Device Found Security Device Support Select Enabled to activate TPM support feature. Options available: Enabled/Disabled. Default setting is Enable. Pending Operation Operation: None/Clear, Set clear to clear data on PTT Default setting is None. www.gigaipc.com...

  • Page 57: It8768 Super Io Configuration

    Press [Enter] for configuration of advanced items. » Serial Port 2 Configuration Press [Enter] for configuration of advanced items. » Serial Port 3 Configuration Press [Enter] for configuration of advanced items. » Serial Port 4 Configuration Press [Enter] for configuration of advanced items. www.gigaipc.com...

  • Page 58: 4.2.2.1 Serial Port Configuration

    4.2.2.1 Serial Port Configuration www.gigaipc.com...
  • Page 59 When enabled allows you to configure the serial port settings. When set to Disabled, displays no configuration for the serial port. Options available: Enabled/Disabled. Default setting is Enabled. » Device Settings Display the specified Serial Port base I/O address and IRQ. www.gigaipc.com...

  • Page 60: Hardware Monitor Menu

    Enable CPU/System Fan Speed Control function. Option available: Normal/Full Speed. Default setting is Normal. System/CPU Temperature » Displays current CPU temperature. CPU/System Fan Speed (RPM) Displays current CPU and system fan speed. » VCORE/DDR1.2V/+12V/VCC/VCC3/VSB3V Displays a real-time record of the related system voltage. www.gigaipc.com...

  • Page 61: S5 Rtc Wake Settings Menu

    Press <+> and <-> to define the wake up hour. » Wake up minute (Note) Press <+> and <-> to define the wake up minute. » Wake up second (Note) Press <+> and <-> to define the wake up second. www.gigaipc.com...

  • Page 62: Cpu Configuration

    Options available: Enabled/Disabled. Default setting is Enable » Turbo Mode Allows you to determine whether to enable the Intel® CPU Turbo Boost technology. Options available: Enabled/Disabled. Default setting is Enable » C-States Enables or disables support for C-States. Options available: Enabled/Disabled. Default setting is Enable www.gigaipc.com...

  • Page 63: Sata Configuration

    Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. Hard drive information should be labeled on the outside device casing. Enter the appropriate option based on this information. www.gigaipc.com...

  • Page 64: Os Selection

    4.2.7 OS Selection » LAN EFI Driver Enables or disables LAN EFI driver. (Default: Disabled) www.gigaipc.com...

  • Page 65: Chipset Menu

    Options available: Enabled/Disabled. Default setting is Enabled. » DVMT Pre-Allocated Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. Options available: 64M/128M/192M/256M/320M/384M/512M. Default setting is 64M. » Onboard Audio Enable/Disable onboard audio controller. Options available: Enabled/Disabled. Default setting is Enabled. www.gigaipc.com...
  • Page 66 » XHCI Hand-off Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off support. Default setting is Enable. » WatchDog Timer Force system reboot if system gang up by memory detection fail Default setting is Disable. www.gigaipc.com...

  • Page 67: Security Menu

    A user can only access and modify the System Time, System Date, and Set User Password fields. » Administrator Password Press Enter to configure the Administrator password. » User Password Press Enter to configure the user password. » Secure Boot menu Press [Enter] for configuration of advanced items. www.gigaipc.com...

  • Page 68: Secure Boot Menu

    4.4.1 Secure Boot menu www.gigaipc.com...
  • Page 69 Options available: Enabled/Disabled. Default setting is Enabled. » Secure Boot Mode Define the Secure Boot Mode. Set this item to Custom to advanced items configuration. Option available: Standard/Custom. Default setting is Standard. » Key Management Press Enter to configure the advanced items. www.gigaipc.com...

  • Page 70: Key Management

    Forbidden Signaures Database (dbx). Options available: Enabled/Disabled. Default setting is Disabled. » Enroll All Factory Default Keys Press [Enter] to install all factory default keys. » Save All Secure Boot Variables Press [Enter] to save all Secure Boot Variables. www.gigaipc.com...
  • Page 71 » Key Exchange Key Press Enter to configure the advanced items. » Authorized Signature Press Enter to configure the advanced items. » Forbidden Signature Press Enter to configure the advanced items. » Authorized TimeStamps Press Enter to configure the advanced items. www.gigaipc.com...

  • Page 72: Boot Menu

    » Full Screen LOGO Show Determine whether to display the Logo at system startup. Options available: Enabled/Disabled. Default setting is Enabled. » Boot Option Priorities » Boot Option #1 / #2 / #3 Press Enter to configure the boot priority. www.gigaipc.com...

  • Page 73: Save & Exit Menu

    Setup Defaults are quite demanding in terms of resources consumption. If you are using low-speed memory chips or other kinds of low- performance components and you choose to load these settings, the system might not function properly. Options available: Yes/No. www.gigaipc.com...
