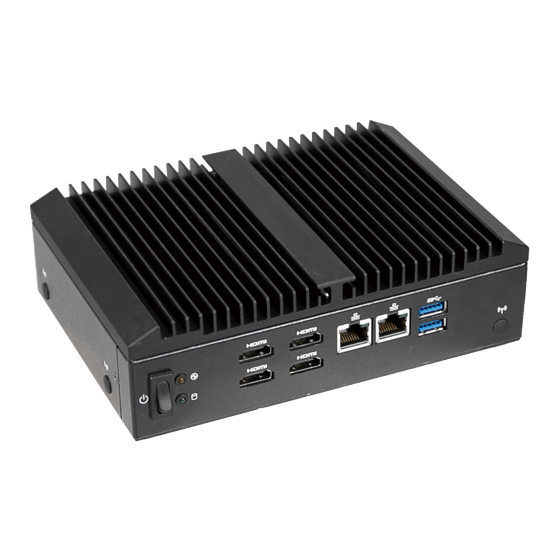

Page 1: Qbix-Pro Industrial Embedded System
QBiX-Pro-AMDA1605H-A1 (QP-1605A-SI) QBiX-Pro Industrial Embedded System Quick Start Guide www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Screw I Head For 2.5” HDD M3x8L (25KSG-130081-K1R) 4 SATA Cable (25CF4-170020-S9R) Thermal pad for HDD (25ST3-200052-T5R) Thermal Pad for WiFi module (25ST3-200060-T5R) Thermal pad for DIMM2 (25ST3-200051-T5R) Exsiccator (10g) If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: Table Of Contents
Safety Precautions ............... 6 FCC Statement ................8 Chapter 1 - Product Specifications Specifications ............... 13 Chapter 2 – QBiX-Pro-AMDA1605H-A1 (QP-1605A-SI) Industrial Embedded System Kit Dimension ..............16 Getting Familiar with Your Unit........17 A) Wireless Module: How to safely install the Module (Wireless Module inclusion may vary based on local distribution) .............. - Page 10 3.2.22 DC IN (DC IN 1 x 4 pin power connector) ....49 3.2.23 Battery (Battery Connector) ........50 3.2.24 EDP (eDP Connector) ........... 51 3.2.25 CPU_FAN (CPU FAN Connector) ........52 3.2.26 SYS_FAN (System FAN Connector) ....... 53 3.2.27 IO Connector Information ..........54 www.gigaipc.com...
-
Page 11: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 12 www.gigaipc.com...
-
Page 13: Specifications
Specifications System QBiX-Pro-AMDA1605H-A1 (QP-1605A-SI) Dimension System Size : 178W x 125D x 52.7H (mm) AMD® RYZEN™ V1605B Embedded Processor 14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHz TDP 25W 2MB of shared L2 plus 4MB of shared L3 total Chipset 2 x DDR4 SO-DIMM sockets, Max. - Page 14 System QBiX-Pro-AMDA1605H-A1 (QP-1605A-SI) Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Operation Non-operating temperature: -20°C to 70°C temperature Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Vibration During Per Axis, With SSD/M.2 2242...
-
Page 15: Chapter 2 - Qbix-Pro-Amda1605H-A1 (Qp-1605A-Si) Industrial Embedded System Kit
Chapter 2 Chapter 2 – QBiX-Pro-AMDA1605H-A1 (QP-1605A-SI) Industrial Embedded System Kit www.gigaipc.com... -
Page 16: Dimension
Dimension www.gigaipc.com... -
Page 17: Getting Familiar With Your Unit
Getting Familiar with Your Unit [Front Side] [Left Side] 2 x USB 3.2 Gen 1 [Rear Side] [Right Side] 1 x Screw Type DC Jack 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 2 x COM Ports (RS-232) www.gigaipc.com... - Page 18 * 接上電源前 ，請確實將機殼完整鎖附 。 [Bottom PCB Side] Information Information 1* M.2 slot(Support NGFF-2230 Wifi/BT) 1 x Mini-PCIe slot (PCIe x1+USB2.0) with 1* M.2 slot(Supports NGFF-2280 SATA/ SIM Slot PCIe x4) 2 x DDR4 SO-DIMM sockets, Max. 2.5’’ Hard drive/SSD Capacity 32 GB www.gigaipc.com...
-
Page 19: A) Wireless Module: How To Safely Install The Module (Wireless Module Inclusion May Vary Based On Local Distribution)
Module (Wireless Module inclusion may vary based on local distribution) Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 青山依舊在，幾度夕陽紅。慣看秋月春風。一 壺濁酒喜相逢，浪花淘盡英雄。是非成敗轉頭 Install the antenna on the left side of the connection wireless module down. 向下安裝連結於無線模組左側頂端天線。 www.gigaipc.com... -
Page 20: B) Memory Installation: Ddr4 So-Dimm
B) Memory Installation: DDR4 SO-DIMM SO-DIMM www.gigaipc.com... -
Page 21: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)
Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com... - Page 22 www.gigaipc.com...
-
Page 23: Support
Support ● For a list of tested memory, M.2, 2.5’’ SSD, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com... -
Page 24: Safety And Regulatory Information
At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com... -
Page 25: Chapter 3 - Hardware Information
Chapter 3 Chapter 3 – Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 26: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. - Page 27 COM2 Serial port header (RS-232/422/485, COM2 RI/5V/12V) COM3 Serial port header (RS-232) COM3 COM4 Serial port header (RS-232) COM4 MPCIE Mini PCIE for 3G/4G module www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 28 HDMI 4 connector (*The HDMI 4’s function is Disabled, during eDP Function Enabled) HDMI3_4 HDMI 3 connector LAN2 LAN connectors LAN1 LAN connectors USB3 USB 3.2 Gen 1 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
-
Page 29: Bkl_Cn (Backlight Control Header)
3.2.1 BKL_CN (Backlight Control header) Pin 1 Backlight Control header Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition eDP_BKLTEN eDP_BKLTCTL www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 30: Spk_Out (Speaker Out Connector)
Speaker out connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out R+ Speaker Out R- Speaker Out L- Speaker Out L+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 31: F_Audio (Front Panel Audio Header)
F_Audio (Front panel audio header) Pin 1 Front panel audio header Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Definition F_MIC1_L F_MIC1_R F_AUDIO_DET F_HP_R F_MIC_JD FAUDIO_JD F_HP_L F_HP_JD www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 32: Sodimm1, Sodimm2 (Ddr4 So-Dimm Slot)
3.2.4 SODIMM1, SODIMM2 (DDR4 SO-DIMM slot) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 33: Satapw (Sata Power Connector)
3.2.5 SATAPW (SATA power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 34: Sata (Sata 6Gb/S Connector)
3.2.6 SATA (SATA 6Gb/s connector) Pin 1 SATA 6Gb/s Connector Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 35: F_Usb2_2 (Usb 2.0 Header)
3.2.7 F_USB2_2 (USB 2.0 header) Pin 1 USB 2.0 header Connector PN Vendor 210-92-05G117 PINREX Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 36: F_Usb2_1 (Usb 2.0 Header)
3.2.8 F_USB2_1 (USB 2.0 header) Pin 1 USB 2.0 header Connector PN Vendor 210-92-05G117 PINREX Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 37: Gpio_Cnt (General Purpose Input/Output Header)
Pin 1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Definition Definition GPI_0 GPO_0 GPI_1 GPO_1 GPI_2 GPO_2 GPI_3 GPO_3 SMB_IO_ SMB_IO_ DATA 3.3V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 38: Sys_Panel (Front Panel Header)
Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 39: M2E (M.2 E-Key For Wifi Ngff)
3.2.11 M2E (M.2 E-key for WiFi NGFF) 3.2.12 M2M (M.2 M key for NVME/SATA) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 40: At_Cn (At/Atx Mode Select Jumper)
3.2.13 AT_CN (AT/ATX mode select jumper) Pin 1 AT/ATX mode select jumper Pin No. Definition 1-2 Close : AT mode. 2-3 Close : ATX mode. COMM (Default setting) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 41: Hdmi/Edp_Cn (Hdmi/Edp Mode Select Jumper)
1-2 Close: HDMI mode. HDMI (Default setting, HDMI 4 I/O COMM is Enable) 2-3 Close: eDP mode. (HDMI 4 I/O Port is Disable) HDMI 4 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 42: Jcom2 (Com2 Ri Pin Ri/5V/12V Select)
3.2.15 JCOM2 (COM2 RI pin RI/5V/12V Select) Pin 1 JCOM2 Jumper Select 1-2 Close: 5V (Power COM) 3-4 Close: RI (Stand COM) Default 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 43: Jcom1 (Com1 Ri Pin Ri/5V/12V Select)
3.2.16 JCOM1 (COM1 RI pin RI/5V/12V Select) Pin 1 JCOM1 Jumper Select 1-2 Close: 5V (Power COM) 3-4 Close: RI (Stand COM) Default 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. - Page 44 Full Duplex Half Duplex TXD+ TXD- RXD- — RXD+ — — — — — — — — — No Connect — — RI/5V/12V — — www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 45 Full Duplex Half Duplex TXD+ TXD- RXD- — RXD+ — — — — — — — — — No Connect — — RI/5V/12V — — www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
-
Page 46: Com3 (Serial Port Header, Rs-232)
3.2.19 COM3 (Serial port header, RS-232) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition No Connect RI/5V/12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 47: Com4 (Serial Port Header, Rs-232)
3.2.20 COM4 (Serial port header, RS-232) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition No Connect RI/5V/12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 48: Mpcie (Mini Pcie For 3G/4G Module)
3.2.21 MPCIE (Mini PCIE for 3G/4G module) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 49: Dc In (Dc In 1 X 4 Pin Power Connector)
3.2.22 DC IN (DC IN 1 x 4 pin power connector) Pin 1 DC IN power connector Connector PN Vendor 753-81-04TW00 PINREX Pin No. Definition DCIN DCIN www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 50: Battery (Battery Connector)
3.2.23 Battery (Battery Connector) Pin 1 Battery Cable Connector Pin No. Definition 3.3V RTC www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 51: Edp (Edp Connector)
Pin No. Definition EDP_TXN0 EDP_TXN3 EDP_TXP0 EDP_TXP3 eDP_DET# EDP_TXN1 EDP_TXP1 EDP_AUXN EDP_AUXP EDP_TXN2 EDP_TXP2 EDP_HPD 3.3V Connector PN Vendor 50286-02071-001 ACES A1252WV-SF- JOINT-TECH 2X10PN6BG1G00L www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 52: Cpu_Fan (Cpu Fan Connector)
3.2.25 CPU_FAN (CPU FAN Connector) Pin 1 CPU FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition FANTECH www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 53: Sys_Fan (System Fan Connector)
3.2.26 SYS_FAN (System FAN Connector) Pin 1 CPU/System FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition FANTECH www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 54: Io Connector Information
HDMI 4 connector (*The HDMI 4’s Function is Disabled, during eDP Function Enabled) HDMI3_4 HDMI 3 connector 31 LAN2 LAN connectors 32 LAN1 LAN connectors 33 USB3 USB 3.2 Gen 1 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
