Page 1: Qbix-Pro Industrial Embedded System
QBiX-Pro-APLB4200H-B1 (QP-4200B-SI) QBiX-Pro Industrial Embedded System Quick Start Guide www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
SCREW I HEAD FOR 25HDD M3x8L (25KSG-130081-K1R) CABLE SATA (25CF4-170020-S9R) Thermal pad for HDD (25ST3-200052-T5R) TERMINAL BLOCKS MALE PLUG (25IO0-5ESDV0-D2R) Exsiccator (10g) If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: Table Of Contents
B) Memory Installation: DDR3L SO-DIMM ....19 Antenna Installation (Antenna inclusion may vary based on local distribution) ............ 20 DIO (GPIO) Pin Define ..........21 DB9 COM Pin Define ........... 22 Support ................ 23 Safety and Regulatory Information ....... 24 www.gigaipc.com... - Page 10 2.2.12 BATTERY ............... 40 2.2.13 SATAPW (SATA 6Gb/s power connector) .....41 2.2.14 SATAIII (SATA 6GB/S Connector) ......... 42 2.2.15 FUSB20_1, FUSB2_2 (USB 2.0 header) ......43 2.2.16 GPIO_CNT (General Purpose input/output header) ... 44 2.2.17 SYS_PANEL (Front panel header) ........45 www.gigaipc.com...
-
Page 11: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 12 www.gigaipc.com...
-
Page 13: Specifications
1 x COM header (RS422/485/232, RI/5V/12V) Rear I/O 2 x COM Port (RS-232) 1 x D-Sub 9pin Female (GPIO 8 bits) 1 x 3 pin Terninal Block connector Side I/O 2 x Antenna option — Power DC 9~36V (Full Range) www.gigaipc.com... - Page 14 Carton size: 505 x 231 x 333(mm) Content: Packaging Content SCREW I HEAD FOR 25HDD M3 x 8L x 4 (25KSG-130081-K1R) THERMAL PAD x 2 (25ST3-200052-T5R) CABLE SATA x 1 (25CF4-170020-S9R) TERMINAL BLOCKS MALE PLUG (25IO0-5ESDV0-D2R) Order Information System: 6BQP4200BMR-SI www.gigaipc.com...
-
Page 15: Chapter 2 - Qbix-Pro-Aplb4200H-B1 Industrial Embedded System Kit
Chapter 2 Chapter 2 – QBiX-Pro-APLB4200H-B1 Industrial Embedded System Kit www.gigaipc.com... -
Page 16: Dimension
Dimension www.gigaipc.com... -

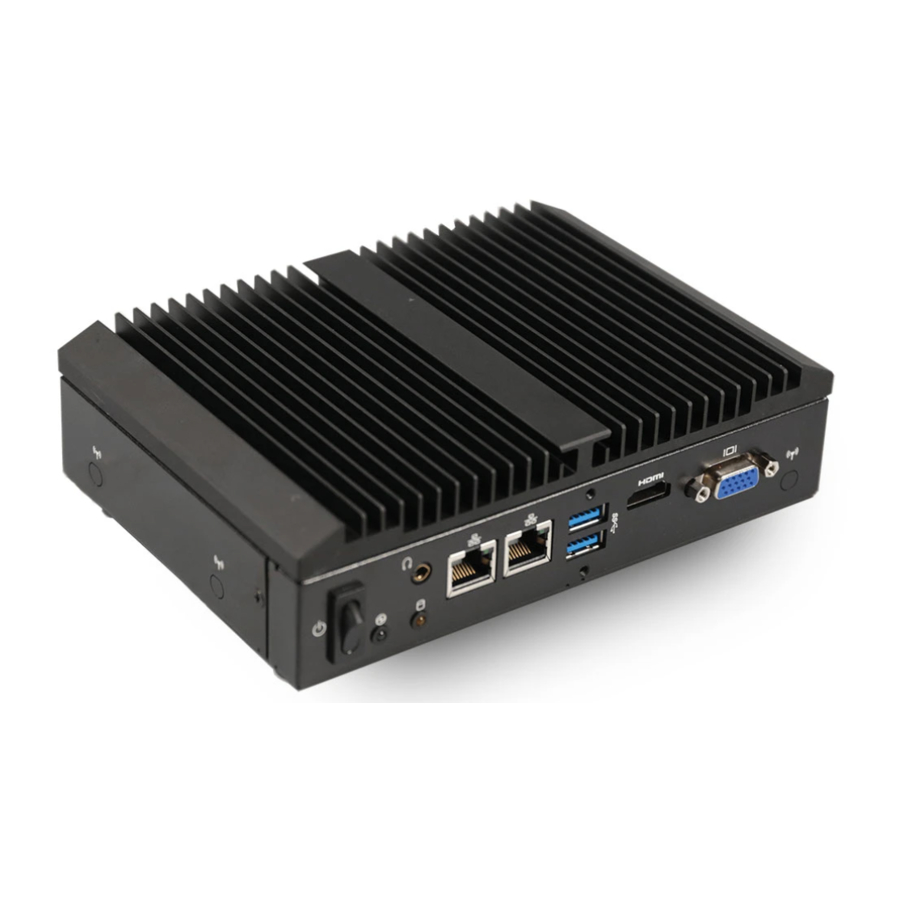

Page 17: Getting Familiar With Your Unit
1 x Headphone HDD LED [Rear Side] [Right Side] 2 x USB2.0 1 x COM header (RS422/485/232, 2 x Antenna (optional) RI/5V/12V) 2 x COM Port (RS-232) 1 x 3 pin Terninal Block connector 1 x GPIO (8 bits) www.gigaipc.com... - Page 18 [Bottom PCB Side] Information Information 2 x DDR3L SO-DIMM sockets, DDR3L 1 x M.2 slot (Supports NGFF-2242 1866 MHz, Max. Capacity 8 GB SATA) 1 x Mini PCIe slot (PCIeX1 + USB2.0) 2.5’’ Hard drive/SSD with SIM Slot www.gigaipc.com...
-
Page 19: B) Memory Installation: Ddr3L So-Dimm
B) Memory Installation: DDR3L SO-DIMM SO-DIMM www.gigaipc.com... -
Page 20: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)
Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com... -
Page 21: Dio (Gpio) Pin Define
This port is limited to only 5V for the Pin No. Pin Define specific end products and are provided GPO_1 with a molded plastic Fire Enclosure. GPO_2 Rated minimum 94V-1 or Metal enclosure. GPO_3 GPO_4 GPI_1 GPI_2 GPI_3 GPI_4 www.gigaipc.com... -
Page 22: Db9 Com Pin Define
DB9 COM Pin Define DB9 COM DB9 COM 25CF8-180620-S9R Pin No. Pin Define www.gigaipc.com... -
Page 23: Support
Support ● For a list of tested memory, M.2, 2.5’’ SSD, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com... -
Page 24: Safety And Regulatory Information
At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com... -
Page 25: Chapter 3 - Qbip-4200C (Mzaplds-Si) Hardware Information
Chapter 3 Chapter 3 – QBIP-4200C (MZAPLDS-SI) Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 26: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. - Page 27 General Purpose input/output header 17 SYS_PANEL Front panel header 18 FUSB2_2 USB 2.0 header 19 MPCIE Mini-PCIe slot 20 M2M M.2 slot 21 SIM_CARD1 3G/4G Sim Slot www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
- Page 28 24 LAN1, LAN2 2 x RJ45 Ports 2 x USB3.0 Ports 25 FUSB30 26 HDMI 1 x HDMI Port 27 VGA 1 x VGA Port www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
-
Page 29: Fan (Fan Connector)
FAN (FAN connector) Pin1 CPU/System FAN Connector PN Vendor A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control Connector PN Vendor 85205-0470N ACES www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 30: Dc In (Dc In 1 X 4-Pin Power Connector)
2.2.2 DC IN (DC IN 1 x 4-pin power connector) Pin1 DC in Connector Connector PN Vendor 753-81-04TW00 PINREX Pin No. Definition DCIN DCIN www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 31: Com1, Com2, Com3, Com4 (Serial Port Header)
COM1, COM2, COM3, COM4 (Serial port header) Pin1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition DTRD No Connect RI/5V/12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 32: Spk_Out (Speaker Out Connector)
Speaker out connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 33: Jcom11 (Com11 Ri# Pin Ri#/5V/12V Select)
JCOM11 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 34: Jrs11-Jrs14 (Rs11-14 Select Jumper For Serial Port)
RS-422 Full Duplex 1T/1R RS-422 with termination resistor and bias resistor. 1T/1R RS-485 with termination resistor and bias resistor. TX ENABLE Low RS-485 Half Duplex Active www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 35: At_Cn (At/Atx Power Mode Select Jumper)
1-2 Close : AT mode. 220-96-03GB01 PINREX 2-3 Close : ATX mode. PH03N2-7BAN000 HORNGTONG (Default setting) Pin No. Definition AT MODE Detect ATX MODE www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 36: Lsw (Lvds Resolution Jumper)
1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 37: Lvds (Lvds Connector)
Note: *The LVDS output connector of the unit is only intended to be connected to an UL/IEC/EN approval CLK2+ CLK1+ equipment with fire enclosure. CLK2- CLK1- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 38: Bkl_Cn (Back Light Brightness Control Connector)
2.2.10 BKL_CN (Back light brightness control connector) Pin1 Back light brightness control connector Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 39: 2.2.11 Buzzer
2.2.11 BUZZER Pin1 Buzzer Connector PN Vendor 712-71-02TW01 PINREX A1250WV-02P JOINT-TECH Pin No. Definition -SPKR +VS5 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 40: 2.2.12 Battery
2.2.12 BATTERY Pin1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V RTC www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 41: Satapw (Sata 6Gb/S Power Connector)
2.2.13 SATAPW (SATA 6Gb/s power connector) Pin1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition +12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 42: Sataiii (Sata 6Gb/S Connector)
2.2.14 SATAIII (SATA 6GB/S Connector) Pin1 SATA 6GB/S Connector SATAIII Connector PN Vendor WAT3M-07A1G3BU4W WINWIN ABA-SAT-054-S15 LOTES Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 43: Fusb20_1, Fusb2_2 (Usb 2.0 Header)
2.2.15 FUSB20_1, FUSB2_2 (USB 2.0 header) 15 18 Pin1 Pin1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 44: Gpio_Cnt (General Purpose Input/Output Header)
Pin1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. -
Page 45: Sys_Panel (Front Panel Header)
Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
