  • Page 1: Qbix-Pro Industrial Embedded System

    QBiX-Pro-EHLA6412H-A2 QBiX-Pro Industrial Embedded System Quick Start Guide www.gigaipc.com...

  • Page 2: Copyright Notice

    While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein.

  • Page 3: Acknowledgement

    Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com...

  • Page 4: Packing List

    Thermal Pad for Memory (25ST3-200086-T5R) SATA Cable (25CRI-150001-S9R) Power Cord (May vary based on local distribution) PSU ADP 19V 65W 100-240VAC (25EP1-100651-A3S) If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com...

  • Page 5: About This Document

    (if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com...

  • Page 6: Safety Precautions

    Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com...
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...

  • Page 8: Fcc Statement

    Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com...

  • Page 9: Table Of Contents

    Safety Precautions ............... 6 FCC Statement ................8 Chapter 1 - Product Specifications Specifications ............... 14 Chapter 2 – QBiX-Pro-EHLA6412H-A2 Industrial Embedded System Kit Dimension ..............17 Getting Familiar with Your Unit........18 A) M.2 SSD Installation: How to safely install the M.2 2280 SSD ..............
  • Page 10 3.2.17 LSW (LVDS resolution jumper) ........46 3.2.18 SIM_CARD (3G/4G SIM Slot) ......... 47 3.2.19 MPCIE (Mini PCIe slot)........... 48 3.2.20 BUZZER (Buzzer header) ..........49 3.2.21 BATTERY ............... 50 3.2.22 LAN1, LAN2 (LAN connector) ........51 3.2.23 HDMI (HDMI connector) ..........52 www.gigaipc.com...
  • Page 11 SATA Configuration ............64 4.3.7 Network Stack Configuration ........65 4.3.8 NVMe Configuration ............. 66 4.3.9 Offboard SATA Controller Configuration ...... 67 4.3.10 Digital IO Port Configuration ........68 Chipset ................69 Security ................. 70 Boot ................73 Save & Exit ..............74 www.gigaipc.com...

  • Page 12: Chapter 1 - Product Specifications

    Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com...
  • Page 13 134.17 125.04 www.gigaipc.com...

  • Page 14: Specifications

    Specifications System QBiX-Pro-EHLA6412H-A2 Dimension 178W x 125D x 52.7H (mm) Intel® Celeron® J6412 Processor 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W Chipset 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Memory Support Dual Channel DDR4 3200 MHz memory modules Ethernet 2 x GbE LAN Ports (Intel®...
  • Page 15 System QBiX-Pro-EHLA6412H-A2 Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Operation Non-operating temperature: -20°C to 70°C temperature Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Vibration During Per Axis, With SSD/M.2 2242...

  • Page 16: Industrial Embedded System Kit

    Chapter 2 Chapter 2 – QBiX-Pro-EHLA6412H-A2 Industrial Embedded System Kit www.gigaipc.com...

  • Page 17: Dimension

    Dimension 134.17 125.04 www.gigaipc.com...

  • Page 18: Getting Familiar With Your Unit

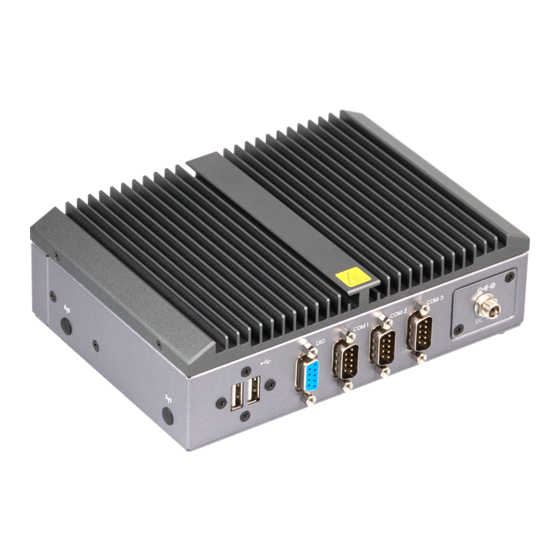

    [Rear Side] [Right Side] 2 x USB 2.0 1 x COM Port (RS-232/422/485 & RI/5V/12V) 2 x Antenna (Optional) 1 x COM Port (RS-232/422/485) 1 x COM Port (RS-232) 1 x Screw type DC Jack 1 x GPIO (8-bits) www.gigaipc.com...
  • Page 19 [Bottom PCB Side] Information Information 2 x DDR4 SO-DIMM sockets, 1 x Min PCIe slot (PCIe x1 + USB2.0) Max. Capacity 32 GB with SIM Slot 1 x M.2 slot (Supports NGFF-2280 support 2.5’’ Hard drive/SSD SATA 6Gb/s) www.gigaipc.com...

  • Page 20: A) M.2 Ssd Installation: How To Safely Install The

    Remove the screw from the screw Carefully insert the M.2 SSD into the Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot hole (Location : MSO2) slot, and secure with the screw. 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 www.gigaipc.com...

  • Page 21: B) Memory Installation: Ddr4 So-Dimm

    B) Memory Installation: DDR4 SO-DIMM SO-DIMM www.gigaipc.com...

  • Page 22: C) Mini Pcie Card Installation: How To Safely Install The Mini Pcie Card

    Remove the screw from the screw Carefully insert the Mini PCIe Card Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot hole (Location : MSO1) into the slot. 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 Secure the Mini PCIe Card with screw. www.gigaipc.com...

  • Page 23: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)

    Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com...

  • Page 24: Support

    Support ● For a list of tested memory, M.2, 2.5’’ SSD, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com...

  • Page 25: Safety And Regulatory Information

    At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com...

  • Page 26: Chapter 3 - Hardware Information

    Chapter 3 Chapter 3 – Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 27: Jumpers And Connectors

    Jumpers and Connectors www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 28 LVDS connector 17 LSW LVDS resolution jumper 18 SIM_CARD 3G/4G Sim Slot 19 MPCIE Mini-PCIe slot 20 BUZZER Buzzer header 21 BATTERY Battery cable connector www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 29 Description 22 AUDIO Line out connector 23 LAN1, LAN2 LAN connector 24 HDMI HDMI connector USB31_1, USB 3.2 Gen 1 connector x 4 USB31_2 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 30: Fan (Fan Connector)

    3.2.1 FAN (FAN connector) Pin1 CPU/System FAN Connector PN Vendor 85205-0470N ACES 4 3 2 1 A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 31: Dc_In (Dc In 1X4Pin Power Connector)

    3.2.2 DC_IN (DC IN 1x4pin power connector) Pin1 DC in Connector Connector PN Vendor 753-81-04TW00 PINREX Pin No. Definition Power in Power in www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 32: At_Cn (At/Atx Mode Select Jumper)

    1-2 Close : AT mode. 220-96-03GB01 PINREX 2-3 Close : ATX mode. PH03N2-7BAN000 HORNGTONG (Default setting) Pin No. Definition AT MODE Detect ATX MODE www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 33: Bkl_Cn (Backlight Control Connector)

    3.2.4 BKL_CN (Backlight Control connector) Pin1 Backlight Control connector Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Backlight Enable www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 34: Jcom1 (Ri# Pin Ri#/5V/12V Select Jumper For Com1 Port)

    JCOM1 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 35: Com1, Com2, Com3, Com4 (Serial Port Header)

    COM2 : Support RS-232/422/485 RXD+ – COM3, COM4 : Support RS-232 only – – – – – – – – No Connect – – RI/5V/12V – – www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 36: Spkr (Speaker Out Connector)

    Speaker out connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 37: Fp_Audio (Front Panel Audio Header)

    Pin1 Front panel audio Connector Connector PN Vendor 725-81-10TW00 PINREX 9 10 A2004WV-2X05P46 JOINT-TECH Pin No. Definition MIC-LEFT MIC-RIGHT Detect LINE-RIGHT JACKSENCE Detect LINE-LEFT www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 38: Sodimma, Sodimmb (Ddr4 So-Dimm Sockets)

    3.2.9 SODIMMA, SODIMMB (DDR4 SO-DIMM sockets) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 39: Sys_Panel (Front Panel Header)

    Definition No Connect No Connect No Connect Connector PN Vendor 87216-1206-06 ACES Pin No. Definition HD-p MPD-p HD-n MPD-n POWER-ON Reset Button No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 40: M2M (M.2 Slot, Sata, Ngff2280)

    PCIE Clock p 3.3V 3.3V Pin No. Definition Pin No. Definition 3.3V Detect 3.3V 3.3V 3.3V PCIE1 RXn Connector PN Vendor PCIE1 RXp 80159-8521 BELLWETHER www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 41: Satapw (Sata Power Connector)

    3.2.12 SATAPW (SATA power connector) Pin1 Hard Disk Power Connector Connector PN Vendor 743-51-04TW03 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 42: Sataiii (Sata 6Gb/S Connector)

    3.2.13 SATAIII (SATA 6GB/s Connector) Pin1 SATA 6GB/s Connector SATAIII Connector PN Vendor WAT3M-07A1G3BU4W WINWIN ABA-SAT-054-S15 LOTES Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 43: Fusb20 (Usb 2.0 Header)

    3.2.14 FUSB20 (USB 2.0 header) Pin1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 44: Gpio_Cnt (General Purpose Input/Output Header)

    GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPIO-output_1 GPIO-input_1 GPIO-output_2 GPIO-input_2 GPIO-output_3 GPIO-input_3 GPIO-output_4 GPIO-input_4 SMBus Clock SMBus DATA www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 45: Lvds (Lvds Connector)

    Note: *The LVDS output connector of the unit is only intended to be connected to an UL/IEC/EN approval CLK2+ CLK1+ equipment with fire enclosure. CLK2- CLK1- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 46: Lsw (Lvds Resolution Jumper)

    1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 47: Sim_Card (3G/4G Sim Slot)

    3.2.18 SIM_CARD (3G/4G SIM Slot) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 48: Mpcie (Mini Pcie Slot)

    Vendor PCIE Clock n SIM Clock PCIE Clock p SIM Reset AS0B221-S99Q-7H FOXCONN UIM VPP3 WLAN_DISABLE Reset PCIE RXn 3.3V PCIE RXp SMB Clock www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 49: Buzzer (Buzzer Header)

    3.2.20 BUZZER (Buzzer header) Buzzer header Connector PN Vendor 712-71-02TW01 PINREX A1250WV-02P JOINT-TECH Pin No. Definition Buzzer www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 50: 3.2.21 Battery

    3.2.21 BATTERY Pin1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 51: Lan1, Lan2 (Lan Connector)

    Orange On 1Gbps data rate Green On 100Mbps data rate 10Mbps data rate Pin No. Definition TX1+ TX1- TX2+ TX2- TX3+ TX3- TX4+ TX4- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 52: Hdmi (Hdmi Connector)

    Definition Pin No. Definition TX2p TX2p Hot Plug Hot Plug Detect Detect TX2n TX2n TX1p TX1p TX1n TX1n TX0p TX0p TX0n TX0n CLKp CLKp www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 53: Usb31_1, Usb31_2 (Usb 3.2 Gen 1 Connector)

    3.2.24 USB31_1, USB31_2 (USB 3.2 Gen 1 connector) USB Connector Pin No. Definition USB3_RX2n USB3_RX2p USB3_TX2n Pin No. Definition USB3_TX2p USB3_RX1n USB3_RX1p USB3_TX1n USB3_TX1p www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 54: Chapter 4 - Bios

    Chapter 4 Chapter 4 – BIOS www.gigaipc.com...

  • Page 55: Introduction

    Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com...

  • Page 56: The Main Menu

    ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com...

  • Page 57: Advanced

    Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com...

  • Page 58: Tpm Configuration

    4.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description TPM Device PTT : Internal TPM (Default setting) Selection www.gigaipc.com...
  • Page 59 Item Description Security Device Enabled : Enables TPM feature (Default setting) support Disabled : Disables TPM feature Item Description None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM www.gigaipc.com...

  • Page 60: It8786 Super Io Configuration

    Serial Port 3 Enabled : Enables allows you to configure the serial port settings Configuration Disabled : if Disabled, displays no configuration for the serial port Device settings : Display the specified Serial Port base I/O address and IRQ www.gigaipc.com...

  • Page 61: Hardware Monitor

    4.3.3 Hardware Monitor Item Description CPU Temperature Shows current CPU temperature System temperature Shows current system temperature www.gigaipc.com...

  • Page 62: S5 Rtc Wake Settings

    Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com...

  • Page 63: Cpu Configuration

    Enabled : Enables C states (Default setting) Disabled : Disables C states CPU will adjust frequency depends on it's loading. CPU P states Enabled : Enables CPU P states function (Default setting) Disabled : Disables CPU P states function www.gigaipc.com...

  • Page 64: Sata Configuration

    4.3.6 SATA Configuration Item Description SATA Mode AHCI : Configures the SATA controllers to AHCI mode. (Default setting) Selection Serial ATA Port 0 shows 2.5" SATA HDD/SSD information M.2 Port shows M.2 SATA interface SSD information www.gigaipc.com...

  • Page 65: Network Stack Configuration

    When Network stack is enabled : Ipv4 PXE Support Disabled : Disables Ipv4 PXE Support Enabled : Enables Ipv4 PXE Support When Network stack is enabled : Ipv6 PXE Support Disabled : Disables Ipv6 PXE Support Enabled : Enables Ipv6 PXE Support www.gigaipc.com...

  • Page 66: Nvme Configuration

    4.3.8 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com...

  • Page 67: Offboard Sata Controller Configuration

    4.3.9 Offboard SATA Controller Configuration www.gigaipc.com...

  • Page 68: Digital Io Port Configuration

    Enabled : If Digital IO Output value/level is modified in OS, they will be memorized and kept. SOGPO_1 (Pin 1) SOGPI_1 (Pin 2) SOGPO_2 (Pin 3) SOGPI_2 (Pin 4) Configure Digital IO Input or Output values for each pin. SOGPO_3 (Pin 5) SOGPI_3 (Pin 6) SOGPO_4 (Pin 7) SOGPI_4 (Pin 8) www.gigaipc.com...

  • Page 69: Chipset

    Enable/Disable XHCI Hand-off function XHCI Hand-off Enabled : Enables XHCI Hand-off function (Default setting) Disabled : Disables XHCI Hand-off function Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com...

  • Page 70: Security

    To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com...
  • Page 71 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
  • Page 72 'UEFI CA' from database from DB No : Cancel to remove 'UEFI CA' from database Restore DB variables to fac tor y Restore DB defaults defaults Yes : Agree to restore DB defaults No : Cancel to restore DB defaults www.gigaipc.com...

  • Page 73: Boot

    Enabled : Enables Full screen LOGO Show on POST screen LOGO Show Disabled : Disables Full screen LOGO Show on POST screen (Default setting) Boot Option #1 Shows the information of the storage that be installed in the system Boot Option #2 Choose/set the boot priority www.gigaipc.com...

  • Page 74: Save & Exit

    Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...
