Page 1: Qbix-Pro Industrial Embedded System
QBiX-Pro-ADLA1255H-A1 QBiX-Pro-ADLA1235H-A1 QBiX-Pro-ADLA1215EH-A1 QBiX-Pro Industrial Embedded System Quick Start Guide www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation ITE is a trademark of Integrated Technology Express, Inc. • • IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
System kit Terminal Blocks Male Plug (25IO0-5ESDV0-D2R) HDD screw, M3 x 8L (25KSG-130081-K1R) SATA Cable (25CRI-070000-S9R) Exsiccator (25g) Thermal pad for Memory (25ST3-200086-T5R) If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Skilled person have to pay special attention or take special protection. Only authorized by well trained professional person can access the restrict access location. (2) External metal parts are hot!! Before touching it, special attention or protection is necessary www.gigaipc.com... -
Page 9: Table Of Contents
Safety Precautions ............... 6 FCC Statement ................8 High Temperature Warning ............8 Chapter 1 - Product Specifications Specifications ............... 15 Chapter 2 – QBiX-Pro-ADLA1255H-A1 (QP-1255A-SI) QBiX-Pro-ADLA1235H-A1 (QP-1235A-SI) QBiX-Pro-ADLA1215EH-A1 (QP-1215A-SI) Industrial Embedded System Kit Dimension ..............18 Getting Familiar with Your Unit........19 A) Memory Installation: DDR4 SO-DIMM .... - Page 10 3.2.12 SPK_OUT (Speaker out connector) ....... 45 3.2.13 FP_AUDIO (Front Audio connector) ......46 3.2.14 GPIO_CNT (General Purpose input/output header) ..47 3.2.15 SYS_PANEL (Front panel header) ........48 3.2.16 DC_IN (DC IN 1x4 pin power connector) ...... 49 www.gigaipc.com...
- Page 11 CPU Configuration ............67 4.3.3 SATA Configuration ............68 4.3.4 IT8786 Super IO Configuration ........69 4.3.5 Hardware Monitor ............70 4.3.6 S5 RTC Wake Settings ........... 71 4.3.7 Network Stack Configuration ........72 4.3.8 NVMe Configuration ............. 73 www.gigaipc.com...
- Page 12 4.3.9 Offboard SATA Controller Configuration .......74 4.3.10 Digital IO Port Configuration ........75 4.3.11 Tls Auth Configuration ..........76 Chipset ................77 Security ................. 78 Boot ................81 Save & Exit ..............82 www.gigaipc.com...
-
Page 13: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 14 52.7 56.7 134.65 www.gigaipc.com...
-
Page 15: Specifications
2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1 2 x HDMI Front I/O 1 x Power button with LED 1 x HDD LED 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x External Antenna Hole (Optional) www.gigaipc.com... - Page 16 Screw I Head for 2.5” HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R) SATA Cable x 1 (P/N: 25CRI-070000-S9R) Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R) System: System: System: Order 6BQP1255AMR-SI 6BQP1235AMR-SI 6BQP1215AMR-SI Information (Box packing) (Box packing) (Box packing) www.gigaipc.com...
-
Page 17: Chapter 2 - Qbix-Pro-Adla1255H-A1 (Qp-1255A-Si)
Chapter 2 Chapter 2 – QBiX-Pro-ADLA1255H-A1 (QP-1255A-SI) QBiX-Pro-ADLA1235H-A1 (QP-1235A-SI) QBiX-Pro-ADLA1215EH-A1 (QP-1215A-SI) Industrial Embedded System Kit www.gigaipc.com... -
Page 18: Dimension
Dimension 52.7 56.7 134.65 www.gigaipc.com... -

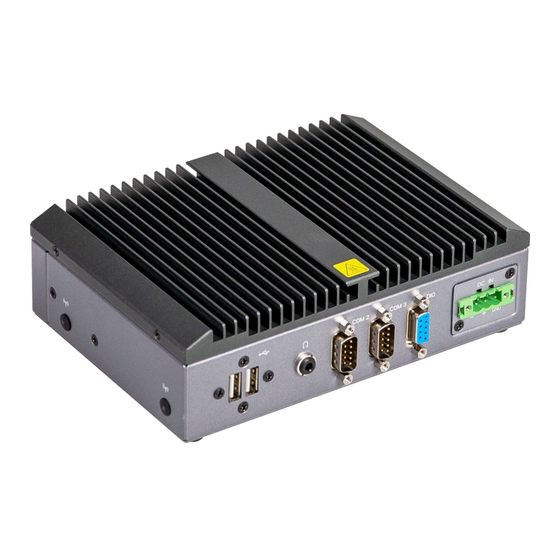

Page 19: Getting Familiar With Your Unit
1 x Power button with LED [Rear Side] [Right Side] 2 x USB 2.0 2 x Antenna (Optional) 1 x Headphone Jack 2 x COM Ports (COM2 & COM3, RS-232/422/485) 1 x 3-pin Terminal Block 1 x GPIO (8-bits) www.gigaipc.com... - Page 20 [Bottom PCB Side] Information Information 1 x M.2 slot 2280 M-key 2 x DDR4 SO-DIMM sockets 1 x M.2 slot 2230 E-key 1 x Mini PCIe slot with SIM Slot support 2.5’’ Hard drive/SSD www.gigaipc.com...
-
Page 21: A) Memory Installation: Ddr4 So-Dimm
A) Memory Installation: DDR4 SO-DIMM www.gigaipc.com... -
Page 22: B) Mini Pcie Card Installation: How To Safely Install The Mini Pcie Card
Remove the screw from the screw Carefully insert the Mini PCIe Card Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot hole (Location : MSO4) into the slot. 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 Secure the Mini PCIe Card with screw. www.gigaipc.com... -
Page 23: C) M.2 Ssd Installation: How To Safely Install The
Remove the screw from the screw Carefully insert the M.2 SSD into the Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot hole (Location : MSO2) slot, and secure with the screw. 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 www.gigaipc.com... -
Page 24: D) Wireless Module: How To Safely Install The Module (Wireless Module Inclusion May Vary Based On Local Distribution)
D) Wireless Module: How to safely install the Module (Wireless Module inclusion may vary based on local distribution) Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot Install the antenna on the left side of the connection wireless module down. www.gigaipc.com... -
Page 25: E) 2.5" Hdd/Ssd Installation: How To Install 2.5" Hdd/Ssd
Third : install 2.5" HDD/SSD (Gold finger of 2.5" HDD/SSD must face down), and secure with 4 screws. Fourth : install the bracket back with 3 screws. Assemble the SATA cable on the SATA connector, and lock the bottom cover. www.gigaipc.com... -
Page 26: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)
Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com... -
Page 27: Cable Pin-Define
RS-485 DB9 Pin RS-232 Full Duplex Half Duplex TXD- TXD+ RXD+ – RXD- – – – – – – – – – 2. DBP DIO (25CR5-150606-S9R) DBP DIO Pin Pin Name GPIO-output_1 GPIO-input_1 GPIO-output_2 GPIO-input_2 GPIO-output_3 GPIO-input_3 GPIO-output_4 GPIO-input_4 www.gigaipc.com... -
Page 28: Support
Support ● For a list of tested memory, M.2, 2.5’’ SSD, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com... -
Page 29: Safety And Regulatory Information
At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com... -
Page 30: Chapter 3 - Hardware Information
Chapter 3 Chapter 3 – Hardware Information www.gigaipc.com... -
Page 31: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 32 GPIO_CNT General purpose input / ouput header SYS_PANEL Front panel header DC_IN DC IN 1x4 pin power connector AT_CN AT/ATX mode select jumper COM2, COM3, Serial port header (RS-232/422/485) COM4 FUSB1, FUSB2 USB 2.0 headers ME_DIS ME Disable jumper www.gigaipc.com...
- Page 33 Code Description RI# pin RI#/5V/12V Select jumper for COM1 JCOM1 port SATAPWR SATA power connector SATA0 SATA 6Gb/s connector M.2 Slot , 2230 E-key MPCIE Mini PCIe Slot BATTERY Battery cable connector M2M_CPU M.2 Slot , 2280 M-key www.gigaipc.com...
-
Page 34: Cpu_Fan (Cpu Fan Connector)
3.2.1 CPU_FAN (CPU fan connector) Pin 1 CPU fan Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com... -
Page 35: Sys_Fan (System Fan Connector)
3.2.2 SYS_FAN (System fan connector) Pin 1 System fan Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com... -
Page 36: Com1
3.2.3 COM1 (Serial port connector, (RS-232/422/485 & RI/5V/12V)) Serial Port Connector Connector PN Vendor SM41D1P1122N33N1 FENYING Pin No. RS-232 RS-422 RS-485 Full Duplex Half Duplex TXD- TXD+ RXD+ – RXD- – – – – – – – – – www.gigaipc.com... -
Page 37: Lan1, Lan2 (2.5Gbe Lan Connector)
LAN1, LAN2 (2.5GbE LAN connector) 2.5GbE LAN Connector State Description Yellow On 2.5Gbps data rate Green On 1Gbps data rate 100Mbps data rate 10Mbps data rate Pin No. Definition BI_DA+ Connector PN Vendor BI_DA- RB1-GB-0009 BI_DB+ BI_DC+ BI_DC- BI_DB- BI_DD+ BI_DD- www.gigaipc.com... -
Page 38: Hdmi2_21 (Hdmi Connector)
3.2.5 HDMI2_21 (HDMI connector) HDMI Connector Connector PN Vendor QJ11191-DFB1-4F FOXCONN Pin No. Definition Pin No. Definition TX2p CLKn TX2n TX1p TX1n TX0p Hot Plug TX0n Detect CLKp www.gigaipc.com... -
Page 39: Usb32_1, Usb32_2 (Usb 3.2 Gen 2X1 Connector)
3.2.6 USB32_1, USB32_2 (USB 3.2 Gen 2x1 connector) USB 3.2 Gen 2x1 connector Connector PN Vendor 18-A5950-6A33-A TCONN Definition Definition USB_D1n USB_D2n USB_D1p USB_D2p USB_Dp USB_Dp USB3_RX1n USB3_RX2n USB3_RX1p USB3_RX2p USB3_TX1n USB3_TX2n USB3_TX1p USB3_TX2p www.gigaipc.com... -
Page 40: Tpm_Spi (Trusted Platform Module Connector)
3.2.7 TPM_SPI (Trusted Platform Module Connector) Pin 1 TPM Module Connector Connector PN Vendor 87216-1004-06 ACES Pin No. Definition TPM_CLK SPI_CS#2 TPM_SO TPM_RST# TPM_SI +V3.3A www.gigaipc.com... -
Page 41: Sodimm1, Sodimm2 (Ddr4 So-Dimm Slot)
3.2.8 SODIMM1, SODIMM2 (DDR4 SO-DIMM Slot) www.gigaipc.com... -
Page 42: Lsw (Lvds Resolution Jumper)
1024 x 600 1600 x 900 18bit 24bit 1280 x 800 1680 x 1050 18bit 24bit 1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com... -
Page 43: Lvds (Lvds Connector)
But below model no need to add. A0~A3 is odd channel 0~3, A4~A7 is even channel. Note: *The LVDS output connector of the unit is only intended to be connected to an UL/IEC/EN CLK2+ approval equipment with fire enclosure. CLK1+ CLK2- www.gigaipc.com... -
Page 44: Bkl_Cn (Backlight Control Header)
3.2.11 BKL_CN (Backlight control header) Pin 1 Backlight control header Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com... -
Page 45: Spk_Out (Speaker Out Connector)
3.2.12 SPK_OUT (Speaker out connector) Pin 1 Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com... -
Page 46: Fp_Audio (Front Audio Connector)
3.2.13 FP_AUDIO (Front Audio connector) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L MIC_JD FAUDIO_JD MIC_R No Connect Detect HPOUT_L HPOUT_R www.gigaipc.com... -
Page 47: Gpio_Cnt (General Purpose Input/Output Header)
3.2.14 GPIO_CNT (General Purpose input/output header) Pin 1 GPIO Connector Pin No. Definition SMBus DATA Connector PN Vendor Pin No. Definition 725-81-12TW00 PINREX GPIO-output_1 A2004WV-2X06P46 JOINT-TECH GPIO-input_1 GPIO-output_2 GPIO-input_2 GPIO-output_3 GPIO-input_3 GPIO-output_4 GPIO-input_4 SMBus Clock www.gigaipc.com... -
Page 48: Sys_Panel (Front Panel Header)
3.2.15 SYS_PANEL (Front panel header) Pin 1 System Panel Header Connector PN Vendor 210-92-05GW5W PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com... -
Page 49: Dc_In (Dc In 1X4 Pin Power Connector)
3.2.16 DC_IN (DC IN 1x4 pin power connector) Pin 1 DC IN connector Connector PN Vendor 753-81-04TW00 PINREX 1 2 34 Pin No. Definition Power Power www.gigaipc.com... -
Page 50: At_Cn (At/Atx Mode Select Jumper)
3.2.17 AT_CN (AT/ATX mode select jumper) Pin 1 AT/ATX mode select jumper Connector PN Vendor 220-96-03GB001K PINREX Pin No. Definition AT MODE TXD5 ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com... -
Page 51: Com2, Com3, Com4 (Serial Port Header, Rs-232/422/485)
Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH RS-232 RS-422 RS-485 Full Duplex Half Duplex TXD+ TXD- RXD- — RXD+ — — — — — — — — — No Connect — — RI/5V/12V — — www.gigaipc.com... -
Page 52: Fusb1, Fusb2 (Usb 2.0 Headers)
3.2.19 FUSB1, FUSB2 (USB 2.0 headers) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com... -
Page 53: Me_Dis (Me Disable Jumper)
3.2.20 ME_DIS (ME Disable jumper) ME Disable Connector Connector PN Vendor 220-96-02GBK1 PINREX ME Disable jumper Default Enable www.gigaipc.com... -
Page 54: Jcom1 (Ri# Pin Ri#/5V/12V Select Jumper For Com1 Port)
3.2.21 JCOM1 (RI# pin RI#/5V/12V Select jumper for COM1 port) Pin 1 JCOM1 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: 5V (Power COM) PH06N53BAZ000 HORNGTONG 3-4 Close: RI (Stand COM) (Default-Setting) 5-6 Close: 12V (Power COM) www.gigaipc.com... -
Page 55: Satapwr (Sata Power Connector)
3.2.22 SATAPWR (SATA power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX Pin No. Definition www.gigaipc.com... -
Page 56: Sata0 (Sata 6Gb/S Connector)
3.2.23 SATA0 (SATA 6Gb/s connector) SATA Connector Connector PN Vendor WATF-07DBLBA1UW WINWIN Pin No. Definition www.gigaipc.com... -
Page 57: M2E (M.2 Slot, 2230 E-Key)
PCIE CLOCKp PCIE CLOCKn SUSCLK Pin No. Definition Pin No. Definition PCIE Clock 3.3V PCIRST Request 3.3V PCIE wake up BT_Disable WLAN_DISABLE 3.3V 3.3V Pin No. Definition Pin No. Definition Connector PN Vendor 80152-8521 BELLWETHER PCIE_TXp APCI0095-P002A LOTES PCIE_TXn CL_RST www.gigaipc.com... -
Page 58: Mpcie (Mini Pcie Slot)
Pin No. Definition Pin No. Definition USB Dp PCIE WAKE 3.3V 3.3V 3.3V PCIE Clock SIM PWR Request SIM DATA PCIE Clock n SIM Clock PCIE Clock p SIM Reset 3.3V UIM VPP3 Connector PN Vendor WLAN_DISABLE AS0B221-S99Q-7H FOXCONN Reset www.gigaipc.com... -
Page 59: Battery (Battery Cable Connector)
3.2.26 BATTERY (Battery cable Connector) Pin 1 Battery cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com... -
Page 60: M2M_Cpu (M.2 Slot, 2280 M-Key)
PCI Reset PCIE Clock Request SSD LED PCIE Clock n PCIe Wake# 3.3V PCIE Clock p 3.3V 3.3V Pin No. Definition Pin No. Definition 3.3V SUSCLK Detect 3.3V 3.3V 3.3V PCIE1 RXn Connector PN Vendor PCIE1 RXp 2E0BC41-C85CM-LH FOXCONN www.gigaipc.com... -
Page 61: Chapter 4 - Bios
Chapter 4 Chapter 4 – BIOS www.gigaipc.com... -
Page 62: Introduction
Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com... -
Page 63: The Main Menu
ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com... -
Page 64: Advanced
Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com... -
Page 65: Tpm Configuration
4.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM (Default setting) TPM Device dTPM : External TPM (When using External TPM module or Selection having TPM chip on MB) www.gigaipc.com... - Page 66 Item Description Security Device Enabled : Enables TPM feature (Default setting) support Disabled : Disables TPM feature None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM www.gigaipc.com...
-
Page 67: Cpu Configuration
Enabled : Enables Turbo Mode (Default setting) Turbo Mode Disabled : Disables Turbo Mode Command CPU to enter into low power consumption mode when CPU is under idle mode. C states Enabled : Enables C states (Default setting) Disabled : Disables C states www.gigaipc.com... -
Page 68: Sata Configuration
Intel VMD feature helps you to control and manage NVMe PCIe SSD. / Enable VMD Enabled : Enables Intel VMD feature controller Disabled : Disables Intel VMD feature (Default setting) Serial ATA Port shows 2.5" SATA HDD/SSD information shows M.2 SATA interface SSD information www.gigaipc.com... -
Page 69: It8786 Super Io Configuration
Disabled : if Disabled, displays no configuration for the serial port Serial Port 2 Configuration Device settings : Display the specified Serial Port base I/O address and IRQ COM Port Mode : Serial Port 3 Choose RS-232, RS-422, or RS-485 feature Configuration www.gigaipc.com... -
Page 70: Hardware Monitor
4.3.5 Hardware Monitor Item Description CPU Temperature Shows current CPU temperature System Shows current system temperature Temperature www.gigaipc.com... -
Page 71: S5 Rtc Wake Settings
Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com... -
Page 72: Network Stack Configuration
Disabled : Disables IPv6 HTTP Support Enabled : Enables IPv6 HTTP Support PXE boot wait time Wait time in seconds, or use ESC key to abort the PXE boot. Media detect count Number of times the presence of media will be checked. www.gigaipc.com... -
Page 73: Nvme Configuration
4.3.8 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com... -
Page 74: Offboard Sata Controller Configuration
4.3.9 Offboard SATA Controller Configuration www.gigaipc.com... -
Page 75: Digital Io Port Configuration
Enabled : If Digital IO Output value/level is modified in OS, they will be memorized and kept. SOGPO_1 (Pin 1) SOGPI_1 (Pin 2) SOGPO_2 (Pin 3) SOGPI_2 (Pin 4) Configure Digital IO Input or Output values for each pin. SOGPO_3 (Pin 5) SOGPI_3 (Pin 6) SOGPO_4 (Pin 7) SOGPI_4 (Pin 8) www.gigaipc.com... -
Page 76: Tls Auth Configuration
Press [Enter] to configure advanced items : Server CA Configuration : Enroll Cert : Enroll Cert 1. Enroll Cert Using File 2. Cert GUID : Input digit character in 11111111-2222-3333-4444-1234567 890ab format. 3. Commit Changes and Exit 4. Discard Changes and Exit www.gigaipc.com... -
Page 77: Chipset
Enable/Disable Watchdog Timer function Watchdog Timer Enabled : Enables Watchdog Timer function Disabled : Disabled Watchdog Timer function (Default setting) Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com... -
Page 78: Security
To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com... - Page 79 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
- Page 80 No : Cancel to setup mode TimeStamps Enroll Efi Allow the image to run in Secure Image OsRecovery Boot mode Signatures Export Copy NVRAM content of Secure Boot Secure Boot variables to files in a root folder on a variables file system device www.gigaipc.com...
-
Page 81: Boot
Enable/Disable Built-in EFI Shell Built-in EFI shell Enabled : Enables Built-in EFI Shell Disabled : Disables Built-in EFI Shell (Default setting) Shows the information of the storage that be installed in the system Boot Option #1 Choose/set the boot priority www.gigaipc.com... -
Page 82: Save & Exit
Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...
