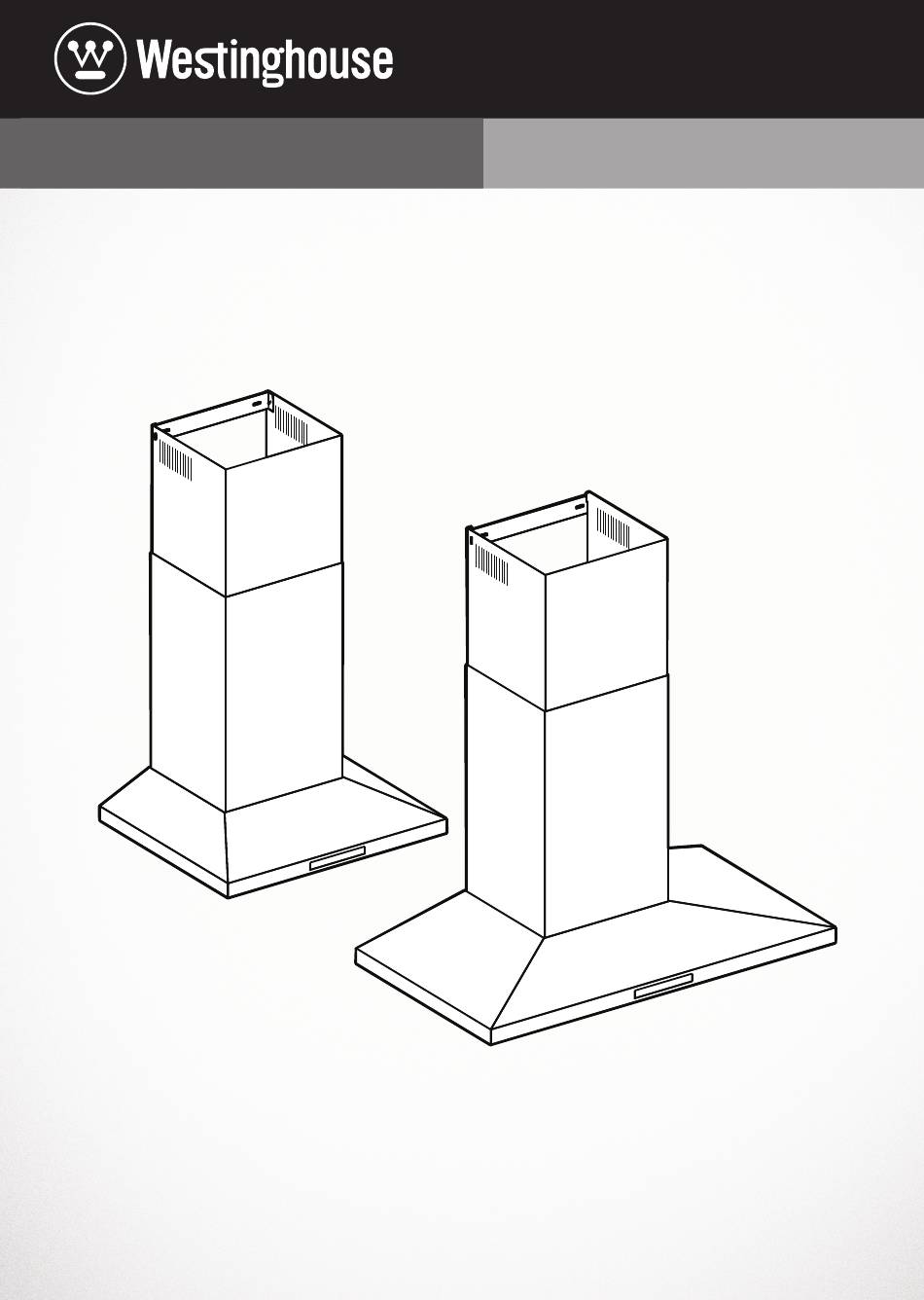

- Page 1 INSTALLATION & USER MANUAL CANOPY RANGEHOOD WRC613SB, WRC913SB, WRC614SC, WRC914SC...
-
Page 2: Table Of Contents
Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Westinghouse manufacturer’s warranty in the event that your product fault is due to failure to adhere this manual. -
Page 3: Important Safety Instructions
This manual explains the proper use of your new WARNING WARNING Westinghouse canopy rangehood. Please read this manual carefully before using the product. This manual These warnings have been provided in the interest of should be kept in a safe place for handy reference. This safety. - Page 4 IMPORTANT SAFETY INSTRUCTIONS (CONTINUED) Electrical connection Check that the mains voltage matches with the voltage on the data plate inside the canopy rangehood. Check that the installation complies with standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.
-
Page 5: Description Of Your Rangehood
・ Fixings required to attach flue cover ・ Lights: 2 x 4 watt, 240 V LED (for WRC613SB/WRC913SB) mounting brackets ・ Lights: 2 x 3.5 watt, 240 V LED (for WRC614SC/WRC914SC) ・ Worm drive clamps, duct tape or cable ties ・ Ducting accessories... -
Page 6: Rangehood Dimensions
RANGEHOOD DIMENSIONS RANGEHOOD DIMENSIONS RANGEHOOD DIMENSIONS WRC613SB/WRC614SC WRC913SB/WRC914SC WRC613SB WRC913SB WRC613SB WRC913SB Fig. 4 Fig. 4 Fig. 4... -
Page 7: Installation
INSTALLATION Pre-installation Before installing the cooker hood, peel off any protective plastic covering and remove polystyrene from inside behind the fan motor. See Fig. 5 below Fig. 5 Location The hood is to be mounted on the wall. When installed, the hood must be not less than 60cm above electric burners or 65cm above gas or mixed-fuel burners. - Page 8 INSTALLATION Using a spirit level mark a vertical centre line on WRC614SC WRC914SC WRC613SB WRC913SB the wall where the hood is to be positioned, and 600mm 900mm 600mm 900mm a horizontal line at the hood base position. (See Fig. 4, or 5 for relevant model.
- Page 9 INSTALLATION Install flue cover wall mounting brackets with Hang the body hood on the mounting screws then suitable fixings. Install suitable screws for rangehood secure at the anti-tilt locations as indicated in Fig 9 mounting points (to support a total weight of 30kg) to the wall as marked (Fig.
- Page 10 INSTALLATION INSTALLATION Depending on the preferred installation/ducting mode, follow step 14a or 14b below. Recirculating mode (Fig. 10). Using the centre line, secure the recirculating T-piece to the wall with suitable screws/fixings (optional kit AR610RK). Install flexible pipe between T-piece and reducer. Use cable ties or suitable duct tape to secure flexible pipe to T-piece and reducer (Fig.
- Page 11 INSTALLATION 7. Electrical connection 9. Fix upper flue cover Check that the installation complies with the standards Fix upper flue cover to the wall mounting bracket of local building, gas and electrical authorities. Before with screws supplied. Ensure that the upper section is connecting to the mains supply ensure that the mains extended.
-
Page 12: Using Your Rangehood
CONTROL PANEL CARE & MAINTENENCE • Best results are obtained by using a low speed for normal conditions and a high speed when odours are WARNING CAUTION more concentrated. External surfaces are susceptible to scratches and • Turn the hood on for a few minutes before you start abrasions, so please follow the cleaning instructions cooking. - Page 13 There is a fire risk if cleaning is not carried out in accordance with the instructions. Power: 4W Dimension: o 50mm DBR-4-H-GU10-50/53 Suitable lamp for replacement (for WRC614SC/ WRC914SC) Lamp type: LED Fixing type: GU10 Voltage: 220~240V AC Power: 3.5W Dimension: o 50mm DBR-3.5-H-GU10-50/53...
-
Page 14: Troubleshooting
TROUBLESHOOTING GUIDE PROBLEM REMEDY Check that the hood is connected to an electrical supply The cooker hood will not start Check that a fan speed has been selected Check that the fan speed is set high enough for the task The grease filters are clean The kitchen is adequately vented to allow the entry of fresh air The cooker hood is not working... -
Page 15: Optional Ducting Accessories
OPTIONAL DUCTING ACCESSORIES AR150RC AR150F AR150WV AR610RK AR150FD AR125FD AR610CF PART NUMBERS DESCRIPTION AR150RC 150mm G/Bond Roof Cowl AR150F 150mm G/Bond Flue 1200m AR150WV 150mm Wall Vent & duct AR610RK Recirculating kit (150–120m reducer, T-piece & carbon filters) AR610CF Replacement carbon filter AR610FS Stainless steel exhaust cover extension 1200mm AR150FD... - Page 16 NOTES...
- Page 17 NOTES...
- Page 18 NOTES...
-
Page 19: Warranty
(c) ‘ASC’ means Electrolux’s authorised serviced centres; the Appliance; (d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products In addition, Electrolux is not liable under this warranty if: Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004... - Page 20 0800 436 245 email: customercare@electrolux.co.nz web: westinghouse.co.nz and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license by Electrolux Home Products Pty Ltd. All Rights Reserved. © 2019 Electrolux Home Products Pty Ltd. ABN 51 004 762 341...
