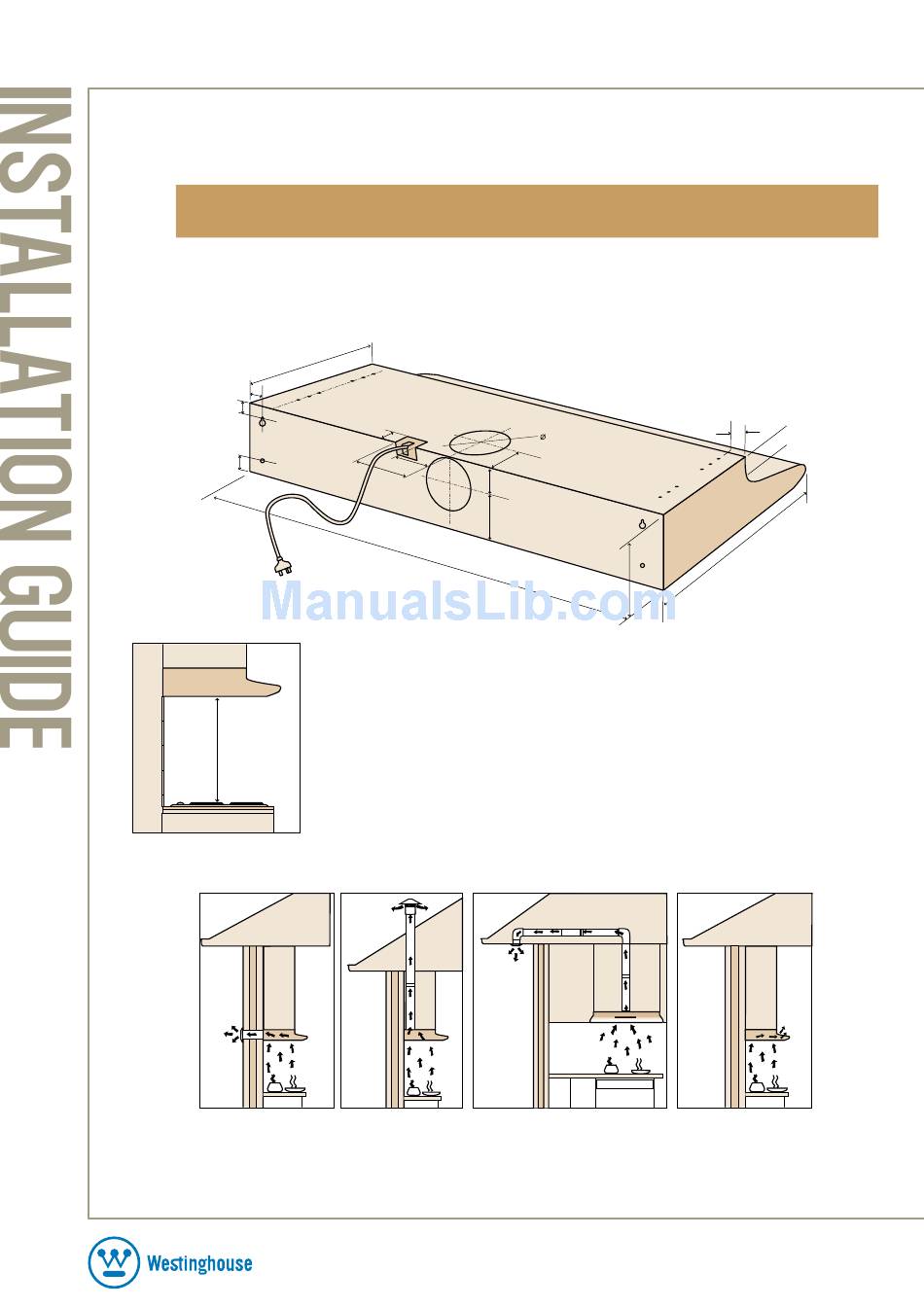

fixed rangehoods
WrJ600uW, WrJ600uK, WrJ600us, WrJ603uW,WrJ611us, WrJ900uW,
models:
WrJ900us, WrJ903uW, WrJ903uK,WrJ911us
300mm
25mm
25mm
30mm
Minimum distance
of hood above hob
GAS:
650mm
ELECTRIC:
600mm
Rear Exhaust
to atmosphere
*
In recirculating mode you must use carbon filters to eliminate cooking smells. (Model No. ARCFD)
All measurements in millimetres.
30mm
105mm
79mm
143mm
60mm
100mm
598/898mm
Side Exhaust
Top Exhaust
to atmosphere
to atmosphere
119mm
160mm
Front Recirculating
*
Exhaust
Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. WRANIDFIXED 05/06
25mm
35mm
500mm
Top Recirculating
*
Exhaust
page 1 of 2
Advertisement
Related Manuals for Westinghouse WRJ600UW
Summary of Contents for Westinghouse WRJ600UW
- Page 1 WrJ600uW, WrJ600uK, WrJ600us, WrJ603uW,WrJ611us, WrJ900uW, models: WrJ900us, WrJ903uW, WrJ903uK,WrJ911us 300mm 25mm 25mm 25mm 30mm 119mm 35mm 30mm 105mm 79mm 143mm 60mm 100mm 500mm 598/898mm 160mm Minimum distance of hood above hob GAS: 650mm ELECTRIC: 600mm Side Exhaust Front Recirculating...
-
Page 2: Part Numbers
WrJ600uW, WrJ600uK, WrJ600us, WrJ603uW,WrJ611us, WrJ900uW, models: WrJ900us, WrJ903uW, WrJ903uK,WrJ911us AR125RC AR125F Flashing Not Supplied AR125B AR125FD AR125FJ/AR125FJD Alternative flue connection AR125WV part numbers description AR125RC Roof Cowl AR125B Bend AR125F Flue 1200mm Long AR125FD Flexible Duct – 1 metre long when expanded... - Page 3 canopy rangehoods models: WrF600cs, WrF900cs, Wrg630cs, Wrg930cs, Wrg630cW, Wrg930cW 222mm 165mm 470mm (max.)* 1240mm (max.) 540mm 230mm 20mm 500mm 600/900mm 1 100mmextensionfluecoverisavailableifrequiredwherehighceilingsarepresent. (ModelNo.AR500FSorAR500FW) Allmeasurementsinmillimetres. CurrentasatMay2006.©2006ElectroluxHomeProductsPtyLtd.WRANIDCANOPY05/06 page 1 of 3...
- Page 4 canopy rangehoods models: WrF600cs, WrF900cs, Wrg630cs, Wrg930cs, Wrg630cW, Wrg930cW Note: Some installations may require telescopic flue cover to be cut to length. Cut with tin snips or fine Flue cover mounting brackets tooth hack saw blade, taking care not to distort or dent flue cover.
- Page 5 canopy rangehoods models: WrF600cs, WrF900cs, Wrg630cs, Wrg930cs, Wrg630cW, Wrg930cW AR125RC AR125F Flashing not supplied AR500FS AR500FW AR125FJ/AR125FJ/D AR125WV AR125B AR125FD Alternative flue connection AR500RK AR500CF part numbers description AR125RC RoofCowl AR125B Bend AR125F Flue1200mmLong AR125FD FlexibleDuct–1metrelongwhenexpanded AR125WV WallVentKit AR500FS/AR500FW ExtraLengthFlueCover1100mmlengthbrushedstainlesssteel/white AR500RK RecirculatingKit(includesAR500CFx2) AR500CF...
- Page 6 canopy rangehoods models: Wrg950cgs 320mm 280mm 130mm Minimum 905 mm Maximum 1140mm 535mm 615mm 500mm 80mm 590mm 900mm All measurements in millimetres. Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. WRANIDGLASSCANOPY 05/06 page 1 of 3...
- Page 7 canopy rangehoods models: Wrg950cgs 125mm 125mm 130mm Flue cover mounting brackets 118mm 118mm Note: Some installations may require telescopic flue cover to be cut to length. Cut with tin snips 235mm or fine tooth hack saw blade, taking care not to 125mm 125mm distort or dent flue cover.
- Page 8 canopy rangehoods models: Wrg950cgs AR125RC AR125F Flashing not supplied AR125FJ/AR125FJ/D AR125WV AR125B AR125FD Alternative flue connection AR500CF part numbers description AR125RC Roof Cowl AR125B Bend AR125F Flue 1200mm Long AR125FD Flexible Duct – 1 metre long when expanded AR125WV Wall Vent Kit AR500CF Replacement Carbon Filters AR125FJ...
- Page 9 slideout rangehoods models: Wrh605iW, Wrh605is, Wrh608iW, Wrh608is, Wrh608iK 80mm 34mm 40mm 210mm 100mm 20mm 470mm 158mm 550mm 599mm 175mm 458mm 280mm 42mm Minimum distance of hood above hob GAS: 650mm ELECTRIC: 600mm Rear Exhaust Top Exhaust Side Exhaust Front Recirculating Top Recirculating to atmosphere Exhaust...
- Page 10 slideout rangehoods models: Wrh605iW, Wrh605is, Wrh608iW, Wrh608is, Wrh608iK, AR125RC Flashing Not Supplied AR125F AR125FD (Alternate flue connection) AR125B AR125FJ/AR125FJD AR125WV part numbers description AR125RC Roof Cowl AR125B Bend AR125F Flue 1200mm Long AR125FD Flexible Duct – 1 metre long when expanded AR125WV Wall Vent Kit AR125FJ...
- Page 11 slideout rangehoods models: Wrh908iW, Wrh908is, Whr908iK 80mm 34mm 100mm 40mm 210mm 770mm 20mm 850.5mm 899.5mm 158mm 175mm 458mm 280mm 42mm Minimum distance of hood above hob GAS: 650mm ELECTRIC: 600mm Rear Exhaust Top Exhaust Side Exhaust Front Recirculating Top Recirculating to atmosphere Exhaust Exhaust...
- Page 12 slideout rangehoods models: Wrh908iW, Wrh908is, Whr908iK AR125RC Flashing Not Supplied AR125F AR125FD (Alternate flue connection) AR125B AR125FJ/AR125FJD AR125WV part numbers description AR125RC Roof Cowl AR125B Bend AR125F Flue 1200mm Long AR125FD Flexible Duct – 1 metre long when expanded AR125WV Wall Vent Kit AR125FJ Flue Joiner without damper...
