Operation manual
Introduction
The Probe is a clamp-on AC current probe that is designed and tested according to EN
61010-1:2002 and EN 61010-2-032:2002 (Overvoltage Category IV), Safety Require-
ments for Hand-held Current Clamps for Electrical Measurement and Test, the EMC
Directive (EN 61326-1:2006 and EN 61326-2-2:2006), and other safety standards (see
"Safety Specifications").
Warning
Before using this Meter, read the following safety information carefully. If the Meter is not
used as described in the manual, the safety features of the Meter might be severely im-
paired.
Observe the International Electrical Symbols listed below.
WARNING! Risk of electric shock.
CAUTION!
Equipment is protected throughout by Double Insulation or Reinforced Insulation.
Read the following safety information carefully before attempting to operate or service
the current probe.
Never use the Probe on circuits with voltages higher than 600V rms
•
•
Keep your fingers behind the barrier (hand guard)
•
Be extremely cautious when clamping around uninsulated conductors or bus bars.
Accidental contact with the conductor could result in electric shock.
•
Check surface of the Probe jaws; these should be free of dust, rust, dirt, and other
foreign matter.
•
Never use a Probe whose insulating protection has been impaired. Such probes
should be made inoperative by taping the clamp shut in order to prevent operation.
English, V1.3, 05.01.11

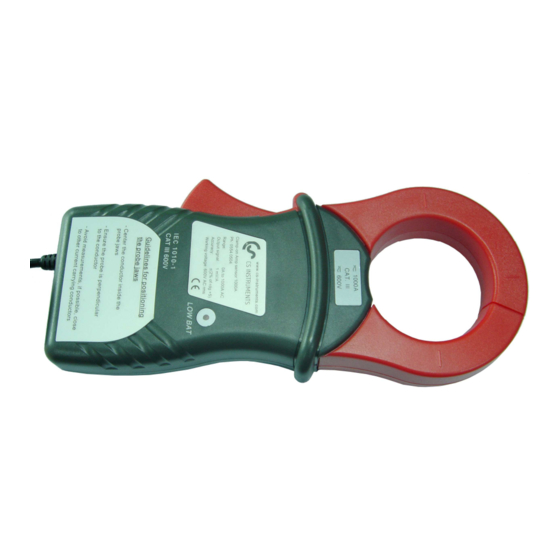

Clamp-on amp sensor 0-1000A
0970 0033
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CS Instruments 0554 0504
Summary of Contents for CS Instruments 0554 0504
- Page 1 Clamp-on amp sensor 0-1000A Operation manual Introduction The Probe is a clamp-on AC current probe that is designed and tested according to EN 61010-1:2002 and EN 61010-2-032:2002 (Overvoltage Category IV), Safety Require- ments for Hand-held Current Clamps for Electrical Measurement and Test, the EMC Directive (EN 61326-1:2006 and EN 61326-2-2:2006), and other safety standards (see “Safety Specifications”).
- Page 2 Maximum Jaw Opening 52 mm (2.04 inch) Dimensions 205 x 97 x 44 mm (8.07 x 3.82 x 1.73 inch) 480g (16.9 oz.) Weight Oder Information Order No. Description 0554 0504 Clamp-on amp sensor 0-1000A 0970 0033 English, V1.3, 05.01.11...
- Page 3 Clamp-on amp sensor 0-1000A Operation Instructions Measuring Current 1）Connect the current sensor to one of DS 300 portable analog input terminals. DS 300-P6 analog input terminal 3 to 6 DS 300-P4 analog input terminal 3 to 4 2) Turn on DS 300 portable and set the corresponding terminal's input sensor type to "Current".
- Page 4 Other claims, especially those for damage occurring outside the instru- ment are not included unless responsibility is legally binding. CS Instruments (Asia) Co. Ltd. Room 31, Tower B, Cambridge Plaza 188 San Wan Road Sheung Shui, N.T.
