- Page 1 DP 500 Quick User Guide DP 500 portable dew point, pressure and temperature meter 0970 0055 DP 500 English, V1.0, 21.05.12...
-
Page 2: Table Of Contents
2. What‘s in the box 3. Getting ready for measurement 4. Operation Buttons and connectors Symbols Main screen Basic operation Calibration function Special considerations 5. Technical data 6. Order information 7. Trademarks 8. Quality 9. Warranty 0970 0055 DP 500 English, V1.0, 21.05.12... -
Page 3: General Information
CS Instruments is not liable for errors which may have slipped into this operating manual. The DP 500 is to be used for measuring the moisture, pressure and Area of temperature of air and gases. -
Page 4: What's In The Box

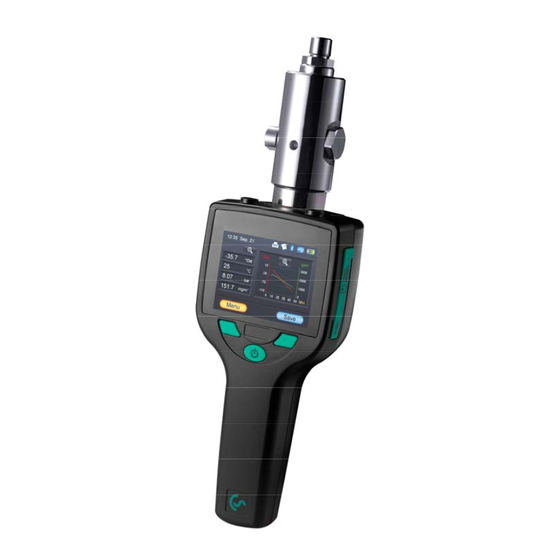

DP 500 2. What’s in the box? Depending on your order DP 500 comes with various options and accessories which are explained in this chapter: DP 500 instrument (0560 0500). Parking chamber and closer. Measuring chamber (0699 3492). The Teflon hose with quick con- nect (0554 0003). -
Page 5: Getting Ready For Measurement
For meas- uring it has to be removed and replaced measuring chamber. During removal use the closer to seal the desiccant in the parking chamber. 0970 0055 DP 500 English, V1.0, 21.05.12... - Page 6 The Teflon hose with quick con- nector is used to connect the measuring chamber to the proc- ess. The hose is connected to the 6mm connector at the cham- ber. The quick connector is connected to the process. 0970 0055 DP 500 English, V1.0, 21.05.12...
-
Page 7: Operation
Symbol shows the battery status in % of available energy. The calibration is expired. It‘s recommended to re-calibrate the sensor unit. Contact CS Service General error indication. Please note down the error codes and contact CS Service 0970 0055 DP 500 English, V1.0, 21.05.12... -
Page 8: Main Screen
Please try the functions through the touch screen and experience the features of this product. 4.5 Calibration function DP 500/520 have a user calibration for dew point and pressure inte- grated. This chapter describes the special considerations when cali- brating the instrument. - Page 9 We recommend calibration between -40 and -55 °C If there is any doubt about the correct calibration process and result, the calibration can be removed at any time. Please follow the in- structions on the screen. 0970 0055 DP 500 English, V1.0, 21.05.12...
-
Page 10: Special Considerations
The instrument comes with a Teflon hose for the connection to the compressed air system. Please ensure that the hose remains dry and clean. Wet and contaminated hoses can effect the measurement and should be exchanged. 0970 0055 DP 500 English, V1.0, 21.05.12... -
Page 11: Technical Data
Battery life: 6 hours CE mark: The measuring system is conform with the Approvals statutory requirements of the EC Directives. Certificates CS Instruments has successful tested the device and affixed the CE mark. 0970 0055 DP 500 English, V1.0, 21.05.12... -
Page 12: Order Information
0699 3500 Parking/Measuring chamber for fast sensor response 0554 0003 Teflon hose with quick connector 0554 0018 USB charger with USB cable 0554 0019 Transport case DP 500 7. Trademarks Bluetooth® Trademarks Registered trademark of the Bluetooth Organisation 0970 0055 DP 500 English, V1.0, 21.05.12... -
Page 13: Quality
DP 500 8. Quality at CS CS Instruments is specialized in practice oriented measurement instru- Quality ments for industrial applications. Even though the company is just 7 years old, the founders have more than 20 years solid experience in instrumentation. - Page 14 Laws of the member states on the electromagnetic compatibility (89/336/EWG) Portable dew point meter DP 500 / DP 520 CS Instruments (Asia) as the manufacurer herewith declares that the above mentioned humidity sensor correspond with the requirements of the following guideline: Electromagnetic compatibility...
- Page 15 Portable dew point meter DP 500 / DP 520 CS Instruments as the manufacturer herewith declares that the above instruments and accessories belong to the category 9 (WEEE 2002/96/EC). Therefore the above instruments are not affected by the directive RoHS 2002/95/EC and by the material restriction.
- Page 16 Fax: +60-4 643 1518 Email: sales@csinstrument.com.my Website: http://www.csinstrument.com Kuala Lumpur Office No.1, Jalan TP3, UEP Subang Jaya Industrial Estate, 47620 Subang Jaya, Selangor, Malaysia Tel: +603 5122 2082 Fax: +603 5122 5811 Email: sales@csinstrument.com.my Website: http://www.csinstrument.com 0970 0055 DP 500 English, V1.0, 21.05.12...
