INSTRUCTION MANUAL
F
A
4
1
0
F
A
4
1
0
Humidity measuring instruments for measurement of the pressure dew
point and the atmospheric dew point in different applications:
- compressed air plants (refrigerating/adsorption dryers)
- granulate dryers
- medical gases
- non-corrosive gases, e. g. nitrogen
Instruction_manual_FA410_V2_01_2008
Advertisement
Table of Contents
Related Manuals for CS Instruments FA 410
Summary of Contents for CS Instruments FA 410

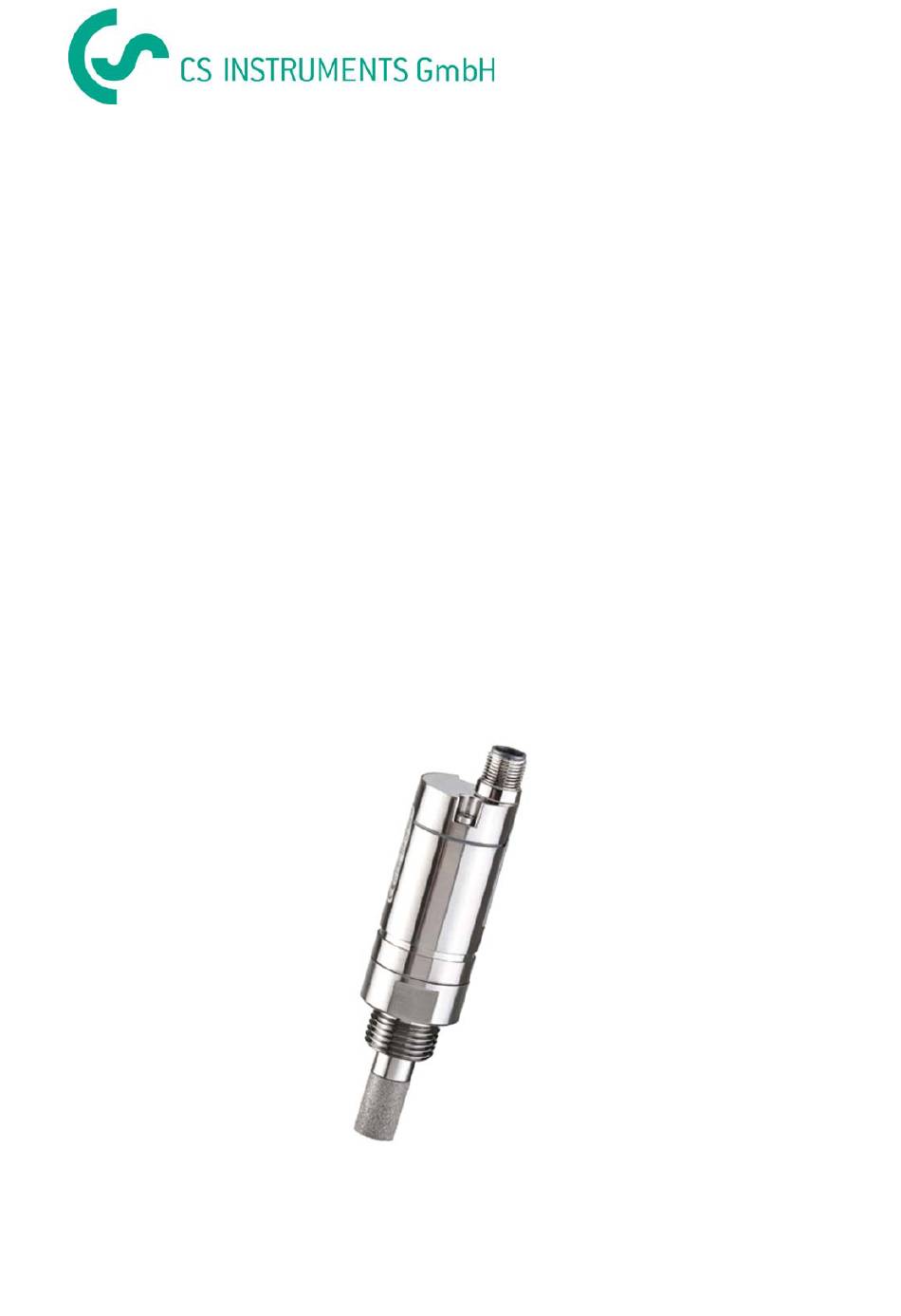

- Page 1 INSTRUCTION MANUAL Humidity measuring instruments for measurement of the pressure dew point and the atmospheric dew point in different applications: - compressed air plants (refrigerating/adsorption dryers) - granulate dryers - medical gases - non-corrosive gases, e. g. nitrogen Instruction_manual_FA410_V2_01_2008...
-
Page 2: Table Of Contents
Contact INTRODUCTION Dear CS customer, You have made the right decision by choosing a measuring instrument of CS Instruments GmbH. Thousands of customers buy our high standard products every year. There are a few good reasons for doing so: ... -
Page 3: Description

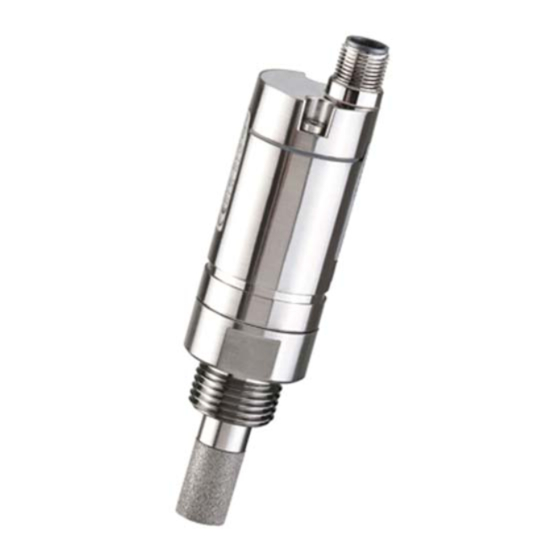

This prevents soiling of FA 410. Standing air leads to long measuring times. DESCRIPTION The FA 410 dew point sensor enables a reliable and long-term stable monitoring of the dew point in industrial applications from -80 to +20 °C dew point. The FA 410 features improved stability. -
Page 4: Technical Data
-80…20 °Ctd pressure dew point resp. dew point in °Ctd 0…100 % RH -30…70 °C -80…20 °Ctd ≙ 4…20 mA Type 0699.0410, FA 410 -20…50 °Ctd ≙ 4…20 mA Type 0699.0412, FA 410 typical 2 °Ctd of -80…-40 °Ctd Accuracy: ... - Page 5 Dimensions M12 Connector plug Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Connector plug Connection cable FA 410 0554.0104 (5 m) brown white blue black 0554.0105 (10 m) Digital signal (internal data transfer) Negative supply voltage Positive supply voltage 16...30 VDC smoothed Positive 4...20 mA signal...
-
Page 6: Installation
FA 410 Measurable gases In general, humidity can be measured in all non- corrosive gases. In case of measurements in corrosive gases please consult CS Instruments GmbH. FA410_V2_01_2008... -
Page 7: Calibration/Adjustment
The calibration cycles should fit your internal scheme. In the course of the DIN ISO certification we recommend for FA 410 a calibration cycle of one year. If requested we can carry out the calibration on your premises. -
Page 8: Contact
CONTACT Sales office SOUTH Zindelsteiner Str. 15 D-78052 Villingen-Schwenningen Phone +49 (0) 7705 97 89 9-0 Fax +49 (0) 7705 97 89 9-20 info@cs-instruments.com www.cs-instruments.com Sales office NORTH Am Oxer 28c D-24955 Harrislee Phone +49 (0) 461 700 20 25 Fax +49 (0) 461 700 20 26 info@cs-instruments.com www.cs-instruments.com...
