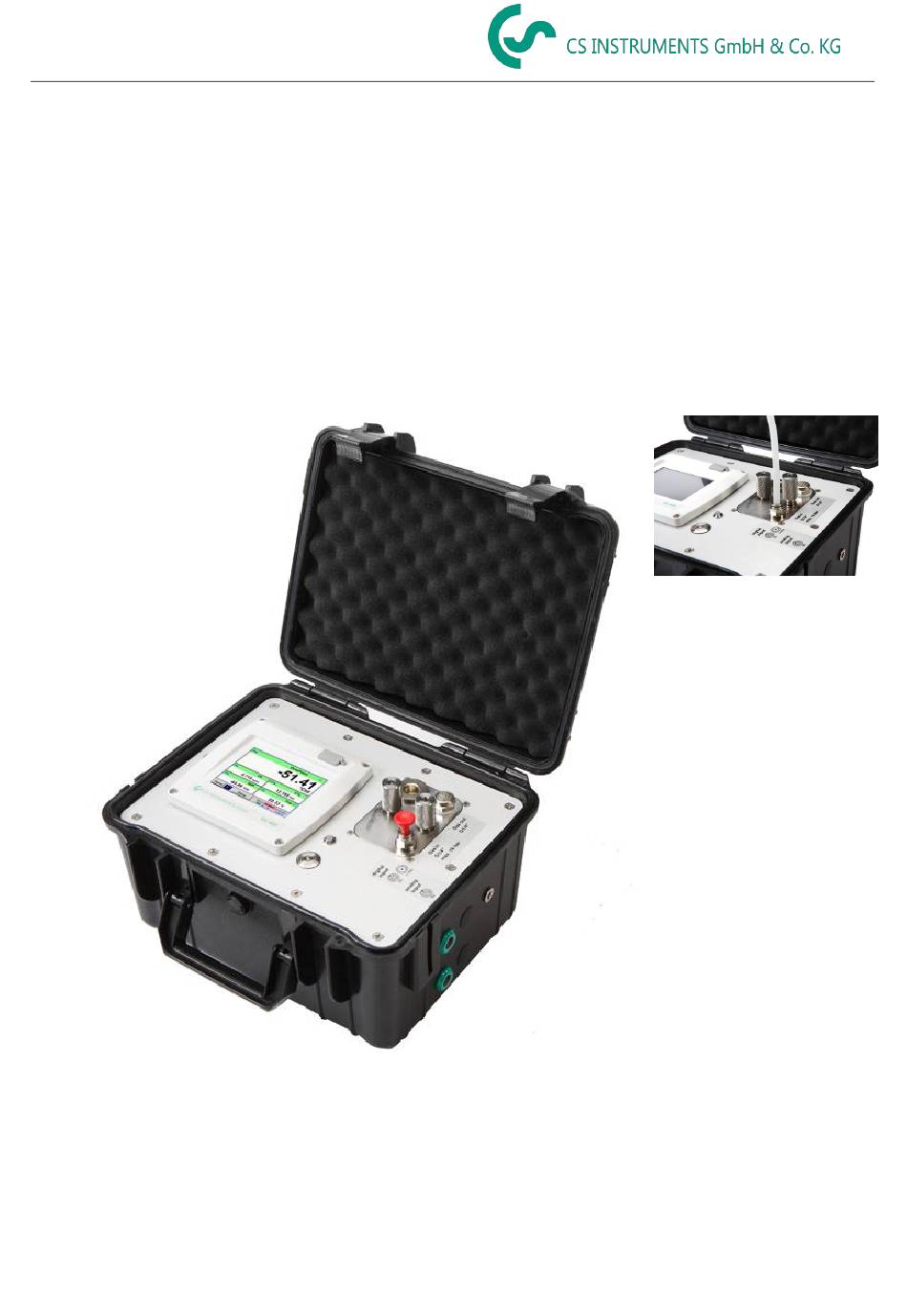

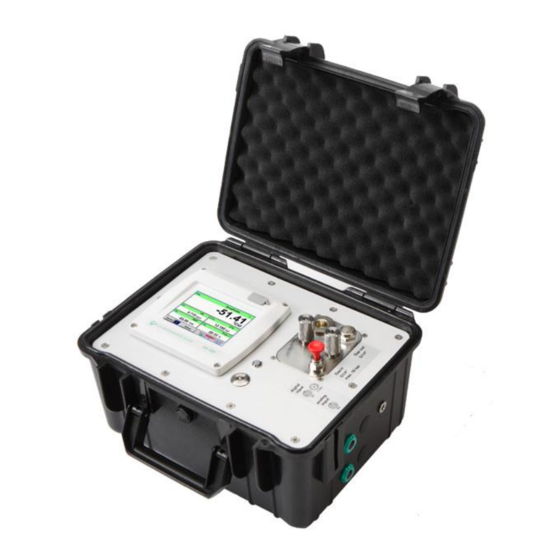

- Page 1 EN – English Installation- and operating instructions portable dew point meter with integrated pressure measurement DP 400 mobil DP 400 mobil V1.00 EN Seite 1 von 15...
- Page 2 Foreword Dear customer, thank you very much for deciding in favour of the DP 400 mobil. Please read this installation and operation manual carefully before mounting and initiating the device and follow our advice. A riskless operation and a correct functioning of the DP 400...
-
Page 3: Table Of Contents
Measurment test set up/ test procedure ................10 7.2.2 Display / data logger ......................11 DP 400 mobil settings in idle state / storage ............... 12 Operation / setting display and datalogger(optional)..........13 Cleaning Display ......................14 DP 400 mobil V1.00 EN... -
Page 4: Safety Instructions
Measures: • Make sure that the DP 400 mobil is only operated within the admissible limit values indicated on type label. • Strict observance of the performance data of the DP 400 mobil in connection with the application. -
Page 5: Installation
Batteries no longer suitable for use can be directly returned at: CS Instruments GmbH & Co.KG Zindelsteiner Str. 15 D-78052 VS-Tannheim CS Instruments GmbH & Co.KG... -
Page 6: Application Area
The dew point measuring device with data logger DP 400 mobile is designed for portable data acquisition and storage of analog and digital input signals. The DP 400 mobil is designed and designed exclusively for the intended use as described herein and may only be used accordingly. -
Page 7: Technical Data Dp 400 Mobil
Technical data DP 400 mobil Technical Data DP 400 mobil Dimensions of housing 270x225x156 mm Weight 3,2 kg impact resistant HDPE/HWU –plastic (ABS). Case Material Sensor inputs (digital / analogue) depending on configuration Sensor inputs Digital sensors RS 485/ModBus RTU Analogue third-party sensors 0/4 –... -
Page 8: Input Signals Analogue Sensors
0,3 °C ( further range ) minimal pulse length 100 μs Pulse frequency 0 - 1 kHz Measuring range max. 30 VDC Cable cross-section Sensor circuit points/Output signal ODU Medi-Snap, AWG26 cable cross-sections: 0,14 mm DP 400 mobil V1.00 EN Seite 7 von 15... -
Page 9: Installation / Connection / Measurement
Installation / Connection / Measurement User controls / connection 7.1.1 Dew point measurement Control dry container on/off Access dry container Plug in connection Medium closed with Medium output red seal plug. Control Medium on/off DP 400 mobil V1.00 EN Seite 8 von 15... -
Page 10: Display / Datalogger
Installation / Connection / Measurement 7.1.2 Display / Datalogger To switch on / off the DS400 mobile you have to press ( >= 3sec) the on / off knob. A short press of the on / off knob during operation opens a popup with indication of the remaining operation time. -
Page 11: Measurment Dew Point
Installation / Connection / Measurement Measurement dew point 7.2.1 Measurement test set up/ test procedure The maximum operating pressure is 15 bar. It is important that the media connections are correctly plugged in and the connection hoses are correctly installed. Otherwise, the pressure tightness / strength of the device is compromised. -
Page 12: Display / Data Logger
Installation / Connection / Measurement Test procedure: 1.) Both controls , Medium and dry container, have to be closed completely 2.) Remove red seal plug and connect the gas input line at „ Gas In“. 3.) For measurements with gases, except compressed air, the „Gas out“ is to change to a suitable line output.A secure gas flow out is to ensure. -
Page 13: Dp 400 Mobil Settings In Idle State / Storage
Installation / Connection / Measurement DP 400 mobil settings in idle state / storage The existing drying container should be activated between the measurements or especially during longer periods of interruption and storage. This is to protect the moisture sensor from excessively high moisture and thus to ensure fast response times. -
Page 14: Operation / Setting Display And Datalogger(Optional)
For a detailed description of the operation, use of datalogger, the free digital and analog inputs etc., please refer to the operating manual DS 400 mobile. Download Link: Instruction manual DS 400 mobile DP 400 mobil V1.00 EN Seite 13 von 15... -
Page 15: 10 Cleaning Display
The DP 400 mobil has a cleaning-function which protects the display against unintentional operation in the event of cleaning measures Cleaning of the DP 400 mobil must be undertaken using a slightly damp (not wet) cotton cloth or one- way wipe, and mild, commercially available cleaner/soap.
