  • Page 1 DS 350-P Operation manual DS 350-P DS 350-P English, V1.2, 13.09.13 0970 0065...
  • Page 2 The device is destined exclusively for the described application. CS Instruments offers no guarantee for the suitability for any other purpose and is not liable for errors which may have slipped into this operating manual. They are also not liable for consequential damage resulting from the delivery, capability or use of this device.

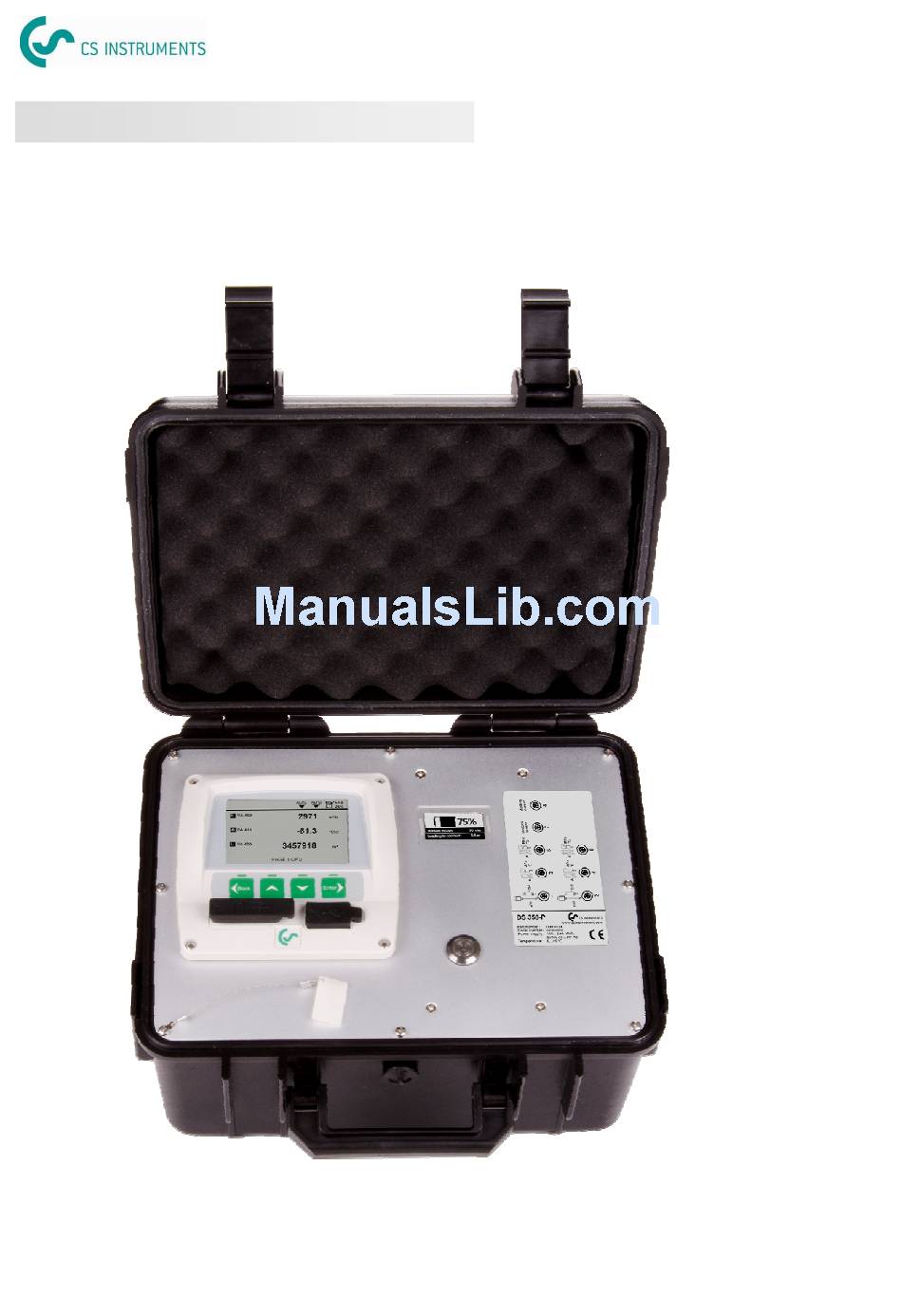

  • Page 3 DS 350-P 2. Overview SD card slot Keyboard for user interface operations USB port SD card ejector tool Battery gauge On/Off button DS 350-P English, V1.2, 13.09.13 0970 0065...

  • Page 4: Technical Data

    Internal battery Rechargable for up to 8 hours operation. Charging time ~ 3 hours Data logger Data is stored in 4G SD card, up to 100 million values 0970 0065 DS 350-P English, V1.2, 13.09.13...
  • Page 5 0.01 V Pt100: 0.2 ºC Pt1000: 0.2 ºC Pulse 1 digit Resolution 0-20 mA: 0.001 mA 0-1 V: 0.05 mV 0-10 V: 0.5 mV Pt100: 0.1 ºC Pt1000: 0.1 ºC Pulse: 1 digit DS 350-P English, V1.2, 13.09.13 0970 0065...
  • Page 6 24VDC / 20 W (total available power for sensor supply) Probe connection and power supply Please connect all sensors before switching on DS 350-P. CS flow / dew point sensors are detected automatically when connected. The same applies to CS sensor extension modules (power meter, us flow meter, analogue extension) which are connected to channel 7 + 8.
  • Page 7 Status icon shows different status of the system. Low battery icon: it shows when internal battery low. (Please contact service.) USB connection icon: icon shows when DS 350-P connected to PC via USB . DS 350-P English, V1.2, 13.09.13 0970 0065...
  • Page 8 The calibration is expired. It‘s recommended to re-calibrate the sensor unit. Contact CS Service General error indication. Please note down the error codes and contact CS Service 5.2 Basic key operation Basic concept for MENU mode key operation 0970 0065 DS 350-P English, V1.2, 13.09.13...
  • Page 9 2) Use the key to enable the new selected For leaving the exist option: 1) Use the key to go back to last menu level without enable the selected option. DS 350-P English, V1.2, 13.09.13 0970 0065...
  • Page 10 “Time and date set ting” menu and without saving the new setting Operation in detail By pressing the <Enter> key the menu can be accessed. DS 350-P has following main menus: Logger Files...
  • Page 11 DS 350-P Logger DS 350-P includes a data logger that can record up to 100,000,000 measurement values. In order to configure the logger function and to activate/deactivate it, there are several functions available which are explained below: Key start/stop log- Starts or stops the data recording.
  • Page 12 Sensors The following chapter describes the settings related to the sensor itself, which can be changed on the DS 350-P menu. For that purpose select in the menu the function “Sensors”. The next screen will show all detected flow/dew point sensors of connector 1 and 2.
  • Page 13 When finished, select in the menu “copy settings” together with the desired port or terminal (3...6) • Switch off DS 350-P and move the flow sensor connection to the selected port. • Done! You will see a “CS flow sensor “ then in the sensor channel list at the selected port with the correct unit and scaling.
  • Page 14 (absolute) has to be entered. Analogue sensor settings DS 350-P has up to 4 analogue input channels at connector 3 to 6. These channels don’t have an automatic sensor detection, the sensors need to be manually selected. Following settings are available: •...
  • Page 15 CS Modbus sensors are detected automatically (plug & play). For third party sensors its required to use the configuration software CSC-350 to cre- ate the sensor and download it into DS 350-P. After the download this sensor is then available for selection from the menu.
  • Page 16 3-6, the sensor type can be assigned through the user interface in the menu “Sensors” . These settings are stored permanently inside DS 350-P and need only to be changed if there is a change in these parameters.
  • Page 17 0-20 mA, 4-20 mA, 0-1 V and 0-10 V, Pulse types, this can be done through con- nector 3—6 according to the pinning shown in the table above. DS 350-P can also supply the external sensor with 24 VDC. Please ensure that the power drawn is within the allowed limits (see next chapter for more details).
  • Page 18 Color code Sensors powered through DS 350-P DS 350-P can supply 24 VDC to the external sensors and a total power of 20 W. All sensors connected to DS 350-P and supplied by DS 350-P must not exceed this power limit.

  • Page 19: Order Information

    Power meter 0554 0034 Portable power meter CS 110-P, Modbus/RTU, including 4 test leads, 4 test clips, 5 m cable with connector to DS 350-P 0554 0061 Current clamp sensor, 1.8 m cable, 200/1 A, connectable to CS 110-P (1 pieces) DS 350-P English, V1.2, 13.09.13...
  • Page 20 0554 0071 Ultra sound clamp-on sensor with installation device, DN 25...100 0554 0072 Ultra sound clamp-on sensor pair, DN 50...700 Other sensor / extensions 0554 0080 8 channel analog input extension, connectable to DS 350-P, including 5 m cable with connector Accessories...

  • Page 21: Scope Of Delivery

    Other claims, especially those for dam- age occurring outside the instrument are not included unless responsibility is legally binding. ATTENTION: Batteries have a reduced warranty time of 12 months. DS 350-P English, V1.2, 13.09.13 0970 0065...
  • Page 22 DS 350-P 0970 0065 DS 350-P English, V1.2, 13.09.13...
  • Page 23 DS 350-P DS 350-P English, V1.2, 13.09.13 0970 0065...
