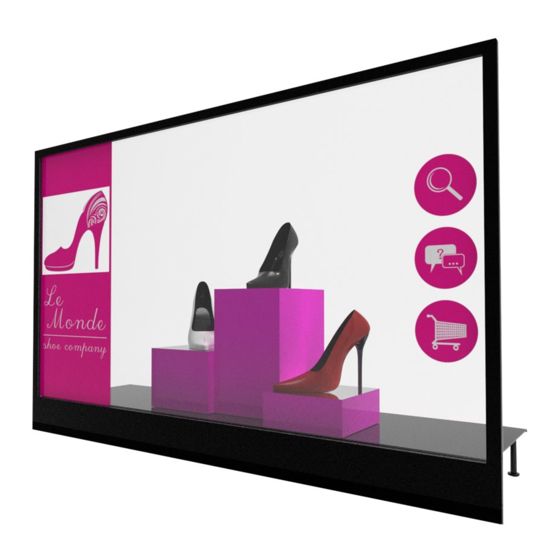

- Page 1 Planar LookThru Transparent OLED Display Fabricator’s Guide...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..................................2 What’s in the Fabricator’s Guide ............................3 What’s in the Box ..................................3 Display ...................................... 3 Counterweight Plate ................................3 Cable Cover ..................................... 3 HDMI and Power Cables ..............................3 Remote and Sensor ................................4 Quick Start Guide and USB Drive............................. -
Page 3: What's In The Fabricator's Guide
What’s in the Fabricator’s Guide This document is intended to give guidelines and help for installers and fabricators working with the Planar® LookThru™ Transparent OLED display. This document is not meant to replace the manual, nor will it provide specifics on how to work in each environment where a Planar LookThru Transparent OLED display might be installed. -
Page 4: Remote And Sensor
Remote and Sensor You can control the Planar LookThru display with the included remote control through on On-Screen Display (OSD). To increase the range of the remote control, a 112-inch (2850mm) cable is also included. Quick Start Guide and USB Drive A printed guide with the basic information necessary to start and operate the Planar LookThru display is included, but the more detailed User Manual, Content Developer’s Guide and this Fabrication Guide are stored on the... - Page 5 Here are four tiling components: o Center Tiling Component for Flat Configuration (2x2): 935-0421-00 o Edge Tiling Component for Flat Configuration (2x1): 935-0422-00 o Center Tiling Component for Corner Configuration (2x2): 935-0423-00 o Edge Tiling Component for Corner Configuration (2x1): 935-0424-00 Planar LookThru Fabricator’s Guide 020-1315-00A...
- Page 6 Below are examples of how the tiling hardware can be used to connect Planar LookThru displays. Sample installation using the tiling hardware. Planar LookThru Fabricator’s Guide 020-1315-00A...
-
Page 7: Base Plates
Base Plates If the display will be mounted to a ceiling, wall or tabletop, the Baseplate provides a mounting platform. The Baseplate aligns with the mounting holes on the standard version of the Planar LookThru display (more about the version in the next section) and allows the mounting into the support structure to be independent of the mounting points on the Display Chassis and Electronics Box. -
Page 8: Safe Handling
Front vs Rear Viewing Because each pixel is emitting its own light, the display can be viewed from the back as well as the front (the back side being where the Electronics Box is located). However, the light emitted toward the rear is much less than that on the front and any image viewed from behind will be reversed. -
Page 9: Cleaning
ESD safety device and/or connect the Planar LookThru display’s power cord to a grounded outlet before removing the protective film to prevent ESD damage to the electronic components. Do not bend or flex the Display Glass away from the Display Chassis. The glass is not designed to bear any weight or to be flexed at all. -
Page 10: Environmental Considerations
Display Glass. Avoid touching or wiping the exposed edge of the Planar LookThru LO55 and LO55-S models (standard and standard Straight Mount) as the silicon bead that seals the edge of the glass may allow some silicon onto the Display Glass surface and mar the anti-reflective coating. -
Page 11: General Instructions
General Instructions Planar LookThru displays can be installed vertically or horizontally (in portrait or landscape orientation) with the Electronics Box facing up, down, left or right. When installing a Planar LookThru display, it must be supported by the mounting points in the Display Chassis (primary) and mounting points on the Electronics Box (secondary) and NOT by the Display Glass. -
Page 12: Tabletop Installation
The Planar LookThru LO55 model with the Counterweight Plate attached weighs 73.5lbs (33.4kg) and the Planar LookThru LO55-T model weighs 90.5lbs (41.1kg). The Counterweight Plate for the Planar LookThru LO55 model weighs 13.6lbs (6.2kg). For the Planar LookThru LO55-T the weight is 21lbs (9.5kg). LO55 Standard Design Straight Mount models do not have Counterweight Plates and must be mounted to a sufficiently strong fixture or surface. - Page 13 No load should be placed on the Display Glass. Without the Counterweight Plate the Planar LookThru LO55 weighs 59.9lbs (27.2kg), the Planar LookThru LO55-T weighs 69.5lbs (31.5kg). The Straight Mount Planar LookThru LO55-S weighs 63.5lbs (28.9kg), and the Planar LookThru LO55-S-T weighs 73.0lbs (33.2kg).
-
Page 14: Optical Considerations
The optional tiling components are connectors that clip the corners of the Display Glass together to prevent movement. o Center Tiling Component for Flat Configuration (2x2): 935-0421-00 o Edge Tiling Component for Flat Configuration (2x1): 935-0422-00 o Center Tiling Component for Corner Configuration (2x2): 935-0423-00 o Edge Tiling Component for Corner Configuration (2x1): 935-0424-00 The clips do not provide any structural or load-bearing support. -
Page 15: Sunlight
For installations where the Planar LookThru display is not enclosed behind (e.g. using a Straight Mount LO55-S model), the display will be visible from both the front and the rear, but with reduced luminance from the rear and with all images reversed. Without any content on the Display Glass, the Planar LookThru display transmits 45% of the ambient light through it (45% transmissivity) meaning that looking... -
Page 16: Safety Considerations
As a fabricator, it is important to align the installation with the content to deliver the best possible experience. For example, a content developer wanted to highlight different objects behind the Display Glass in an exhibit-style installation, the installation would benefit from a low-light interior (i.e. behind the Display Glass) with adjustable spotlights. -
Page 17: Specifications
Specifications Specification Item LO55 LO55-S LO55T LO55ST Standard Straight Mount Standard with Straight Mount Touch with Touch AMOLED Panel Resolution 1920 x 1080 Aspect Ratio 16 x 9 Screen Size 55” Pixel Pitch 0.64mm Viewing Angle ±89º Color Gamut 100% NTSC # of Display Colors 1.07B (10 bits) Connectivity... - Page 18 Specification Item LO55 LO55-S LO55T LO55ST Standard Straight Mount Standard with Straight Mount Touch with Touch Input Voltage/ 100 to 240V/50-60Hz Frequency AC Line Fuse Protection 5A, 250V, 5 x 20mm, FST Front Glass Glass Treatment Planar® ERO™ with Anti-reflection (AR) coating Glass Type 2x2mm Corning Gorilla Glass Touch...
-
Page 19: Line Drawings
Line Drawings Note: CAD Files are available on Planar LookThru web page on www.planar.com in the Documents section, or www.planar.com/LookThru. Standard Design Planar LookThru Fabricator’s Guide 020-1315-00A... - Page 20 Straight Mount Design Planar LookThru Fabricator’s Guide 020-1315-00A...
- Page 21 Standard Design with Touch Planar LookThru Fabricator’s Guide 020-1315-00A...
- Page 22 Straight Mount Design with Touch Planar LookThru Fabricator’s Guide 020-1315-00A...
-
Page 23: Regulatory Information
Regulatory Information Manufacturer's Name: Planar Systems, Inc. Manufacturer's Address: 1195 NW Compton Drive Beaverton, OR 97006 Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
