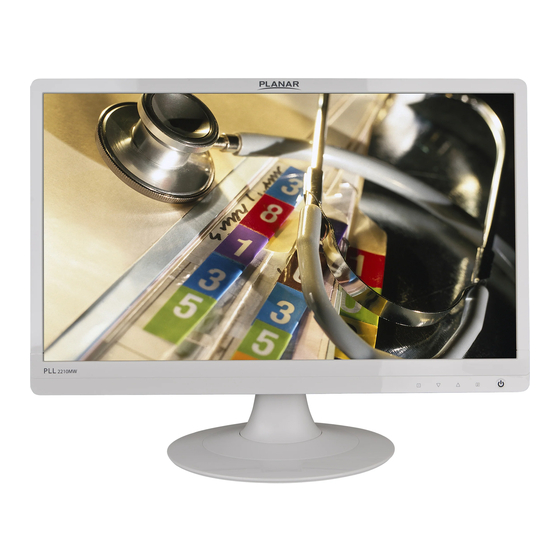

- Page 1 PLL2210MW LED LCD Monitor USER'S GUIDE www.planar.com...
-
Page 2: Table Of Contents
Content Operation Instructions ..............................1 Unpacking Instructions ..............................3 Safety Precautions ................................3 First Setup ................................... 5 Front View of the Product ............................6 Rear View of the Product .............................. 7 Quick Installation ................................8 Basic Operation................................. 9 Advanced Operation—OSD Menu ......................... 11 Supporting Timing Modes ............................ -
Page 3: Operation Instructions
Operation Instructions Thank you for purchasing this LED LCD Monitor, a high-resolution multi-scan color LED LCD Monitor. Please read this guide thoroughly before installation. FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This LED LCD Monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 4 COMMUNIQUE D’AVERTISSEMENT DE LA FCC CONCERNANT LES INTERFERENCE DE FREQUENCE RADIO: (SEULEMENT POUR MODELES CERTIFIE PAR LA FCC) Ce moniteur a été testé et à été trouvé conforme aux limites pour un appareil numérique de Classe B, suivant la partie 15 des règlements de la FCC. Ces limites ont été développées pour offrir une protection satisfaisante contre les interférences nuisibles dans une installation résidentielle.
-
Page 5: Unpacking Instructions
Unpacking Instructions Move the LED Monitor out of the package and take off the plastic bag and Polystyrene Foam. Pull the base from Parallel versus Panel to Vertical. Adjust the Panel between-5° leaning forward and 20° leaning backward. Safety Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. - Page 6 Consignes de sécurité Respectez tous les avertissements, les précautions et conseils d’entretien recommandés dans ce manuel de l’utilisateur pour maximiser la durée de vie de votre appareil. A faire : Éteindre le produit avant de le nettoyer. La surface de l'écran tactile peut être nettoyée avec un chiffon doux et propre imprégné d’un nettoyant doux du commerce pour vitres ou d'un mélange à...
-
Page 7: First Setup
First Setup Congratulations on your purchase of this high performance LED LCD Monitor. This LED LCD Monitor comes with the following accessories : LED LCD Monitor Audio Cable Power Cable User's Guide VGA Cable (15 pin) ... -
Page 8: Front View Of The Product
Front View of the Product ① ② ③ ④ ⑤ ① OSD Turn On/ Off ② Brightness / Scroll Down/ Adjust Decrease ③ Blue Light / Scroll UP/ Adjust Increase ④ Input select/ Confirm Selection ⑤ Power On/Off / LED Indicator... -
Page 9: Rear View Of The Product
Rear View of the Product ⑥ ⑦ ⑧ ⑨ ⑥ Power input (+12V DC in) ⑦ DVI Input (DVI 24 pin) ⑧ VGA Input (D-Sub 15 pin) ⑨ Audio Input... -
Page 10: Quick Installation
Quick Installation Connect either VGA or DVI Video Source from the monitor to the computer. Make sure both monitor and computer are powered OFF. Connect the audio cable from audio output of computer to the audio input of the monitor. Connect the AC power cord to the AC/DC power adapter, then to the monitor. -
Page 11: Basic Operation
Basic Operation Before using the LED LCD Monitor : Connect external equipments properly. Insert the power plug, and the power LED indicator will light orange. Power On/Off To turn the LED LCD Monitor on/off: Press POWER button on the front of LED LCD Monitor . The power LED indicator lights green when the LED LCD Monitor is on. - Page 12 Repeat this step to unlock. Option 2: OSD & Power button lock – all 5 buttons including the “POWER” button are locked. Press and hold the 1 button and the ▼ button for 3 seconds to lock all 5 buttons. The LED LCD Monitor will show an “Lock Out”...
-
Page 13: Advanced Operation-Osd Menu
Advanced Operation—OSD Menu You can use the OSD menu to adjust various settings for your LED LCD Monitor . Press the 1 button to display the OSD Menu, and use ▲▼ to select the desired OSD menu. Short Cuts Function from the button(s) Auto Image Adjust: To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. - Page 14 Color Adjust: To select the color for improving brightness and color saturation between 9300K, 6500K, 5400K, and User Color. 9300K: Adds blue to screen image for cooler white. 6500K: Adds red to screen image for warmer white and richer red. 5400K: Adds green to screen image for a darker color.
- Page 15 Preset Mode: Provides an optimum display environment depending on the contents displayed. It contains 5 user-selectable presets. Standard is for general windows environment and monitor default setting. Game optimized for PC game environment. Cinema optimized for movie and video environment. Scenery optimized for displaying outdoor scenery images.
-
Page 16: Supporting Timing Modes
Supporting Timing Modes STANDARD RESOLUTION 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 640 x 480 @ 72Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA... -
Page 17: Technical Information
Technical Information Panel 21.5” TFT (with LED backlight) Power Management On: 25 Watts (typical), 35 Watts (maximum) Standby Mode: < 0.5 Watt Off: < 0.5 Watt Displayable Resolution Full HD 1920 x 1080 max. Vertical Frequency 60Hz max. Pixel Dimension 0.24825 x 0.24825 mm Display Color 16.7M... -
Page 18: Wall-Mount Instruction
Wall-mount instruction Preparing To Install The Optional Wall Mount Arm (not included) This LED LCD Monitor can be attached to a wall mounting arm you can purchase separately. Turn the power OFF then disconnect the cables from the LED LCD Monitor before performing the procedure below. -
Page 19: Care And Maintenance
Care and Maintenance Care Avoid exposing your LED LCD Monitor directly to sunlight or other heat source. Place your LED LCD Monitor away from the sun to reduce glare. Put your LED LCD Monitor in a well ventilated area. ... -
Page 20: Planar Support
Planar Support Cables and Accessories To find cables and accessories for your Planar monitor, touch screen or other Planar products visit our online store at www.PlanarOnline.com. Technical Support Visit Planar at http://www.planar.com/support for operations manuals, touchscreen drivers, warranty information and access to Planar's Technical Library for online trouble shooting. To speak with Planar Customer Support please have your model and serial number available and dial: Planar Support... - Page 21 Planar, a Leyard company 11/2016 Planar, a Leyard company Planar, a Leyard company. P/N:300110000871000...
