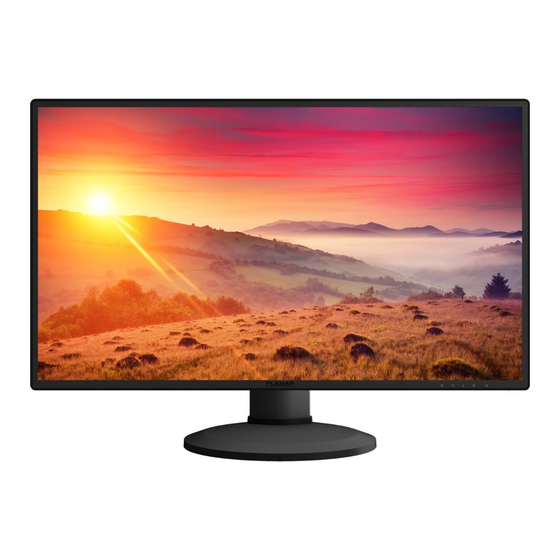

- Page 1 All manuals and user guides at all-guides.com PXN2771MW LED LCD Monitor USER'S GUIDE www.planar.com...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Content Operation Instructions..............................1 Unpacking Instructions ..............................3 Safety Precautions................................3 Consignes de sécurité ..............................4 Package Overview ................................5 First Setup...................................6 Front View of the Product ............................7 Rear View of the Product ..............................8 Quick Installation ................................9 Basic Operation and Calibration/Reset Instructions..................10 Advanced Operation—OSD Menu......................... -
Page 3: Operation Instructions
All manuals and user guides at all-guides.com Operation Instructions Thank you for purchasing the PXN2771MW LED LCD monitor. Please read this guide thoroughly before installation. FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This LED LCD Monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 4 All manuals and user guides at all-guides.com COMMUNIQUE D’AVERTISSEMENT DE LA FCC CONCERNANT LES INTERFERENCE DE FREQUENCE RADIO: (SEULEMENT POUR MODELES CERTIFIE PAR LA FCC) Ce moniteur a été testé et à été trouvé conforme aux limites pour un appareil numérique de Classe B, suivant la partie 15 des règlements de la FCC.
-
Page 5: Unpacking Instructions
All manuals and user guides at all-guides.com Unpacking Instructions Remove the LED LCD Monitor out of the package and take off the plastic bag and Polystyrene Foam. Remove base from plastic bag and attach to base. Adjust the display between -5° and 23°. Safety Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. -
Page 6: Consignes De Sécurité
All manuals and user guides at all-guides.com Consignes de sécurité Respectez tous les avertissements, les précautions et conseils d’entretien recommandés dans ce manuel de l’utilisateur pour maximiser la durée de vie de votre appareil. A faire : Éteindre le produit avant de le nettoyer. La surface de l'écran tactile peut être nettoyée avec un chiffon doux et propre imprégné... -
Page 7: Package Overview
All manuals and user guides at all-guides.com Package Overview LED LCD Monitor Base Power Cord VGA Cable Display Port Cable Audio Cable Cable Holder User’s Guide... -
Page 8: First Setup
All manuals and user guides at all-guides.com First Setup Install the stand base 1. Lay the LED LCD Monitor flat on a table with the LED screen face down. To prevent the LED LCD Monitor from being scratched, put a piece of soft cloth on the table on which the screen will be set. -
Page 9: Front View Of The Product
All manuals and user guides at all-guides.com Front View of the Product ①②③④⑤ ⑥ ① OSD Turn On/ Off ② Scroll Down/ Adjust Decrease/ Brightness/ Auto * ③ Scroll UP/ Adjust Increase/ Blue Light Reducer * ④ Input select/ Confirm Selection ⑤... -
Page 10: Rear View Of The Product
All manuals and user guides at all-guides.com Rear View of the Product ① ② ③ ④ ⑤ ⑥⑦ ① Power Input ② Cable Management ③ DisplayPort Input (DisplayPort 20 pin) ④ HDMI input (HDMI 19 pin) ⑤ VGA Input (D-Sub 15 pin) ⑥... -
Page 11: Quick Installation
All manuals and user guides at all-guides.com Quick Installation Connect either VGA, HDMI or DisplayPort Video Source from the monitor to the computer. Make sure both monitor and computer are powered OFF. Please note. The monitor ships with DisplayPort and VGA cables only. HDMI cable may be sourced separately from a cable supplier. -
Page 12: Basic Operation And Calibration/Reset Instructions
All manuals and user guides at all-guides.com Basic Operation and Calibration/Reset Instructions Before using the LED LCD Monitor: Connect external equipment properly. Insert the power plug, and the power LED indicator will light orange. Power On/Off To turn the LED LCD Monitor on/off: Press button on the front. - Page 13 All manuals and user guides at all-guides.com Option 2: OSD & Power button lock – all 5 buttons including the “POWER” button are locked. Press and hold the 1 button and the ▼ button for 3 seconds to lock all 5 buttons. The LED LCD Monitor will show a “Power Button Locked”...
-
Page 14: Advanced Operation-Osd Menu
All manuals and user guides at all-guides.com Advanced Operation—OSD Menu You can use the OSD menu to adjust various settings for your LED LCD Monitor. Press the 1 button to display the OSD Menu, and use ▲ or ▼ to select the desired OSD menu. Short Cuts Function from the button(s) AUTO IMAGE ADJUST: To auto adjust Horizontal Position, Vertical Position, Phase (Fine... - Page 15 All manuals and user guides at all-guides.com OVER DRIVE: Allows the user to change the Over Drive strength. Improve the quality of the motion pictures. INPUT SELECT:: When Input Select is pressed, change Input signal to VGA, HDMI, DISPLAYPORT or AUTO. AUDIO ADJUST: To adjust the audio functions.
- Page 16 All manuals and user guides at all-guides.com H./V. POSITION: To adjust the horizontal and vertical position of the video. HORIZONTAL POSITION: ▲: move screen to the right, ▼: move screen to the left. VERTICAL POSITION: ▲: move screen up, ▼: move screen down. HORIZONTAL SIZE: To adjust the width of the screen image.
-
Page 17: About The Stand
All manuals and user guides at all-guides.com About the Stand The stand allows you to easily adjust the height, swivel, tilt, and portrait mode of your monitor to provide maximum ergonomic comfort. 1) Height adjustment 2) Swivel 160° 160° 130mm 3) Tilt 4) Pivot -5~23°... -
Page 18: Supporting Timing Modes
All manuals and user guides at all-guides.com Supporting Timing Modes STANDARD RESOLUTION 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 640 x 480 @ 72Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz... -
Page 19: Technical Information
All manuals and user guides at all-guides.com Technical Information Panel 27” TFT (with LED backlight) Power Management Normal On: 32 Watts (typical), 40 Watts (maximum) ECO Mode 1 On: 27.3 Watts (typical) ECO Mode 2 On: 23 Watts (typical) ECO Mode 3 On: 17.4 Watts (typical) Standby Mode: <... -
Page 20: Wall-Mount Installation Instructions
All manuals and user guides at all-guides.com Wall-Mount Installation Instructions Preparing to Install the Optional Wall Mount Arm (not included) This LED LCD Monitor can be attached to a wall mounting arm purchased separately. Turn the power OFF then disconnect the cables from the LED LCD Monitor before performing the procedure below. -
Page 21: Troubleshooting
All manuals and user guides at all-guides.com Troubleshooting No power Make sure A/C power cord is securely connected to the power adapter and the power supply is firmly connected to the LED LCD Monitor. Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage. -
Page 22: Planar Support
All manuals and user guides at all-guides.com Planar Support Cables and Accessories To find cables and accessories for your Planar monitor, touch screen or other Planar products visit our online store at www.PlanarOnline.com. Technical Support Visit Planar at http://www.planar.com/support for operations manuals, touchscreen drivers, warranty information and access to Planar's Technical Library for online trouble shooting. - Page 23 Planar, a Leyard company 09/2016 Planar, a Leyard company. © Planar is a registered trademark of Planar, a Leyard company. Other brands and names are the property of their respective owners. Technical information in this document is subject to change without notice.
