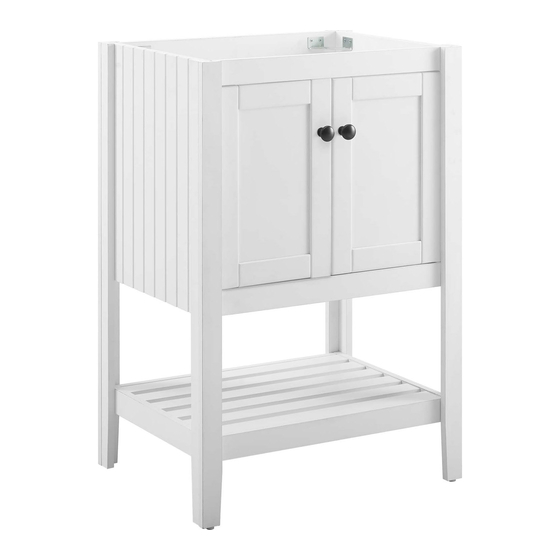

Thank you for purchasing the MODWAY Vanity!
Before you start, here are some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
2.Owing to the size and weight of the vanity, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 60 minutes.
3.Please do not use any tools other than those provide or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of children.
Advertisement
Related Manuals for modway EEI-3919-WHI
Summary of Contents for modway EEI-3919-WHI

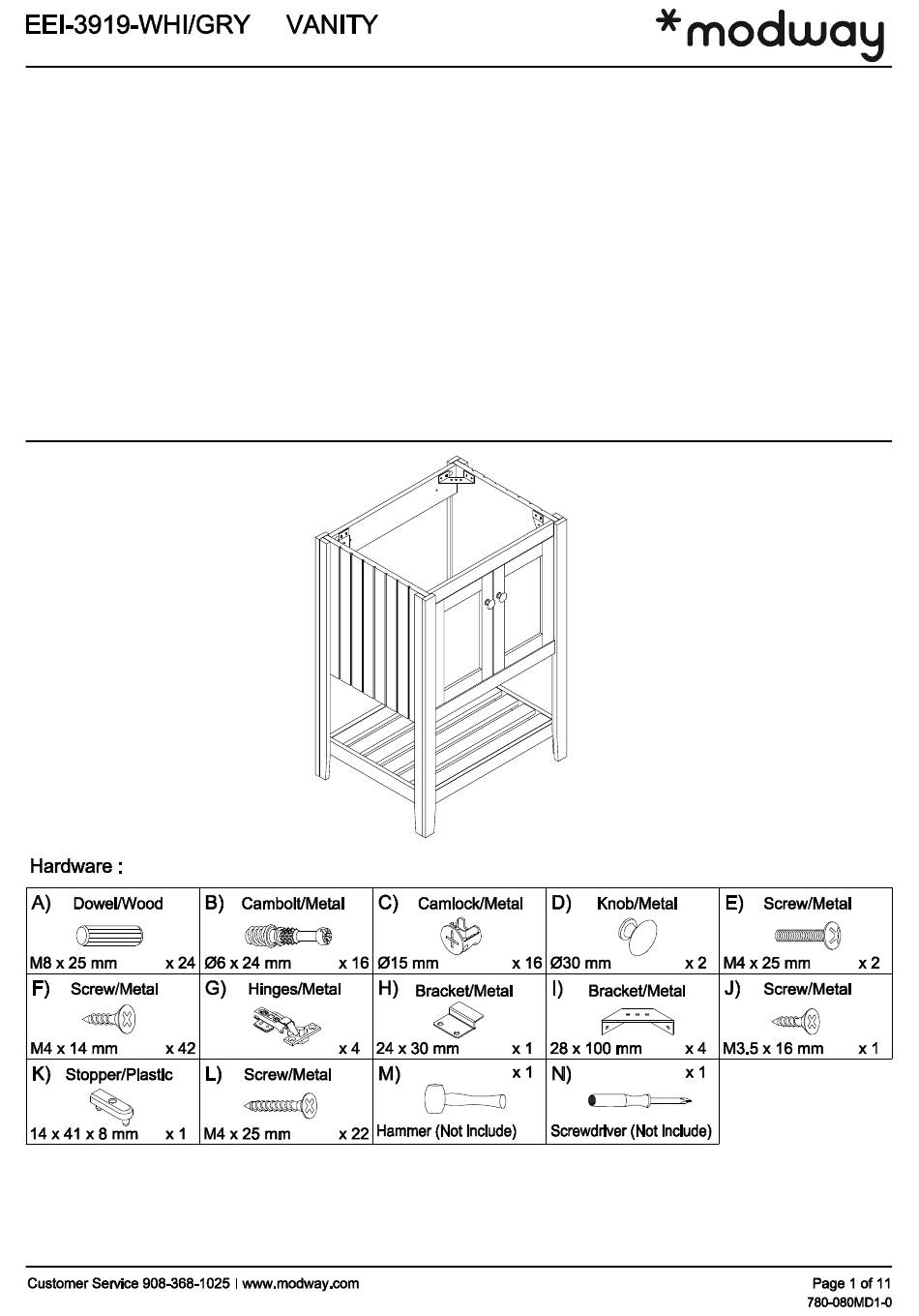

- Page 1 Thank you for purchasing the MODWAY Vanity! Before you start, here are some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2.Owing to the size and weight of the vanity, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 3 Carefully insert the Wood Dowels (A) at the designated holes on the relevant parts. Hardware required. Hammer not included (Power tool not recommended) Use Philips screwdriver to insert the Cambolt (B) carefully at the designated holes on the relevant parts. Please ensure the Cambolt is inserted and secured at the correct pre-drilled holes.
- Page 4 Secure the Door Stopper (K) to the Bottom Panel (3) with Screw (J). Hardware required. Screwdriver not included Secure the Vertical Panel 1 (8) to the Side Panel Left (1) and Side Panel Right (2) with 16 pieces of Screws (L). Hardware required.
- Page 5 Assemble 2 pieces of Door Hinges (G) to the 'Door Left (9)' and 'Door Right (10)' on each sides and secure it with 2 pieces of Screws (F) for each hinges. Hardware required. Screwdriver not included 6.1- Secure the Horizontal Panel (13) to the Base Panel 1 (4) with 2 pieces of Screws (L). 6.2- Use screwdriver to secure the Metal Bracket (H) to the Horizontal Panel (13) with 2 pieces of Screws (F).
- Page 6 Properly insert the Camlock (C) in the pre-drilled hole then align it to the assembled Cambolt (B) to secure both Side Panel Left (1) to the Vertical Panel 2 (11) and Vertical Panel 3 (12). This assembly namely Side Frame Assembly Hardware required.
- Page 7 Make sure the Adjustable Shelf (6) with Wood Dowel was attached to the Vertical Panel 2 (11). Secure a Screw (L) to the Adjustable Shelf (6) thru the Vertical Panel (11&12) by using screwdriver as shown. Properly insert the Camlock (C) in the pre-drilled hole then align it to the assembled Cambolt (B) to secure Side Panel Right (2) to the Vertical Panel 2 (11) and Vertical Panel 3 (12).
- Page 8 Repeat steps from STEP 8.2 -8.3 to secure Bottom Panel (3), Base Panel 1 (4), Base Panel 2 (5), Back Panel (7) and Adjustable Shelf (6) as shown. Hardware required. Screwdriver not included Carefully turnover the assembled vanity from STEP 11. Secure a Screw (L) on each side of the Adjustable Shelf (6) thru the Vertical Panel (11&12) by using screwdriver as shown.
- Page 9 Hardware required. Screwdriver not included Assemble Door Knob (D) on each 'Door Left (9)' and 'Door Right (10)' and secure it with a Screw (E) by using screwdriver. Hardware required. Screwdriver not included...
- Page 10 Use Screwdriver to secure the Metal Bracket (I) on each corner of the top portion of the Vanity Cabinet with 4 pieces of Screw (F). Hardware required. Screwdriver not included Note: Professional work required. Hole=Ø6mm Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall.
