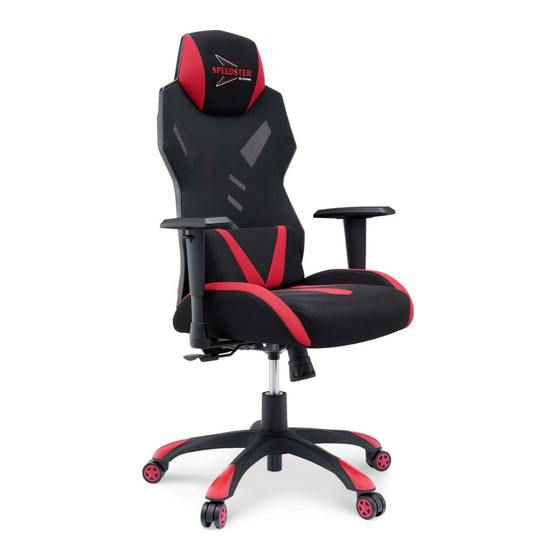

EEI-3901 GAMING CHAIR
Thank you for purchasing the MODWAY GAMING CHAIR!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the Gaming chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all pieces out of reach of children.
Components:
1. Back x1
2. Seat x1
6. Cylinder Column
x1
10. Connection Plate
Customer Service 609-256-9000︱www.modway.com
3. Left Armrest x1
x1
7. Base
x1
x1
11. Pillow
Hardware:
A.
B.
C.
D.
E.
F.
4. Right Armrest x1
8. Castor
x5
x1
12. Black Dust Cover
Bolt M8x20mm
x3
Bolt M6x20mm
x4
Bolt M6x25mm
x8
Flat Washer
x11
Spring Washer
x7
Allen Wrench
x1
5. Chassis
x1
9. Plastic Cover
x1
Page 1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for modway EEI-3901
Summary of Contents for modway EEI-3901
- Page 1 EEI-3901 GAMING CHAIR Thank you for purchasing the MODWAY GAMING CHAIR! Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the Gaming chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI-3901 GAMING CHAIR STEP 1: the Connection Plate (10) to the Back (1) by using 4 pieces of Bolts (C) and 4 pieces of 1. Attach Flat Washers (D) and 4 pieces of Spring Washers (E) as shown. 2. Use Allen Wrench (F) to tighten all Bolts (C) clockwise as shown.
- Page 3 EEI-3901 GAMING CHAIR STEP 3: the Chassis (5) to the Seat (2) by using 4 pieces of Bolts (B) as shown. 1. Attach 2. Use Allen Wrench (F) to tighten all Bolts (B) clockwise as shown. STEP 4: the Connection Plate (10) the Chassis (5) 1.
- Page 4 EEI-3901 GAMING CHAIR STEP 5: 1. Please put Base (7) on a carpeted or padded surface. 2. Insert 1 piece of Castor (8) into the Base (7) as shown by hand. 3. Repeat the same steps for the remaining 4 pieces of Castors (7).
- Page 5 EEI-3901 GAMING CHAIR STEP 7: Insert the Plastic cover (9) to the Back (1) as shown. Attention: When you use the handle to adjust the height to be lower, please move away your feet from the base at the same time.
