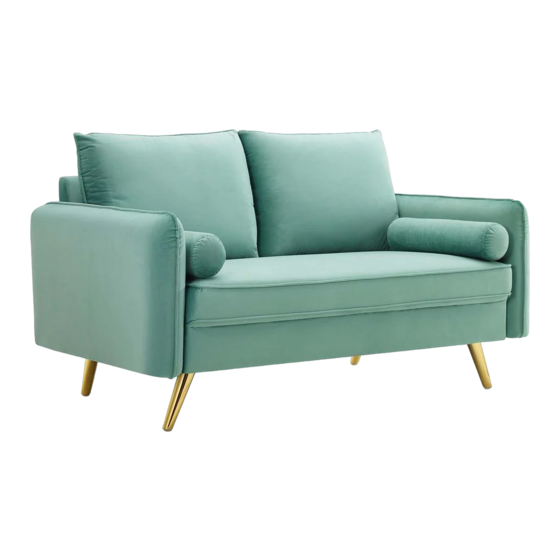

modway LOVESEAT EEI-3989 Quick Start Manual

EEI-3988&3989 LOVESEAT / SOFA
Thank you for purchasing the MODWAY LOVESEAT/SOFA!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the sofa, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all pieces out of reach of children.
EEI-3989
LOVESEAT
--
WITHOUT
SUPPORT
LEG
EEI-3988
SOFA
Components:
1. Sofa Seat x1
5. Support Leg x1
Customer Service 609-256-9000︱www.modway.com
2. Left Arm x1
x1
6. Sofa Back x1
Hardware:
Short Bolt M8x25mm
A.
Long Bolt M8x50mm
B.
Flat Washer M8
C.
Flat Washer M12
D.
Allen Wrench M5
E.
3. Right Arm x1
7. Back Cushion x2
x8
x2
x8
x2
x1
4. Sofa Leg x4
8. Pillow x2
Page 1 of 4
