LOW
Whole display will start to blink
���������������������������� ������������ ���� ������������ − 11.0����
������������ =

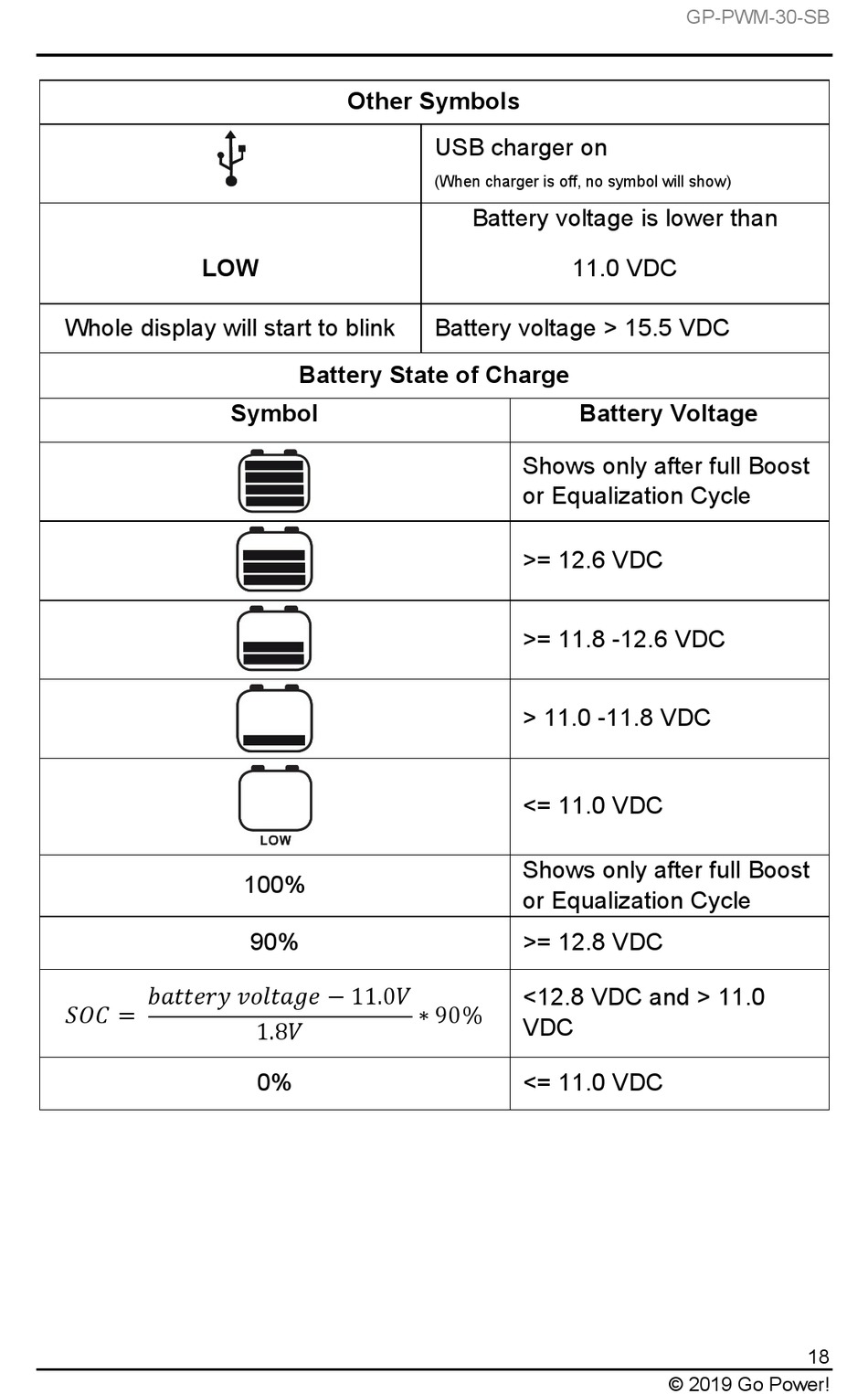

Other Symbols
Battery State of Charge
Symbol
100%
90%
1.8����
0%
USB charger on
(When charger is off, no symbol will show)
Battery voltage is lower than
11.0 VDC
Battery voltage > 15.5 VDC
Battery Voltage
Shows only after full Boost
or Equalization Cycle
>= 12.6 VDC
>= 11.8 -12.6 VDC
> 11.0 -11.8 VDC
<= 11.0 VDC
Shows only after full Boost
or Equalization Cycle
>= 12.8 VDC
∗ 90%
<12.8 VDC and > 11.0
VDC
<= 11.0 VDC
GP-PWM-30-SB
18
© 2019 Go Power!
