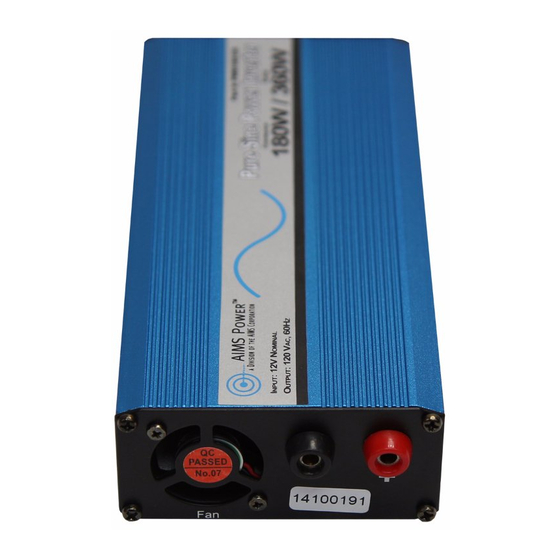

- Page 1 DC TO AC PURE SINE POWER INVERTER PWRI18012S INSTRUCTION MANUAL...
-
Page 2: Warning And Safety
A. INTRODUCTION The AIMS Power pure sine inverter product line is used for back-up power. The pure sine product line is ideal for sensitive equipment and provides clean power, which is more efficient for back-up power applications. The power inverter transforms DC... -
Page 3: Inverter Features
inverter to overheat, causing a potential fire hazard and/or damage to the inverter. Leave adequate ventilation space underneath the inverter as well; thick carpets or rugs can obstruct air flow, causing the inverter to overheat. 11. Avoid unintentional starting. Be sure the switch is in the OFF position when not in use and before plugging in any appliance. -
Page 4: Installation
D. INSTALLATION Ensure there is enough space for the installation, and the location should be meet the following requirements: 1. Water should not access the inverter. 2. The ambient temperature should be 32~104°F, and the preferred temperature is 50-77°F. The lower the better in this range of ambient temperature. 3. - Page 5 2. Battery operating time depends on battery capacity and load. The formula for operating time is: battery capacity divided by the value of the load divided by battery voltage times 1.10%. For example, using the numbers from above, the battery specification is 12V, 200Ah capacity and the load is 1000W. Take battery capacity 200Ah / 91.6 amps = 2.18 hours of run time if you fully deplete the battery.
- Page 6 3. Once finished using the inverter, turn off your electrical appliance and the inverter. The indicator lights should be off. 4. The cooling fans inside the inverter do not work until the case temperature reaches approximately 104°F. 5. If you do not plan to use the inverter for a long period of time, disconnect it from your battery bank.
- Page 7 115 VAC inverter is 1,250 VAC. For 230 VAC or dual voltage inverters, the hi-pot voltage is 1,500 VAC. This Aims power inverter is hi-pot tested before it leaves the factory. Hi-Pot testing is used to detect any electrical leakage between live metal components and the frame of the machine that is connected to earth ground.
-
Page 8: Troubleshooting Tips
TROUBLESHOOTING TIPS Fault / Display Cause Solutions Low input DC voltage Recharge or replace the battery Do not use it when the battery is charging. Check the rated voltage of the battery and make sure it is in within the range of the input voltage. -
Page 9: Specifications
SPECIFICATIONS MODEL NO PWRI18012S DC Input Voltage 12V (10-16V) Output Wave Form Pure Sine Wave THD <3% Output Power 180W Surge Power Capacity 360W for 40 milsec Efficiency Over 90% No Load Current 0.4A Battery Low Alarm DC 9.8 +/- 0.3V Battery Low Shutdown DC 9.5 +/- 0.5V... -
Page 10: Warranty
AIMS be liable for indirect, special or consequential damages. This warranty only applies to AIMS Power branded products. All other name brand products are warranted by and according to their respective manufacturer. Please do not attempt to return non-AIMS Power branded products to AIMS Power.
