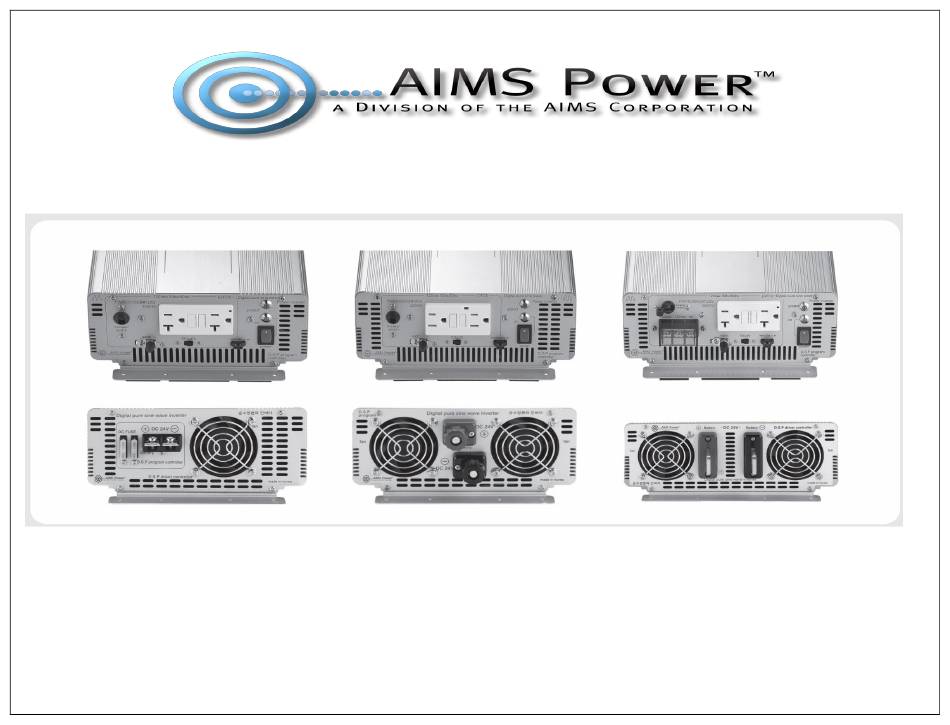

Operation Manual
Congratulations on purchasing your high quality AIMS Power pure sine inverter!
It is very important that you read and understand this instruction manual completely prior to use. Contained are
important connection tips, safety issues, and warranty information
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AIMS Power PWRIG100012120S
Summary of Contents for AIMS Power PWRIG100012120S
- Page 1 Operation Manual Congratulations on purchasing your high quality AIMS Power pure sine inverter! It is very important that you read and understand this instruction manual completely prior to use. Contained are important connection tips, safety issues, and warranty information...
- Page 2 Contents: Pg. 3 Specifications 1000W-12V/ 1500W 12V, 24V AND 48V DC Pg. 4 Specifications 2000W/ 3000W 12V, 24V AND 48V DC Pg. 5 Features and benefits Pg. 6 Use of DC battery / Use of 120V AC power Pg. 7 Input and Output connections Pg.
- Page 3 Specifications (1000W/1500W-DC12V, 24V, 48V 120V AC) PWRIG100012120S PWRIG150012120S PWRIG150024120S PWRIG150048120S DC input voltage 12V(10.5V-16V) 12V(10.5V-16V) 24V(21V-32V) 48V(41V-64V) Output voltage 120V AC Output power continuous 1000 watts 1500 watts Surge rating 2000 watts 3000 watts Efficiency (output) 90%±3% fan ON 0.45A...
- Page 4 Specifications (2000W/3000W DC-12V, 24V, 48V 120V AC) PWRIG200012120S PWRIG200024120S PWRIG200048120S PWRIG300012120S PWRIG300024120S PWRIG300048120S DC input voltage 12V(10.5V-16V) 24V(21V-32V) 48V(41-64V) 12V(10.5V-16V) 24V(21V-32V) 48V(41-64V) Output voltage 120V AC Output power continuous 2000 watts 3000 watts Surge rating 4000 watts 6000 watts Efficiency (output) 90%±3% fan ON...
- Page 5 Features and benefits Features and benefits By using a D.S.P. (DIGITAL Signal Processor) driver this All DC to AC operations are automatically controlled by the D.S.P. program. inverter can safely generate its pure sine wave at a high ...
- Page 6 Prior to using this product please read this operation manual thoroughly. Inappropriate use may cause damage to the product! Please check through this manual on your new inverter before operating. I. Use of battery (DC power) 12V Battery: When using 500 watts of output (120V AC) with a 100A battery, you can use this product for 2 hours (4.2A used under 100W) in optimal conditions.
- Page 7 Input Battery Connection Method Avoid installing this inverter in a sealed area, This product contains battery connections and sparks or an area with poor ventilation/excessive heat. can easily occur. To prevent fire or other accidents, do not install this inverter in a small or partitioned area with flammable materials.
- Page 8 Avoid installing this inverter in a sealed area, This product contains battery connections and sparks or an area with poor ventilation/excessive heat. can easily occur. To prevent fire or other accidents, do not install this inverter in a small or partitioned area with flammable materials.
- Page 9 This should not damage the inverter; however you should not continue to try and power up the equipment. Repeated overloads will cause damage to the inverter Call AIMS Power Tech support and verify startup requirements.

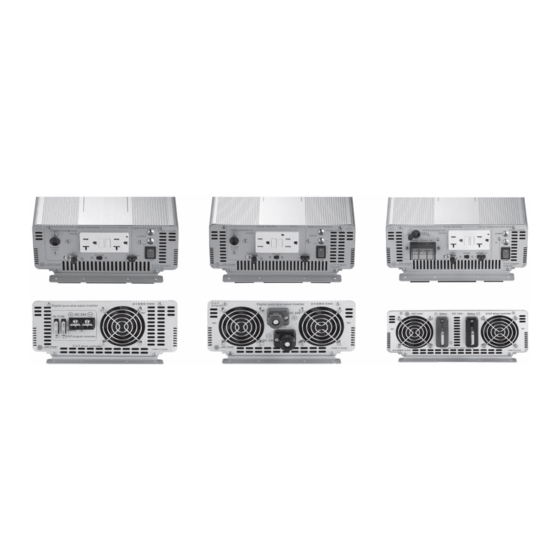

- Page 10 Overview...
- Page 11 Important: Locate the number below to the number on Front or Back of the inverter on the Overview page 10. 1) Input Terminal (12V, 24V or 48V) Prior to any connections make sure you match the battery Voltage to the inverter input Voltage. You will probably notice an arc when connecting a discharged or new power inverter to your batteries.
- Page 12 6) Protection Switch The Protection Switch is a circuit breaker. If the output is exceeded, the breaker will POP and you will have to manually reset it. This circuit breaker will protect the inverter in case of Overload or short circuit. If you have to reset this breaker, you should verify the Startup and Running current (listed on equipment) requirements for you equipment.
- Page 13 Troubleshooting: For red LED and protection switch. Symptoms Possible problem Possible solution Warning red LED is illuminated Your device requires more power than the Stop the operation of the connected devices inverter is able to produce. The inverter has Use the inverter under a lower condition than And has low output voltage been overloaded.
- Page 14 General problems Audio system noise: Noise may be generated from the speakers or amplifier when using the inverter to power low-grade stereo systems and large portable radios. This is due to the interference between the electricity and current running through each device.
- Page 15 Allow plenty of ventilation around inverter. It needs air to keep cool, or it may get extremely hot and shut down Avoid placing the inverter in direct sun light Always keep inverters away from flammable objects AIMS Power Warranty Instructions: This product is designed using the most modern digital technology and under very strict quality control and testing guide lines.
- Page 16 Solar charge controllers your receipt/invoice, as that will need to be sent back along Grid-tie inverters with the package and RMA# to AIMS Power. You have a full 1 year warranty from the date of purchase. This Inverter chargers warranty is valid world-wide with the exception that ...
