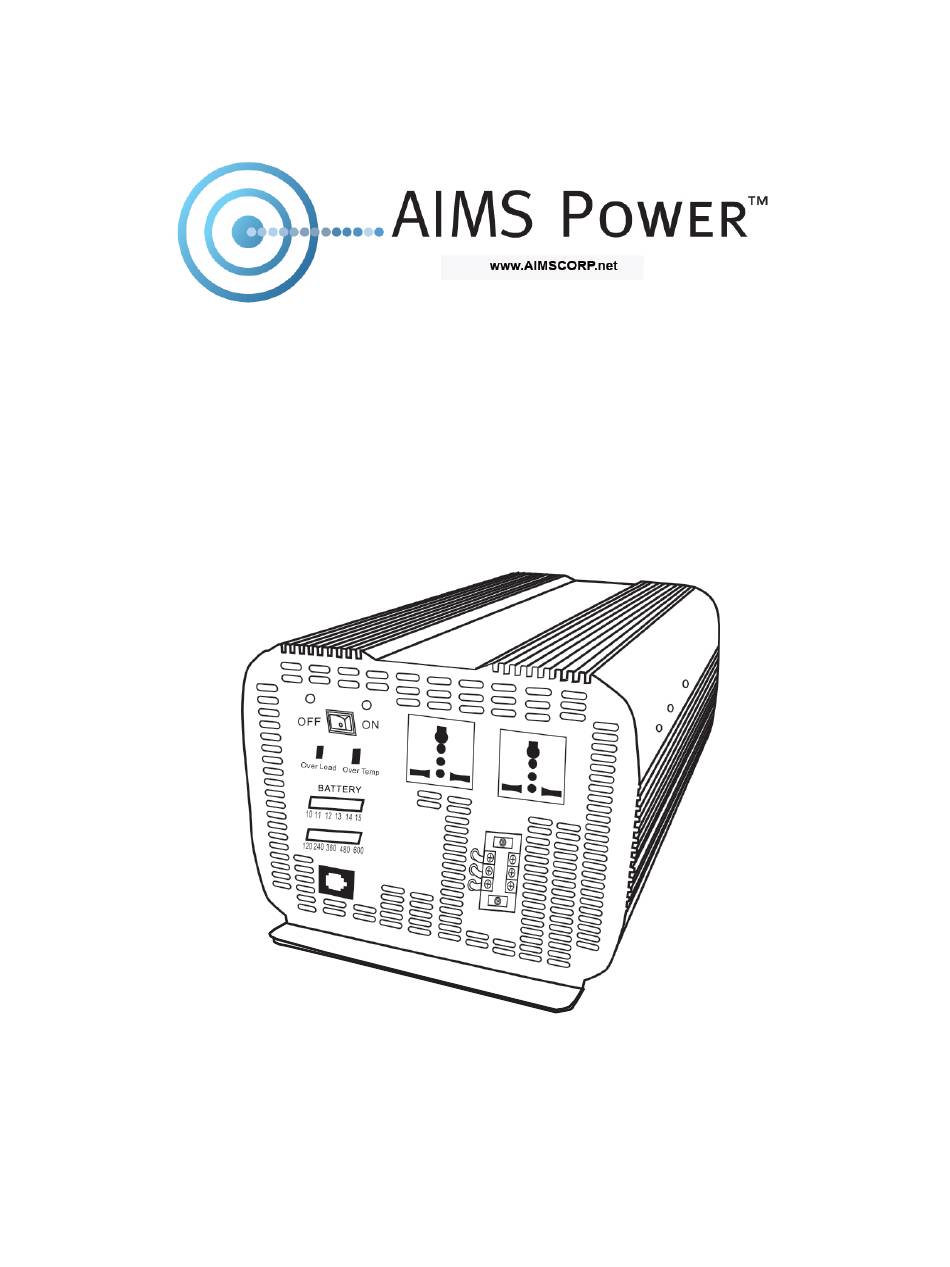

- Page 1 V 2.0 DC TO AC POWER INVERTER PWRINV5K24012W Instruction Manual...

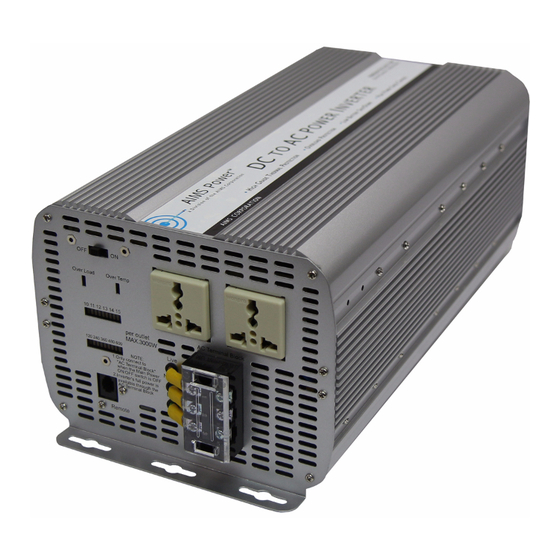

- Page 2 V 2.0 Introduction The AIMS Power 5000 Watt inverter is the most advanced line of mobile DC to AC power systems available. This model is used in a wide range of applications including back up power for remote homes, off-grid systems, RVs, boats, commercial vehicles and mobile businesses. The 5000 Watt 240 Volt AC, 12 Volt DC inverter will operate most pumps, motors, and tools requiring 240V.
-
Page 3: Front View
V 2.0 FUNCTIONS FRONT VIEW B: Over temperature E: AC outlets indicator A: On/Off switch C: Over load indicator D: Bar meters F: Remote Port G: AC terminal block A. On/Off switch: Leave in the OFF position during installation. B. Over temperature indicator: Lights when inverter protects itself against overheating. Inverter shuts down while indicator is on. -
Page 4: Rear View
V 2.0 REAR VIEW A: Fan B: Battery terminal (-) B: Battery terminal (+) C: Chassis grounding A: Fan: Do not obstruct, allow at least 12 inch for air flow. B: Battery terminals: Connect to 12V battery (s) or other DC power source. "+" is positive & " - " is negative. -
Page 5: Installation
V 2.0 The other indicators should be off. 4. Set power inverter switch to the OFF position, the indicator lights may blink and the internal alarm may sound momentarily. This is normal. Plug the test load into the AC receptacle on the front panel of the inverter. Leave the test load switch off. 5. -
Page 6: Operation
V 2.0 Red (+) Black (-) BLACK Caution! DO NOT allow the wires to cross or touch each other. Install the cables facing away from each other and screw tightly. When connecting the battery cables to the terminals of the inverter, make sure they do not touch the case. - Page 7 V 2.0 1. Controls and indicators The ON/OFF switch turns the control circuit in the power inverter on and off. It does not disconnect power from the power inverter. When the switch is in the OFF position, the power inverter draws no current from battery. When the switch is in the ON position but with no load, the power inverter draws less than 450 mA.
-
Page 8: Troubleshooting
V 2.0 Some induction motors used in refrigerators, freezers, pumps, and other motor operated equipment require very high surge currents to start. The power inverter may not be able to start some of these appliances even though their rated current draw is within the rating of the power inverter. If a motor refuses to start, observe the battery voltage indicator while trying to start the motor. - Page 9 V 2.0 -Keep the cables between the battery and the power inverter as short as possible and twist them together with about 2 to 3 twists per foot. This minimizes radiated interference from the cables. Problem and Symptoms Possible Cause Solution Low output voltage If using a non-RMS meter you could...
-
Page 10: Specifications
V 2.0 SPECIFICATIONS MODEL PWRINV5K24012W DC Input Voltage Output Wave Form Modified Sine Wave Operating Voltage 10V-16V 5000 watts 220/230/240 VAC only single Output Power phase 60Hz (USA only) Surge Power Capacity 10,000 for 40 mil secs Efficiency >90% Switch on <1 A DC. Switch off <.2mA DC... - Page 11 In no event shall AIMS be liable for indirect, special or consequential damages. This warranty only applies to AIMS Power branded products. All other name brand products are warranted by and according to their respective manufacturer.
- Page 12 V 2.0...
