10. Maintenance and Cleaning

The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to be tightly connected
and must not be corroded.
2. There must not be any deformations on the housing, color lenses, fixations and
installation spots (ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing and must not rotate
with unbalances.
4. The electric power supply cables must not show any damage, material fatigue or
sediments.
Further instructions depending on the installation spot and usage have to be adhered by
a skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights due
to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make
sure that the circuit contacts are in good condition, prevent the poor contact of circuit
from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth.
Never use alcohol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions under
.11.

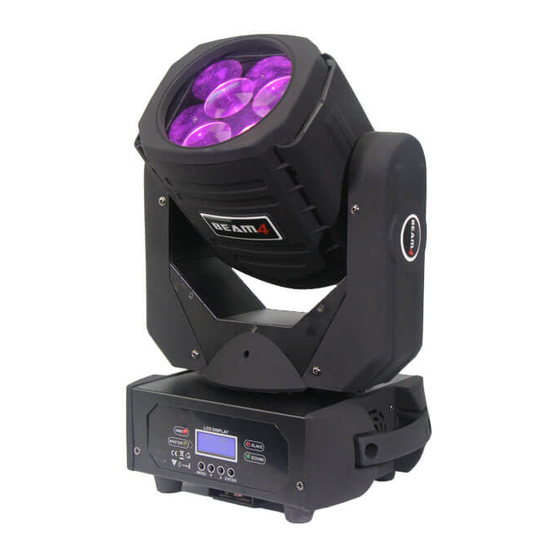

LED BEAM4 MOVING HEAD
User Manual
PROFESSIONAL LED LIGHTING
======
Thank you for choosing our Mini LED moving head light. For the sake of
your safety, Please read and follow these instructions carefully and keep
this manual in a safe place for future reference.
MJ-1034A
========

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MJ-1034A and is the answer not in the manual?

Questions and answers

Summary of Contents for MJ LED LIGHTNING MJ-1034A

  • Page 1 The following points have to be considered during the inspection: 1. All screws for installing the devices or parts of the device have to be tightly connected MJ-1034A and must not be corroded. 2. There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
  • Page 2 1 1CH Mode 1. Unpacking Channel Function DMX Value Description Thank you for choosing Super beam light . For your own safety, please read this 0-255 0~540 degree manual before installing the device. This manual covers the important information on Tilt 0-255 0~270 degree...
  • Page 3 2. Safety Instructions 9. DMX CHANNELS: 1 6CH Mode Channel Function DMX Value Description 0-255 0~540 degree This device has left the factory in perfect condition. In order to maintain this condition Pan fine adjustment 0-255 16bit and to ensure a safe operation, it is absolutely necessary for the user to follow the Tilt 0-255 0~270 degree...
  • Page 4 3. Operation Instructions 8. Menu Instruction -The moving head is for beam light use. DMX Address A001-A512 -Don’t turn on the fixture if it’s been through severe temperature difference like after Channel Mode 11/16CH Choose transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature.
  • Page 5 4. Specifications: 7. Photometric Data Voltage: AC100-240V 50-60Hz Led source: 4pcs high brightness 25W white LEDs Photometric Beam Angle Data Power: 130W Beam angle: 5-40° 5 ° Beam Angle LUX( White) Strobe: 1-25Hz/Second with various stroboscopic effects Dimmer: 16 bit dimming system, smoothly without strobe Pan: 540°+ fine Tilt: 250°+ fine 115800Lux@2m...
  • Page 6 Mounting points: Overhead mounting requires extensive experience, including 6. DMX-512 control connections amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the Connect the provided XLR cable to the female 3-pin XLR output of your controller and fixture.
