Summary of Contents for MJ LED LIGHTNING MJ-1350B

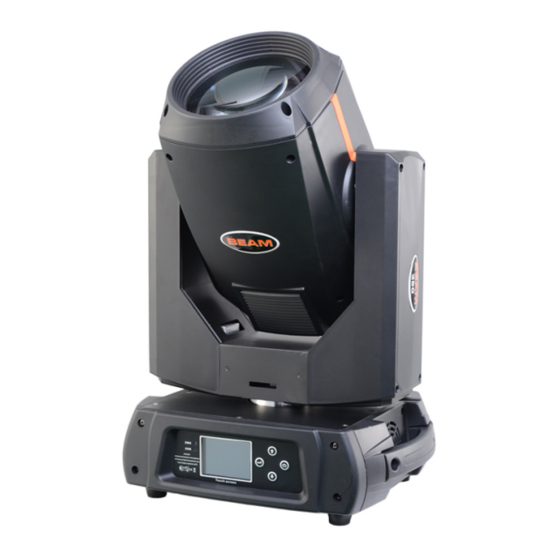

- Page 1 MEGA BEAM350 MOVING HEAD LIGHT MJ-1350B User manual PROFESSIONAL STAGE LIGHTING ====== ======== Thank you for choosing our beam moving head light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for future...
-
Page 2: Table Of Contents
Catalogue Chapter Page Safe Usage Of The Product -------------------------------------------------------------------------------------------3 Install The Equipment --------------------------------------------------------------------------------------------------4 Fitting The Lamp ---------------------------------------------------------------------------------------------------------4 Power Code Connection -----------------------------------------------------------------------------------------------5 DMX Connection --------------------------------------------------------------------------------------------------------5 DMX Terminator ---------------------------------------------------------------------------------------------------------6 Function Set ----------------------------------------------------------------------------------------------------------------6 Operation Menu -----------------------------------------------------------------------------------------------------------7 Maintenance ----------------------------------------------------------------------------------------------------------------9 Keeping The Product Clean ------------------------------------------------------------------------------------------10 Trouble Shooting ----------------------------------------------------------------------------------------------------------10 Equipment and Appendix... -
Page 3: Safe Usage Of The Product
SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The product is for indoor use only, IP20. -
Page 4: Install The Equipment
Install The Equipment: Use 2pcs clamp and 1pcs safety cord(need to purchase).Use clamp fix with light hook which in the packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm the light which you fixed is strong enough for hanging the light. -
Page 5: Power Code Connection
Power Code Connection: Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off. -
Page 6: Dmx Terminator
DMX Terminator: In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 7: Operation Menu
2. Button Operation DOWN ENTER Use button switch and LCD display, can set the address code and function code easily. Check or modify lighting function settings, Press the LCD display or ENTER button. LCD display panel will display main menus. Function operation menu all have corresponding submenu . Each menu all represent the specific functions of lamps, specific see below "operation menu"... - Page 8 Back Auto Mode Sound Mode Perform Custom 1 Custom 2 Custom 3 Custom 4 Back System Reset Default setting DMX mode X inversion Y inversion Effect of wheel model DMX signal Screensaver Switch on light bulbs Bulb started state DMX reset Aiming screen Parameters Adj X adjustment...
-
Page 9: Maintenance
◆CH2 Custom channel 2 ..... ◆CH16 Custom channel 16 5) Perform ◆Back Return to main menu ◆Built-in Auto mode Auto Running ◆Built-in Sound mode Sound Running ◆Custom 1 Custom1 Auto and Sound Running ◆Custom 2 Custom2 Auto and Sound Running ◆Custom 3 Custom3 Auto and Sound Running ◆Custom 4... -
Page 10: Keeping The Product Clean
Keeping The Product Clean: To ensure the reliability of the projector, it should be kept clean. It is recommended that the fans should be cleaned every 15 days. The lens and dichroic colour filters should also be regularly cleaned to maintain an optimum light output. Do NOT use any type of solvent on dichroic colour filters. -
Page 11: Channel List
Channel List: (16CH MODE) Channel Value Function White White + Red 8~11 12~15 Red + Orange 16~19 Orange 20~23 Orange + Green 24~27 Green 28~31 Green + Blue 32~35 Blue 36~39 Blue + Yellow 40~43 Yellow 44~47 Yellow + Rose-Red 48~51 Rose-Red 52~55... - Page 12 White Gobo 1 8~11 Gobo 2 12~15 Gobo 3 16~19 Gobo 4 20~23 Gobo 5 24~27 Gobo 6 28~31 Gobo 7 32~35 Gobo 8 36~39 Gobo 9 40~43 Gobo 10 44~47 Gobo 11 48~51 Gobo 12 52~55 Gobo 13 (Gobo) 56~68 Gobo 13 Shake 69~81...
-
Page 13: Technical Parameters
CH10 0~255 CH11 0~255 Pan Fine CH12 0~255 Tilt CH13 0~255 Tilt Fine CH14 0~255 Pan/ Tilt Speed (Fast~Slow) CH15 0~255 Frost 0~100 No Function 100~105 Lamp Delay Closing 106~149 No Function 150~155 230W Power CH16 (The lamp control 156~199 No Function And Reset) 200~205...
