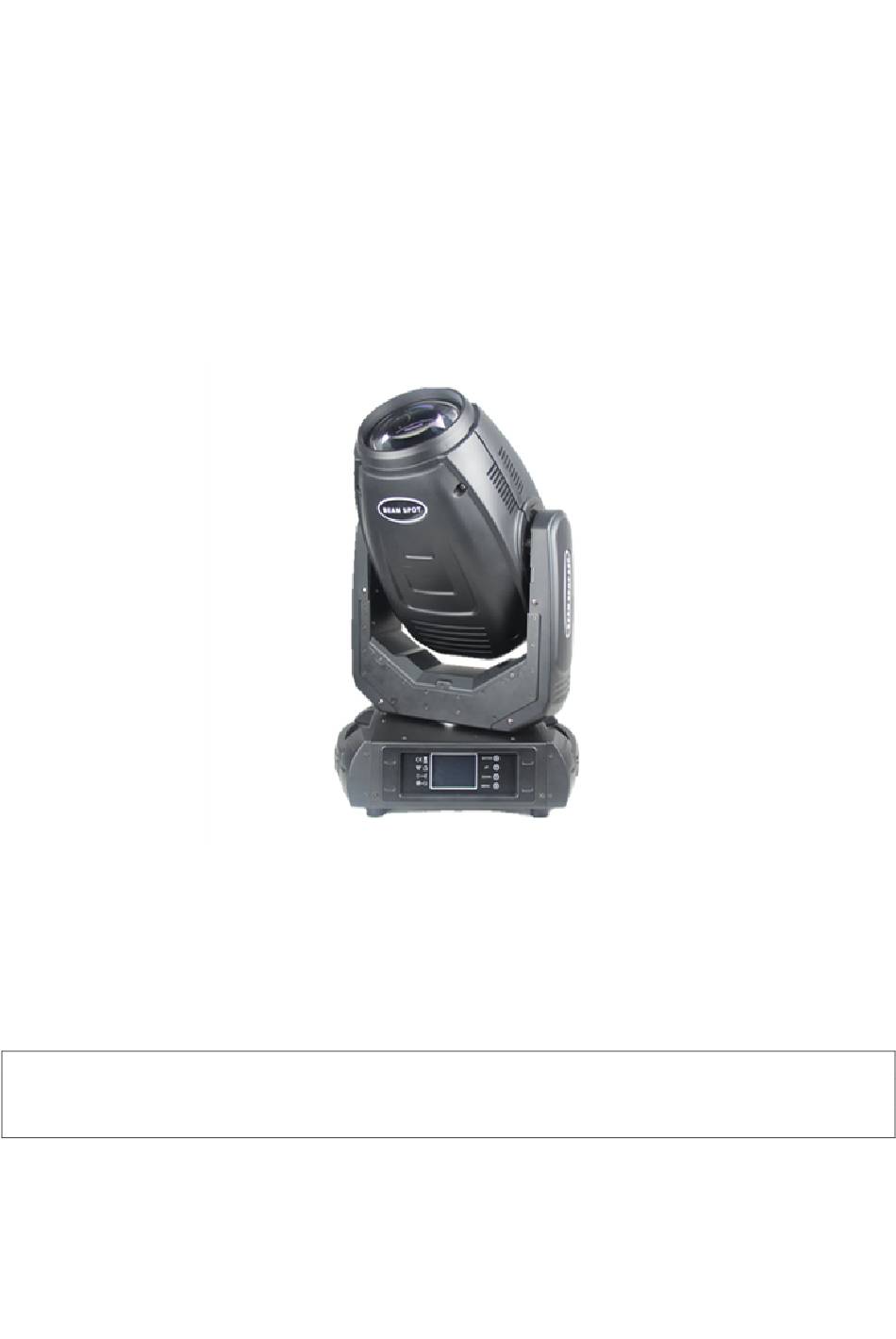

280W 10R BEAM SPOT WASH 3IN1
MOVING HEAD LIGHT
MJ-1280
User Manual
PROFESSIONAL LIGHTING
======
========
Thank you for choosing our beam spot Wash moving head light. For the sake of your safety,
Please read and follow these instructions carefully and keep this manual in a safe place for
future reference.
Advertisement
Table of Contents
Related Manuals for MJ LED LIGHTNING MJ-1280
Summary of Contents for MJ LED LIGHTNING MJ-1280
- Page 1 280W 10R BEAM SPOT WASH 3IN1 MOVING HEAD LIGHT MJ-1280 User Manual PROFESSIONAL LIGHTING ====== ======== Thank you for choosing our beam spot Wash moving head light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for...
-
Page 2: Table Of Contents
Catalogue Chapter Page Safe Usage Of The Product ------------------------------------------------------------------------------------------3 Install The Equipment -------------------------------------------------------------------------------------------------4 Fitting The Lamp --------------------------------------------------------------------------------------------------------4 Power Code Connection ----------------------------------------------------------------------------------------------5 DMX Connection -------------------------------------------------------------------------------------------------------5 DMX Terminator -------------------------------------------------------------------------------------------------------6 Function Set --------------------------------------------------------------------------------------------------------------6 Operation Menu ---------------------------------------------------------------------------------------------------------7 Maintenance -------------------------------------------------------------------------------------------------------------10 Keeping The Product Clean -----------------------------------------------------------------------------------------10 Trouble Shooting ---------------------------------------------------------------------------------------------------------11 Equipment and Appendix... -
Page 3: Safe Usage Of The Product
SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The product is for indoor use only, IP20. -
Page 4: Install The Equipment
Install The Equipment: Use 2pcs clamp and 1safety cord(need to purchase).Use clamp fix with light hook which in the packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm the light which you fixed is strong enough for hanging the light. -
Page 5: Power Code Connection
Power Code Connection: Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off. -
Page 6: Dmx Terminator
DMX Terminator: In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 7: Operation Menu
2. Button Opertion DOWN MENU/ENTER Use button switch and touch LCD display, can set the address code and function code easily. Check or modify lighting function settings, Press the Set UP or MENU button. LCD display panel will display main menus. Function operation menu all have corresponding submenu . Each menu all represent the specific functions of lamps, specific see below "operation menu"... - Page 8 Password 1 Use The Management Password 2 Reset Reset setting Return to the main menu All motors Part motor Light Reset XY motor Manual Auto running Test Running Sound running CH1-CH32(0-255) Simulation Controller Ch1-CH32(0-255) Dmx Value Running time(0-9999) Running count(0-9999) Residue time(Infinite) Residue count (Infinite) Fan 1:0...
-
Page 9: Maintenance
Brightness 1-7 level Light Delay 10/20/30 seconds/ ON Menu Back 10/20/30 seconds/OFF Display Set Flicker -Backlight Flash ON/OFF Save Save settings and return to menu Return Don't save return to menu Default Manual Lamp Setting Electronic Display Reverse Display 180 degree rotation Chinese /English Switch the language of the menu display Display... -
Page 10: Trouble Shooting
Trouble Shooting: Problem Answer The moving head light doesn’t switch Check the fuse the power socket Replace the lamp Although shines, but the moving head Check the digital start address and also check the lamp doesn’t accept the instruction of connection situation of the communication control line the controller. - Page 11 150－159 Empty 160－169 All small motor reset 170－199 Empty 200－209 Light reset 210－229 Empty Lamp Off 230－239 empty 240－255 Color wheel 0－3 Open 3－9 White + Red 9－18 Red + Deep Green Deep Green + Blue 18－27 Blue + Light Yellow 27－37 37－46 Light Yellow + Brown...
- Page 12 Static gobo wheel 0－3 empty 4－9 Gobo 1 10－15 Gobo 2 16－21 Gobo 3 Gobo 4 22－27 Gobo 5 28－33 34－39 Gobo 6 40－45 Gobo 7 46－51 Gobo 8 52－57 Gobo 9 Gobo 10 58－63 Beam reducer 1 64－69 70－75 Beam reducer 2 76－81 Beam reducer 3...
- Page 13 20－22 Gobo 6 23－25 Gobo 7 Gobo 8 26－28 29－31 Gobo 9 Rotation-set rotation on channel 12/9 Gobo 1 32－34 35－37 Gobo 2 38－40 Gobo 3 Gobo 4 41－43 44－46 Gobo 5 47－49 Gobo 6 Gobo 7 50－52 53－55 Gobo 8 56－59 Gobo 9 pattern shake from slow to fast...
- Page 14 0－255 Rot.gobo indexing and rotation fine prism 0－19 empty 20－49 6-facet linear prism index function 50-75 6-facet linear prism rotation function 8-facet circular prism index function 76－104 105-127 8-facet circular prism rotation function 128-135 Macro function 1 136-143 Macro function 2 144-151 Macro function 3 152-159...
-
Page 15: Technical Parameters
144－159 from slow to fast,fast on slow off 160－191 strobe on random strobe from slow to fast 192－223 224－255 strobe on 0－255 Dimmer Linear dimmer 0－255 0－255 Empty Technical Parameters: Voltage : AC100~240V/50-60Hz Power consumption:470W@(220V) Bulb: YODN MSD2800R10 LAMP lamp Lamp : OYODN 280W ,Color temperature : 8500K Color: 13 Color + White Gobo1: 9 Rotating gobo + White...
