Summary of Contents for MJ LED LIGHTNING MJ-1006B3

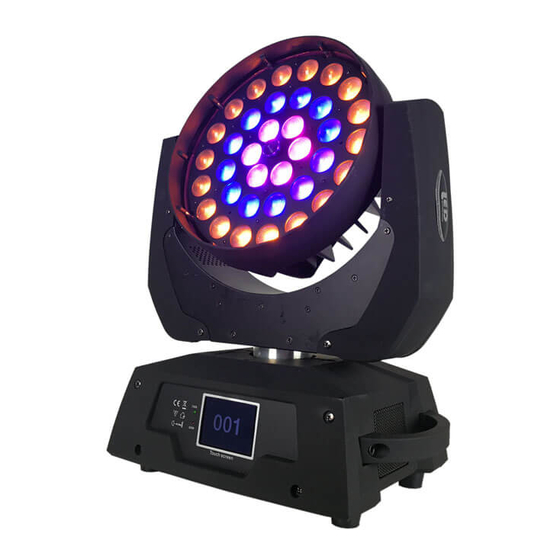

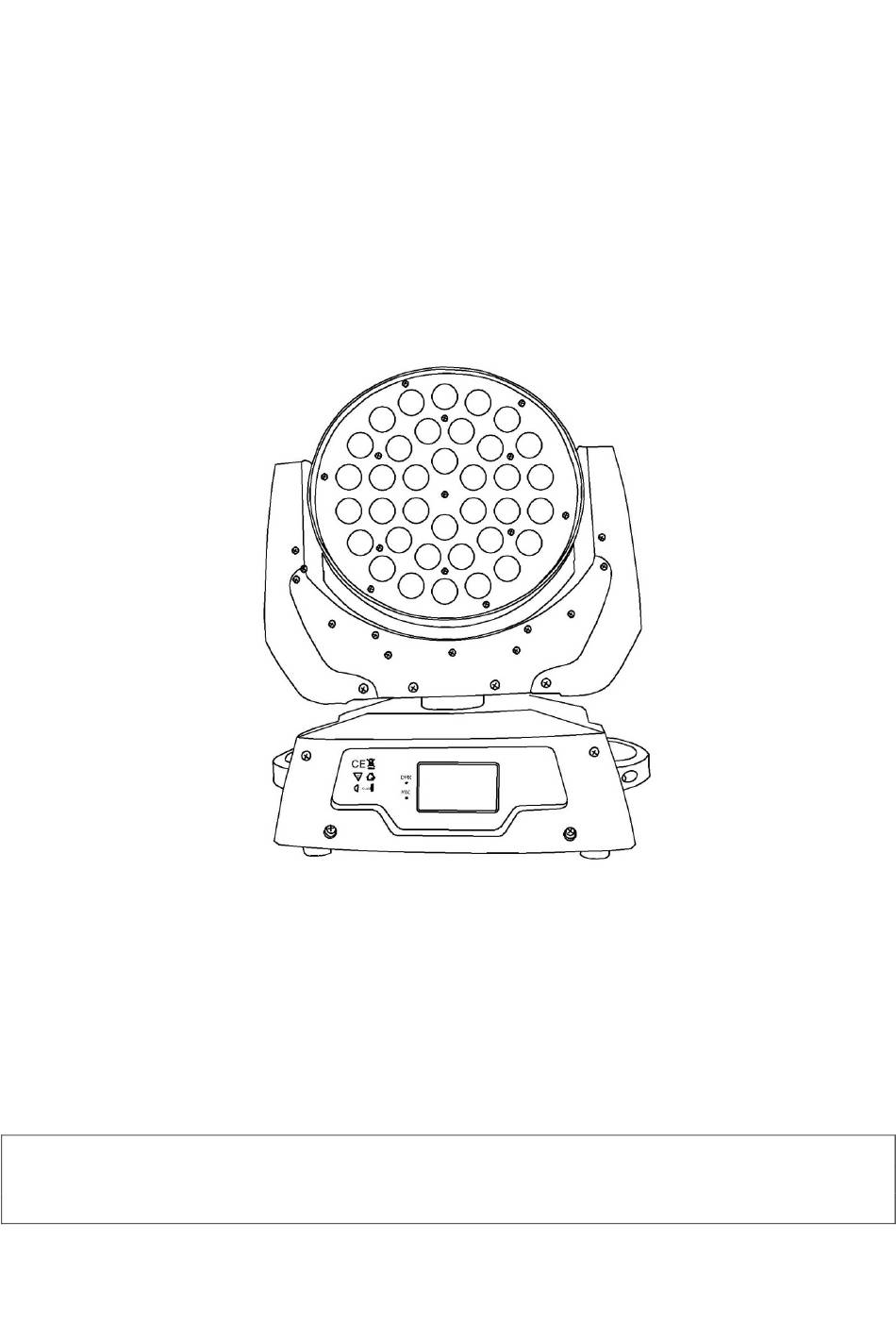

- Page 1 ZOOM LED MOVING HEAD LIGHT MJ-1006B3-4IN1 User Manual PROFESSIONAL LED LIGHTING ====== ======== Thank you for choosing our LED zoom moving head light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for future...
-
Page 2: Table Of Contents
Catalogue Chapter Page Safe Usage Of The Product -----------------------------------------------------------------------------------------3 Install The Equipment ------------------------------------------------------------------------------------------------4 Power Code Connection ---------------------------------------------------------------------------------------------4 DMX Connection ------------------------------------------------------------------------------------------------------5 DMX Terminator -------------------------------------------------------------------------------------------------------6 Function Set --------------------------------------------------------------------------------------------------------------6 Operation Menu ---------------------------------------------------------------------------------------------------------7 Control panel of LED display information------------------------------------------------------------------------------9 Maintenance -------------------------------------------------------------------------------------------------------------10 Keeping The Product Clean -----------------------------------------------------------------------------------------10 Trouble Shooting --------------------------------------------------------------------------------------------------------10... -
Page 3: Safe Usage Of The Product
SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The product is for indoor use only, IP20. -
Page 4: Install The Equipment
Install The Equipment: Use 1pcs clamp and safety cord(need to purchase).Use clamp fix with light hook which in the packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm the light which you fixed is strong enough for hanging the light. -
Page 5: Dmx Connection
DMX Connection: Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and sockets. -
Page 6: Dmx Terminator
DMX Terminator: In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 7: Operation Menu
Operation Menu: Menu Structure chart Main Menu Sub Menu Setting Back Run Mode DMX Mode Sound Mode Random Mode Auto Mode Auto1－Auto6 0-255 DMX Address set 8/16/28CH Channel Mode ON/OFF Invert Pan Invert Tilt ON/OFF Pan-Tilt Swap ON/OFF Pan-Tilt Encoder ON/OFF Dimmer Delay DIM1/DIM2/DIM3/DIM4/OFF... - Page 8 Red 2 0－255 Green 2 0－255 Blue 2 0－255 White 2 0－255 Red 3 0－255 0－255 Green 3 Blue 3 0－255 White 3 0－255 T008B-M3C12-A001 Soft Ver. System No error System Errors *****H**M Total Fixture Hours Partial Fixture Hours *****H**M Advance Factory set ...
-
Page 9: Control Panel Of Led Display Information
Pan and Tilt Swap Pan-Tilt Encoder Dimmer Delay: No function No DMX Signal: when there is no dmx signal, it can keep or clear the memory. Display:It can show the dmx address and logo, the display can be on and off. ... -
Page 10: Maintenance
Maintenance: To prolong the life of the projector, some maintenance work has to be done to ensure the LED optical system in good condition. If the projector does not function, check the fuses on the power socket of the projector, they should only be replaced by fuses of the same specification. Should these be damaged, call a qualified technician before replacement. -
Page 11: Channel List
Channel List: 8CH MODE Channel Value Function CH 1 0-255 CH 2 0-255 Tilt CH 3 0-255 Zoom CH 4 0-255 Red all dimmer CH 5 0-255 Green all dimmer CH 6 0-255 Blue all dimmer CH 7 0-255 White all dimmer 0-99 No function CH 8... - Page 12 28CH MODE Channel Value Function CH 1 0-255 CH 2 0-255 Pan fine（16Bit） CH 3 0-255 Tilt CH 4 0-255 Tilt fine（16Bit） CH 5 0-255 X / Y motor speed from quick to slow CH 6 0-255 Main dimming CH 7 0-255 Red all dimmer CH 8...
-
Page 13: Technical Parameters
Technical Parameters: Construction: Composite plastic, die-casting aluminum, Voltage: AC100V-240V; 50/60Hz Power Consumption: 400W (220V) LED Bulbs: 4IN1*36pcs 10W LEDs LED Current: 500mA LED Lifetime: 50000Hours Colors: RGBW color mixing Adjusts the light: 0-100 electron adjusts the light, various colors may alone move also may mix the color tone Strobe: 1-25/second high speed strobe, but single color Mixes the color strobe Head Movement: Pan 540°, Tilt 270°, with auto position correction and electronic replacement...
