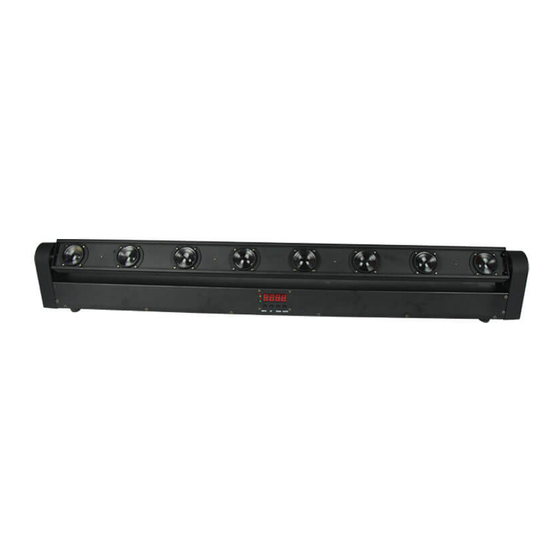

- Page 1 LED ROTATION BEAM LIGHT INSTRUCTION MANUAL Thank you for choosing our LED rotation beam light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
Catalogue Chapter Page Safe Usage Of The Product -----------------------------------------------------------------------------------------3 Install The Equipment ------------------------------------------------------------------------------------------------4 Power Code Connection ---------------------------------------------------------------------------------------------4 DMX Connection ------------------------------------------------------------------------------------------------------5 DMX Terminator -------------------------------------------------------------------------------------------------------6 Function Set --------------------------------------------------------------------------------------------------------------6 LED Display Menu Function ----------------------------------------------------------------------------------------6 Maintenance -------------------------------------------------------------------------------------------------------------7 Keeping The Product Clean -----------------------------------------------------------------------------------------7 Trouble Shooting --------------------------------------------------------------------------------------------------------7 Equipment and Appendix ---------------------------------------------------------------------------------------------8... -
Page 3: Safe Usage Of The Product
SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The product is for indoor use only, IP20. -
Page 4: Install The Equipment
Install The Equipment: Use 2pcs clamp (need to purchase).Use clamp fix with light hook which in the packing box with light, then use install to the bottom of lamp. Hang the fixture on the structure and fasten the fastlock screw attached to each clamp. Make sure the light is installed reliable, and confirm the light which you fixed is strong enough for hanging the light. -
Page 5: Dmx Connection
DMX Connection: Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and sockets. -
Page 6: Dmx Terminator
DMX Terminator: In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 7: Maintenance
Running changes， （01—99） FF00 B、C button change speed of running BEB1 7 colors sound control running changes 1 BEB2 7 colors sound control running changes 2 Maintenance: To prolong the life of the projector, some maintenance work has to be done to ensure the LED optical system in good condition. -
Page 8: Equipment And Appendix
Equipment and Appendix: The packing list of this light as follows: ☆ Led moving head light 1pcs ☆ Power Cable 1pcs ☆ XLR connector 1unit ☆ Light Hook 2pcs ☆ The Product of Instruction 1pcs Channel List: 10Channels description Channel Function Description Motor... -
Page 9: Technical Parameters
CH10 W 1 dimming W 1 dimming，Linear dimming，from dark to bright CH11 R 2 dimming R 2 dimming，Linear dimming，from dark to bright CH12 G 2 dimming G 2 dimming，Linear dimming，from dark to bright CH13 B 2 dimming B 2 dimming，Linear dimming，from dark to bright CH14 W 2 dimming W 2 dimming，Linear dimming，from dark to bright...
