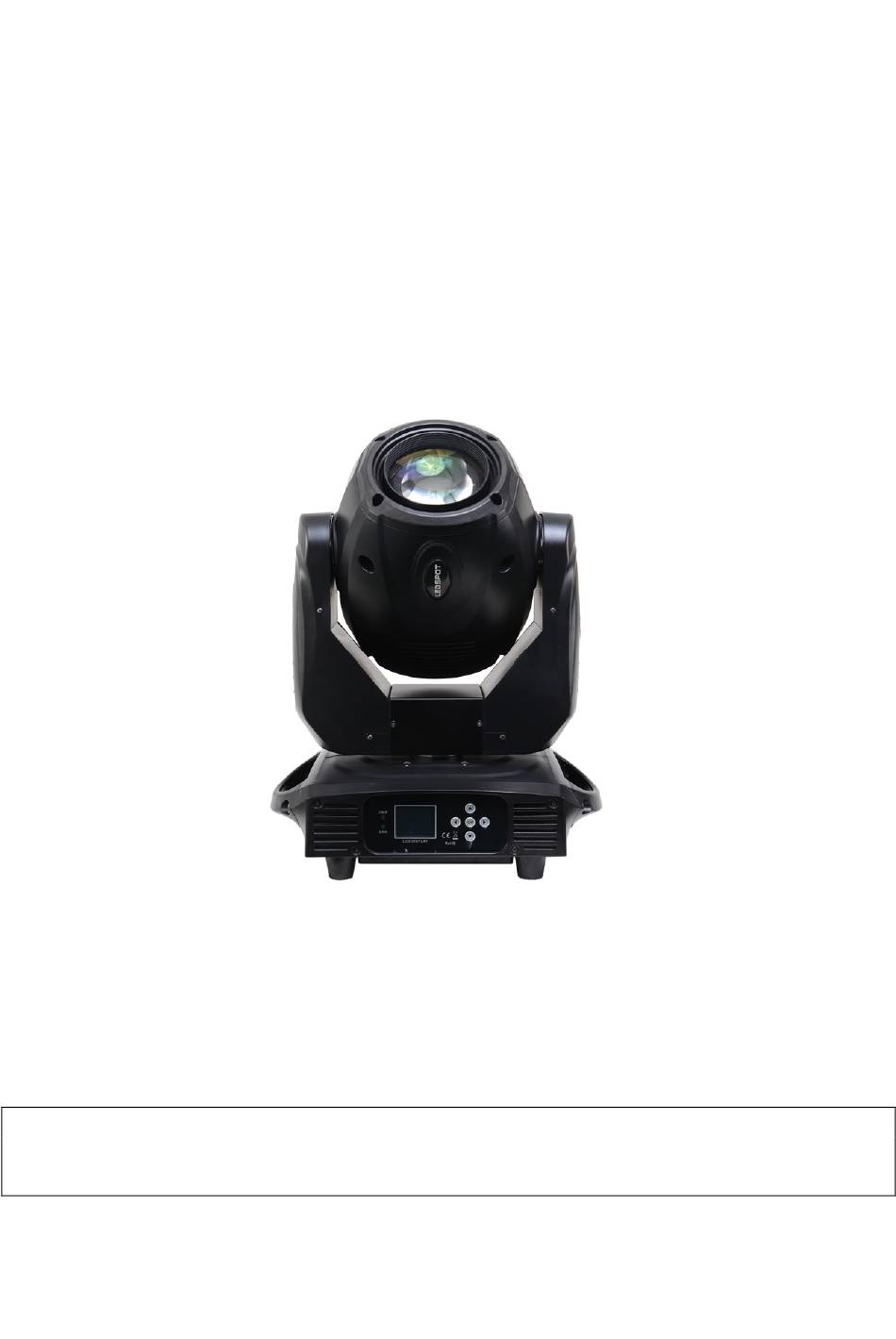

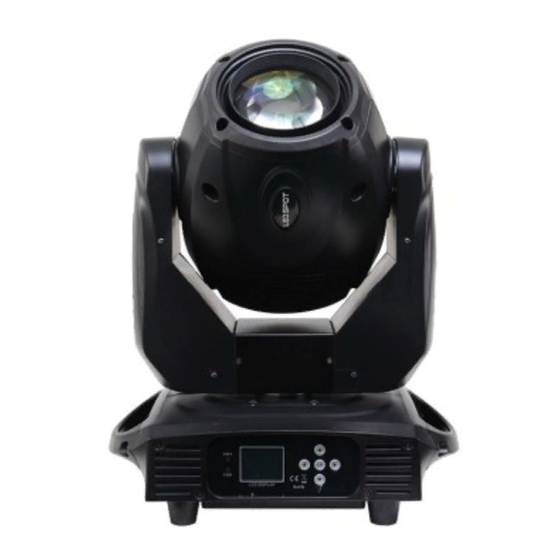

- Page 1 LED SPOT MOVING HEAD LIGHT MJ-1051 User manual PROFESSIONAL STAGE LIGHTING ====== ======== Thank you for choosing our LED moving head light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for future...
-
Page 2: Table Of Contents
Catalogue Chapter Page Safe Usage Of The Product -----------------------------------------------------------------------------------------3 Install The Equipment ------------------------------------------------------------------------------------------------4 Power Code Connection ---------------------------------------------------------------------------------------------4 DMX Connection ------------------------------------------------------------------------------------------------------5 DMX Terminator -------------------------------------------------------------------------------------------------------6 Function Set ---------------------------------------------------------------------------------------------------------------6 Operation Menu ---------------------------------------------------------------------------------------------------------7 Control panel of LED display information -----------------------------------------------------------------------8 Maintenance --------------------------------------------------------------------------------------------------------------8 Keeping The Product Clean ------------------------------------------------------------------------------------------9 Trouble Shooting ---------------------------------------------------------------------------------------------------------9... -
Page 3: Safe Usage Of The Product
SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The product is for indoor use only, IP20. -
Page 4: Install The Equipment
Install The Equipment: Use 2pcs clamp and 1safety cord(need to purchase).Use clamp fix with light hook which in the packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm the light which you fixed is strong enough for hanging the light. -
Page 5: Dmx Connection
DMX Connection: Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and sockets. -
Page 6: Dmx Terminator
DMX Terminator: In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 7: Operation Menu
Operation Menu: Main Menu Sub Menu Sub Menu Function Sound AUTO01 Run Mode AUTO02 AUTO03 AUTO04 Rand DMX address 1-512 Channel mode 16CH Setting Sound sensitivity 1-99 Pan invert ON/OFF Tilt invert ON/OFF Pan Tilt swap ON/OFF Code wheel ON/OFF Signal Time out CLEAR/KEEP Screen Saver... -
Page 8: Control Panel Of Led Display Information
（-128） - （+127） Pan off set （-128） - （+127） Tilt off set （-128） - （+127） Colour off set （-128） - （+127） Off set(need password) Gobo off set （-128） - （+127） Focus off set （-128） - （+127） Prism off set （-128） - （+127） Gobo2 off set Language Switch Yes/No... -
Page 9: Keeping The Product Clean
Keeping The Product Clean: To ensure the reliability of the projector, it should be kept clean. It is recommended that the fans should be cleaned every 15 days. LED lens should also be regularly cleaned to maintain an optimum light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics. - Page 10 Tilt 0-255 Tilt movement (0-540) Tilt Fine 0-255 Tilt Fine 16bit Speed 0-255 P/T speed from fast to slow Open Open +Color 1 10-14 Color 1 15-19 Color 1+ Color 2 20-24 Color 2 25-29 Color 1+ Color 3 30-34 Color 3 35-39 Color 3+ Color 4...
- Page 11 Open 10-19 Gobo 1 20-29 Gobo 2 30-39 Gobo 3 40-49 Gobo 4 50-59 Gobo 5 60-69 Gobo 6 70-79 Gobo 7 80-89 White shake from slow to fast CH10 Rotate Gobo 90-99 Gobo 1 shake from slow to fast 100-109 Gobo 2 shake from slow to fast 110-119...
-
Page 12: Technical Parameters
Technical Parameters: Voltage: AC100V-240V; 50/60Hz Power Consumption: 230W (220V) LED Bulbs: 150W*1pcs White LUMEN LED Color temperature : 7500K LED Current: 7.5A LED Lifetime: 50000Hours Color: 8 color + open color wheel Gobo: 7 Fixed Gobo + open Gobo wheel 7 Rotation Gobo + open Gobo wheel Prism 1 : 1pcs rotation 3-face prism, Bilateral rotation Prism 2 : 1pcs rotation 6-face linear prism, Bilateral rotation...
