- Page 1 LTK1802 Series Card Reader User Manual...
- Page 2 User Manual About this Manual This Manual is applicable to LTK1802 series card reader. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
-
Page 3: Regulatory Information
Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Safety Instruction
purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. product documentation specific battery... - Page 5 Warnings All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region. Please use the power adapter, which is provided by normal company. The power consumption cannot be less than the required value.
- Page 6 Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time. Please use a soft and dry cloth when clean inside and outside surfaces of the device cover, do not use alkaline detergents.
-
Page 7: Chapter 1 Preventive And Cautionary Tips
Chapter 1 Preventive and Cautionary Tips To guarantee the card reader works properly, please read and obey the notes below. If the card reader is powered by the controller, the power supply distance is recommended to be no longer than 100m. If the distance is longer than 100m, you are advised to power the card reader by external 12V (range: -%10 ~ +%10) DC power supply, which is nonswitched and linear. -
Page 8: Chapter 2 Introduction

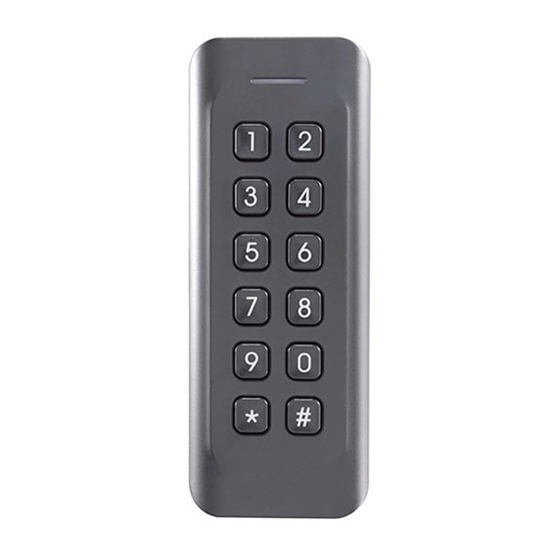

LTK1802MK LTK1802M Figure 2-1 LTK1802 Series Card Reader LTK1802 series card reader is a kind of high-performance product. It communicates with access controller via Wiegand protocol. As to the physical appearance, the PC+ABS material makes water proof and dust proof possible in poor environment. -
Page 9: Indicator And Component
2.2 Indicator and Component Figure 2-2 Indicator and Component... -
Page 10: Chapter 3 Installation
Chapter 3 Installation 3.1 Definition of Cable The description of cables is shown below. Table3-1 Description of Cable Color Description PWR (+12 VDC) Black Purple Beep Control Brown Orange Green Wiegand W0 White Wiegand W1 Blue Wiegand 26/ 34 3.2 Wiring Cables Purpose: Wire the cables between controller and card reader, thus to establish the communication between them. -
Page 11: Installing Card Reader
Controller Controller Card Reader Card Reader Card Reader Card Reader Figure 3-1 Wiring for Wiegand Communication Mode 3.3 Installing Card Reader Steps: Fix the plate on the wall or other places by using two screws (PA4×25-SUS). Make sure the arrows on the plate are upwards. - Page 12 Slide the card reader from the direction A to B along the plate side until the bottom matches the joint. Make sure the card reader is tightly on the wall or other places. Drag and move the card reader to make sure it is fixed.
-
Page 13: Chapter 4 Sound Prompt And Indicator
Chapter 4 Sound Prompt and Indicator After the card reader is powered on, LED status indicator will turn green and blink for 1 time. Then it will turn red and blink for 3 times. At last the buzzer will send out a beep sound indicating the starting up process is completed. - Page 14 Table 4-2 Description of LED Indicator LED Indicator Status Description Green (blink for 1 time), and red (blink The card reader is power on. for 3 times) For Card + Password authentication: Green slow prompt for entering the password after blinking swiping the card.
