- Page 1 Fingerprint Card Reader User Manual...
- Page 2 Fingerprint Card Reader User Manual User Manual About this Manual This manual is applicable for fingerprint card reader. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 3 Fingerprint Card Reader User Manual security controls, conduct periodic reviews and assessments of the effectiveness of your security controls. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 4 Fingerprint Card Reader User Manual EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under Directive 2014/30/EU, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
- Page 5 Fingerprint Card Reader User Manual Model Manufacturer Standard DSA-12PFT-12FIN 120100 Dee Van Enterprise Co., Ltd. DSA-12PFT-12FUS 120100 Dee Van Enterprise Co., Ltd. DSA-12PFT-12 FBZ 120100 Dee Van Enterprise Co., Ltd. Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
- Page 6 Fingerprint Card Reader User Manual Do not connect several devices to one power adapter as adapter overload may cause over-heat or fire hazard. Please make sure that the power has been disconnected before you wire, install or dismantle the device. ...
- Page 7 Fingerprint Card Reader User Manual Please use the provided glove when open up the device cover, avoid direct contact with the device cover, because the acidic sweat of the fingers may erode the surface coating of the device cover. ...
-
Page 8: Table Of Contents
Fingerprint Card Reader User Manual Content Chapter 1 Introduction ............3 Product Overview ............. 3 Product Appearance ..........3 Chapter 2 Installation ............. 5 Introduction for DIP Switch........5 Definition of Cable ............ 6 Wiring Cables ............6 Installing Card Reader ..........7 Chapter 3 Sound Prompt and Indicator ........ -
Page 9: Chapter 1 Introduction

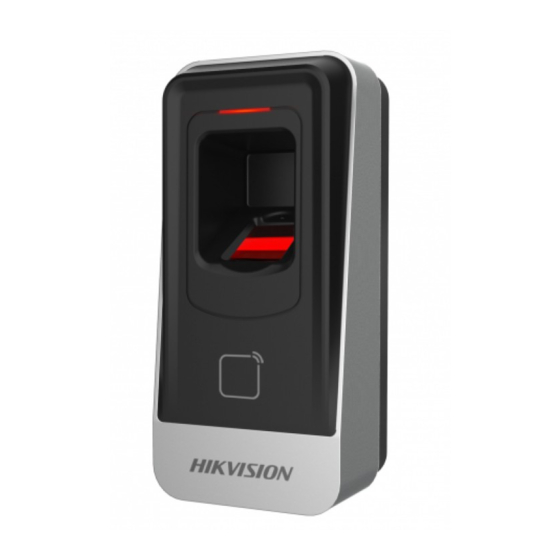

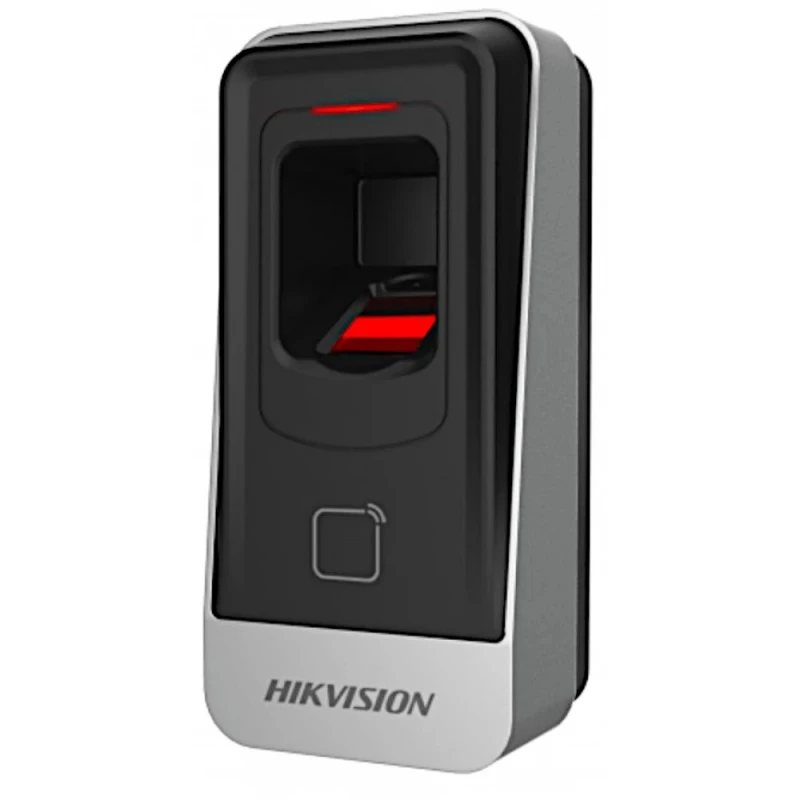

Fingerprint Card Reader User Manual Chapter 1 Introduction 1.1 Product Overview Fingerprint and card reader is a kind of high-performance product, with a 32 bit high-speed processor. It communicates with access controller via the RS-485 protocol. And a built-in tamper-proof module helps to protect card reader from malicious damage. - Page 10 Fingerprint Card Reader User Manual Table 1-1 Components Description Name Fingerprint Scanner Cable Interface of RS-485, Power, LED Control, etc. DIP Switch...
-
Page 11: Chapter 2 Installation
Fingerprint Card Reader User Manual Chapter 2 Installation 2.1 Introduction for DIP Switch The DIP switch module is shown below. The No. of DIP switch from left to right is 1 ~ 4, representing the RS-485 address. Figure 2-1 DIP Switch Module Table 1-2 Description of DIP Switch Icon Description... -
Page 12: Definition Of Cable
Fingerprint Card Reader User Manual 2.2 Definition of Cable The description of 5 cables is shown below. Table 1-3 Description of Cables Color Description Blue RS-485 - Yellow RS-485 + PWR (DC +12V) Black GND (Power Grounding) Black GND (RS-485 Grounding) 2.3 Wiring Cables Purpose: Wire the cables between the controller and the card reader, thus to... -
Page 13: Installing Card Reader
Fingerprint Card Reader User Manual Figure 2-3 Wiring for RS-485 Communication Mode 2.4 Installing Card Reader Before you start: Set the DIP switch. For details, refer to 2.1 Introduction for DIP Switch. Steps:... - Page 14 Fingerprint Card Reader User Manual Fix the mounting plate on the wall with 2 provided screws. Note: Do not warp the mounting plate when installing. Connect the cables between controller and card reader. For details, refer to 2.3 Wiring Cables. Unscrew the screw at the bottom of the card reader.
-
Page 15: Chapter 3 Sound Prompt And Indicator
Fingerprint Card Reader User Manual Chapter 3 Sound Prompt and Indicator After the card reader is powered on, LED status indicator will turn green and blink for 1 time. Then it will turn red and blink for 3 times. At last the buzzer will send out a beep sound indicating the starting up process is completed. - Page 16 Fingerprint Card Reader User Manual LED Indicator Status Description prompt for pressing the fingerprint after swiping the card. operation configuring fingerprint. Solid green for 2s The operation of swiping card is valid. Solid red Card reader is working normally. Red and blink for 3 The operation of swiping card is invalid.
-
Page 17: Appendix: Tips For Scanning Fingerprint
Fingerprint Card Reader User Manual Appendix: Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center. - Page 18 Fingerprint Card Reader User Manual Others If your fingerprint is shallow, or it is hard to scan your fingerprint, we recommend you to use other authentication methods. If you have injuries on the scanned finger, the scanner may not recognize. You can change another finger and try again.
- Page 19 Fingerprint Card Reader User Manual UD22705N...
