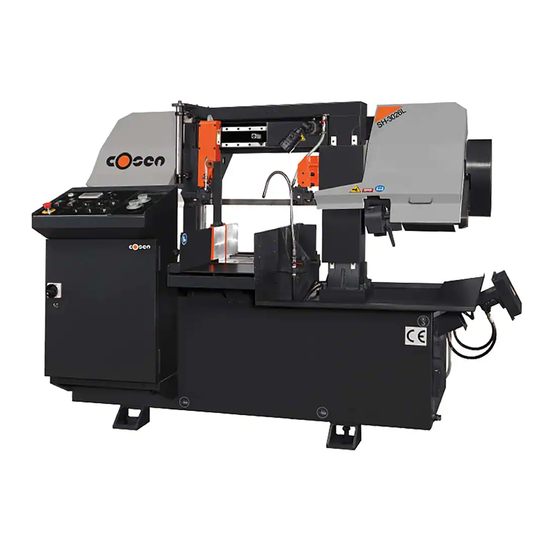

- Page 1 COSEN SAWS SH-3026L Semi‐Automatic Horizontal Bandsaw (Non‐CE Model) Instruction Manual The Pinnacle of Cutting Performance Cosen Mechatronics Co., Ltd. ...
- Page 2 ...
- Page 3 FROM THE MANUFACTURER Thank you for your purchase of COSEN’s bandsaw machine and your trust in the COSEN brand. We are excited to have you as our valued customer and look forward as much as you do to the accelerated productivity, long‐lasting endurance and superb cost‐effectiveness this machine is about to bring to you. To ensure you are fully utilizing our machine and being advantaged in every possible way, please do take your time and read through this instruction manual. Any comment or suggestion in making our service better, please do not hesitate to let us know. Thank you again! NOTE: Read this instruction manual carefully to familiarize yourself with the installation, operation and maintenance of your COSEN bandsaw machine. Operate the machine following the procedures described in the manual to prevent personal injuries or machine damage. Keep this manual handy and refer to it whenever you are uncertain of how to perform any of the procedures. For technical support or parts purchase, please contact your nearest COSEN representative or our service center: For US, Mexico, and Canada: For Europe: For China: email: info@cosensaws.com. email: ...
- Page 4 Safety rules Make sure your work area is cleared of uninvited people and obstacles every time before you start operating the machine. Never wear gloves or loose clothing when operating the machine. It may lead to serious injury if they are caught in the running machine. Wrap or cover long hair. Use a water‐soluble cutting fluid on this machine. Oil‐based cutting fluids may emit smoke or catch fire, depending on how they are used. Never cut carbon or any other material that may produce and disperse explosive dust. It is possible that sparks from motors and other machine parts will ignite and explode the air‐borne dust. Make sure any use of fire is prohibited in the shop and install a fire extinguisher or other fire control device near the machine when cutting titanium, magnesium, or any other material that produces flammable chips. Never leave the machine unattended when cutting flammable materials. Never adjust the wire brush or remove chips while the saw blade is still running. It is extremely dangerous if hands or clothing are caught by the running blade. Never touch the running saw blade with gloves or not. It is dangerous if your hands, clothing or gloves are caught by the running blade. Stop the saw blade before you clean the machine. It is dangerous if hands or clothing are caught by the running blade. Never start the saw blade unless the workpiece has been clamped firmly. If the workpiece is not securely clamped, it will be forced out of the vise during cutting. Take preventive measures when cutting thin or short pieces from the work to keep them from falling. It is dangerous if the cut pieces fall. Use roller tables at the front and rear sides of the machine when cutting long work. It is dangerous if the work piece falls off the machine. Never step or stand on the roller table. Your foot may slip or trip on the rollers and you will fall. Turn off the shop circuit breaker switch before performing maintenance on the machine. Post a sign indicating the machine is under maintenance. ...
-
Page 5: Table Of Contents
Table of Contents Safety Information 1‐1 Section 1 – Safety Instructions ……………………………………………………………………………………………………… 1‐1 Safeguard Devices ………………………………………………………………………………………………………. 1‐3 Emergency Stop …………………………………………………………………………………………………………. 1‐4 Illustration: Emergency Stop ……………………………………………………………………………………… 1‐5 Safety Labels ………………………………………………………………………………………………………………. 1‐6 1‐7 Illustration: Safety Labels ………………………………………………………………………………………..… Hearing Protection ……………………………………………………………………………………………………… 1‐8 CE Compliance ……………………………………………………………………………………………………………. 1‐8 Risk Assessment …………………………………………………………………………………………………………. 1‐8 General Information 2‐1 Section 2 – Specifications ……………………………………..………………………………………………………………………. 2‐2 Machine Parts Identification ………………………………………………………………………………………. 2‐3 Floor Plan …………………………………………………………………………………………………..………………. 2‐4 Moving & Installation ... - Page 6 Table of Contents Control Buttons ……………………………………………………………………………………….…….. 4‐5 Blade Descend Pressure & Speed ………..…………………………………………………….…… 4‐6 Standard Accessories ………….………………………..……………………………………………….…………… 4‐7 Optional Accessories …….…….………………………..…………………………………………….……………… 4‐10 Unrolling & Installing the Blade …………………………………………………………………….……………. 4‐10 Adjusting Wire Brush ………..……………………………………………………………………….………………. 4‐12 Adjusting Coolant Flow ………..………..…………………………………………………………………..…….… 4‐13 Adjusting Blade Speed ………..………..………………………………………………………………………….… 4‐13 Breaking‐In the Blade ………..………..…………………………………………………………………..……….… 4‐13 Test‐Running the Machine ………..………………..…..…………………………………………………………. 4‐14 Cutting Operation ………..………..……………………………………………..……………………………………. 4‐14 Terminating a Cutting Operation ………..………..…………………………………….………………………. 4‐15 Electrical System 5‐1 Section 5 – Electrical Circuit Diagrams ……….…………………..…………………………………………………………….. 5‐1 Hydraulic System 6‐1 Section 6 – ...
- Page 7 Table of Contents Troubleshooting 9‐1 Section 9 – Introduction ……………………….…….…………………..……………………………………………………………. 9‐1 Precautions ………………….…………………..……………………………………………………………………..9‐1 General Troubles & Solutions ………………………..……………………………………………………………. 9‐2 Minor Troubles & Solutions ………………………..………………………………………………..……………. 9‐3 Motor Troubles & Solutions ………………………..…………………………………………………..…………. 9‐3 Blade Troubles & Solutions ………………………..……………………………………………………………….. 9‐4 Sawing Problems & Solutions ………………………..…………………………………………………………… 9‐5 Re‐Adjusting the Roller Table ………………………..……………………………………………………………. 9‐6 Parts 10‐1 Section 10 – Spare Parts Recommendations …………………..………………………………………………………………. 10‐1 Parts List …………………..………………………………………………………………………………………………. 10‐2 Warranty 11‐1 Section 11 – Warranty …………………..……………………………………………………………………………………………….. 11‐1 iii ...
- Page 8 ...
-
Page 9: Section 1 - Safety Information
Section 1 SAFETY INFORMATION SAFETY INSTRUCTIONS SAFEGUARD DEVICES EMERGENCY STOP SAFETY LABELS HEARING PROTECTION CE COMPLIANCE RISK ASSESSMENT Safety is a combination of a well‐designed machine, operator’s knowledge about the machine and alertness at all times. COSEN’s band machine has incorporated many safety measures during the design process and used protective devices to prevent personal injuries and potential risks. Warning labels also serve as a reminder to the operator. Throughout this manual, you will also see various safety‐related symbols indicating important information that you should take note of prior to use of the machine or part of its functions. These important safety instructions do not cover all possible situations that might occur. It is your responsibility to take caution and follow procedures stated in this manual when installing, maintaining and operating your machine. Cosen will not be liable for damages resulting from improper use. SAFETY INSTRUCTIONS What the icons and signs in this user manual mean: This icon marks DANGER; hazards or unsafe practices that may result in severe personal injury or death. This icon marks WARNING; hazards or unsafe practices that may result in personal injury or damage to the machine. This icon marks CAUTION; information that should be read before use to prevent damage to the machine. Supplementary information to the procedures described in this manual. Call your local agent or our service center for help. ... - Page 10 This manual has important safety All users must read it before performing any information. Read through it carefully activity on the machine, such as replacing before operating this machine to prevent the saw band or doing regular maintenance. personal injury or machine damage. Learn the operation, limitation and the specific Some personal protective equipment is potential hazards peculiar to this band required for the safe use of the machine, e.g. protection goggles. saw. Do not operate this machine unless it is Keep blade protection cover and wheel completely assembled. covers in place and in working order. Make sure the power switch is off before Use recommended accessories. Improper plugging in power cord. accessories may be hazardous. Disconnect the power cord before making Keep your work area well illuminated at adjustment, maintenance or blade minimum 500 lumen. changes. Keep your work area clean. Cluttered and Keep all guards and shields in place before slippery floors invite accidents. installing or starting up the machine. Remove adjusting keys, wrenches or any Wear proper apparel during operation loose parts or items from the machine and when servicing the machine. ...
-
Page 11: Safeguard Devices
SAFEGUARD DEVICES The safeguard devices incorporated in this machine include the following two main parts: 1. Protection covers & guards 2. Safety‐related switches Protection Covers & Guards 1. Idle wheel housing cover 2. Drive wheel housing cover 3. Gear reducer cover 4. Wire brush belt cover 5. Blade guard cover (left & right) The protection devices should always be mounted on the machine whenever the machine is running. Do not remove any of these safeguard devices under any circumstances except when servicing the machine. Even skilled service technicians should still take cautions when performing repairs or service on the machine with any of these protectors removed. It is the responsibility of the user to make sure all these elements are not lost and damaged. Take note of the following main moving parts on the machine prior to and during machine operation: Saw bow assembly Drive and idle wheels Blade guide arm Saw blade guide rollers Quick approach device Wire brush Chip conveyor (optional) ... -
Page 12: Emergency Stop
Safety Related Switches To protect the operator, the following safety related switches on the machine are actuated when the machine is in operation. Wheel motion detector This is a proximity sensor used to detect the motion of the drive wheel. Once the saw blade is broken or as soon as it starts slipping, the sensor will detect and stop the drive wheel and the machine. Power switch Located on the cover of electrical cabinet, the power switch controls the main power of the machine. Up to your company’s internal rules, this power switch can be locked with a padlock or a luggage lock to protect the operator and the machine. Emergency stop button Located on the control panel, the button when pressed will stop the machine completely. Vise clamp switch This switch assures firm clamping of the workpiece. If the workpiece is not clamped properly, the saw blade is not allowed to run. Wheel cover interlock switches Located on the two wheel housings, these switches (CE model only) are used to assure that the machine will stop whenever the wheel covers are open. This device is to protect users from being cut by the running saw blades. Among all these safety switches, some of them are used to protect the users and some of them are used to prevent damage to saw blades, the workpiece and the machine itself, etc. We have taken every precaution to prevent injury or damage and to provide safe and economical operation of the machine. EMERGENCY STOP Designed to be easily accessible, the emergency stop button is located on the left bottom corner on the control panel and is made in red color and rubber material. For CE models, supplementary emergency stop button may be available at other area(s) of the machine depending on machine type. ... -
Page 13: Illustration: Emergency Stop
Illustration: Emergency Stop Emergency Stop Button 1‐5... -
Page 14: Safety Labels
SAFETY LABELS Please read through and understand these safety labels before operating the machine. Refer to Illustration: Safety Labels. Label Meaning Label Meaning Impact Hazard Read Operator’s Manual WEAR SAFETY SHOES. Do This manual has important safety not approach dropping area information. Read through it during operation. carefully before operating this machine to prevent personal injury or machine damage. Keep Unauthorized Do not step. Personnel Away Do not stand on the machine or on the accessories! DANGER: Running Blade Cutting Hazard Blade runs through this KEEP COVER CLOSED / KEEP HAND area. Keep your hands away OFF while the blade is running. ... -
Page 15: Illustration: Safety Labels
Illustration: Safety Labels 1‐7... -
Page 16: Hearing Protection
Parts not assembled tightly causing mechanical vibration Our products pass noise testing less than 78 dBA. Noise level vary according to working conditions and we recommend ear plugs or other hearing protection at all time. If your machine produces an undesirable noise while it is running, you should: Make sure all maintenance tasks have been performed following the prescribed maintenance schedule (Refer to Section 8). If maintenance does not seem to solve the problem, follow the troubleshooting procedures under Section 9. CE COMPLIANCE Cosen’s CE model is designed to satisfy regulations of the Council Directive on the approximation of the laws of the Member States relating to machinery (2006/42/EC) ‐ Annex I Essential health and safety requirements relating to the design and construction of machinery. RISK ASSESSMENT Risk assessment generally takes account of intended use and foreseeable misuse, including process control and maintenance requirements. We made every effort to avoid any personal injury or equipment damage during the machine design stage. However, the operator (or other people) still needs to take precautions when handling any part of the machine that is unfamiliar and anywhere on the machine that has potential hazards (e.g. the electrical control box). ... -
Page 17: Section 2 - General Information
Section 2 GENERAL INFORMATION SPECIFICATION MACHINE PARTS IDENTIFICATION FLOOR PLAN This band saw machine is designed by Cosen’s R&D engineers to provide you the following features and advantages: Safety This machine is designed to fully protect the operator from its moving parts during cutting operation. The machine and each compoment has passed strict testing (Council Directive on the approximation of the laws of the Member States relating to Machinery). The machine will shut off automatically when the saw blade is broken, protecting both the operator and the machine. Convenience & High‐Performance The machine is designed in the way that the operation and adjustment can be easily performed. The machine will stop automatically when out of stock. Dual valve system is designed to achieve optimal cutting performance with the simple setting of feed rate and perspective cutting pressure for different material. Durability The intended life‐span of the machine is counted based on regular daily operation. It is calculated with the life expectancy of 10 years under normal operating condition and exact attention to the maintenance schedule. 8 hours × 5 days × 52 weeks × 10 years ＝ 20,800 hours 2‐1 ... - Page 18 SPECIFICATION SH‐3026L Model Semi‐Automatic Horizontal Bandsaw 260 mm (10.2 in) Round 260 mm (10.2 in) Square Capacity 260 x 300 mm (10.2 x 11.8 in) Rectangular (H x W) W: 190 ~ 300 mm (7.5 ~ 11.8 in) Bundle Cutting H: 70 ~ 140 mm (2.8 ~ 5.5 in) 15~80 m/min (49~262 fpm) Speed 4,100 x 34 x 1.1 mm (161 x 1.3 x 0.04 in) Size Hydraulic with automatic blade breakage detection Saw Blade Tension Interchangeable tungsten carbide Guide Steel wire brush with flexible drive shaft driven by main motor Cleaning 5 HP (3.75 kW) Saw Blade ...
- Page 19 MACHINE PARTS IDENTIFICATION Guide arm Idle wheel Control Drive wheel panel Pulley cover Electrical compartment Wire brush 2‐3...
-
Page 20: Floor Plan
FLOOR PLAN Machine top view Machine front view 2‐4 ... - Page 21 Machine front view 2‐5...
- Page 22 ...
-
Page 23: Section 3 - Moving & Installation
Section 3 MOVING & INSTALLATION LOCATION & ENVIRONMENT UNPACKING & INSPECTING LIFTING REMOVING SHIPPING BRACKET CLEANING INSTALLING RELOCATING LOCATION & ENVIRONMENT For your safety, please read all information regarding installation before proceeding. Install your machine in a place satisfying all of the following conditions: Space: Leave enough free space around the machine for loading work and unloading cut‐off pieces as well as for maintenance and inspection. Refer to Section 2 General Informattion for machine dimensions and floor space. Environment: Well lighted (500 lumen at minimum). Floor kept dry at all times in order to prevent operators from slipping. Away from direct exposure to the sunlight Room temperature between 5˚C to 40˚C. Humidity level kept at 30 ~95%“(without condensation) to avoid dew on electric installation and machine. Away from vibration of other machines Away from powders or dusts emitted from other machines ... -
Page 24: Unpacking & Inspecting
UNPACKING & INSPECTING Unpack your machine carefully to avoid damage to machine parts or surfaces. Upon arrival of your new band saw, please confirm that your machine is the correct model and it comes in the same specification you ordered by checking the model plate on the machine base. It is also imperative that a thorough inspection be undertaken to check for any damage that could have occurred during shipping. Pay special attention to machine surface, equipments furnished and the electrical and hydraulic systems for damaged cords, hoses and fluid leaks. In the event of damage caused during shipping, please contact your dealer and consult about filing a damage claim with the carrier. Your machine comes in with a set of tools for you to maintain the machine. The accessories furnished are as follows: 1. Tool box 1 pc 2. Grease gun 1 pc 3. Screwdriver (+, ‐) 2 pcs 4. Open‐ended spanner ... -
Page 25: Lifting
LIFTING When moving the machine, we strongly suggest you choose any one of the methods described below to move your machine. 1. Use a crane Move the machine to its location by using a crane and a wire rope sling that can fully withstand the weight of the machine (refer to machine specification under Section 2 General Information). Machine lifting is likely to damage the machine if not performed properly. You must have a qualified crane operator to perform the job. You must use tools and equipment with the proper tensile strength and use proper method when moving your machine. Apply the wire rope sling to the lifting hooks on the four ends of the machine. Refer to Illustration: Lifting Points for exact locations. Slowly lift the machine. Be sure to protect the machine from impact or shock during this procedure. Also watch out your own fingers and feet to avoid injuries. Keep the machine well balanced during lifting process and make sure the wire rope does not interfere with the saw frame. When you work together with more than two people, it is best to keep constant verbal ... - Page 26 2. Use a forklift Most users choose this method to move their machine because it is easy to set up. Make sure that the lifting rod can fully withstand the weight of the machine. (Refer to Section 2 – General Information for Specifications) Machine lifting is likely to damage the machine if not performed properly. You must have a qualified forklift operator to perform the job. You must apply proper forklift technique to avoid damage to the machine. Make sure the forks are able to reach in at least 2/3 of the machine depth. You must keep the machine balanced at all times. Make sure the forks are centered before use. (Illustration only. Please follow user guide of your forklift.) ...
-
Page 27: Illustration: Lifting Points
Illustration: Lifting Points Minimum weight capacity for each wire rope: 1.5 ton Total number of wire ropes required: 4 3‐5... -
Page 28: Removing Shipping Bracket
Retain this bracket so that it can be used again in the event that your machine must be relocated. CLEANING After the machine has been placed at the designated position, remove the rust‐preventive grease with wiping cloth dampened with cleaning oil or kerosene. Apply machine oil to machine surfaces that are prone to rust. Do not remove the rust‐preventive grease with a metal scraper and do not wipe the painted surfaces with solvent as doing so would damage surface paint. INSTALLING Cosen’s bandsaw machine is relatively easy to install. Follow these six easy steps to install your machine. Connect Leveling & Supply Supply (Installing electric anchoring hydraulic oil cutting fluid roller table) power ... -
Page 29: Supplying Coolant
starting the machine. If the coolant pump is started without enough coolant supply in the tank, the pump and its drive motor may be damaged. Refer to specification chart under Section 2 General Information for tank capacity. Consult your coolant supplier for bandsaw use regarding coolant type and mix ratio. Connecting electric power Have a qualified electrician make the electrical connections. If the power supply voltage is different from the transformer and motor connection voltage shown on the label attached to the electrical compartment of the machine, contact COSEN or your agent immediately. Connect to power supply independently and directly. Avoid using the same power supply with electric spark machines such as electric welder. Unstable electric tension may affect your machine’s electric installation from working properly. Ground the machine with an independent grounding conductor. Supply voltage: 90 ‐ 110 of nominal supply voltage. Source frequency: 99 ‐ 101 of nominal frequency. Refer to the specification chart under Section 2 for total electric power consumption of the motors and make sure your shop circuit breaker is capable of this consumption amount. Also use a power supply cable of proper size to suit the power supply voltage. 3‐7... -
Page 30: Leveling
Turn off the shop circuit breaker. Make sure the machine circuit breaker switch on the electrical compartment door is turned to OFF. Remove the screw securing the electrical compartment and then open the door. Pull the power supply cable and grounding conductor through the power supply inlet into the electrical compartment. (Shown right) Connect the power supply cable to the circuit breaker Power Supply Inlet (N.F.B.) to the R, S and T terminals, and connect the ground cable to the E terminal. Close the compartment door and fasten the screw back. Turn on the shop circuit breaker and then turn the machine circuit breaker switch to ON. The Power Indicator on the control panel will come on. Pull to unlock the Emergency Stop button and press the hydraulic ON button to start the hydraulic motor. Make sure the sawing area is clear of any objects. Start the blade and check the blade rotation. If the electrical connections are made correctly, the blade should run in a counterclockwise direction. If not, shut the hydraulics off, turn off the machine as well as the shop circuit breaker. Then swap the power the power cable conductors connected to R and T terminals. 10. Repeat step 6 to 9 to ensure the electrical connections are in the right order. Leveling Place spirit level on the vise slide plates and the work feed table. ... -
Page 31: Anchoring The Machine
Anchoring the machine Normally there is no need to anchor the machine. If the machine is likely to vibrate, fix the machine to the floor with anchor bolts. Shock absorption steel plates are provided and can be placed under each leveling bolt to prevent their sinking into the concrete floor. Installing roller table (optional) The roller table is used to support long material at the rear and/or the front of the machine. If you have ordered the optional roller table for cutting long material, position it before or behind the machine. Level the roller table and the stand with the Adjust bolts machine by adjusting the leveling bolts. Installing fire control device Install a fire extinguisher or any other fire control device in the shop in case a fire breaks out. RELOCATING We recommend you follow these procedures when relocating or shipping your machine to other place: ... - Page 32 ...
-
Page 33: Section 4 - Operating Instruction
Section 4 OPERATING INSTRUCTION SAFETY PRECAUTIONS BEFORE OPERATING CONTROL PANEL STANDARD ACCESSORIES OPTIONAL ACCESSORIES UNROLLING & INSTALLING THE BLADE ADJUSTING WIRE BRUSH ADJUSTING COOLANT FLOW ADJUSTING BLADE SPEED BREAKING‐IN THE BLADE TEST‐RUNNING THE MACHINE CUTTING OPERATION TERMINATING A CUTTING OPERATION 4‐1 ... -
Page 34: Safety Precautions
SAFETY PRECAUTIONS For your safety, please read and understand the instruction manual before you operate the machine. The operator should always follow these safety guidelines: The machine should only be used for its designated purpose. Do not wear gloves, neckties, jewelry or loose clothing/hair while operating the machine. For eye protection, always wear protective safety glasses. Check the blade tension and adjust blade guides before starting the machine. Use auxiliary clamping or supporting devices to fix material in place before cutting long workpieces. Always make sure the material is clamped firmly in place before starting to cut. Do not remove jammed or cut‐off pieces until the blade has come to a full stop. Keep fingers away from the path of the blade. Protection devices should be in place at all times. For your own safety, never remove these devices. Disconnect machine from the power source before making repairs or adjustments. Wear protection gloves only when changing the blade. Do not operate the machine while under the influence of drugs, alcohol or medication. Do not take your eyes off the machine while in operation. Do place warning signs to mark out machine work zone and restrict entry to be staff‐only. 4‐2 ... -
Page 35: Before Operating
BEFORE OPERATING Choosing an appropriate saw blade and using the right cutting method is essential to your cutting efficiency and safety. Select a suitable saw blade and cutting method based on your work material and job requirements e.g. cutting accuracy, cutting speed, economic concern, and safety control. Wet cutting If you choose dry cutting or low‐speed cutting, the chips may accumulate in machine parts and may cause operation failure or insulation malfunction. We suggest you choose wet cutting to avoid machine damage. Cutting unknown materials Before cutting an unknown material, consult the material supplier, burn a small amount of chips from the material in a safe place, or follow any other procedure to check if the material is flammable. Never take your eyes off the machine while in operation. Cutting fluid For cooling and lubrication purpose, we recommend you use water‐soluble cutting fluids. The following table lists out its pros and cons for your reference. Pro Con Have a high cooling effect Remove machine paint Not flammable Lose its rust protection effect if Economical deteriorated Does not require cleaning of the cut Tend to create foam Subject to decay products ... -
Page 36: Control Panel
CONTROL PANEL The control panel is located on the top of the electrical box. It includes the following function: power system, hydraulic system, cooling system and the human‐machine–interface (HMI). The operator must fully understand the function of each switch and button before operating the machine. No. Name No. Name 1 Power indicator lamp 7 Saw bow down button Hydraulic start button (with built‐in 2 8 Blade speed control knob lamp) 3 Emergency stop button 9 Vise clamp/open switch 4 Blade speed indicator 10 Last cut switch 5 Blade start button (with built‐in lamp) 11 Coolant on/off switch 6 Saw bow up button ... -
Page 37: Control Buttons
Control Buttons 1. Power indicator lamp When the lamp is on, it indicates the power to the machine is turned on. 2. Hydraulic start button (with built‐in lamp) Press this button to start the hydraulic motor. (The button lights up when pressed.) To stop the hydraulic motor, press emergency stop button. 3. Emergency stop button Press this button to stop the machine in an emergency. When the button is pressed, it brings the machine to a full stop. The button locks when pressed. In order to unlock it, please turn the button clockwise. 4. Blade speed indicator Blade speed is shown here. Please do not adjust parameters. If there is any question regarding the indicator, please contact the local agent. 5. Saw blade start button (with built‐in lamp) Press this button to start the blade drive motor. (The button lights up when pressed.) If the vise is not clamped, saw blade cannot start. When saw blade is running, the coolant pump will start automatically. 6. Saw bow up button When this button is pressed for more than 3 seconds, the saw bow rises automatically until the saw bow touches the upper limit switch. When this button is pressed for less than 3 seconds, the saw bow rises until the operator lets go of the button. While pressing the saw bow up button can stop the running blade, please still make use of the emergency stop button in an emergency. 7. Saw bow down button When this button is pressed, the saw bow descends. ... -
Page 38: Blade Descend Pressure & Speed
Blade speed is controlled by the inverter in the electrical compartment. Turning the knob clockwise increases the blade speed. 9. Vise clamp/open switch When the switch is turned to the left, the vise opens. When the switch is turned to the right for more than 3 seconds, the vise clamps automatically until the vise is fully closed. When the switch is turned to the right for less than 3 seconds, the vise clamps until the operator lets go the switch. 10. Last cut switch Turn the switch to the left, saw bow will stay at lower limit switch position and hydraulic motor stay on after cutting finishes. Turn the switch to the right, saw bow will rise to the upper limit switch position and hydraulic motor will automatically shut off. 11. Coolant pump on/off switch Turn the switch to the left to turn off the coolant. Turn the switch to the right to turn on the coolant. Blade Descend Pressure and Speed The part of control panel is where cutting pressure and saw bow descend speed can be adjusted. 1. Cutting pressure control knob This pressure control knob is used to adjust the cutting pressure of the blade. Turning the knob clockwise increases the cutting pressure. To obtain a good cutting result, choose the right cutting pressure by turning the knob until it points to your material on the color chart. 2. Blade descend speed control knob 2 This knob is used to adjust the descend speed ... -
Page 39: Standard Accessories
STANDARD ACCESSORIES Blade tension device This blade tension device equipped with hydraulic cylinder provides appropriate tension to the saw blade. To tighten the saw blade, turn the selector to . Upon saw blade breakage, the safety device will activate and automatically stop all machine operation. The limit switch of the safety device can be reset by turning the blade tension selector to To change the blade, turn the handle to to release saw blade tension. Never adjust blade tension while the blade is running. Blade speed/motion detector Besides detecting the blade speed, the speed/motion detector also functions as a safety device. The speed/motion detector protects operators and the machine by preventing blade overloads and consequent damages if a saw blade breaks or skids. Once blade breakage or slippage is detected, the drive wheel will stop in 10 seconds. Inverter This inverter is installed inside the electrical compartment. It is used to control and stabilize the saw blade speed during cutting. ... - Page 40 Gear reducer The specially designed gear reducer can work toward your preset blade speed and torque. Please refer to Section 8 for information on maintenance. Coolant pump When the hydraulic system is turned on, the coolant pump can be operated individually from the control panel. Coolant can be used to wash off chips as well as providing cooling during cutting. Wire brush assembly The wire brush is driven by the hydraulic motor. Wire brush can remove the chips to prolong the blade life. Keep your hands away from the wire brush and transmission shaft. Turn off the power before cleaning the wire brush. Work lamp The work lamp is installed on top of the saw bow to provide the light to align blade and material. 4‐8 ...
- Page 41 Split vise The spilt vises are a clever design to make sure your workpiece is tightly clamped by the two vises from both sides of the blade, maximizing stability and cutting precision. Linear guide Linear guide help saw bow ascend and descend smoothly. Upper and lower limit switch Adjust upper and lower knob screws to set the upper and lower limit switch position. Guide arm Clamp the material with the vise and start cutting. The guide arm will move toward the movable vise until the stopper of guide arm contacts the bar of vise. This is to make sure the guide arm stop at the most suitable position for the material. 4‐9 ...
-
Page 42: Optional Accessories
OPTIONAL ACCESSORIES Chip conveyor Chip conveyor is a spiral device to bring chips out during cutting. As a regular maintenance, remove the chip conveyor and clean all chip deposits inside. UNROLLING & INSTALLING THE BLADE Always wear leather gloves and protection glasses when handling a blade. Unrolling the blade Please follow the procedures illustrated below. Unroll and roll the blade 4‐10 ... - Page 43 Installing a new blade Step 1 ‐ Select the most suitable saw blade for your workpiece considering the size, shape and material. Step 2 ‐ Turn on the machine power by switching to ON and turn on the hydraulic motor. Step 3 ‐ Press the saw bow up button and elevate the saw bow until it reaches to its highest point. Step 4 ‐ Turn the tension controller handle from “ ” to “ ” position to release tension. The idle wheel will then move slightly toward the direction of the drive wheel. Step 5 ‐ Open the idle and drive wheel covers. Step 6 ‐ Press the Blade Clip device to hold onto the blade. This device makes blade changing easy and feasible even with only one operator available. Easy Blade Replacement Device Step 7 ‐ Loosen the left and right carbide inserts by loosening the “lock nut” shown below. Step 8 ‐ Loosen the lock lever and lower the wire brush. Lock Lever 4‐11 ...
-
Page 44: Adjusting Wire Brush
Step 9 ‐ Remove the old blade. If necessary, clean the carbide inserts before installing a new saw blade. Step 10 ‐ Place the new blade around the idle wheel and the drive wheel. Step 11 ‐ Insert the blade into the left and right tungsten carbide inserts. The back and the sides of the blade need to be touching the inserts as well as the adjacent rollers. Step 12 ‐ Place the blade to the drive wheel and press the back of the blade against the flange of the drive wheel. Use the Blade Clip device to tightly hold the blade from falling out of the drive wheel. When saw blade begins to rotate, the blade holder will automatically release the blade and fall back to its original position. Step 13 ‐ Make sure the back of the blade is also pressed against the flange of the idle wheel. Step 14 ‐ Turn the tension controller handle to [ ] position to obtain blade tension. Step 15 ‐ Make sure the sides of the blade are in close contact with the carbide inserts and then tighten the left and right carbide inserts by tightening the “lock nut.” Step 16 ‐ Gently close the idle and drive wheel covers. Step 17 ‐ Press the saw blade start button to start the blade. Allow the blade to run for a few rotations then press the saw bow up button to elevate the saw bow. Open the wheel covers and make sure the blade has not fallen off the drive and idle wheels. If the blade has shifted, follow the same procedure to reinstall the blade again. Step 18 ‐ Adjust wire brush to a proper position. Refer to Adjusting Wire Brush in this section. ADJUSTING WIRE BRUSH Follow these steps to adjust wire brush to appropriate position: Step 1 ‐ Open the drive wheel cover and loosen the lock lever. Step 2 ‐ Adjust the brush up / down until it makes proper contact with the saw blade (see below illustration). Step 3 ‐ Tighten the lock lever and close the drive wheel cover. Proper Improper Lock Lever 4‐12 ... -
Page 45: Adjusting Coolant Flow
ADJUSTING COOLANT FLOW Step 1 – Press the saw blade start button to start the saw blade drive motor. Step 2 – Press the saw bow down button to lower the saw bow. Step 3 – Use the flow control valve (shown below) to adjust the amount of fluid flowing to the cutting area. Adjust the flow amount if you observe the following changes to the chips generated from cutting. If the chips are sharp and curved, increase the coolant flow amount. If the chips are granulated, decrease the coolant flow amount. ADJUSTING BLADE SPEED Step 1 – Set the flow control to “0” position. Step 2 – Press the saw blade start button to start the blade. Step 3 – Turn the blade speed control knob to adjust the blade speed. The blade speed should be adjusted based on the size and the material of the workpiece. BREAKING‐IN THE BLADE When a new saw blade is used, be sure to first break in the blade before using it for actual, extended operation. Failure to break in the blade will result in less than optimum efficiency. To perform this break‐in operation, the following instructions should be followed: Step 1 ‐ Reduce the blade speed to one‐half of its normal setting. Step 2 ‐ Lengthen the cutting time to 2‐3 times of what is normally required. Step 3 ‐ After the break‐in operation is completed, set all parameters back to normal settings. 4‐13 ... -
Page 46: Test-Running The Machine
TEST‐RUNNING THE MACHINE Test‐running this machine can ensure good machine performance in the future. We suggest you run the following tests on the machine before first use: Testing machine performance: Turn on the power and run a basic performance test after you finish installing the machine. Follow these steps to test machine performance: Step 1 – Disassemble shipping brackets and bolts. Step 2 – Turn on the relay switch in the control box. Step 3 – Elevate the saw bow. (If your coolant pump is in reverse and the machine cannot run, please change the electrical phase.) Step 4 – Remove the rust‐prevention grease with cleaning oil or kerosene. Step 5 – Start the coolant pump. Step 6 – Test these functions under manual mode: vise clamping/unclamping saw bow ascending/descending CUTTING OPERATION Step 1 – Check before you cut Power: Check the voltage and frequency of your power source. Coolant: Check if you have sufficient coolant in the tank. Hydraulic: Check if you have sufficient (at least two‐thirds or higher) hydraulic oil. Workbed: Check if there is any object on the feeding bed that may cause interference. Blade: Check the blade teeth and make sure there is no worn out teeth along the blade. Light: Check the work lamp or laser light (optional) and make sure there is sufficient lighting. Roller: Check all the rollers on the front and rear workbed can roll smoothly. Saw bow: Check the saw bow to see if it can be elevated and lowered smoothly. Step 2 – Place your workpiece onto the workbed manually or by using a lifting tool e.g. a crane. ... -
Page 47: Terminating A Cutting Operation
Before you start cutting, check again that there is no other object in the cutting area. Step 8 – While the blade descends, adjust the blade speed if necessary. You can do so by turning the blade speed control knob, clockwise to speed up and counterclockwise to slow down. The blade speed is displayed in the blade speed indicator. Step 9 – Select the proper cutting condition according to different material. Step 10 – After the entire cutting job is completed, elevate the saw bow to the top and open the vises to remove the workpiece. Step 11 – Clean the workbed by removing chips and cutting fluids. Step 12 – Lower the saw bow to a proper position then turn off the power. STOP TERMINATING A CUTTING OPERATION To terminate a cutting operation, press either the saw bow up button or the emergency stop button. The saw blade will stop running when the saw bow up button is pressed. Both the saw blade and hydraulic pump motors will stop running when the emergency stop button is pressed. The machine will stop automatically when an error occurs. 4‐15 ... - Page 48 ...
-
Page 49: Section 5 - Electrical System
Section 5 ELECTRICAL SYSTEM ELECTRICAL CIRCUIT DIAGRAMS The following diagrams are: Control panel layout Circuit board layout Power supply layout PLC input/output layout 5‐1... - Page 54 ...
-
Page 55: Section 6 - Hydraulic System
Section 6 HYDRAULIC SYSTEM HYDRAULIC CIRCUIT DIAGRAM 6‐1... -
Page 57: Section 7 - Bandsaw Cutting: A Practical Guide
Section 7 BANDSAW CUTTING: A PRACTICAL GUIDE INTRODUCTION SAW BLADE SELECTION SOME SAWING PRACTICES CUTTING CONDITIONS SETTING INTRODUCTION Our bandsaw machines are designed to be installed with high quality using high speed saw blades for maximizing productivity. To be able to use this kind of high performance bandsaw blade, the machine has to be of rugged design, has high quality saw blade guides, has sufficient motor horse power for high saw band speeds, and has to be able to apply necessary tension to the saw bands. Your machine has all these features to provide a better service for you. The saw blade is guided through the cutting area by roller guides to keep it straight as it comes off the driving wheels. The precision carbide inserted guides then hold the blade securely and accurately throughout the sawing process. The tension of the saw blade is adjusted through the tensioning device on the strong saw bow. The cutting feed and down feed pressure of the blade is regulated automatically by hydraulic regulation. SAW BLADE SELECTION The factors affecting cutting performance are: Type of material Material size and shape Guide spacing Blade selection Blade speed and feed ... - Page 58 Material and its relation to the cutting rate Tooth spacing Tooth Set Fig. 7.1 Description of Band Depending on the hardness of the material the cutting rate will increase or decrease. For example, it takes more time to cut stainless steel than to cut cast iron. The surface conditions will also affect the cutting rate. If there are places on the surface on the material which are hard, a slower blade speed will be required or blade damage may result. It will be slower to cut tubing than to cut solids, because the blade must enter the material twice, and because coolant will not follow the blade as well. Tough or abrasive materials are much harder to cut than their machinability rating would indicate. Tooth spacing is determined by the hardness of the material and its thickness in cross section. Tooth set prevents the blade from binding in the cut. It may be either a "regular set" (also called a "raker set" ) or a "wavy set". The regular or raker set is most common and consists of a pattern of one tooth to the left, one tooth to the right, and one which is straight, or unset. This type of set is generally used where the material to be cut is uniform in size and for contour cutting. Wavy set has groups of teeth set alternately to right and left, forming a wave‐like pattern. This reduces the stress on each individual tooth, making it suitable for cutting thin material or a variety of materials where blade changing is impractical. Wavy set is often used where tooth breakage is a problem. This is shown in Fig. 7.2 as follows: Right Straight Left Regular (raker) Set Wavy Set Fig. 7.2 The Saw Set ...
- Page 59 Material size and shape The optimum material width for a band saw blade is 1 inch wide by 0.35 inch thick and is about 5 inches long. Below this width tooth loading may become excessive and the cutting rate must be reduced. Above this width blade control begins to be lost, as discussed below. Since the blade "sees" only that material it is cutting, the shape of the stock being cut will also affect cutting speeds, particularly if the piece is excessively wide or if it varies in the dimensions being cut. Guide spacing The rigidity of the blade is a function of guide spacing, with rigidity being reduced to the third power as the distance between the guides increases. For example, with guides spaced 2 inches apart, blade deflection might be approximately 0.2. Under the same conditions, but with the guides spaced at 4 inches apart, blade deflection would be approximately 0.8. This is a much simplified version of the formula, because it does not consider band tension or guide design. It is important to recognize, for example that rollers are considered as a pivotal contact. Whereas carbide faces could be considered as anchored supports. A more complete deviation, including band tension and guide design, is included in Roark's handbook, "Formula for stress and strain". Blade selection There are different types of blades available. Please contact a bandsaw blade manufacturer for advice. Blade speed and feed Blade speed is generally limited by vibration and the ability to keep the blade sufficiently cool to avoid dulling the teeth. A blade which is running fast and taking a very light cut will dull quickly because the tips of the teeth will overheat from the rubbing action. If, however, we force the blade teeth deeper into the material, the blade will be less sensitive to heat, because the teeth are cutting more and rubbing less. Tooth form and spacing The selection of a tooth form generally is determined by the material to be cut. There are three general factors to consider: tooth form, style or shape of the teeth; tooth spacing, the number of teeth to the inch; and tooth set, which provides clearance for the body of the blade. Three styles of tooth are shown in Fig. 7.3 below: Fig. 7.3 Three Styles of Tooth 7‐3...
-
Page 60: Some Sawing Practices
SOME SAWING PRACTICES Saw Pitch Selection Sawing “Rules of Thumb”: 1. The thinner the stock, the finer the saw pitch. 2. The thicker the stock, the coarser the saw pitch. 3. The more difficult the stock, the finer the saw pitch. 4. The softer the material , the coarser the saw pitch. Always have at least three teeth in contact with the material being cut. Material Size and Saw Pitch Anytime during the cutting operation, at least three teeth must be in contact with the material being cut. Figure 7.4 shows some sawing practices: SAWING PRACTICES CORRECT INCORRECT several teeth contact work teeth strike sharp edge Coarse teeth clear chips freely Teeth too fine for large solids Three or more teeth on cutting wall Coarse teeth rip on thin wall Fig. 7.4 Some sawing practices 7‐4... - Page 61 Solid Stock: STYLE up to 25 mm (1”) 25‐100mm (1‐4”) 100‐250mm (4‐10”) 8‐10 TPI 6‐8 TPI 3‐4 TPI (Teeth per inch) Structurals: STYLE up to 10 mm (3/8”) 10‐20mm (3/8‐3/4”) above 20mm (3/4”) 10‐8 TPI 8‐10 TPI 6‐8 TPI Solid Bundle: STYLE up to 20 mm (3/4”) 20‐80mm (3/4–3 1/4”) above 80mm (3 1/4”) 8 ‐ 10 TPI 2 ‐ 8 TPI 4 ‐ 6 TPI ...
- Page 62 ...
-
Page 63: Section 8 - Maintenance & Service
Section 8 MAINTENANCE & SERVICE INTRODUCTION BASIC MAINTENANCE MAINTENANCE SCHEDULE BEFORE BEGINNING A DAY’S WORK AFTER ENDING A DAY’S WORK EVERY MONTH EVERY THREE MONTHS EVERY SIX MONTHS STORAGE CONDITIONS TERMINATING THE USE OF MACHINE OIL RECOMMENDATION FOR MAINTENANCE INTRODUCTION For the best performance and longer life of the band saw machine, a maintenance schedule is necessary. Some of the daily maintenance usually takes just a little time but will give remarkable results for the efficient and proper operation of cutting. BASIC MAINTENANCE It is always easy and takes just a little effort to do the basic maintenance. But it always turns out to be a very essential process to assure the long life and efficient operation of the machine. Most of the basic maintenance requires the operator to perform it regularly. 8‐1... - Page 64 MAINTENANCE SCHEDULE We suggest you do the maintenance on schedule. The recommended schedule includes three periods, 1.Daily maintenance. 2.Monthly maintenance. 3. Six months maintenance. Before beginning a day’s work 1. Please check the hydraulic oil level. If oil level volume is below 1/2, please add oil as necessary.(Filling up to 2/3 level is better for system operation.) 2. Please check the cutting fluid level, adding fluid as necessary. If the fluid appears contaminated or deteriorated, drain and replace it. 3. Please check the saw blade to ensure that it is properly positioned on both the drive and idle wheels. 4. Please make sure that the saw blade is properly clamped by the left and right inserts. 5. Please check the wire brush for proper contact with the saw blade. Replace the wire brush if it is worn out. After ending a day’s work Please remove saw chips and clean the machine with discharging the cutting fluid when work has been completed. Do not discharge cutting fluid while the saw blade is operating because it will cause severe injury on operator’s hand. Be sure the saw blade is fully stop, it will be performed after working inspection. Every month Please apply grease to the following points: ...
- Page 65 Every six months 1.Clean the filter of the cutting fluid. 2.Replace the transmission oil for every half of a year(or 1200 hours). Check the sight gauge to ascertain the transmission level. Recommended TRANSMISSION OIL Omala oil HD220 Mobil comp 632 600W Cylinder oil 3.Replace the hydraulic oil. Recommended HYDRAULIC OIL Shell Tellus 27 Mobil DTE OIL light Hydraulic28 STORAGE CONDITIONS Generally, this machine will be stored on the following conditions in future: (1) Turn off the power. (2) Ambient temperature: 5℃ ~ 40℃ (3) Relative humidity: 30%~95% (without condensation) (4) Atmosphere: use a plastic canvas to cover machine to avoid excessive dust, acid fume, corrosive gases and salt. (5) Avoid exposing to direct sunlight or heat rays which can change the environmental temperature. (6) Avoid exposing to abnormal vibration. (7) Must be connected to earth. TERMINATING THE USE OF THE MACHINE ...
- Page 66 OIL RECOMMENDATION FOR MAINTENANCE Item Method Revolution Suggest oil Dovetail guide Keep grease covered. Antirust. Daily Shell R2 Roller bearing Sweep clean and oil with lubricant. Daily SEA #10 Bed roller / surface Sweep clean and oil with lubricant. Daily SEA #10 Nipples of bearing Use grease gun, but not excess. Monthly Shell R2 Blade tension device Use grease gun, but not excess. Monthly Shell R2 Inspect once a week. Change oil of 600 hours of Omala oil HD220 Reducer Regularly using. Change it every year. Mobil Gear 630 ...
-
Page 67: General Troubles & Solutions
Section 9 TROUBLESHOOTING INTRODUCTION PRECAUTIONS GENERAL TROUBLES & SOLUTIONS MINOR TROUBLES & SOLUTIONS MOTOR TROUBLES & SOLUTIONS BLADE TROUBLES & SOLUTIONS SAWING PROBLEMS & SOLUTIONS RE‐ADJUSTING THE ROLLER TABLE INTRODUCTION All the machines manufactured by COSEN pass a 72 hours continuously running test before shipping out and COSEN is responsible for the after sales service problems during the warranty period if the machines are used normally. However, there still exist the some unpredictable problems which may disable the machine from operating. Generally speaking, the system troubles in this machine model can be classified into three types, namely GENERAL TROUBLES, MOTOR TROUBLES and BLADE TROUBLES. Although you may have other troubles which can not be recognized in advance, such as malfunctions due to the limited life‐span of mechanical, electric or hydraulic parts of the machine. COSEN has accumulated enough experiences and technical data to handle all of the regular system troubles. Meanwhile, the engineering department of COSEN had been continuously improving the machines to prevent all possible troubles. It is hoped that you will give COSEN your maintenance experience and ideas so that both sides can achieve the best performance. 9‐1... - Page 68 PRECAUTIONS When an abnormality occurs in the machine during operation, you can do it yourself safely. If you have to stop machine motion immediately for parts exchanging, you should do so according to the following procedures: Press HYDRAULIC MOTOR OFF button or EMERGENCY STOP button. Open the electrical enclosure door. Turn off breaker. BEFORE ANY ADJUSTMENT OR MAINTENANCE OF THE MACHINE, PLEASE MAKE SURE TO TURN OFF THE MACHINE AND DISCONNECT THE POWER SUPPLY. GENERAL TROUBLES AND SOLUTIONS DISCONNECT POWER CORD TO MOTOR BEFORE ATTEMPTING ANY REPAIR OR INSPECTION. TROUBLE PROBABLE CAUSE SUGGESTED REMEDY Excessive belt tension Adjust belt tension so that belt does not slip on drive pulley while cutting ( 1/2“ Min. deflection of belt under moderate pressure.) Excessive head ...
-
Page 69: Minor Troubles & Solutions
MINOR TROUBLES & SOLUTIONS TROUBLE PROBABLE CAUSE SUGGESTED REMEDY Saw blade motor does not run Overload relay activated Reset even though blade drive button Saw blade is not at forward Press SAW FRAME is pressed. limit position. FORWARD button MOTOR TROUBLES & SOLUTIONS TROUBLE PROBABLE CAUSE SUGGESTED REMEDY Magnetic switch open, or Reset protector by pushing red button (inside protector open. electric box.) Motor will not start Low voltage Check power line for proper voltage. Open circuit in motor or loose Inspect all lead terminations on motor for loose connections. or open connections. Short circuit in line, cord or Inspect line, cord and plug for damaged plug. insulation and shorted wire. Motor will not start, Short circuit in motor or loose Inspect all lead terminations on motor for loose fuse or circuit connections ... - Page 70 BLADE TROUBLES AND SOLUTIONS DISCONNECT POWER CORD TO MOTOR BEFORE ATTEMPTING ANY REPAIR OR INSPECTION. TROUBLE PROBABLE CAUSE SUGGESTED REMEDY Too few teeth per inch Use finer tooth blade Loading of gullets Use coarse tooth blade or cutting lubricant. Teeth strippage Excessive feed Decrease feed Work not secured in vise Clamp material securely Teeth too coarse Use a finer tooth blade Misalignment of guides Adjust saw guides Dry cutting Use cutting lubricant Excessive speed Lower speed. See Operating Instructions “Speed Blade selection.” breakage Excessive speed Reduce feed pressure. Refer to Operating Instructions “Adjusting Feed.” Excessive tension Tension blade to prevent slippage on drive wheel while cutting. Wheels out of line Adjust wheels Guides out of line For a straight and true cut, realign guides, check bearings for wear. Excessive pressure Conservative pressure assures long blade life and clean ...
- Page 71 SAWING PROBLEMS AND SOLUTIONS Other than this manual, the manufacturer also provides some related technical documents listed as follows: Sawing Problems and Solutions Vibration during cutting Failure to cut Short life of saw blade Curved cutting Broken blade Use of blade with incorrect pitch Use blade with correct pitch suited to workpiece width Failure to break‐in saw blade Perform break‐in operation Excessive saw blade speed Reduce speed Insufficient saw blade speed Increase speed ...
-
Page 72: Re-Adjusting The Roller Table
RE‐ADJUSTING THE ROLLER TABLE If the feeding table suffers the huge stroke and the alignment is effected, follow the below procedure to adjust. TOOL, measuring Measurement, Horizontal balance Procedure 1. Screw or loosen the adjusting bolt to attain the horizontal balance (leveling) between the roller table and the machine frame. 2. Ensure that the machine frame is not struck by the loaded material on the feeding table. 3. Check the leveling by the measuring tool. 4. After finished the adjusting, fix the roller table. If the feeding table and the machine frame are not positioned under the horizontal balance, the loaded material may be going up gradually and affect the cutting effect. 9‐6... -
Page 73: Section 10 - Parts
Section 10 PARTS SPARE PARTS RECOMMENDATIONS PART LIST SPARE PARTS RECOMMENDATIONS The following table lists the common spare parts we suggest you purchase in advance: Part Name Part Name Saw blade Coolant tank filter Wire brush Steel plates Carbide inserts Rollers Bearings Belt Hydraulic tank leak‐proof asbestos Duster seal Rubber washer Oil seal O‐ring Snap ring Drive wheel Idle wheel 10‐1... - Page 74 10-2...
- Page 75 10-3...
- Page 76 10-4...
- Page 77 10-5...
- Page 78 10-6...
- Page 79 10-7...
- Page 80 10-8...
- Page 81 10-9...
- Page 82 10-10...
- Page 83 10-11...
- Page 84 10-12...
- Page 85 10-13...
- Page 86 10-14...
- Page 87 10-15...
- Page 88 10-16...
- Page 89 10-17...
- Page 90 10-18...
- Page 91 10-19...
- Page 92 10-20...
- Page 93 10-21...
- Page 94 10-22...
- Page 95 10-23...
- Page 96 10-24...
- Page 97 10-25...
- Page 98 10-26...
- Page 99 10-27...
- Page 100 10-28...
- Page 101 10-29...
- Page 102 10-30...
-
Page 103: Section 11 - Warranty
Section 11 Warranty Warranty New machines are warranted to be free from defects in workmanship and material for a period of one (1) year from the date of shipment by Seller. The warranty period is based on normal usage of two thousand eighty hours (2080) per year and is reduced proportionately for any excess usage. Products, which under normal operating conditions in Buyer’s plant are defective in workmanship or material, will be repaired or replaced at the option of Seller. This warranty does not cover shipping freight charges for either the return of the defective part or for the shipping of the replacement or repaired part. Seller will have no obligation to repair or replace perishable parts, or materials or parts damaged by misuse, negligence or failure of Buyer to provide appropriate maintenance and service as stated in the operator’s manual or industry standard and normally acceptable practices. This warranty does not apply if the machine has been altered or modified without our prior written consent. In the case of components or units purchased by Seller including work holding devices, tool holders, motors and controls, the warranty shall not exceed that received by Seller from the supplier of such components or units. Seller will not assume responsibility for products or components returned to Seller without prior consent or for unauthorized repairs to its products, even though defective. Electrical Equipment: The warranty available for all electrical components to the Buyer will be voided if the voltage supplied to the machine is found to be outside the stated voltage of the machine by +/‐ 10% and/or grounded at machine. Accessories Supplied with Manufacturer’s Equipment: The warranties available to the Buyer are those extended by the accessory manufacturer, if any, to the extent they are in force and effect. The ACCESSORY MANUFACTURER’S WARRANTY, if any, is exclusive and is in lieu of all other warranties whether written, oral or implied. 11‐1 ... - Page 104 ...
- Page 105 ...
- Page 106 COSEN SAWS Vertical Plate Saws Horizontal Billet Saws NC/CNC Band Saws Structural Miter‐Cutting Saws Automatic Band Saws Industry 4.0 Cosen Predictive Computing Visit our website at www.cosen.com COSEN MECHATRONICS CO., LTD. ...
