We thank you for choosing an Australian made shed. For further assistance please
visit our detailed instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be number ONE, so please let us
know what you think of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES

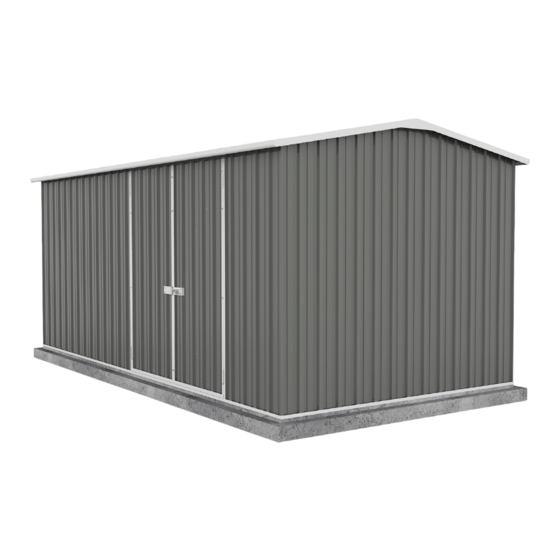

Absco Workshop Shed
Model: 45232WK
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A REBATED
EDGE 25mm DEEP AROUND THE PERIMETER
CHANNEL
REBATED EDGE
CONCRETE SLAB
ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17
THIS WILL HELP
WATER EGRESS FROM
THE BASE OF THE SHED
75mm WIDE
REBATE
FRONT: 4.48m
SIDE:
2.26m
HEIGHT: 2.00m
PAGE 1
Advertisement
Related Manuals for ABSCO SHEDS 45232WK
Summary of Contents for ABSCO SHEDS 45232WK
- Page 1 Http://www.abscosheds.com.au/watch-videos At ABSCO Industries we are always looking to be number ONE, so please let us know what you think of our instructions. Feedback makes us better. feedback@absco.com.au ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 1...
- Page 2 Do not erect your shed in windy conditions, ensure that the shed is securely anchored to a solid foundation immediately after construction is completed. · It is highly recommended to erect the shed with two or more people. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 2...
- Page 3 RIDGE BEAM JOINER L: 450mm (17.7") STEEL SHEET 1785mm X 711mm PEAK BRACE FITTINGS & ACCESSORIES STEEL SHEET PACKET (SEE PAGE 4) 1725mm X 773mm STEEL SHEET 1725mm X 773mm ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 3...
- Page 4 SELF TAPPING SCREWS SCREW PACK 12 PACKET CONTAINING 220 PACK12P - SCREW PACK 12 3/16 ROUND HEAD 3.2 x 8mm BOLTS & NYLOCK NUTS BLIND POP RIVETS 3/16 COUNTERSUNK SCREWS & NUTS ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 4...
- Page 5 C1106 FITTINGS PACK (SEE BELOW) CHANNEL L = 1106mm C1704 CHANNEL L = 1704mm MID-FRAME ACCESSORIES KNEE PLATE DYNABOLT 16mm TEK SCREWS APEX PLATE 45mm TEK MULTI PURPOSE SCREWS BRACKET ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 5...
- Page 6 81AL 81AR CHANNEL CHANNEL L = 1496.5mm L = 1496.5mm 81BL 81BR CHANNEL CHANNEL L = 1496.5mm L = 1496.5mm 81CL 81CR CHANNEL CHANNEL L = 1126.5mm L = 1126.5mm ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 6...
- Page 7 JAMB L= 1725mm L = 773mm CHANNEL JAMB L= 1568mm L = 1513mm CHANNEL JAMB L= 1120mm L = 1568mm CHANNEL L = 1513mm LIP TRIM L= 1170mm CHANNEL L = 1513mm ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 7...
- Page 8 CSJ joined channels. (on an angle). Push the CSJ into the channel until you here a 'click'. CHANNEL HIGH-SIDE LOW-SIDE 20mm (0.79") 15mm (0.59") CHANNEL ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 8...
- Page 9 1 X 55AL 1 X 55BR = 2 x 81C 1 X 55BL 1 X 55CR 1 X 55CL 1 X 81BR 1 X 81BL 2 X 81CR 2 X 81CL ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 9...
- Page 10 STAGE 3: TURN RIDGE CAP OVER AND MEASURE 250mm FROM THE END OF EACH RIDGE CAP. PLACE TEK SCREWS IN 50mm INCREMENTS FROM SAID END. REPEAT THIS PROCESS FOR THE OPPOSING HALF OF RIDGE BEAM ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 10...
- Page 11 QTY. = 2 PARTS 97AL & 97AR QTY. = 1 PART ZARSP - 450mm (17.7") LONG ZARSP THE TOP SECTIONS OF CAPPING WILL OVERLAP EACH OTHER AT THE JOIN BY 50mm (2.0"). ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 11...
- Page 14 4mm NUT & BOLT SET shed Do not join components together at this location yet, SELF DRILLING TEK SCREW as the screw may obstruct further assembly of other FOR JOINING MID-FRAME components COMPONENTS ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 14...
- Page 15 DOOR PANEL ASSEMBLY DOOR PANEL ASSEMBLY ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS 20mm FLANGE 15mm FLANGE FOUR HOLE SET FOR PADBOLT CONNECTION ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 15...
- Page 16 Absco Workshop Shed Model: 45232WK SMALL PANEL LARGE PANEL REAR PANEL ASSEMBLY (1 Required) (1 Required) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 16...
- Page 17 Absco Workshop Shed Model: 45232WK SIDE PANEL ASSEMBLY (2 Required) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 17...
- Page 18 TO THIS END ONLY. 2/PRE-PUNCHED HOLES TO THIS END OF EACH SHEET WITH PART NOTE: ONE ROOF No. 81A FITTED PANEL WILL HAVE PART (86A) FITTED TO THIS END ONLY. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 18...
- Page 19 TO THIS END ONLY. NOTE: ONE ROOF PANEL WILL HAVE 2/PRE-PUNCHED PART (86A) FITTED HOLES TO THIS TO THIS END ONLY. END OF EACH SHEET WITH PART No. 81E FITTED ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 19...
- Page 20 Absco Workshop Shed Model: 45232WK FRONT DOOR PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 20...
- Page 21 Absco Workshop Shed Model: 45232WK FRONT PANEL ASSEMBLY (1 Required) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 21...
- Page 22 NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment. position each hasp centrally over the padbolt shaft, and drill 3mm holes and secure with screws ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 22...
- Page 23 NOTE: IF YOU HAVE AN EDGE REBATE IN YOUR CONCRETE SLAB, YOU WILL HAVE TO CUT AN AMOUNT OFF THE BOTTOM OF THE FRAME LEGS EQUAL TO THE DEPTH OF THE REBATE. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 23...
- Page 24 PLATES TO APEX PLATES 1550 3030 SLAB CENTRE LINE SLAB SIZE: 4580 x 2360 (REFER: PANEL CONSTRUCTION) 45mm TEK SCREW WALL PANEL 2 WALL PANEL 1 CENTRE LINE SLAB/MID-FRAME/WALL PANELS MID-FRAME ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 24...
- Page 25 SIDE WALL PANEL USE 45mm SELF DRILLING CHANNELS FIT INTO THE SCREWS TO SECURE NOTCHED FRONT AND WALLS TO CENTRE FRAME REAR WALL PANEL CHANNELS PRE-PUNCHED CHANNEL TO MATCH RIDGE BEAM HOLES. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 25...
- Page 26 SCREW IN EACH CORNER FIRST, FOLLOWED BY TWO SCREWS ADJACENT TO THE MID-FRAME AS SHOWN ABOVE SECURE ROOF PANELS TO THE TOP CHORDS OF THE MID-FRAME USING 45mm SELF DRILLING TEK SCREWS. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 26...
- Page 27 - EACH ANCHOR CONSISTS OF ONE NUT, BOLT, DYNABOLT AND ANGLE STEEL ANGLE - DRILL A 10mm HOLE INTO THE WALL SHEET SLAB - DRILL A 10mm HOLE INTO THE CONCRETE DYNABOLT ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 27...
- Page 28 STEP 4A, B, C: Join C1106 to C1106 STEP 5A, B: Secure ridge plate (RBP) STEP 6A, B: Secure multi purpose brackets STEP 7A, B, C, D: Turn frame over, repeat steps 4,5 ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 28...
- Page 29 Absco Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 29...
- Page 30 Absco Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 30...
- Page 31 Absco Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 31...
- Page 32 Absco Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 32...
- Page 33 Absco Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 33...
- Page 34 Absco Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 34...
- Page 35 Absco Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 45232WK 24/02/17 PAGE 35...
