1. Hot Water is not Hot 187°F (86C°)
2. Hot Water is not Available
Resetting Hot Tank Overload and Programming the DP Set‐Up for Hot Water
Temperature Instructions are included in this Troubleshooting section.
1. Hot Water is not Hot 187°F (86°C) +/‐ 5°F
Possible Reason
No power to Hot Tank
Tank has run out of Hot Water.
Hot Tank Capacity is 1.3 liters.
Hot Water Temperature
Programming
2. Hot Water is not Available
Possible Reason
Hot Tank Overload Tripped
CUBE Manual
HOT WATER TROUBLESHOOTING

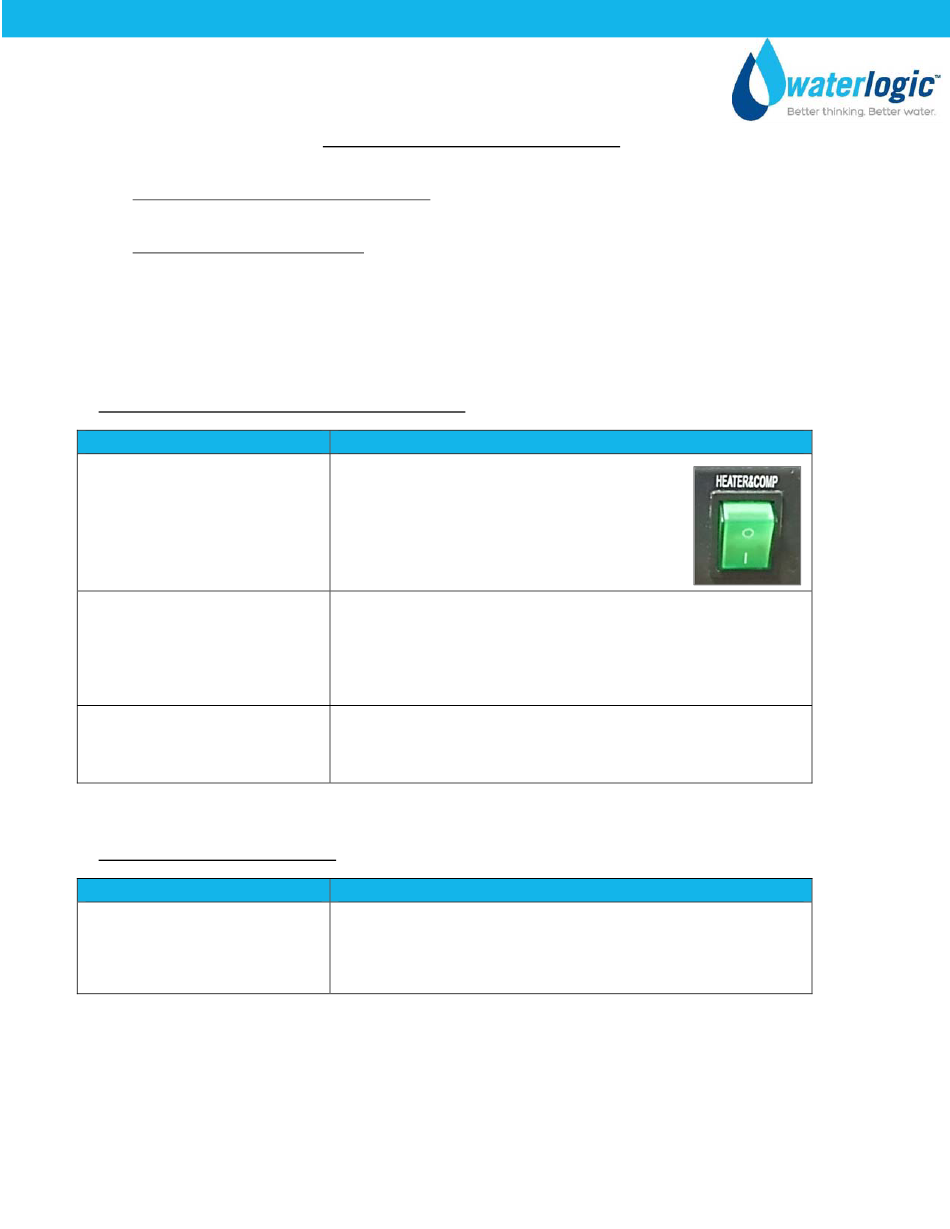

Check that the Green Heater and
Compressor switch is on.
Turn Green Heater and Compressor Switch
on. I = ON
Wait for Hot Tank to heat water to temperature prior to
dispensing more hot water.
Greater Water Capacity Waterlogic Water Systems are
available.
Verify that the CUBE has been programmed to desired
temperature. See Programming: Hot Water Temperature DP
Set‐Up Instructions in this Troubleshooting Section.
Reset Hot Tank Overload.
Hot Tank Overload Instructions in this Troubleshooting
Section.
Page 86 – Revision 10‐8‐2018
Solution
Solution
