Thunder-KS
User Guide
Connectivity
The Thunder-KS active subwoofers can be controlled
remotely by a mobile device or desktop PC/MAC.
K-array Connect
K-array Connect is the mobile app that
allows to direct manage and control any
Thunder-KS active subwoofer with a mobile
device (smartphone or tablet) via the Wi-Fi
connection.
Download the K-array Connect mobile APP
from the dedicated store of your mobile
device:
Refer to paragraph "K-array Connect Mobile App", page 8
for details about the system configuration.
K-framework3
K-framework3 is the managing and control
software dedicated to professionals and
operators looking for a powerful tool for
designing and managing a large number of
units in demanding applications.
Download the K-framework3 software from
K-array website.
Connectivity Reset
Keep pressed the RESET button for 10 to 15
seconds in order to:
• Revert the wired IP addressing to DHCP;
• Activate the built-in Wi-Fi and reset the wireless
parameters to the default SSID name and
password (see "K-array Connect Mobile App",
page 8 for details).
4

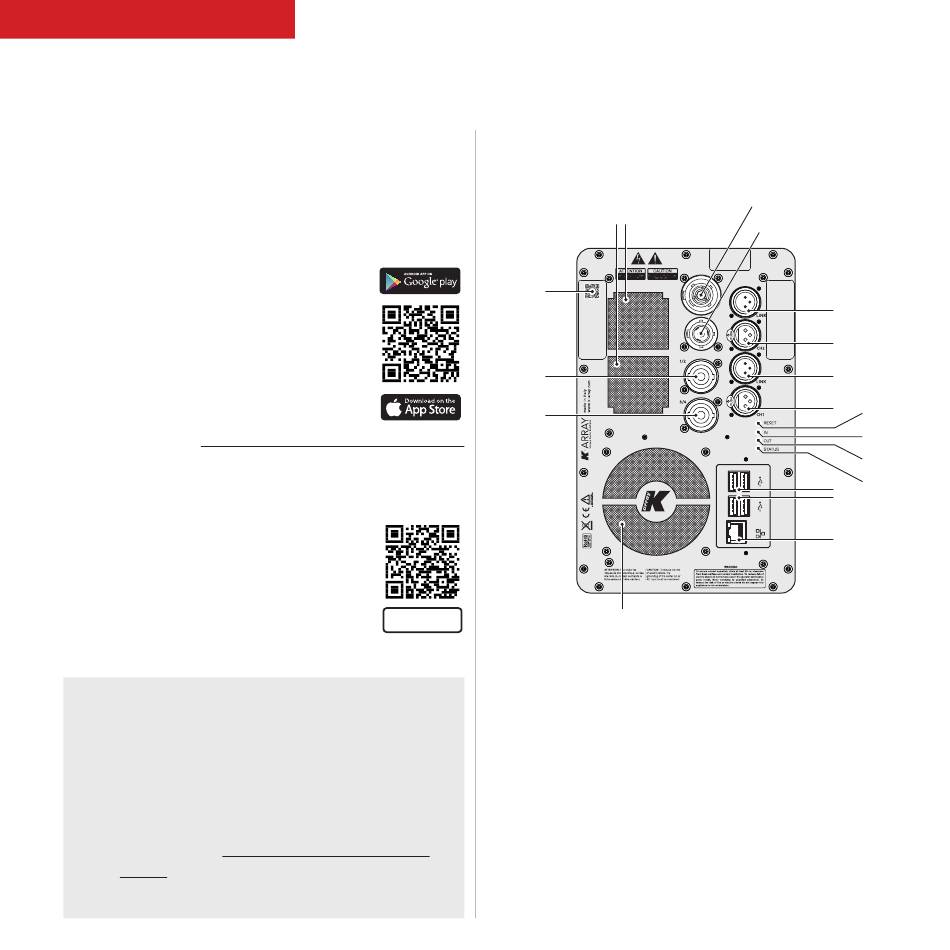

Active Subwoofer Rear Panel
3
2
1
WINDOWS and OSX software
K-framework3
1. SpeakON NL4 speaker output channels 3 & 4
2. SpeakON NL4 speaker output channels 1 & 2
3. QR Code for the K-array Connect app remote connection
4. PowerCon TRUE link (AC mains out)
5. PowerCon TRUE inlet (AC mains in)
6. XLR-M channel 2 balanced line output or channels 3 & 4 AES3 output
(user selectable via K-array Connect app)
7. XLR-F channel 2 balanced line input or channels 3 & 4 AES3 input
(user selectable via K-array Connect app)
8. XLR-M channel 1 balanced line output
9. XLR-F channel 1 balanced line input
10. Reset button
11. Input signal LED monitor
12. Output signal LED monitor
13. System status LED
14. USB ports
15. RJ45 Ethernet port
4
Air vents
5
AES3
OUT
AES3
IN
Fan
6
7
8
9 10
11
