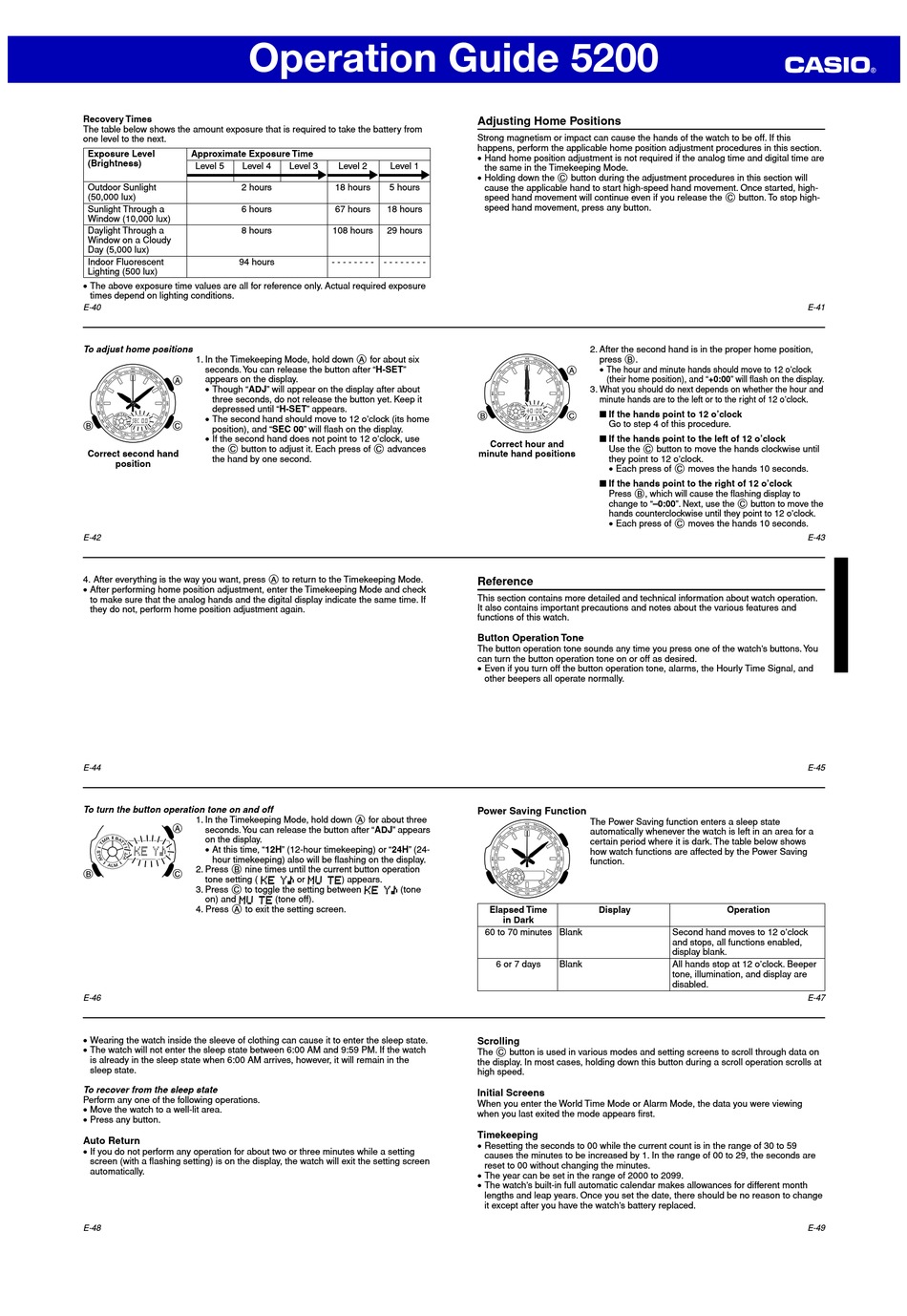

Operation Guide 5200
Recovery Times
The table below shows the amount exposure that is required to take the battery from
one level to the next.
Exposure Level
Approximate Exposure Time
(Brightness)
Level 5
Level 4
Outdoor Sunlight
2 hours
(50,000 lux)
Sunlight Through a
6 hours
Window (10,000 lux)
Daylight Through a
8 hours
Window on a Cloudy
Day (5,000 lux)
Indoor Fluorescent
94 hours
Lighting (500 lux)
• The above exposure time values are all for reference only. Actual required exposure
times depend on lighting conditions.
E-40
To adjust home positions
1. In the Timekeeping Mode, hold down A for about six
seconds. You can release the button after "H-SET"
appears on the display.
• Though "ADJ" will appear on the display after about
three seconds, do not release the button yet. Keep it
depressed until "H-SET" appears.
l
• The second hand should move to 12 o'clock (its home
position), and "SEC 00" will flash on the display.
• If the second hand does not point to 12 o'clock, use
the C button to adjust it. Each press of C advances
Correct second hand
the hand by one second.
position
E-42
4. After everything is the way you want, press A to return to the Timekeeping Mode.
• After performing home position adjustment, enter the Timekeeping Mode and check
to make sure that the analog hands and the digital display indicate the same time. If
they do not, perform home position adjustment again.
E-44
To turn the button operation tone on and off
1. In the Timekeeping Mode, hold down A for about three
seconds. You can release the button after "ADJ" appears
on the display.
• At this time, "12H" (12-hour timekeeping) or "24H" (24-
hour timekeeping) also will be flashing on the display.
2. Press B nine times until the current button operation
tone setting (
3. Press C to toggle the setting between
on) and
4. Press A to exit the setting screen.
E-46
• Wearing the watch inside the sleeve of clothing can cause it to enter the sleep state.
• The watch will not enter the sleep state between 6:00 AM and 9:59 PM. If the watch
is already in the sleep state when 6:00 AM arrives, however, it will remain in the
sleep state.
To recover from the sleep state
Perform any one of the following operations.
• Move the watch to a well-lit area.
• Press any button.
Auto Return
• If you do not perform any operation for about two or three minutes while a setting
screen (with a flashing setting) is on the display, the watch will exit the setting screen
automatically.
E-48
Level 3
Level 2
Level 1
18 hours
5 hours
67 hours
18 hours
108 hours
29 hours
- - - - - - - -
- - - - - - - -
or
) appears.
(tone
(tone off).
Adjusting Home Positions
Strong magnetism or impact can cause the hands of the watch to be off. If this
happens, perform the applicable home position adjustment procedures in this section.
• Hand home position adjustment is not required if the analog time and digital time are
the same in the Timekeeping Mode.
• Holding down the C button during the adjustment procedures in this section will
cause the applicable hand to start high-speed hand movement. Once started, high-
speed hand movement will continue even if you release the C button. To stop high-
speed hand movement, press any button.
2. After the second hand is in the proper home position,
press B.
• The hour and minute hands should move to 12 o'clock
(their home position), and "+0:00" will flash on the display.
3. What you should do next depends on whether the hour and
minute hands are to the left or to the right of 12 o'clock.
l
■ If the hands point to 12 o'clock
Go to step 4 of this procedure.
■ If the hands point to the left of 12 o'clock
Correct hour and
Use the C button to move the hands clockwise until
minute hand positions
they point to 12 o'clock.
• Each press of C moves the hands 10 seconds.
■ If the hands point to the right of 12 o'clock
Press B, which will cause the flashing display to
change to "–0:00". Next, use the C button to move the
hands counterclockwise until they point to 12 o'clock.
• Each press of C moves the hands 10 seconds.
Reference
This section contains more detailed and technical information about watch operation.
It also contains important precautions and notes about the various features and
functions of this watch.
Button Operation Tone
The button operation tone sounds any time you press one of the watch's buttons. You
can turn the button operation tone on or off as desired.
• Even if you turn off the button operation tone, alarms, the Hourly Time Signal, and
other beepers all operate normally.
Power Saving Function
The Power Saving function enters a sleep state
automatically whenever the watch is left in an area for a
certain period where it is dark. The table below shows
how watch functions are affected by the Power Saving
function.
Elapsed Time
Display
in Dark
60 to 70 minutes
Blank
6 or 7 days
Blank
Scrolling
The C button is used in various modes and setting screens to scroll through data on
the display. In most cases, holding down this button during a scroll operation scrolls at
high speed.
Initial Screens
When you enter the World Time Mode or Alarm Mode, the data you were viewing
when you last exited the mode appears first.
Timekeeping
• Resetting the seconds to 00 while the current count is in the range of 30 to 59
causes the minutes to be increased by 1. In the range of 00 to 29, the seconds are
reset to 00 without changing the minutes.
• The year can be set in the range of 2000 to 2099.
• The watch's built-in full automatic calendar makes allowances for different month
lengths and leap years. Once you set the date, there should be no reason to change
it except after you have the watch's battery replaced.
E-41
E-43
E-45
Operation
Second hand moves to 12 o'clock
and stops, all functions enabled,
display blank.
All hands stop at 12 o'clock. Beeper
tone, illumination, and display are
disabled.
E-47
E-49
