© 2013 CASIO COMPUTER CO., LTD.
MA1306-EA

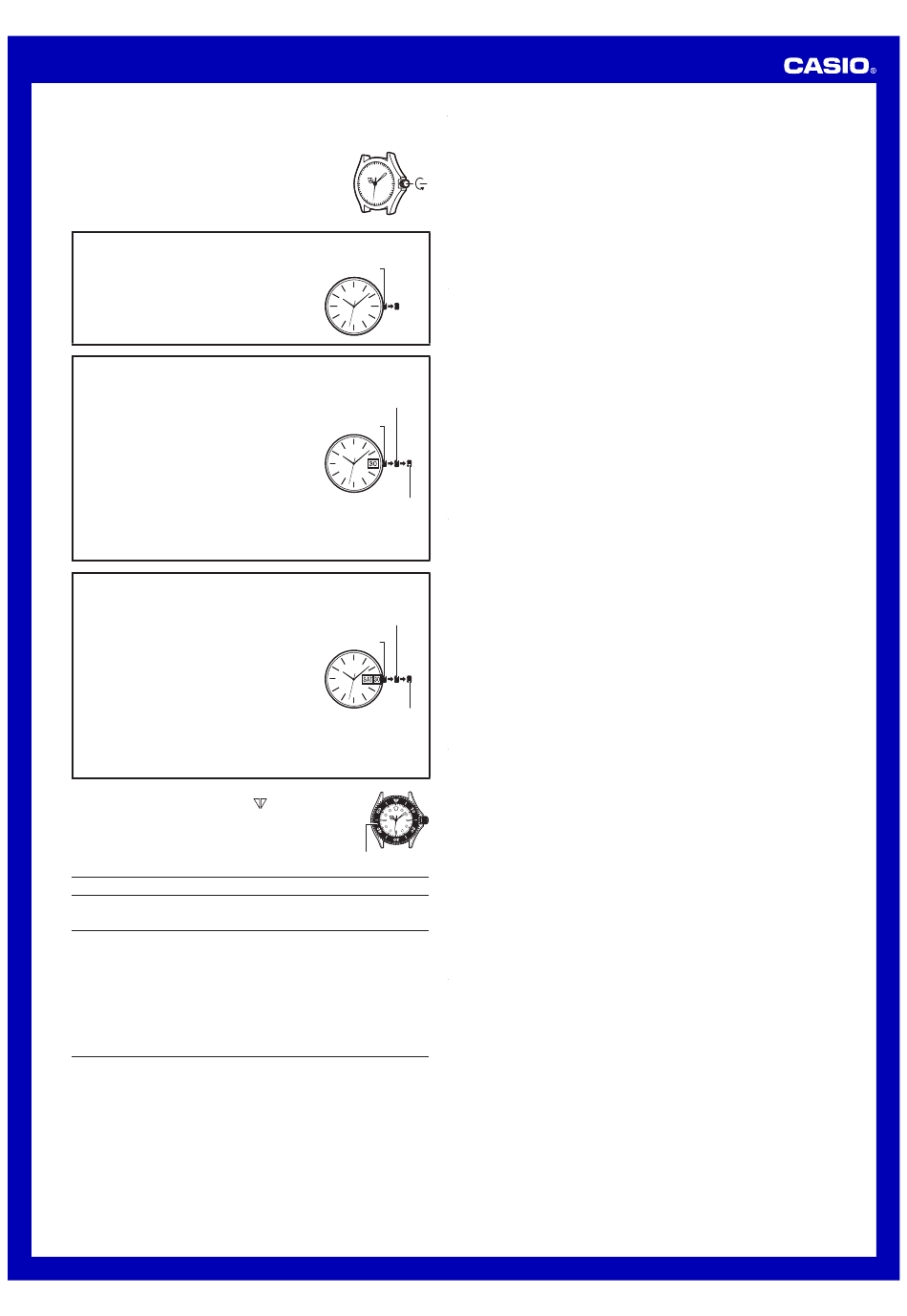

Operation Guide ANALOG(MAK)
• Be sure to keep all user documentation handy for future reference.

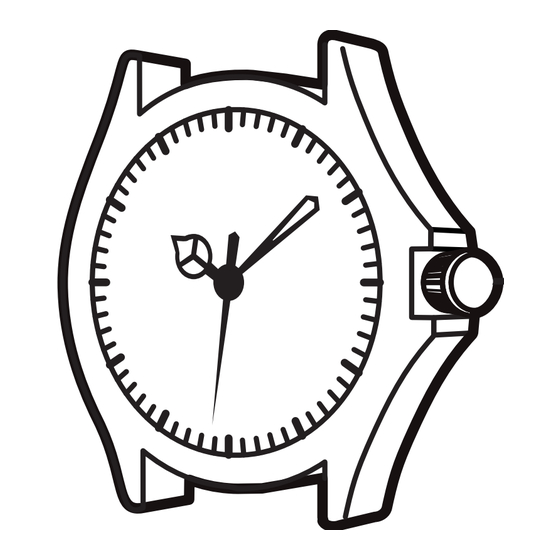

• Your watch may differ somewhat from the one shown in the illustration.
Notes
• Some water resistant models are equipped with a screw lock
crown.
• With such models, you must unscrew the crown in the direction
noted in the illustration to loosen it before you can pull it out.
Do not pull too forcibly on such crowns.
• Also note that such watches are not water resistant while their
crowns are loosened. Be sure to screw the crowns back in as
far as they will go after making any setting.
[Modules 5284, 5361, 5364, and 5375]
To set the time
1. When the second hand is at 12 o'clock, pull out the
crown to stop it.
2. Set the hands by rotating the crown. Move the
minute hand four or fi ve minutes past the setting
you want, and then back them up to the setting.
3. Push the crown back in on a time signal to resume
timekeeping.
[Modules 5128, 5180, 5199, 5206, 5207, 5218, 5250, 5340, 5341, 5342, 5343, 5352,
5358, 5383, and 5393]
To set the time
1. When the second hand is at 12 o'clock, pull out the
crown to the second click to stop it.
2. Set the hands by rotating the crown. Move the
minute hand four or fi ve minutes past the setting
you want, and then back them up to the setting.
3. Push the crown back in on a time signal to resume
timekeeping.
To set the day
• Avoid setting the day between 9:00 p.m. and 1:00
a.m. The day may not change in the following day
if you do.
1. Pull out the crown to the fi rst click.
2. Set the day by rotating the crown.
3. Push the crown back in to its normal position.
[Modules 5125, 5167, 5223, 5237, 5249, and 5339]
To set the time
1. When the second hand is at 12 o'clock, pull out
the crown to the second click to stop it.
2. Set the hands by rotating the crown. Move the
minute hand four or fi ve minutes past the setting
you want, and then back them up to the setting.
3. Push the crown back in on a time signal to resume
timekeeping.
To set the day and day of the week
• Avoid setting the day and day of the week between
9:00 p.m. and 5:00 a.m. The day and day of the
week may not change in the following day if you do.
1. Pull out the crown to the fi rst click.
2. Set the day by rotating the crown counterclockwise.
3. Set the day of the week by rotating the crown clockwise.
4. Push the crown back in to its normal position.
• For watch with the elapsed time bezel
Rotate the elapsed time bezel to align the
minute hand.
After certain amount of time elapsed, read the graduation on the
elapsed time bezel which the minute hand points to.
The elapsed time is indicated.
Accuracy at normal
Module No.
5125/5128/5206/
5207/5237/5249/
5361
5167
5180/5199/5223/
5342/5343/5358/5393
5218/5250
5284/5364/5375
5339/5340/5341/5383
5352
[Modules 5364 and 5375]
Low Battery Indicator: Second hand moves in 2-second increments when power is low.
Operating Precautions
Water Resistance
• The following applies to watches with WATER RESIST or WATER RESISTANT
marked on the back cover.
On watch front or on
Marking
back cover
Hand washing, rain
Water-related work, swimming
Example of
Daily Use
Windsurfi ng
Skin diving
• Do not use this watch for scuba diving or other types of diving that requires air
tanks.
• Watches that do not have WATER RESIST or WATER RESISTANT marked on the
back cover are not protected against the effects of sweat. Avoid using such a watch
under conditions where it will be exposed to large amounts of sweat or moisture, or
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome
Shibuya-ku, Tokyo 151-8543, Japan
ENGLISH
Crown
First click (Day setting)
Crown
(Normal position)
First click
(Day, day of week setting)
Crown
(Normal position)
mark with the
Specifi cations
temperature
Battery type
(per month)
±20 seconds
SR626SW
±20 seconds
SR920SW
±20 seconds
SR621SW
±20 seconds
SR616SW
±20 seconds
SR521SW
±20 seconds
SR920SW
±20 seconds
SR716SW
Enhanced Water Resistance Under
Water
Daily Use
Resistance
Under
5
10
Daily Use
Atmospheres
Atmospheres
No
5BAR
10BAR
BAR mark
Yes
Yes
Yes
No
Yes
Yes
No
No
Yes
No
No
Yes
Printed in China
Imprimé en Chine
MA1306-A
Magnetism
• The hands of analog and combination (analog-digital) watches are moved by a
motor that uses magnetic force. When such a watch is close to a device (audio
speakers, magnetic necklace, cell phone, etc.) that emits strong magnetism, the
magnetism can cause timekeeping to slow down, speed up, or stop, resulting in the
incorrect time being displayed.
Electrostatic Charge
• Exposure to very strong electrostatic charge can cause the watch to display
the wrong time. Very strong electrostatic charge even can damage electronic
components.
Chemicals
• Do not allow the watch to come into contact with thinner, gasoline, solvents, oils, or
fats, or with any cleaners, adhesives, paints, medicines, or cosmetics that contain
such ingredients. Doing so can cause discoloration of or damage to the case, resin
band, leather band, and other parts.
Storage
• If you do not plan to use the watch for a long time, wipe it thoroughly free of all dirt,
sweat, and moisture, and store it in a cool, dry place.
Resin Components
• Allowing the watch to remain in contact with other items or storing it together with
other items for long periods while it is wet can cause the color of the other items
to transfer to the resin components of the watch. Be sure to dry off the watch
thoroughly before storing it and make sure it is not in contact with other items.
• Leaving the watch where it is exposed to direct sunlight (ultraviolet rays) for long
periods or failure to clean dirt from the watch for long periods can cause it to
become discolored.
• Friction caused by certain conditions (frequent external force, sustained rubbing,
impact, etc.) can cause discoloration of painted components.
• If there are printed fi gures on the band, strong rubbing of the printed area can cause
discoloration.
• Failure to clean dirt from the watch for long periods can cause fl uorescent color to
fade. Wash dirt off with water as soon as possible and then dry the watch.
• Semi-transparent resin parts can become discolored due to sweat and dirt, and if
exposed to high temperatures for long periods.
• Contact an authorized CASIO Service Center to have resin components replaced.
Note that you will be charged for replacement costs.
Natural Leather and Imitation Leather Bands
Second click
• Allowing the watch to remain in contact with other items or storing it together with
(Time setting)
other items while it is wet for long periods can cause the color of the other items
to transfer to the natural leather or imitation leather band of the watch. Be sure to
dry off the watch thoroughly before storing it and make sure it is not in contact with
other items.
• Leaving a leather band where it is exposed to direct sunlight (ultraviolet rays) for
long periods or failure to clean dirt from a leather band for long periods can cause it
to become discolored.
Important!
• Subjecting a natural leather or imitation leather band to rubbing or dirt can cause
color transfer and discoloration.
Metal Components
• Failure to clean dirt from a metal band can lead to formation of rust, even if the
band is stainless steel or plated. If the watch is exposed to sweat or water, wipe it
thoroughly with a soft, absorbent cloth and then store it in a well-ventilated location
to dry.
• To clean the band, use a soft toothbrush or similar tool to scrub it with a weak
solution of water and a mild neutral detergent. Take care to avoid getting solution on
the watch case.
Second click
(Time setting)
Bacteria and Odor Resistant Band
• The bacteria and odor resistant band protects against odor generated by the
formation of bacteria from sweat, which ensures good comfort and hygiene. In
order to ensure maximum bacteria and odor resistance, keep the band clean.
Use an absorbent soft cloth to wipe the band clean of dirt, sweat, and moisture.
The bacteria and odor resistant band suppresses the formation of organisms and
bacteria. It does not protect against rash due to allergic reaction, etc.
Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any damage
or loss suffered by you or any third party arising through the use of this product or
its malfunction.
Elapsed time bezel
User Maintenance
Battery life
Caring for Your Watch
• A dirty or rusty case or band can soil the sleeve of your clothing, cause skin
Approx. 3 years
irritation, and even interfere with watch performance. Be sure to keep the case and
band clean at all times. Rust tends to form easily after the watch is exposed to
seawater and then left without cleaning.
Approx. 5 years
• Sometimes a smudge like pattern may appear on the surface of a resin band. This
will not have any affect on your skin or clothing. Wipe the band with a cloth to clean
Approx. 3 years
it.
• Keep a leather band clean by wiping it with a dry cloth. Both resin bands and leather
Approx. 2 years
band can become worn and cracked over time when subjected to normal daily use.
Approx. 2 years
• Should your band become badly cracked or worn, be sure to have it replaced with
Approx. 3 years
a new one. Request band replacement from your original retailer or an authorized
CASIO Service Center. Note that you will be charged for band replacement costs,
Approx. 3 years
even if your watch is still covered by its warranty.
• Remember that you wear your watch next to your skin, just like a piece of clothing.
Because of this, you should always keep your watch clean. Use a soft, absorbent
cloth to wipe off any dirt, sweat, water, or other foreign matter from the case and
band.
Dangers of Poor Watch Care
Rust
• Though the stainless steel used for the watch is highly rust-resistant, rust can form
if the watch is not cleaned after it becomes dirty. Failure of oxygen to come into
contact with the metal because it is dirty causes breakdown of the oxidization layer
on the metal surface, which leads to the formation of rust.
• Even if the surface of the metal appears clean, sweat and rust in crevasses can
soil the sleeves of clothing, cause skin irritation, and even interfere with watch
performance.
20
Premature Wear
Atmospheres
• Leaving sweat or water on a resin band or storing it an area subject to high moisture
can lead to premature wear, cuts, and breaks.
20BAR
Skin Irritation
Yes
• Individuals with sensitive skin or in poor physical condition may experience skin
Yes
irritation when wearing a watch. Such individuals should keep their leather band or
Yes
resin band particularly clean, or switch to a metal band. Should you ever experience
Yes
a rash or other skin irritation, immediately remove the watch and contact a skin care
professional.
Battery Replacement
• Leave battery replacement up to your original retailer or authorized CASIO Service
Center.
dirección indicada e
pueda extraerla hac
tipos de coronas.
• También tenga en c
al agua mientras su
de enroscar las coro
extensión antes de
[Módulos 5284, 5361
Puesta en hor
1. Extraiga la coron
segundos se enc
para que se pare
2. Ajuste las manec
Adelante la man
minutos desde l
a continuación,
correcto.
3. Introduzca la co
continúe marcan
[Módulos 5128, 5180
5358, 5383, y 5393]
Puesta en hor
1. Extraiga la coron
la manecilla de l
posición de las 1
2. Ajuste las manec
Adelante la man
cinco minutos d
y, a continuación
correcto.
3. Introduzca la cor
horaria para que
Para ajustar e
• Evite ajustar el dí
suceder que no s
1. Extraiga la coron
2. Ajuste el día hac
3. Vuelva a colocar
[Módulos 5125, 5167
Puesta en hor
1. Extraiga la coron
la manecilla de l
posición de las 1
2. Ajuste las manec
Adelante la man
cinco minutos d
y, a continuación
correcto.
3. Introduzca la co
señal horaria pa
la hora.
Para ajustar e
• Evite ajustar el dí
hiciese, puede su
al día siguiente.
1. Extraiga la coron
2. Ajuste el día hac
manecillas del re
3. Ajuste el día de
manecillas del re
4. Vuelva a colocar
• Para un reloj con el
Gire el aro biselado
marca
con la m
Luego de una cierta
graduación sobre e
que apunta la mane
Se indica el tiempo
N
de módulo
o
5125/5128/5206/
5207/5237/5249/
5361
5167
5180/5199/5223/
5342/5343/5358/5393
5218/5250
5284/5364/5375
5339/5340/5341/5383
5352
[Módulos 5364 y 5375]
Indicador de pila baja
Precauciones d
Resistencia al agu
• Lo siguiente corresp
RESISTANT (resiste
En el frent
Marca
cubierta p
Lavado de
Trabajo rel
Ejemplo de
agua, nata
uso diario
Práctica d
1
Buceo de
• No utilice el reloj du
que requiera botella
• Los relojes que no p
cubierta posterior n
en circunstancias d
humedad, o a salpic
• Aun si el reloj es res
mientras está sume
• Aun si el reloj es res
se usen detergente
Advertisement
