1.1 OVERVIEW
The DIGITAL DLM6C-AA chassis design provides five 2.4-inch slots
that can contain a variety of interface modules. The chassis supports
redundant power supplies, LANVIEW diagnostic LEDs, and is 19-inch
rack mountable. All chassis components (power supplies, fan tray, and
modules) are installed from the front of the chassis for ease of
maintenance. All LED indicators are observable from the front of the
chassis to aid in monitoring network operational status.
illustrates the DLM6C-AA equipped with redundant power supplies.
1
LKG-10796-98F

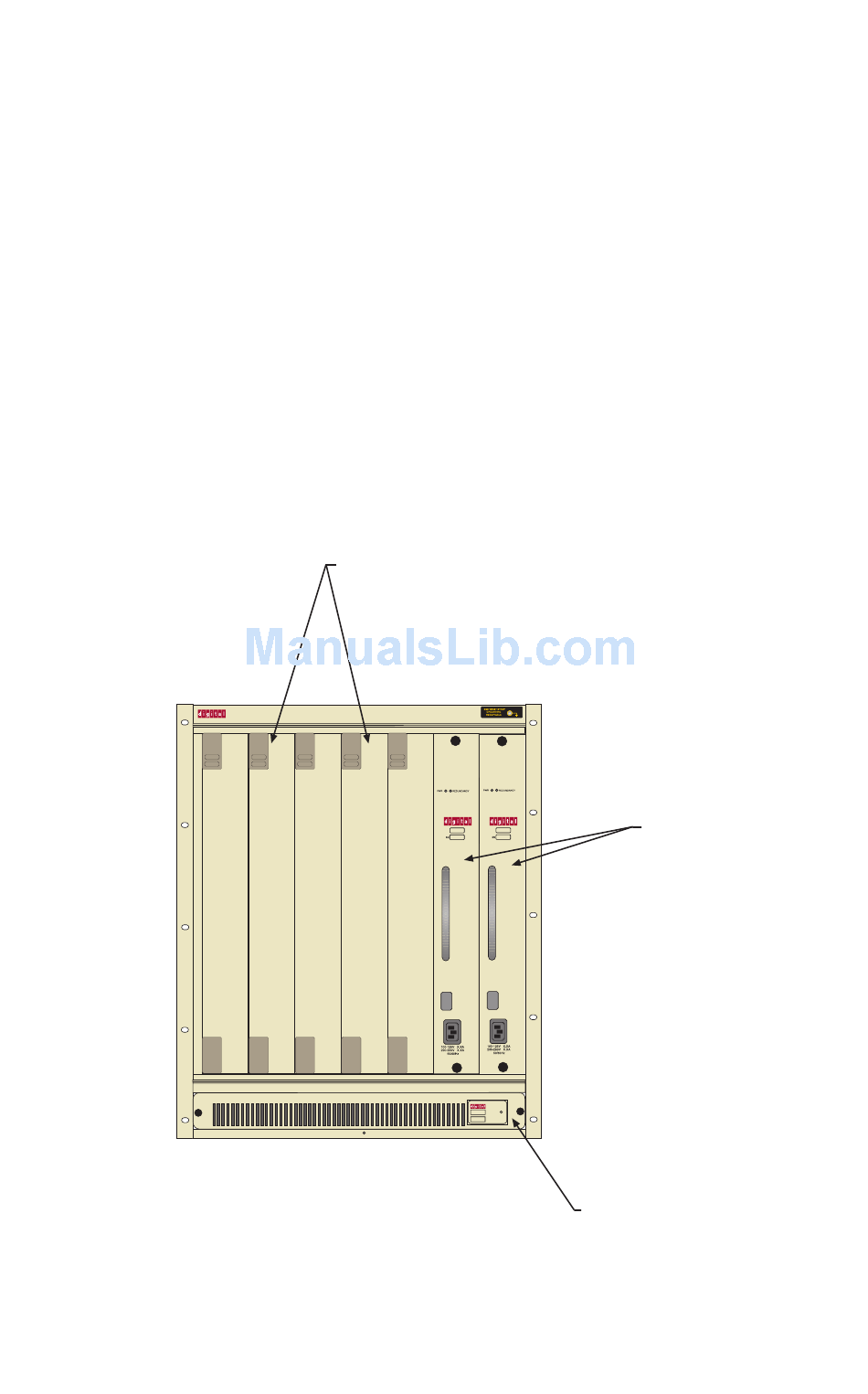

Figure 1-1 The DLM6C-AA Chassis With Redundant Power Supplies
DLM6C-AA Overview and Setup Guide
CHAPTER 1
INTRODUCTION
Module slots (5)
TM
MultiSwitch 700
2 3 4
DLM6C-AA
5 PS1 PS2
TM TM
HA205-AA HA205-AA
TM
H3105-AA
Figure 1-1
Redundant power
supply modules (2)
Fan Tray
1-1
