Tru-Jump STR-15FT Assembly, Installation, Care, Maintenance And User Instructions page 31

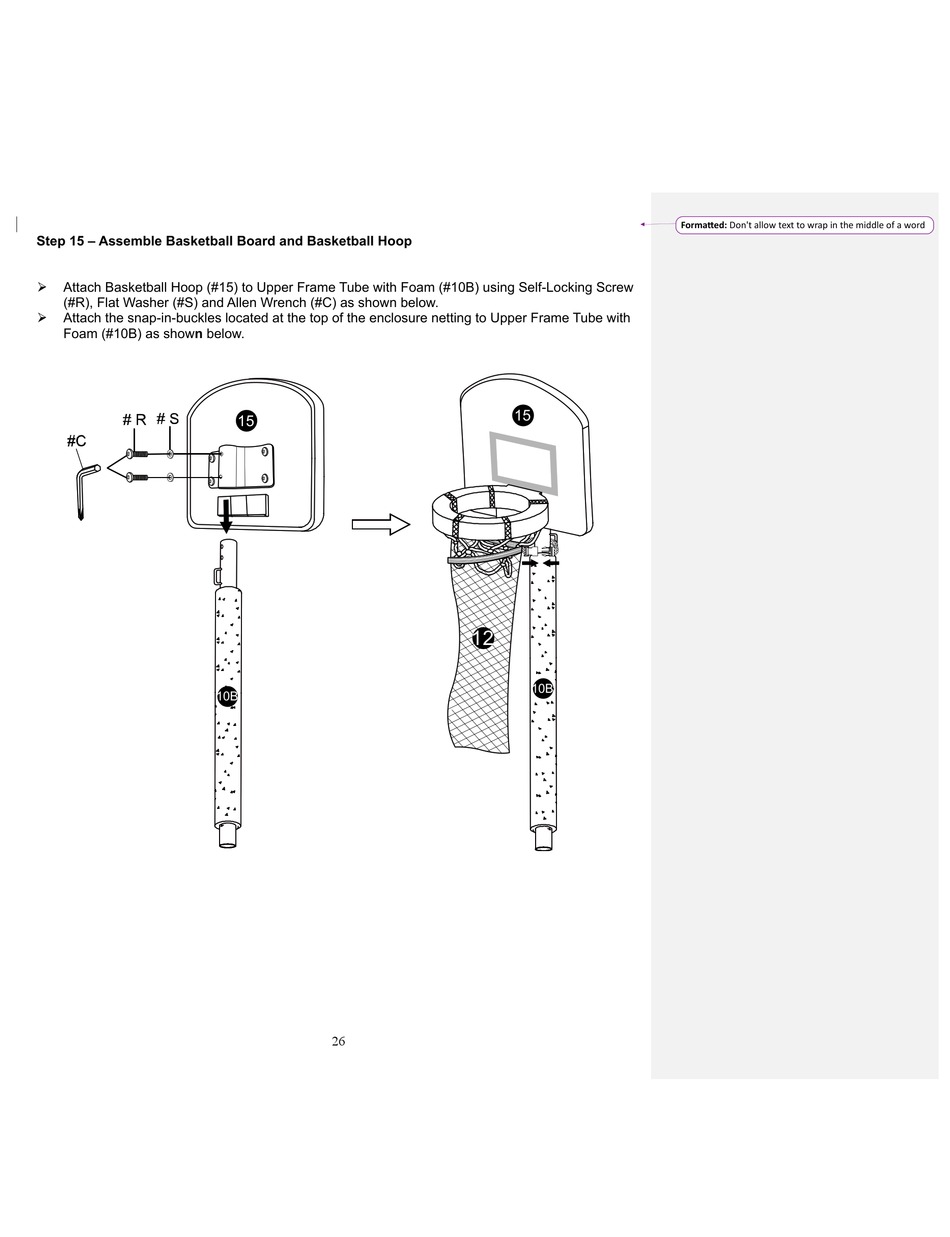

Step 15 – Assemble Basketball Board and Basketball Hoop
Ø Attach Basketball Hoop (#15) to Upper Frame Tube with Foam (#10B) using Self-Locking Screw
(#R), Flat Washer (#S) and Allen Wrench (#C) as shown below.
Ø Attach the snap-in-buckles located at the top of the enclosure netting to Upper Frame Tube with
Foam (#10B) as shown below.
15
10B
26
15
12
10B
