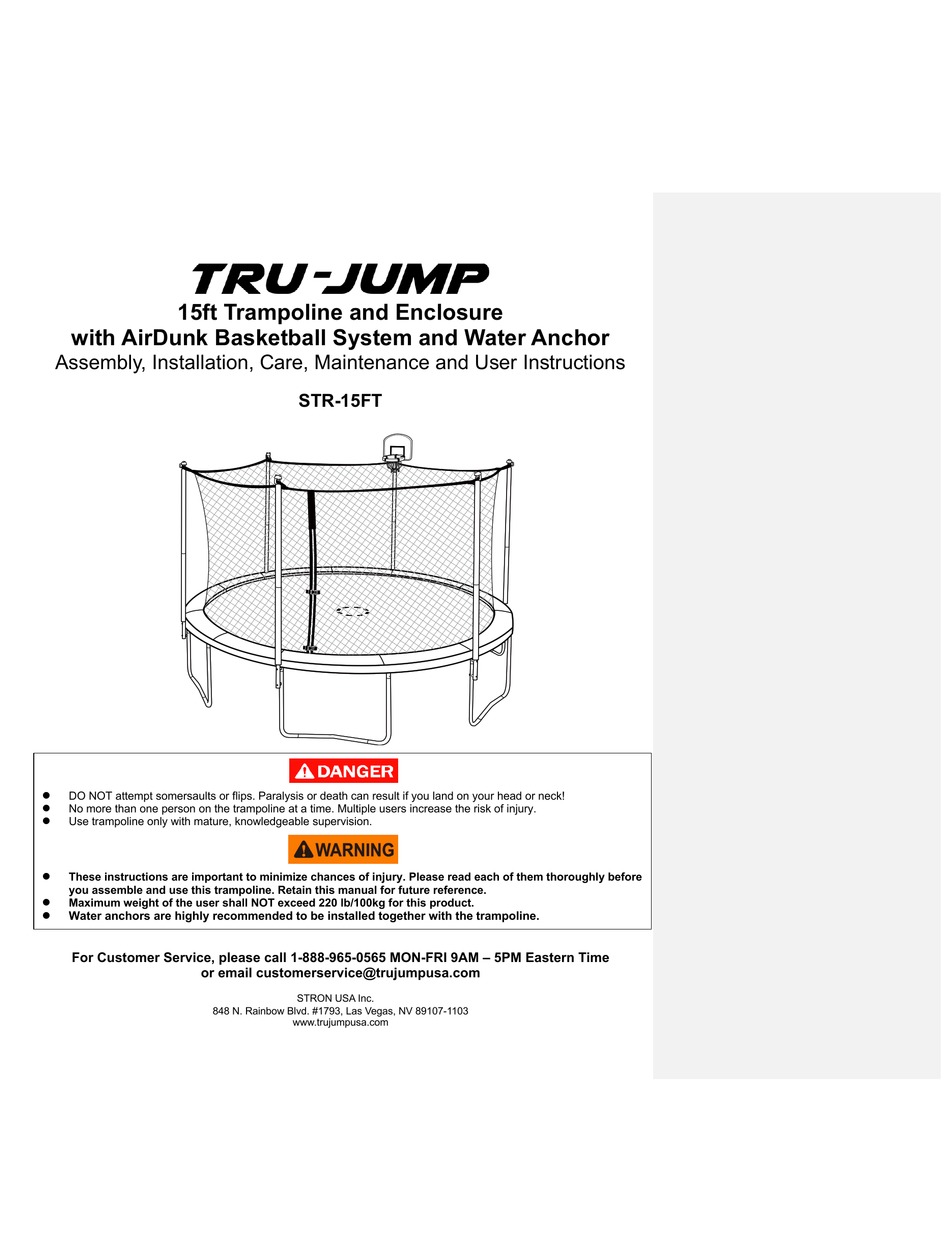

15ft Trampoline and Enclosure
with AirDunk Basketball System and Water Anchor
Assembly, Installation, Care, Maintenance and User Instructions
l
DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!
l
No more than one person on the trampoline at a time. Multiple users increase the risk of injury.
l
Use trampoline only with mature, knowledgeable supervision.
l
These instructions are important to minimize chances of injury. Please read each of them thoroughly before
you assemble and use this trampoline. Retain this manual for future reference.
Maximum weight of the user shall NOT exceed 220 lb/100kg for this product.
l
l
Water anchors are highly recommended to be installed together with the trampoline.
For Customer Service, please call 1-888-965-0565 MON-FRI 9AM – 5PM Eastern Time
or email customerservice@trujumpusa.com
848 N. Rainbow Blvd. #1793, Las Vegas, NV 89107-1103
STR-15FT
STRON USA Inc. !
www.trujumpusa.com
