Tru-Jump STR-15FT Assembly, Installation, Care, Maintenance And User Instructions page 30

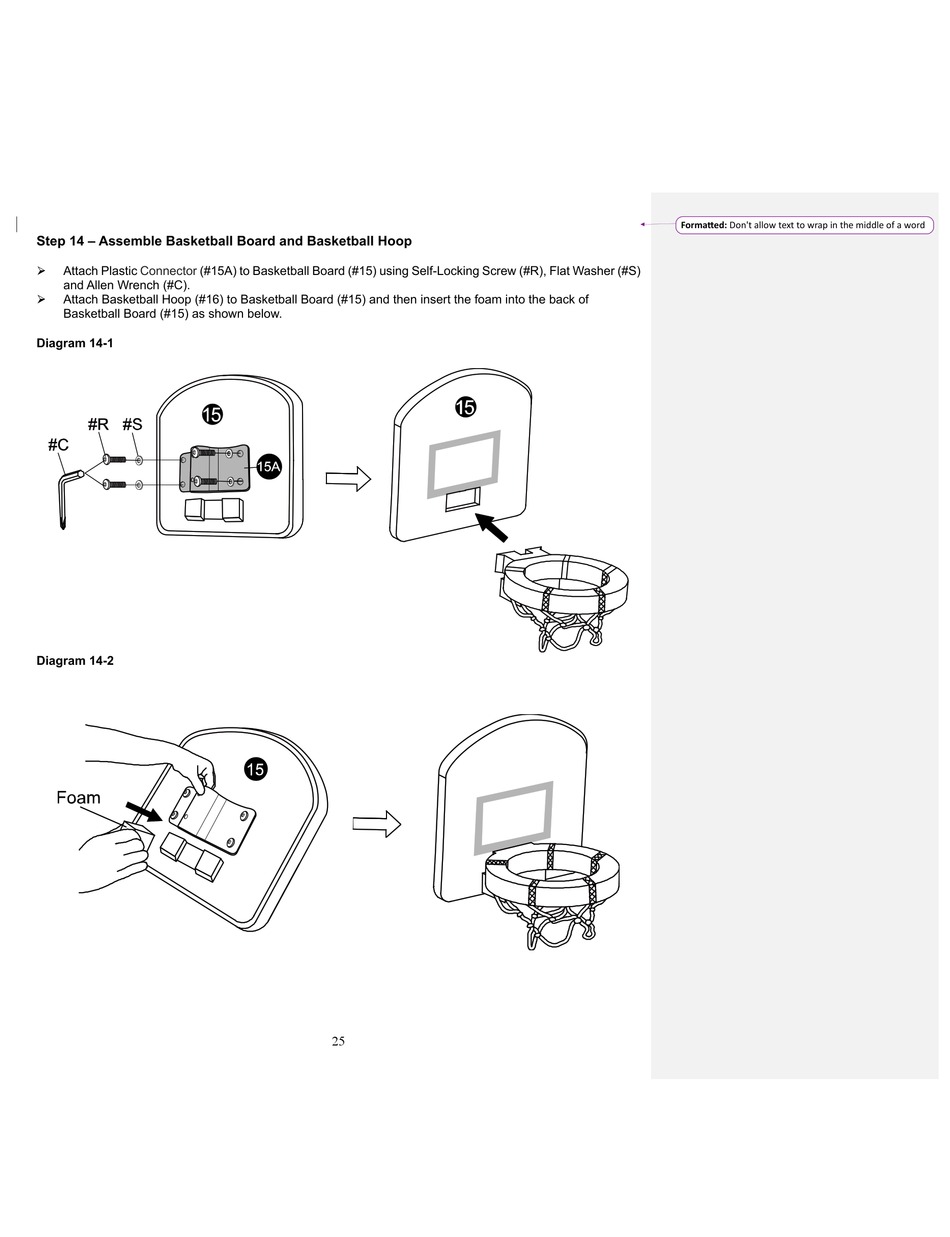

Step 14 – Assemble Basketball Board and Basketball Hoop
Ø Attach Plastic Connector (#15A) to Basketball Board (#15) using Self-Locking Screw (#R), Flat Washer (#S)
and Allen Wrench (#C).
Ø Attach Basketball Hoop (#16) to Basketball Board (#15) and then insert the foam into the back of
Basketball Board (#15) as shown below.
Diagram 14-1
Diagram 14-2
25
