Basketball Assembly - Tru-Jump STR-15FT Assembly, Installation, Care, Maintenance And User Instructions

Basketball System Assembly

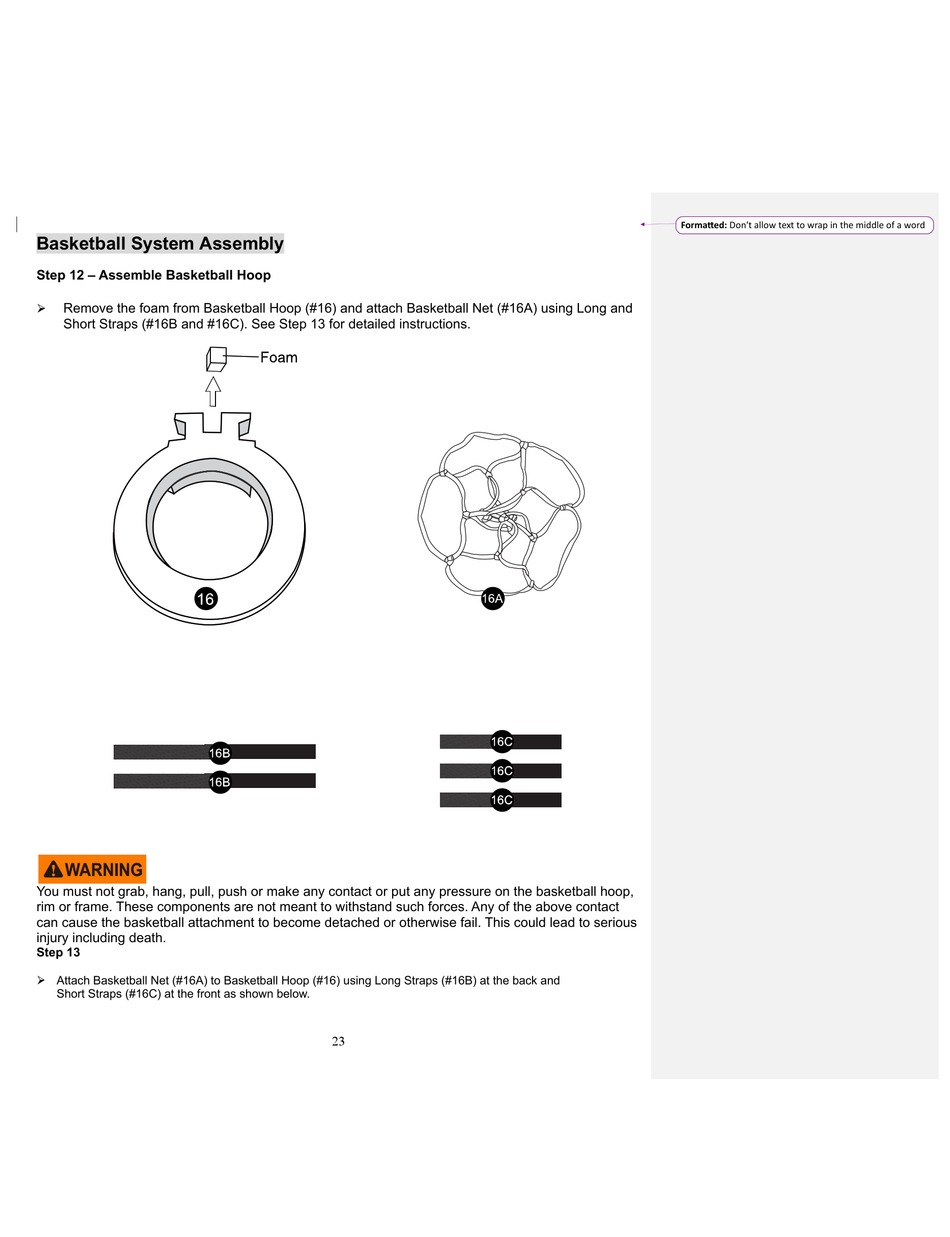

Step 12 – Assemble Basketball Hoop
Remove the foam from Basketball Hoop (#16) and attach Basketball Net (#16A) using Long and
Ø
Short Straps (#16B and #16C). See Step 13 for detailed instructions.
You must not grab, hang, pull, push or make any contact or put any pressure on the basketball hoop,
rim or frame. These components are not meant to withstand such forces. Any of the above contact
can cause the basketball attachment to become detached or otherwise fail. This could lead to serious
injury including death.
Step 13
Ø Attach Basketball Net (#16A) to Basketball Hoop (#16) using Long Straps (#16B) at the back and
Short Straps (#16C) at the front as shown below.
23
