Trampoline Enclosure Assembly

BEFORE YOU BEGIN:
•
This trampoline must only be used when the enclosure netting is properly assembled. The trampoline netting
must be checked thoroughly before each use to ensure there are no tears or damages. Please carefully
read all the Important Warnings contained in this manual and all warnings on the product before use.
•
Review all steps before assembly and read all precautions before using the trampoline. At least two adults
are required to assemble this trampoline enclosure. Protective gloves must be used during assembly to
avoid injuries during installation and goggles must be worn to avoid injuries to the eyes.

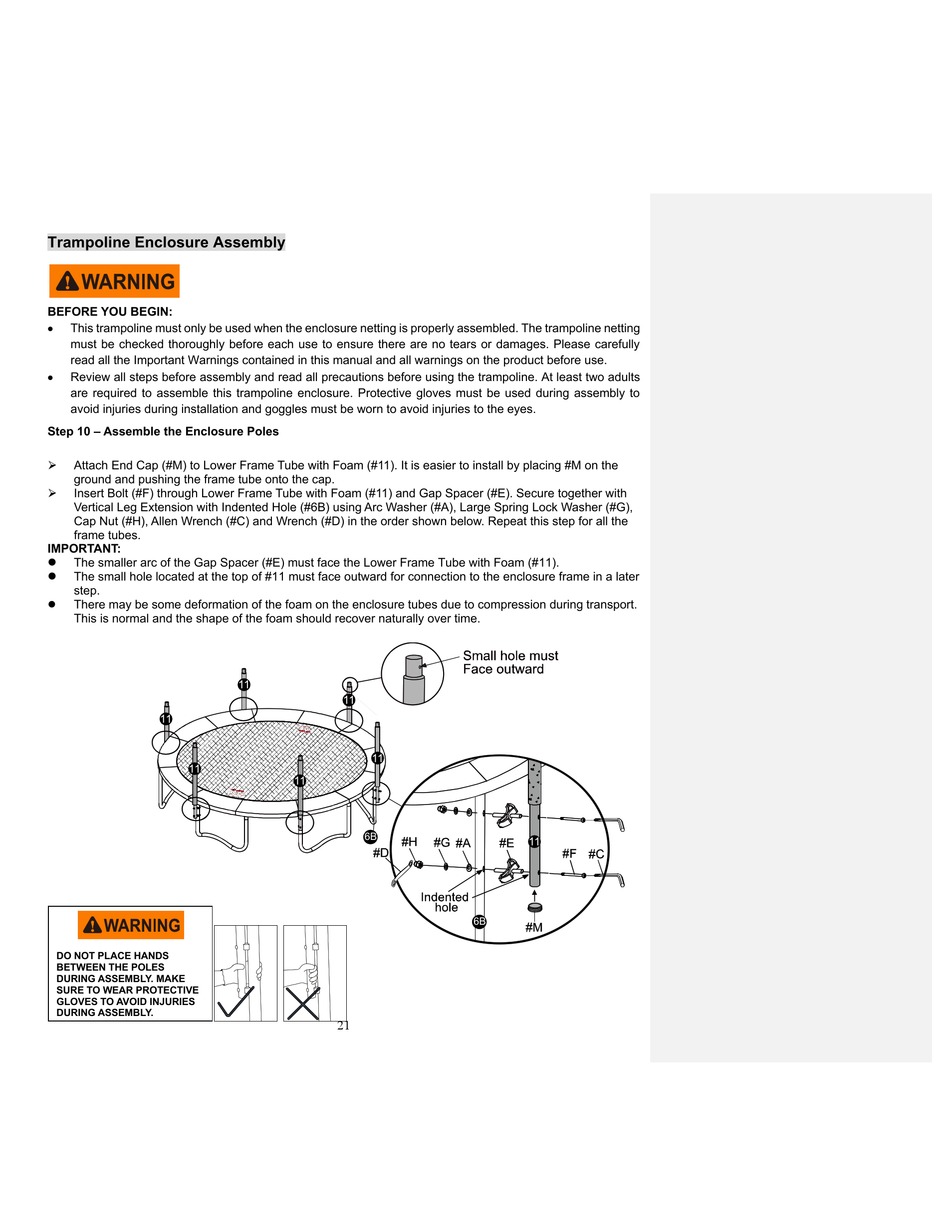

Step 10 – Assemble the Enclosure Poles
Ø Attach End Cap (#M) to Lower Frame Tube with Foam (#11). It is easier to install by placing #M on the
ground and pushing the frame tube onto the cap.
Insert Bolt (#F) through Lower Frame Tube with Foam (#11) and Gap Spacer (#E). Secure together with
Ø
Vertical Leg Extension with Indented Hole (#6B) using Arc Washer (#A), Large Spring Lock Washer (#G),
Cap Nut (#H), Allen Wrench (#C) and Wrench (#D) in the order shown below. Repeat this step for all the
frame tubes.
IMPORTANT:
l The smaller arc of the Gap Spacer (#E) must face the Lower Frame Tube with Foam (#11).
l The small hole located at the top of #11 must face outward for connection to the enclosure frame in a later
step.
l There may be some deformation of the foam on the enclosure tubes due to compression during transport.
This is normal and the shape of the foam should recover naturally over time.
11
11
DO NOT PLACE HANDS
BETWEEN THE POLES
DURING ASSEMBLY. MAKE
SURE TO WEAR PROTECTIVE
GLOVES TO AVOID INJURIES
DURING ASSEMBLY.
11
11
11
11
6B
21
11
6B
