Trampoline Frame Assembly

BEFORE YOU BEGIN: Review all steps before assembly and read all precautions before using the trampoline.
Three adults are recommended to assemble this trampoline. Protective gloves should be used during assembly to
avoid injuries during installation. Goggles should be worn to avoid injuries to the eyes.
Step 1 – Frame Assembly
Ø Locate the following 30 pieces of steel tubing parts that are needed to assemble the trampoline frame:
6 - Top Rail with Leg Sockets (# 3)
6 - Top Rails (# 4)
6 - Leg Bases (# 5)
6 - Vertical Leg Extensions (# 6A)
6 - Vertical Leg Extension with Indented Hole (# 6B)

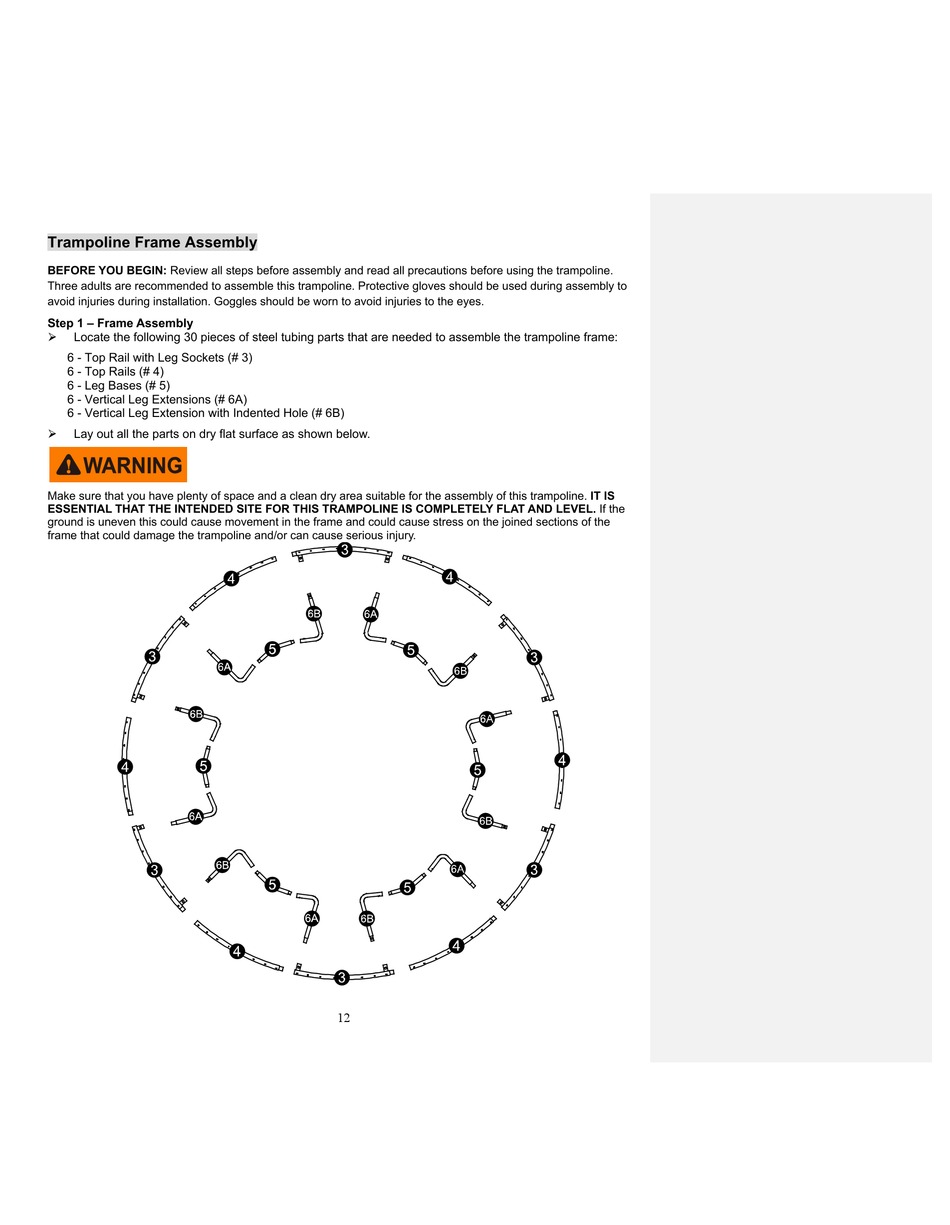

Lay out all the parts on dry flat surface as shown below.
Ø
Make sure that you have plenty of space and a clean dry area suitable for the assembly of this trampoline. IT IS
ESSENTIAL THAT THE INTENDED SITE FOR THIS TRAMPOLINE IS COMPLETELY FLAT AND LEVEL. If the
ground is uneven this could cause movement in the frame and could cause stress on the joined sections of the
frame that could damage the trampoline and/or can cause serious injury.
12
