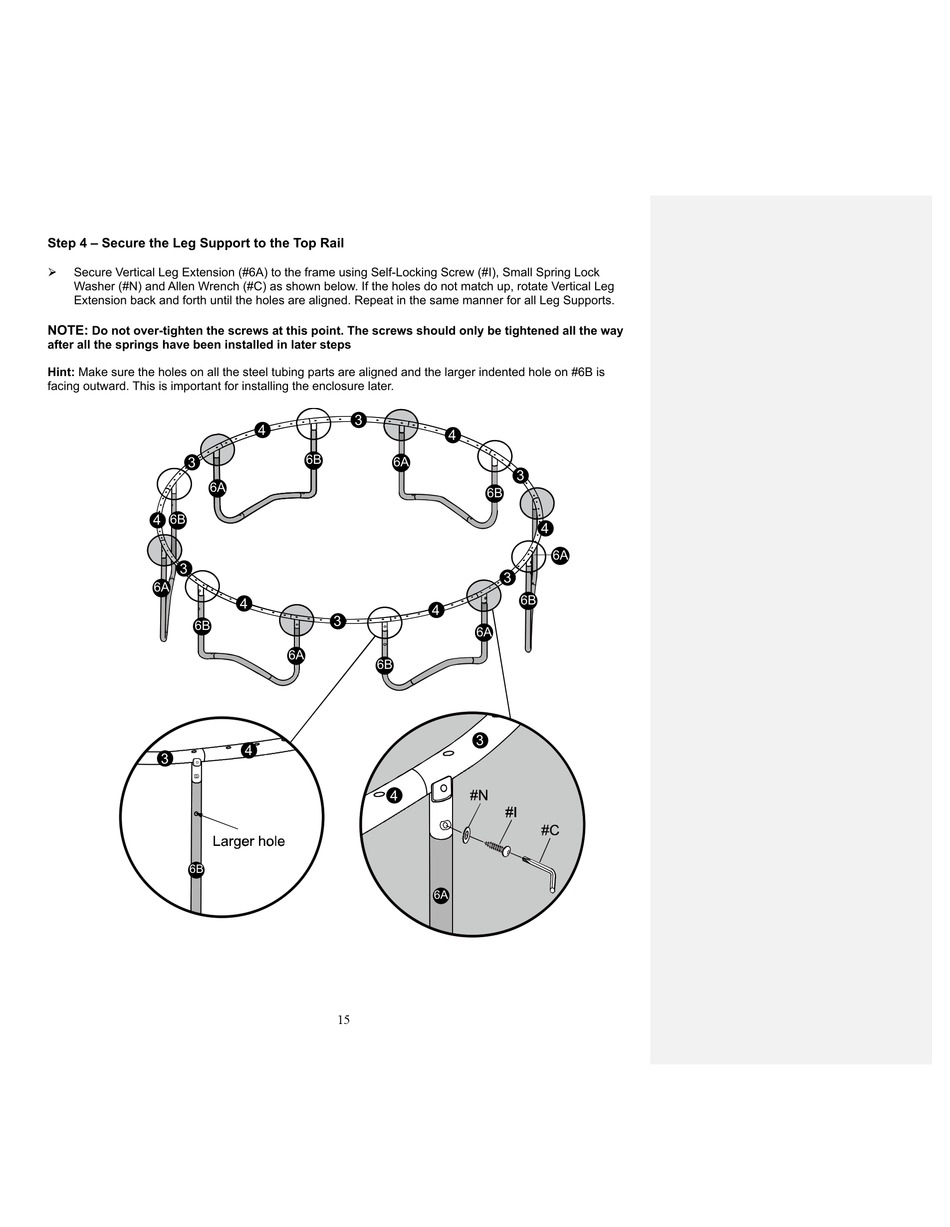

Step 4 – Secure the Leg Support to the Top Rail
Ø Secure Vertical Leg Extension (#6A) to the frame using Self-Locking Screw (#I), Small Spring Lock
Washer (#N) and Allen Wrench (#C) as shown below. If the holes do not match up, rotate Vertical Leg
Extension back and forth until the holes are aligned. Repeat in the same manner for all Leg Supports.
NOTE:
Do not over-tighten the screws at this point. The screws should only be tightened all the way
after all the springs have been installed in later steps
Hint: Make sure the holes on all the steel tubing parts are aligned and the larger indented hole on #6B is
facing outward. This is important for installing the enclosure later.
