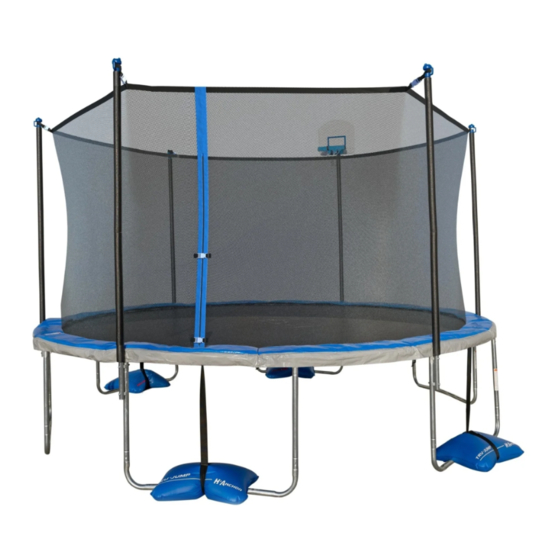

14ft trampoline and enclosure with airdunk basketball system and water anchor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

with AirDunk Basketball System and Water Anchor

Assembly, Installation, Care, Maintenance and User Instructions

DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!

No more than one person on the trampoline at a time. Multiple users increase the risk of injury.

Use trampoline only with mature, knowledgeable supervision.

These instructions are important to minimize chances of injury. Please read each of them thoroughly

before you assemble and use this trampoline. Retain this manual for future reference.

Maximum weight of the user shall NOT exceed 220 lb/ 100 kg for this product.

Trampoline must be used with enclosure that is properly installed and maintained

Water anchors are highly recommended to be installed together with the trampoline.

For Customer Service, please call 1-888-965-0565 MON-FRI 9AM – 5PM Eastern Time

14ft Trampoline and Enclosure

or email customerservice@trujumpusa.com

848 N. Rainbow Blvd. #1793, Las Vegas, NV 89107-1103

www.trujumpusa.com

STR-14FT

STRON USA Inc. !

Table of Contents

Need help?

Do you have a question about the STR-14FT and is the answer not in the manual?

Questions and answers

Summary of Contents for Tru-Jump STR-14FT

Page 1 AirDunk Basketball System and Water Anchor Assembly, Installation, Care, Maintenance and User Instructions STR-14FT DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck! No more than one person on the trampoline at a time. Multiple users increase the risk of injury.
Page 2 No more than ONE user at a time NO SOMERSAULTS OR FLIPS – (maximum weight - 220 lb/ 100 kg). PARALYSIS OR DEATH can result if you land on your head or neck! Do not allow Remove all hard Do not use Do not use if in a children less than or sharp objects...
Page 3 INTRODUCTION Thank you for purchasing a TruJump product! This trampoline was designed and manufactured with quality materials and craftsmanship, providing fun and exercise at your backyard. It is very important that the owners and users of this trampoline have adequate knowledge of techniques and rules for proper use.
Page 4: Table Of Contents
TABLE OF CONTENTS Use trampoline only with mature, knowledgeable adult supervision. Ø Ø Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Ø...
Page 5: Before You Start To Assemble
BEFORE STARTING… Ø Use trampoline only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or Ø death, even when landing in the middle of the mat. Ø...
Page 6: Important Warnings
IMPORTANT SAFETY INSTRUCTIONS Ø Use trampoline only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or Ø death, even when landing in the middle of the mat. Ø...
Page 7 IMPORTANT SAFETY INSTRUCTIONS Ø Use trampoline only with mature, knowledgeable adult supervision. Ø Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Ø...
Page 8 IMPORTANT SAFETY INSTRUCTIONS Ø Use trampoline only with mature, knowledgeable adult supervision. Ø Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Ø...
Page 9 IMPORTANT SAFETY INSTRUCTIONS Ø Use trampoline only with mature, knowledgeable adult supervision. Ø Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. Ø...
Page 10: Important Instructions For Enclosure Netting And Mat
IMPORTANT INSTRUCTIONS FOR ENCLOSURE NETTING AND MAT Important Instructions for Enclosure Netting and Mat Failure to follow these instructions to ensure proper operational condition of your trampoline may lead to serious injury or death.! 1. Maintenance of Trampoline Enclosure Net, Mat and Pad Enclosure nets and padding are prone to wear and tear like tires on a car.
Page 11 IMPORTANT INSTRUCTIONS FOR ENCLOSURE NETTING AND MAT How to Inspect the Trampoline Net for Proper Use Always check the enclosure netting for signs of UV damage, deterioration, brittleness, cracking, and tearing every time before using the trampoline and enclosure. Step1 - Inspect the enclosure netting before EACH use for wear or tear by pinching and pulling a section of the netting between fingers and pulling downward.
Page 12: Trampoline And Enclosure Parts List
Trampoline and Enclosure Parts List Trampoline Part Number Part Picture Description Quantity Number Trampoline Mat, stitched with TM-14-72-28 Triangle-Rings TFP-14-28-PE Frame Pad TRLS-14-72-42 Top Rail with Leg Sockets TR-14-72-42 Top Rail TLB-14-38.1 Leg Base TVL-14-38.1 Vertical Leg Extensions Vertical Leg Extension with TVLH-14-38.1 Indented Hole T28N...
Page 13: Hardware Parts List
Hardware Parts List Part Number Part Picture Description Quantity Number Self-Locking Screw ESLS-M4-12 (M4x12mm) ESLW-D10 Small Spring Lock Washer Allen Wrench EEC-31.8 End Cap Wrench EGS-14-38.1 Gap Spacer EB-M8-87 Bolt ESLW-D13 Larger Spring Lock Washer Cap Nut Arc Washer (M8) Tube Cap Cord...
Page 14: Basketball Parts List
Basketball System Parts List Part Picture Description Quantity Number Basketball Board Plastic Connectors Basketball Hoop Basketball Net Hook and Loop Strap (long) Hook and Loop Strap (short) Basketball Air Pump Screw (M8 x20mm) Flat Washer...
Page 15: Assembly And Installation Instructions
Assembly and Installation Instructions Review all steps before assembly and read all precautions before using this product. Failure to do so can result in serious injury or death. During periods of non-use, this trampoline and trampoline enclosure can be easily disassembled and stored by reversing the order of installation.
Page 16: Trampoline Frame Assembly
Trampoline Frame Assembly BEFORE YOU BEGIN: Review all steps before assembly and read all precautions before using the trampoline. At least two adults are required to assemble this trampoline. Protective gloves should be used during assembly to avoid injuries during installation. Goggles should be worn to avoid injuries to the eyes. Step 1 –...
Page 17 Step 2 – Leg Support Assembly At this point, two people will be needed to assemble the trampoline. Ø Connect Vertical Leg Extensions (#6A and #6B) to Leg Base (#5) as shown below (the assembled parts will be hereinafter referred to as “Leg Support”). Lift two sets of the assembled Leg Supports to a vertical (standing) position.
Page 18 Step 3 – Top Rail Assembly Ø Complete the trampoline frame by inserting all of the Top Rails (#4) in between Top Rail with Leg Sockets (#3) as shown below. DO NOT PLACE HANDS NEAR THE OPENING WHEN CONNECTING THE TUBES. WEAR PROTECTIVE GLOVES TO PROTECT FROM INJURIES DURING ASSEMBLY.
Page 19 Step 4 – Secure the Leg Support to the Top Rail Ø Secure Vertical Leg Extension (#6A) to the frame using Self-Locking Screw (#A), Small Spring Lock Washer (#B) using Allen Wrench (#C) as shown below. If the holes do not match up, rotate Vertical Leg Extension back and forth until the holes are aligned.
Page 20: Trampoline Mat Assembly
Trampoline Mat Assembly When attaching the springs, do not place your hands, arms, legs or any other body part close to the connector points (i.e. joints connecting the steel tubes). The connector points can become pinch points as the trampoline springs tighten up.
Page 21 Step 6 – Spring Assembly Ø Continue to attach springs in the same manner. For even distribution of tension and ease of assembly, the springs must be placed on opposite sides of the mat in an alternating manner, i.e. 10 then 46, 28 then 64, etc. In addition to the previously installed springs, you should now have springs at 10, 28, 46 and 64 as shown below.
Page 22 Step 7 – Spring Assembly Ø Continue to attach springs in the same manner. For even distribution of tension and ease of assembly, the springs must be placed on opposite sides of the mat in an alternating manner, i.e. 5 then 41, 14 then 50, 23 then 59, 32 then 68, etc.
Page 23 Step 8 – Spring Assembly Ø Continue to attach the remaining springs in the same manner as the previous step, i.e. the springs must be placed on opposite sides of the mat in an alternating manner to ensure even distribution of tension. IMPORTANT: Once all the springs are properly installed, you must go back to Step 4 and now tighten the screws on all Leg Supports.
Page 24: Frame Pad Assembly
Frame Pad Assembly Never use the trampoline without the Frame Pad, the Frame Pad reduces the risk of getting injured by hitting the metal frame or springs. Inspect the Frame Pad before each and every use to ensure all exposed metal parts are fully covered by the Frame Pad! Step 9 Ø...
Page 25: Trampoline Enclosure Assembly
Trampoline Enclosure Assembly BEFORE YOU BEGIN: • This trampoline must only be used when the enclosure netting is properly assembled. The trampoline netting must be checked thoroughly before each use to ensure there are no tears or damages. Please carefully read all the Important Warnings contained in this manual and all warnings on the product before use.
Page 26 Step 11 – Connect the Enclosure Upper Frame to the Lower Frame Ø Attach Tube Cap (#K) to Upper Frame Tube with Foam (#10A) with Self-Locking Screw (#I) using Allen Wrench (#C) as shown below. Repeat this step for all five #10A upper frame tubes. Ø...
Page 27: Basketball Assembly
Basketball System Assembly Step 12 – Assemble Basketball Hoop Ø Remove the foam from Basketball Hoop (#16) and attach Basketball Net (#16A) using Long and Short Straps (#16B and #16C). See Step 13 for detailed instructions. You must not grab, hang, pull, push or make any contact or put any pressure on the basketball hoop, rim or frame.
Page 28 Step 13 - Assemble Basketball Hoop Ø Attach Basketball Net (#16A) to Basketball Hoop (#16) using Long Straps (#16B) at the back and Short Straps (#16C) at the front as shown below. Diagram 13-1 Diagram 13-2...
Page 29 Step 14 – Assemble Basketball Board and Basketball Hoop Ø Attach Plastic Connector (#15A) to Basketball Board (#15) using Self-Locking Screw (#R), Flat Washer (#S) and Allen Wrench (#C). Ø Attach Basketball Hoop (#16) to Basketball Board (#15) and then insert the foam into the back of Basketball Board (#15) as shown below.
Page 30 Step 15 – Assemble Basketball Board and Basketball Hoop Ø Attach Basketball Hoop (#15) to Upper Frame Tube with Foam (#10B) using Self-Locking Screw (#R), Flat Washer (#S) and Allen Wrench (#C) as shown below. Ø Attach the snap-in-buckles located at the top of the enclosure netting to Upper Frame Tube with Foam (#10B) as shown below.
Page 31 Step 16 – Connect Enclosure Upper Frame to Lower Frame Tubes Ø Connect all six Upper Frame Tube with Foam (#10A and #10B) to Lower Frame Tube with Foam (#11). Secure with Self-Locking Screw (#A) using Allen Wrench (#C) as shown below. Helpful Tips: One person should stand inside the trampoline to hold the netting in place while another person installs all the frame tubes from the outside.
Page 32 Step 17 – Tie the Enclosure to the Mat Ø Secure the trampoline netting to the trampoline frame using the Cords (#L). Lift up the frame pad and tie one end of the cord to any one of the triangle-rings on the trampoline mat as shown below. Ø...
Page 33 Step 18 – Secure the Frame Pad Ø Wrap and tie the inner elastic straps on the frame pad around the triangle-rings and the outer straps around the trampoline frame as shown below. Diagram 18-1 TRIANGLE-RING INNER ELASTIC-STRAP...
Page 34 For the elastic straps near the leg sockets, wrap them BEHIND the leg sockets and then tie a one-sided Ø bow in front as shown below. Diagram 18-2 OUTER ELASTIC STRAP • Make sure that the knots and bows are tight for all elastic straps. •...
Page 35 Step 19 – Close the Enclosure and Attach the Safety Instruction Placard Ø Close the zipper and secure the entrance by attaching the buckles as shown below. Ø Attach Trampoline Safety Instruction Placard (#8) to the trampoline frame as shown. The zipper and buckles should be closed during use to avoid users falling out of the trampoline, as well as during periods of non-use to restrict access by unauthorized users.
Page 36 Step 20 – Inflate Basketball Ø Use Air Pump (#20) to inflate Basketball (#19) as shown below. Hint: Store the pump needle inside the air pump when not in use.
Page 37: Disassembly Of The Trampoline And Enclosure
IMPORTANT Once you have finished the assembly of the trampoline, go back over all of the nuts and bolts and properly tighten all of them before using. Read this entire manual and make sure all jumpers completely understand all of the safety rules printed in the manual and on the various warning signs.
Page 38: Care And Maintenance
Care and Maintenance Failure to follow these instructions to ensure proper operational condition of your trampoline may lead to serious injury or death.! Ø The springs, trampoline legs and enclosure netting must be inspected prior to every use. The legs should be locked securely into place, all the springs attached to the frame and there should be no tears in the enclosure netting.
Page 39: Proper Use Instructions
Proper Use Instructions Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death. ! Responsibilities of the user The key here is to stay in control of your jumps. DO NOT move onto more complicated, more difficult maneuvers until you have mastered the basic, fundamental bounce.
Page 40 Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death. ! Read all instructions before using the trampoline. Warnings and instructions for the care, maintenance and use of this trampoline are included to promote proper and enjoyable use of this equipment.
Page 41: Learning The Fundamental Trampoline Skills
PRODUCT WARRANTY Learning the fundamental trampoline skills The following lessons are suggested for you to learn basic steps and bounces. Before using the trampoline, you should read and understand all warnings. A complete discussion and demonstration of body mechanics and trampoline guidelines should occur between the supervisor and student as well.
Page 42 PRODUCT WARRANTY BASIC TRAMPOLINE BOUNCES THE BASIC BOUNCE 1. Start from the standing position, with your feet having shoulder width apart and with head up and eyes on mat 2. Swing arms forward and up in a circular motion 3. Bring feet together while in mid-air and point toes downwards.
Page 43: Product Warranty
PRODUCT WARRANTY Product Warranty Trujump Warrants its products to be free from defects in material and workmanship under normal use and service conditions for one (1) year after the date of purchase. The steel frame on trampolines is warranted for seven (7) years after the date of purchase. All warranty coverage extends only to the original purchaser of the product and is not assignable or transferable.
Page 44 PARTS OR ASSEMBLY INSTRUCTIONS. STORES ARE NOT EQUIPPED TO PROVIDE CUSTOMER SERVICE FOR THIS PRODUCT. For Customer Service, please call 1-888-965-0565 or send email to customerservice@trujumpusa.com Monday – Friday 9:00 AM – 5:00 PM Eastern Time STRON USA Inc. 848 N. Rainbow Blvd. #1793, Las Vegas, NV 89107-1103 www.trujumpusa.com ST-29-STR-14FT-19001...
