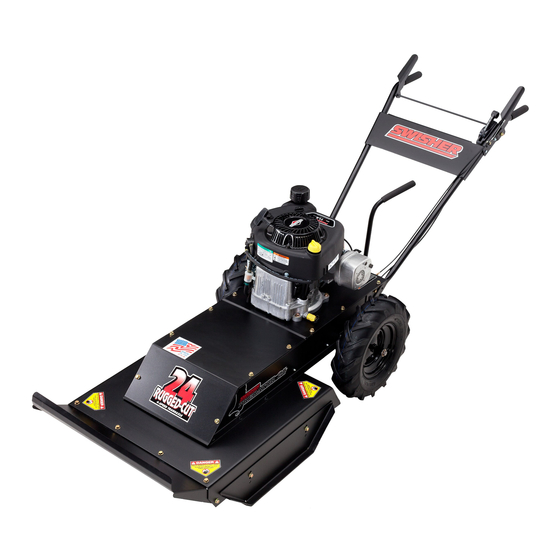

OWNER'S
MANUAL
STARTING SERIAL #:
L113-094001
MODEL NO.
WB11524BS
WB11524BSXP
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093
10750
REV 13-094
THE PREDATOR
THE PREDATOR
THE PREDATOR
THE PREDATOR
24 24 24 24" " " " WALK BEHIND
Operation
Service and Adjustment
Repair Parts
PHONE (660) 747-8183 FAX (660) 747-8650
WALK BEHIND
WALK BEHIND
WALK BEHIND
ROUGH CUT
ROUGH CUT
ROUGH CUT
ROUGH CUT
Made In The
USA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Swisher WB11524BSXP
Summary of Contents for Swisher WB11524BSXP
- Page 1 MANUAL STARTING SERIAL #: L113-094001 MODEL NO. WB11524BS THE PREDATOR THE PREDATOR THE PREDATOR THE PREDATOR WB11524BSXP 24 24 24 24” ” ” ” WALK BEHIND WALK BEHIND WALK BEHIND WALK BEHIND ROUGH CUT ROUGH CUT ROUGH CUT ROUGH CUT...
- Page 2 1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed.
- Page 3 Thank you for choosing Swisher’s 24” Walk Behind Rough Cut. Before operating your Walk Behind, please read, understand and follow all of the safety precautions and other instructions explained in this manual. As with all power equipment, lawn mowers can be potentially dangerous if not properly used.
- Page 4 • Turn off the blade when not mowing. Before leaving the machine, turn off the blade and stop the engine. • Watch for traffic when operating near or crossing roadways. • Do not operate the mower if it has been dropped or damaged in any manner or if the mower vibrates excessively.
- Page 5 OPERATING YOUR NEW WALK BEHIND The operation of any mower can produce foreign objects to be thrown into the eyes, resulting in severe eye damage. Always wear certified safety glasses or wide-vision safety goggles over spectacles before starting any cutting machine and while operating such a machine.
- Page 6 STARTING THE ENGINE See engine manufacturer’s recommendations for the type and amount of oil and fuel used. Engine must be level to accurately check and fill oil. Do not overfill. • Make sure unit is level, blade is disengaged, and transaxle in “NEUTRAL” •...
- Page 7 TRANSPORTING • Shut off engine. • Secure in place while unit is being transported. • Unit should be left in low gear to avoid any slight rolling. SUGGESTED PRACTICES • Always operate engine at full throttle when cutting to assure the best cutting performance and proper discharge of material.
- Page 8 SAFETY AND OPERATIONAL DECALS Replace decal immediately if damaged. Order by part number from Swisher. OD55--DANGER DECAL OD45--WARNING DECAL OD83--RN1234 SHIFT DECAL 10749--REVERSE LOCK DECAL OD99112—LARGE LOGO WHITE DECAL OD39--SWISHER FLAG DECAL DECALS NOT SHOWN OD85--Predator LH Decal OD86--Predator RH Decal...
- Page 9 OVERALL ASSEMBLY Item # Description Part # Cover - Belt 10682* Bolt - Serrated Flange 5/16-18 X 3/4 NB596 Nut - Serrated Flange 5/16-18 NB170 Channel - Right Side 10676* Channel - Left Side 10677* Clip - Tinnerman 5/16-18 3706 Bolt - Serrated Flange 5/16-18 X 2 1/4 NB622 When ordering replacement parts...
- Page 10 ENGINE-PULLEY ASSEMBLY Item # Description Part # Motor Plate 10678* NOT ACTUAL ENGINE Install Transmission Cable Item 5/16-18 Serr. Flange Nut NB170 USED (REF. ONLY) #27 in Idler Arm before installing 5/16-18 X 3/4 Serr. Flange Bolt NB596 Idler Arm to Motor Plate Belt Retention Weldment 10767 Goes in Rear...
- Page 11 REAR COVER ASSEMBLY Item # Description Part # Rear Cover 10679* Anti Reverse Arm 10680* Spacer B99S 5/16-18 X 3/4 Serr. Flange Bolt NB596 5/16-18 Serr. Flange Nut NB170 HANDLE BAR & LEVER ASSEMBLY Item # Description Part # Lever - Blade Engagement Weldment 10730* Weldment - Handle 18404*...
- Page 12 BLADE DRIVER ASSEMBLY Item # Description Part # 3/4-16 Jam Nut NB175 1.5x.761x.098x.134 Belleville Washer AS155 Blade Pulley-5.5" 6114 Spacer - 3/4 ID x 1 Powder Metal 12823 3/4 ID X 1 1/4 OD 18 GA Washer NB179 Blade Bearing Blade Shaft 6"- Long Shoulder 9078 5/16-18 Serr.
- Page 13 MOWER DECK ASSEMBLY PAGE 12 Item # Description Part # Deck Weldment 14748* Brush Guard 10681* Deck Side Skid 18512* Blade Engagement Cable Clip 10673* 5/16-18 X 3/4 Serrated Flng Bolt NB596 5/16-18 Serrated Flng Nut NB170 1/4-20 X 3/4 GR5 ZP Bolt NB250 1/4-20 Nylok Nut NB180...
- Page 14 NOTES: ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________...
- Page 16 MODEL NO. All cutter parts listed herein may be ordered directly from Swisher or your nearest Swisher dealer. All engine parts may be ordered from the nearest dealer of the engine supplied with your cutter WB11524BS...
