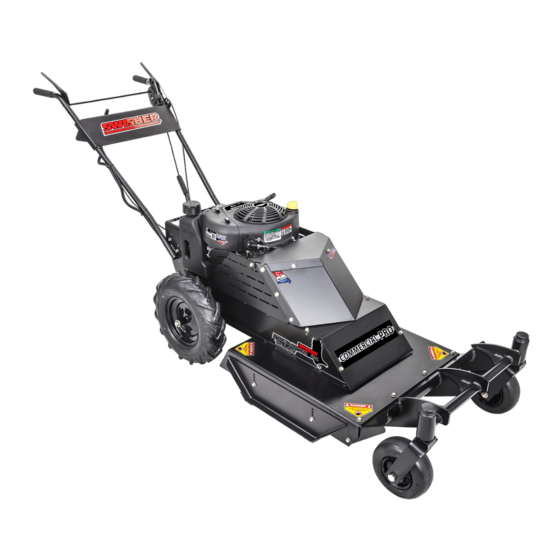

  • Page 1 swisherinc.com OWNER’S MANUAL STARTING SERIAL #: L115-001001 MODEL NO. WBERC11524C PREDATOR TALON COMMERCIAL PRO 24” WALK BEHIND IMPORTANT 12V ROUGH CUT Read and follow all Safety Precautions and Instructions Operation before operating this Service and Adjustment equipment. Repair Parts Made In The 1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093 PHONE (660) 747-8183 FAX (660) 747-8650 of US and Global Parts...

  • Page 2: Table Of Contents

    1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed.

  • Page 3: Introduction

    Thank you for choosing Swisher’s 24” Walk Behind Rough Cut. Before operating your Walk Behind, please read, understand and follow all of the safety precautions and other instructions explained in this manual. As with all power equipment, lawn mowers can be potentially dangerous if not properly used.

  • Page 4: Pre-Operating

    • Turn off the blade when not mowing. Before leaving the machine, turn off the blade and stop the engine. • Watch for traffic when operating near or crossing roadways. • Do not operate the mower if it has been dropped or damaged in any manner or if the mower vibrates excessively.
  • Page 5 OPERATING YOUR NEW WALK BEHIND The operation of any mower can produce foreign objects to be thrown into the eyes, resulting in severe eye damage. Always wear certified safety glasses or wide-vision safety goggles over spectacles before starting any cutting machine and while operating such a machine.
  • Page 6 STARTING THE ENGINE See engine manufacturer’s recommendations for the type and amount of oil and fuel used. Engine must be level to accurately check and fill oil. Do not overfill. • Make sure unit is level, blade is disengaged, and transaxle in “NEUTRAL” •...

  • Page 7: Operation

    TRANSPORTING • Shut off engine. • Secure in place while unit is being transported. • Unit should be left in low gear to avoid any slight rolling. SUGGESTED PRACTICES • Always operate engine at full throttle when cutting to assure the best cutting performance and proper discharge of material.

  • Page 8: Decals

    SAFETY AND OPERATIONAL DECALS Replace decal immediately if damaged. Order by part number from Swisher. OD55--DANGER DECAL OD45--WARNING DECAL OD83--RN1234 SHIFT DECAL 10749--REVERSE LOCK DECAL OD99112--LARGE LOGO WHITE DECAL OD99156--SMALL LOGO WHITE DECAL 20076--SWISHER FLAG DECAL DECALS NOT SHOWN 19722-- Predator Talon LH Decal...

  • Page 9: Parts Breakdown

    ASSEMBLY DETAIL When ordering replacement parts *USE PAINT CODE: TK=BLACK Tip: Valve stems should be turned to avoid contact with caster yoke. Item # Description Part # Item # Description Part # Guard - Engine, Cover 19888* Pad - Battery BATPAD Guard - Engine, Right 19886*...
  • Page 10 ENGINE & PULLEY ASSEMBLY Item # Description Part # Bolt - Serr Flange, 5/16-18 X1 1/4 NB253 Nut - Nyloc 5/16-18 NB181 Nut - Serr Flange 5/16-18 NB170 Bolt - Serr Flange, 5/16-18 X 1 10548 Screw - HX Tek 1/4 X 3/4 NB161 Solenoid - 3 Pole 1002004...
  • Page 11 REAR COVER ASSEMBLY Item # Description Part # Nut - Serr Flange 5/16-18 NB170 Plate - Cover, Back 10679* Arm - Anti Reverse 10680* Spacer B99S Bolt - Serr Flange, 5/16-18 X 3/4 NB596 HANDLE BAR & LEVER ASSEMBLY Item # Description Part # Knob - T...
  • Page 12 BLADE DRIVER ASSEMBLY Item # Description Part # Nut - Jam 3/4-16 NB175 Washer - Belleville .760 X 1.5 X .098 AS155 Pulley - Blade, 5.5" 6114 Spacer - 3/4 ID X 1 12823 Washer - 3/4 ID X 1 1/4 OD NB179 Bearing - Blade Shaft - Blade 6", Long Shoulder...
  • Page 13 DECK & CASTER ASSEMBLY Item # Description Part # Deck - Weldment 10695* PAGE 12 Bolt - 1/4-20 X 3/4 NB250 Clip - Blade Engagement Cable 10673* Nut - Nyloc 1/4-20 NB180 Nut - Serr Flange 5/16-18 NB170 Weldment - WB Skid 18512* Bolt - Serr Flange, 5/16-18 X 3/4 NB596...
  • Page 14 WIRING CONFIGURATION Wiring Harness PN 19893 Alternator Wire PN 19894 BELT CONFIGURATION 2410 TRANSAXLE PULLEY 690 – TRANSAXLE BELT TOP ENGINE PULLEY CONFIGURATION B27 – TRANSAXLE IDLER PULLEY 2411 – TOP ENGINE PULLEY BB105 – LOWER ENGINE PULLEY BA50 – BLADE ENGAGEMENT BELT T30V –...

  • Page 15: Maintenance Log

    MAINTENANCE LOG Date of Service Service Performed Notes...
  • Page 16 MODEL NO. All cutter parts listed herein may be ordered directly from Swisher or your nearest Swisher dealer. All engine parts may be ordered from the nearest dealer of the engine supplied with your cutter WBERC11524C...
