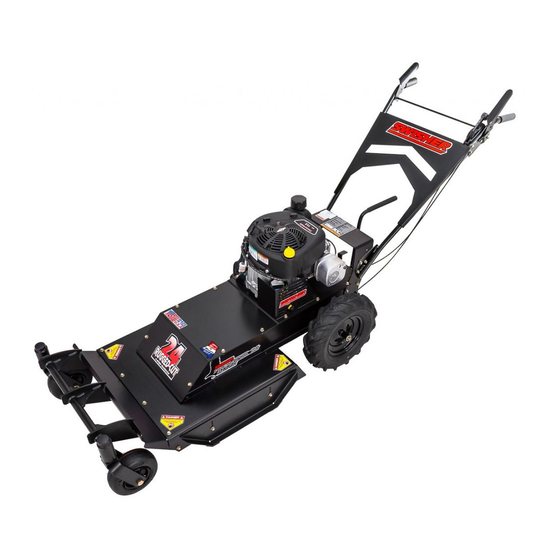

  • Page 1 OWNER’S MANUAL STARTING SERIAL #: L117-335001 MODEL NO. WBRC11524 THE PREDATOR 24” WALK BEHIND ROUGH CUT IMPORTANT Read and follow all Safety Precautions Operation and Instructions before operating this Service and Adjustment equipment. Repair Parts ade I The SWISHER ACQUISITION INC.

  • Page 2: Limited Warranty

    Should you have any questions concerning this warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed.

  • Page 3: Safety Precautions

    Thank you for choosing Swisher’s 24” Walk Behind Rough Cut. Before operating your Walk Behind, please read, understand and follow all of the safety precautions and other instructions explained in this manual. As with all power equipment, lawn mowers can be potentially dangerous if not properly used.
  • Page 4 • Turn off the blade when not mowing. Before leaving the machine, turn off the blade and stop the engine. • Watch for traffic when operating near or crossing roadways. • Do not operate the mower if it has been dropped or damaged in any manner or if the mower vibrates excessively.
  • Page 5 Never assume that children will remain where you last saw them. INTENDED USE This is not a lawn mower. The Predator is designed for cutting overgrown brush, weeds, and other types of organic growth. This unit is capable of clearing small saplings of 1.5”...
  • Page 6 STARTING THE ENGINE See engine manufacturer’s recommendations for the type and amount of oil and fuel used. Engine must be level to accurately check and fill oil. Do not overfill. • Make sure unit is level, blade is disengaged, and transaxle in “NEUTRAL” •...
  • Page 7 TRANSPORTING • Shut off engine. • Secure in place while unit is being transported. • Unit should be left in low gear to avoid any slight rolling. SUGGESTED PRACTICES • Always operate engine at full throttle when cutting to assure the best cutting performance and proper discharge of material.

  • Page 8: Safety And Operational Decals

    SAFETY AND OPERATIONAL DECALS Replace decal immediately if damaged. Order by part number from Swisher. OD55--DANGER DECAL OD45--WARNING DECAL OD83--RN1234 SHIFT DECAL 10749--REVERSE LOCK DECAL OD99112—LARGE LOGO WHITE DECAL OD99156—SMALL LOGO WHITE DECAL 19976--SWISHER FLAG DECAL DECALS NOT SHOWN OD85--Predator LH Decal...

  • Page 9: Assembly Detail

    ASSEMBLY DETAIL Item # Description Part # Cover - Belt 10682* Bolt - Serrated Flange 5/16-18 X 3/4 NB596 Nut - Serrated Flange 5/16-18 NB170 Channel - Right Side 19211* Channel - Left Side 19212* Clip - Twistlock, Nylon 1/2" NB683 Height Adjustment Mount 19214*...
  • Page 10 ENGINE & PULLEY ASSEMBLY Item # Description Part # 5/16-18 X 1 1/4 Serr. Flange Bolt NB253 5/16-18 X 3/4 Serr. Flange Bolt NB596 Bracket - ON/OFF Switch, Txt Blk 19201* Switch - Toggle 19192 5/16-18 Serr. Flange Nut NB170 Belt Retention Weldment 10767 Engine Pulley Spacer 1.75"...

  • Page 11: Rear Cover Assembly

    REAR COVER ASSEMBLY Item # Description Part # 5/16-18 Serr. Flange Nut NB170 Rear Cover 10679* Anti Reverse Arm 10680* Spacer B99S 5/16-18 X 3/4 Serr. Flange Bolt NB596 HANDLE BAR & LEVER ASSEMBLY Item # Description Part # Lever - Blade Engagement Weldment 19444* Weldment - Handle 21078*...

  • Page 12: Brake Assembly

    BLADE DRIVER ASSEMBLY Item # Description Part # 3/4-16 Jam Nut NB175 1.5x.761x.098x.134 Belleville Washer AS155 Blade Pulley, 5" 20651 Spacer - 3/4 ID x 1 Powder Metal 12823 3/4 ID X 1 1/4 OD 18 GA Washer NB179 Blade Bearing Blade Shaft 6"- Long Shoulder 9078 5/16-18 Serr.

  • Page 13: Mower Deck Assembly

    MOWER DECK ASSEMBLY Item # Description Part # Deck Weldment 10695* PAGE 12 1/4-20 X 3/4 GR5 ZP Bolt NB250 Blade Engagement Cable Clip 10673* 1/4-20 Nyloc Nut NB180 Nut - Serrated Flange 5/16-18 NB170 Deck Side Skid 18512* Bolt - Serrated Flange, 5/16-18 X 3/4 NB596 Brush Guard 10681*...
  • Page 14 2410 TRANSAXLE PULLEY 690 – TRANSAXLE BELT TOP ENGINE PULLEY CONFIGURATION B27 – TRANSAXLE IDLER PULLEY 2411 – TOP ENGINE PULLEY BB105 – LOWER ENGINE PULLEY 20655 – BLADE ENGAGEMENT BELT T30V – V-BELT PULLEY BOTTOM ENGINE PULLEY CONFIGURATION B527 – BLADE IDLER PULLEY BELT CONFIGURATION 20651 –...

  • Page 15: Maintenance Log

    MAINTENANCE LOG Date of Service Service Performed Notes...
  • Page 16 MODEL NO. All cutter parts listed herein may be ordered directly from Swisher or your nearest Swisher dealer. All engine parts may be ordered from the nearest dealer of the engine supplied with your cutter WBRC11524...
